Smart Veterinary ICU
The SuperVet Smart ICU is an innovative solution designed to deliver optimal care for veterinary patients.
Engineered for flexibility and efficiency, it creates an ideal healing environment with state-of-the-art features, intuitive operation, and user-focused design. Key benefits include precise oxygenation, effective CO2 removal, superior temperature control, and enhanced air quality, ensuring comprehensive support for both surgical and non-surgical cases.
With customizable configurations to meet the needs of hospitals of all sizes and budgets, the SuperVet Smart ICU enhances critical care capabilities and provides a valuable new revenue stream for veterinary facilities.
Key Features and Design
- Precise oxygenation and Control
- Automatic CO2 removal and Control(Soda-lime free)
- Temperature control (Heating & Cooling) / Humidity Monitoring
- Enhanced air circulation with Ionization
- 3-in1 lighting system (Daylight, Inspection, Therapy)
- User-Friendly Design

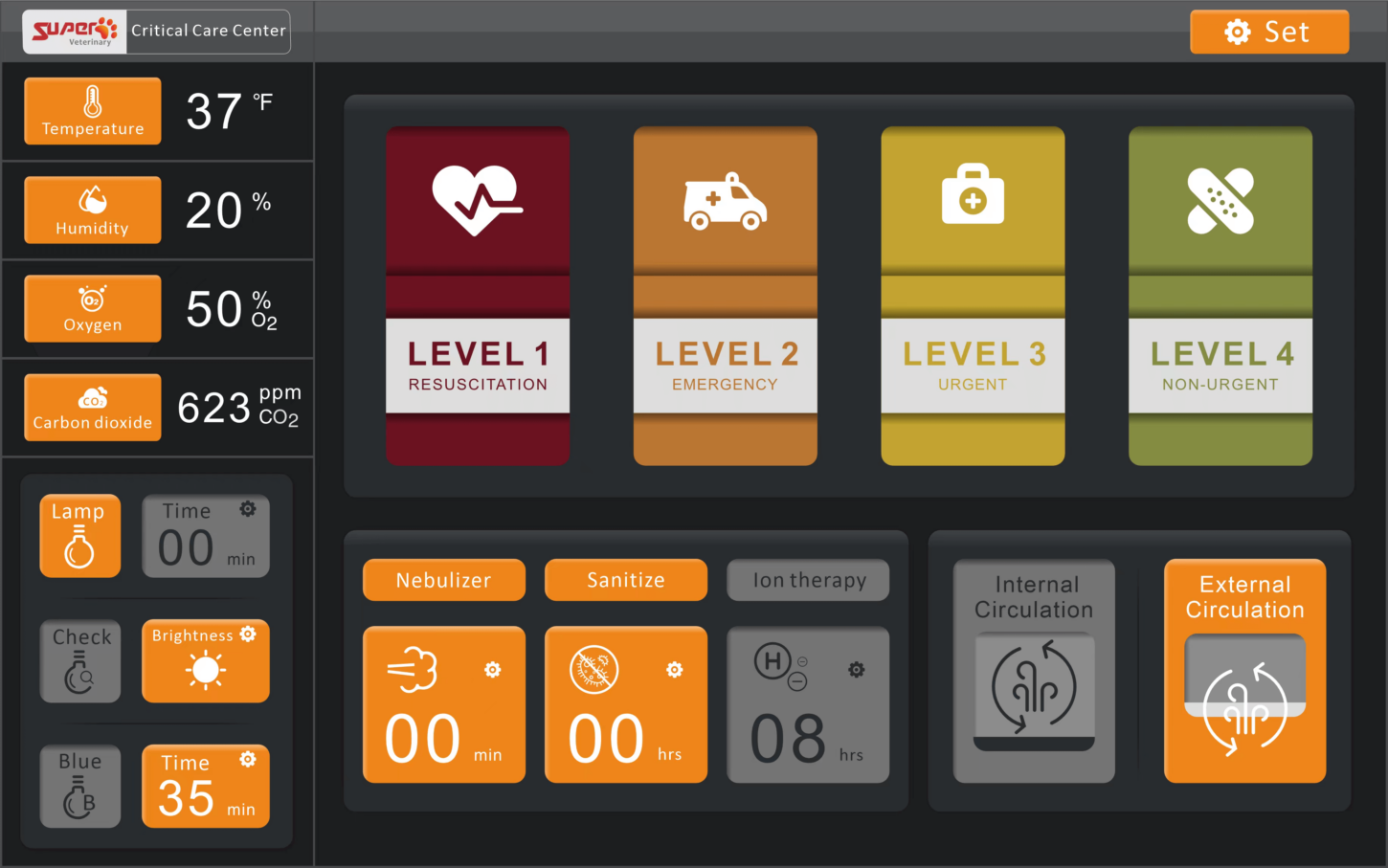

- 10 in LED screen for displaying patient status.
- Built-in nebulizer ports for medication delivery.
- Superior noise reduction and energy efficiency.
- Emergency-Ready Features
- Built-in 30-minute battery backup.
- Durable and Versatile Construction
- Rust-free stainless steel for high-stress environments.
- Dividable chambers available in specific models (C2 and C4).
- Customizable configurations for facilities of all sizes.
-
Key Features and Design
- Precise oxygenation and Control
- Automatic CO2 removal and Control(Soda-lime free)
- Temperature control (Heating & Cooling) / Humidity Monitoring
- Enhanced air circulation with Ionization
- 3-in1 lighting system (Daylight, Inspection, Therapy)
- User-Friendly Design
- 10 in LED screen for displaying patient status.
- Built-in nebulizer ports for medication delivery.
- Superior noise reduction and energy efficiency.
- Emergency-Ready Features
- Built-in 30-minute battery backup.
- Durable and Versatile Construction
- Rust-free stainless steel for high-stress environments.
- Dividable chambers available in specific models (C2 and C4).
- Customizable configurations for facilities of all sizes.
-
Product Highlights
Oxygen Control
Precise and fast Oxygenation and Control
CO2 Management
Advanced air circulation. Soda-lime-free CO2 removal
Temperature Control
Integrated heating and cooling. Humidity monitoring
Air Circulation
Enhanced. Ionization, Purification. Deodorization. Disinfection.
User-Friendly, Durable
Easy to use, convenient accessories, noise reduction, rust-free.
Versatile
Customizable configurations for facilities of all sizes.
Quick Link
Product Highlights
Oxygen Control
Precise and fast Oxygenation and Control
CO2 Management
Advanced air circulation. Soda-lime-free CO2 removal
Temperature Control
Integrated heating and cooling. Humidity monitoring
Air Circulation
Enhanced. Ionization, Purification. Deodorization. Disinfection.
User-Friendly, Durable
Easy to use, convenient accessories, noise reduction, rust-free.
Versatile
Customizable configurations for facilities of all sizes.
Quick Link
The SuperVet Smart ICU is an innovative solution designed to deliver optimal care for veterinary patients.
Engineered for flexibility and efficiency, it creates an ideal healing environment with state-of-the-art features, intuitive operation, and user-focused design. Key benefits include precise oxygenation, effective CO2 removal, superior temperature control, and enhanced air quality, ensuring comprehensive support for both surgical and non-surgical cases.
With customizable configurations to meet the needs of hospitals of all sizes and budgets, the SuperVet Smart ICU enhances critical care capabilities and provides a valuable new revenue stream for veterinary facilities.
Features
Precise Oxygenation and Control
- Oxygen concentration reaches 40% in just 10 minutes.
- Compatible with facility oxygen lines or individual generators.
Automatic CO2 Management
- Advanced external and internal circulation technology
- Soda-lime-free CO2 removal reduces costs and ensures optimal recovery
Temperature Control / Humidity Monitoring
- Integrated air-heating and cooling for patient comfort.
- Humidity monitoring optimized the healing environment.
Enhanced Air Circulation with Ionization
- Continued air purification and deodorization.
- Supports faster healing with improved oxygen uptake and disinfection.
3-in-1 Lighting system

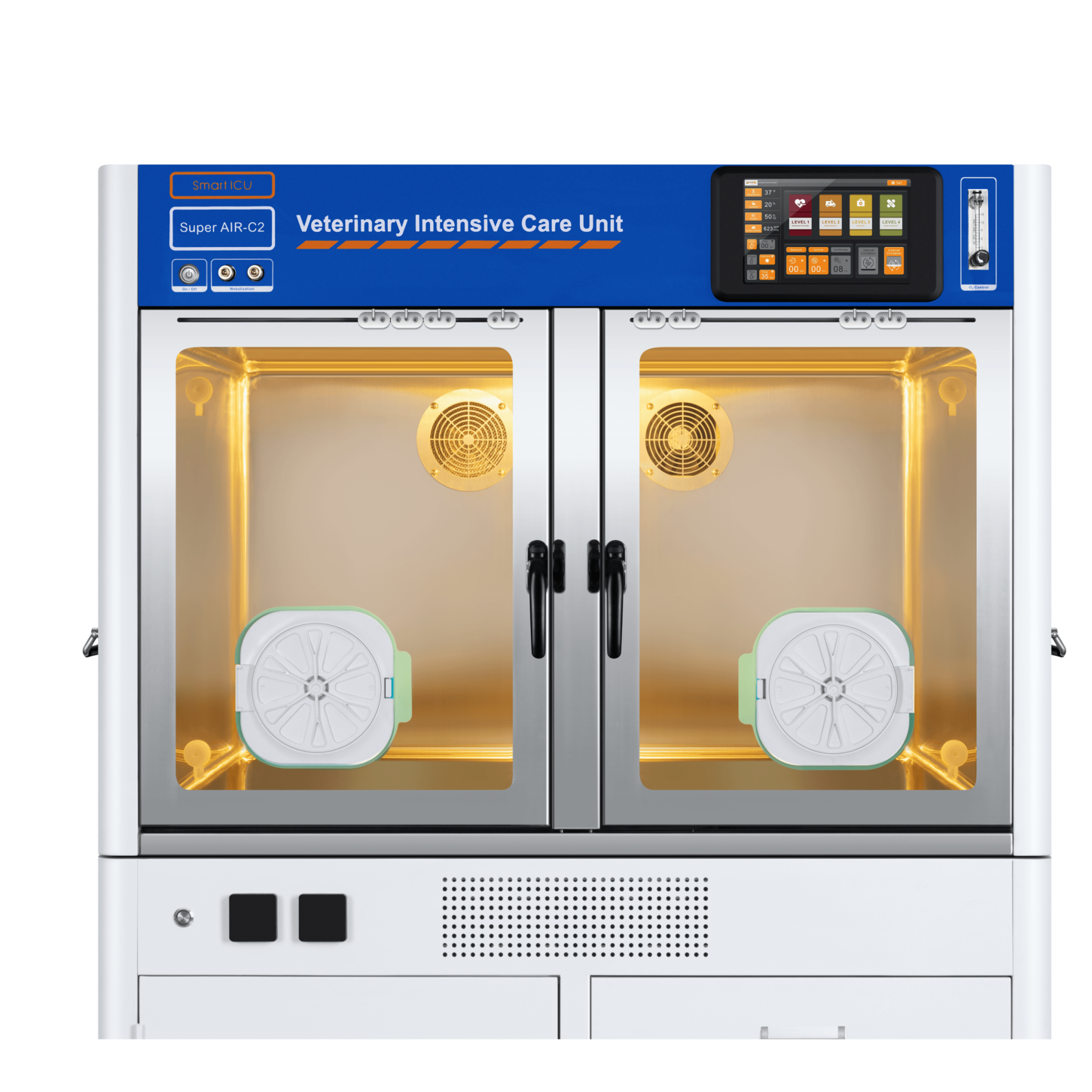

- Warm Light (Lamp): Gentle yellow light for patient comfort.
- Inspection Light (Check): Bright white light for clear visibility.

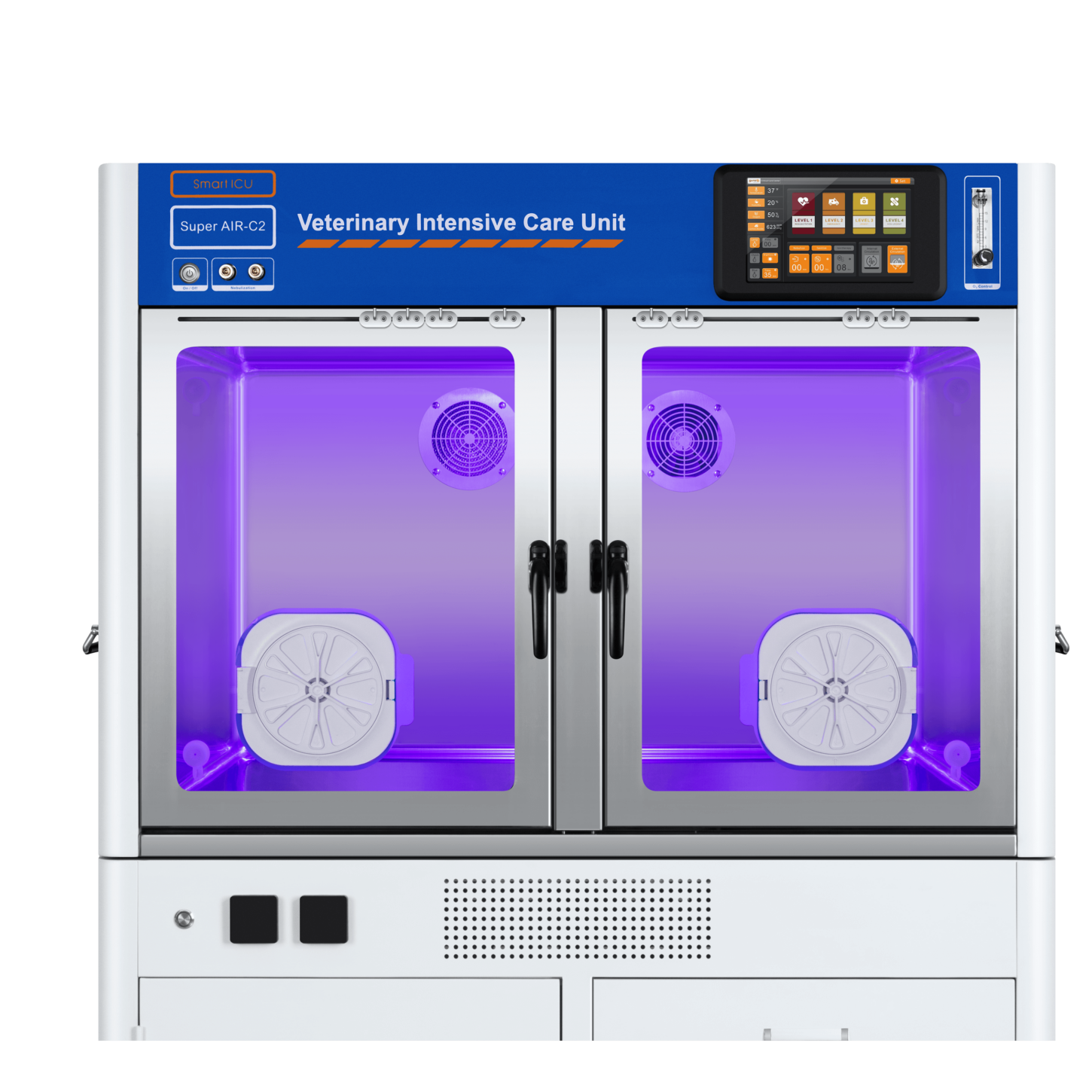

- Therapy Light (Blue): Gentle and safe blue light for accelerated wound healing.
Intuitive design focusing on user experience
User-Friendly Design
- 10 in LED screen for displaying patient status.
- Built-in nebulizer ports for medication delivery.
- Superior noise reduction and energy efficiency.
Emergency-Ready Features
- Built-in 30-minute battery backup.
Durable and Versatile Construction
- Rust-free stainless steel for high-stress environments.
- Dividable chambers available in specific models (C2 and C4).
- Customizable configurations for facilities of all sizes.
Applications
Critical Care
Comprehensive support for critically ill patients
Surgical Recovery
Optimal environment for post-operative healing.
Respiratory Distress
Advanced oxygenation and CO2 management.
Cardiopulmonary Disorders
Support for heart and lung conditions.
Infectious Diseases
Controlled, sanitized environment for isolation and treatment.
Temperature Regulation
Effective management of hypothermia and hyperthermia.
Neonatal Care
Gentle, precise conditions for fragile newborns.
Geriatric Care
Tailored support for aging patients with complex needs.
Many More

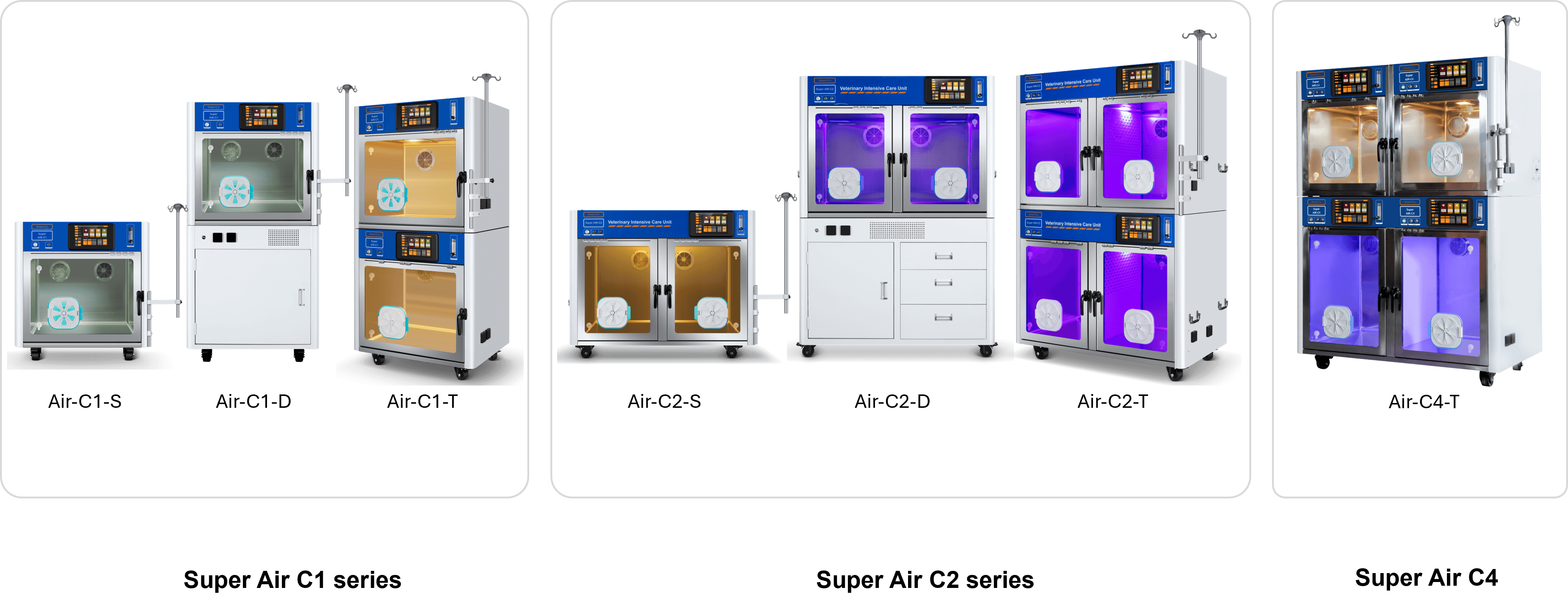

Configurations to fit hospital of all sizes and operations
A wide range configurations for hospitals of all specialties and sizes that accommodates the unique and diverse needs of hospital with different operational requirement and budgetary constraints.
High Return on the Investment
SuperVet Smart ICU represents a valuable new revenue stream for hospitals, recovering their investment in a very short period of time and enhancing their service offerings and attracting new clientele.”
Estimated time to recover the investment : Approximately 3-4 months.

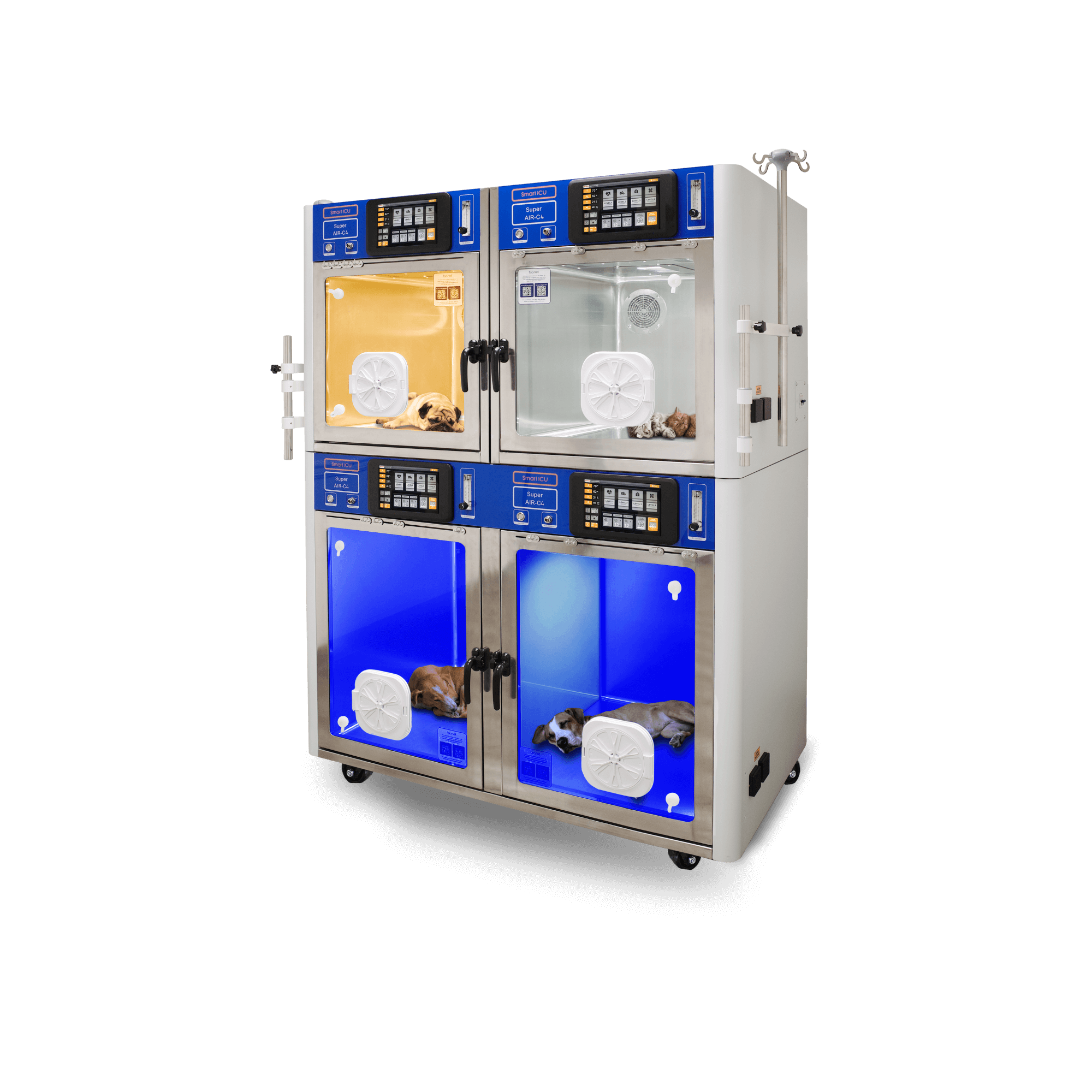

Estimation based on the Air-C4-T, the highest model, moderate patient traffic, 20 working days per month. The actual outcome will vary based on the actual operation of the hospitals.
Sustainable and growing revenue steam for your hospital after recovering the investment.
Common
| wdt_ID | Item | Specification |
|---|---|---|
| 100 | Controller | 10-inch Color LED Touch Screen |
| 101 | O2 Contentration Control Range | 21 – 80%vol. |
| 102 | CO2 Cocentration Monitoring Range | 400 – 2000PPM (± 10PPM) |
| 103 | Temperature Control and Range | Air-conditioner for AIR heating and cooling / 59 – 99°F |
| 104 | Humidity Monitoring Range | 55 – 75%RH |
| 105 | Nebulization | Timer 1 – 60min (adjustable) Maximum atomization rate = 0.2mI/min Mist particles (0.5 – 2um) Noise ≤ 40dB(A) |
| 106 | Inspection Lighting (White/Check) | Timer, 1 – 60min, adjustable by min / Brightness, 3 levels |
| 107 | Warm Lighting (Yellow/Lamp) | Timer, 1 – 60min, adjustable by min / Brightness, 3 levels |
| 108 | Therapy Lighting (Blue) | Timer, 60 – 600min, adjustable by hour / Brightness, 3 levels 415nm blue light Inhibits the growth of bacteria and reduces skin inflammation |
| 109 | Operational Temperature | 14 – 104°F room temperature |
| 110 | Power Supply Voltage | AC 100 ~ 120, 50/60Hz |
| 111 | Backup Battery | 6000mAH / (approx. 30 minutes) |
| 112 | Power Consumption | 300W (typical) / 600W (max) |
| 113 | Main Material | 304 Stainless Steel |
Model-Specific

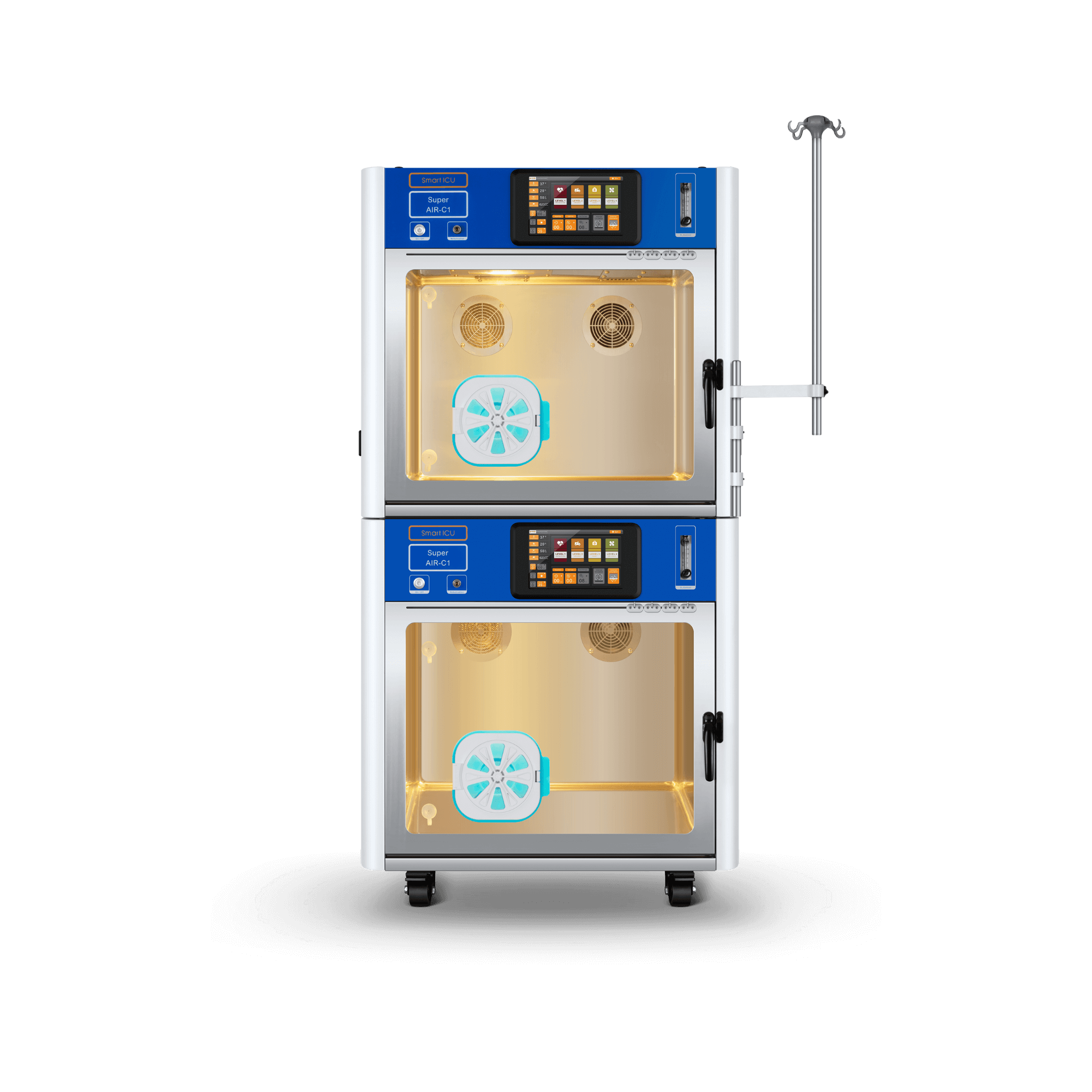

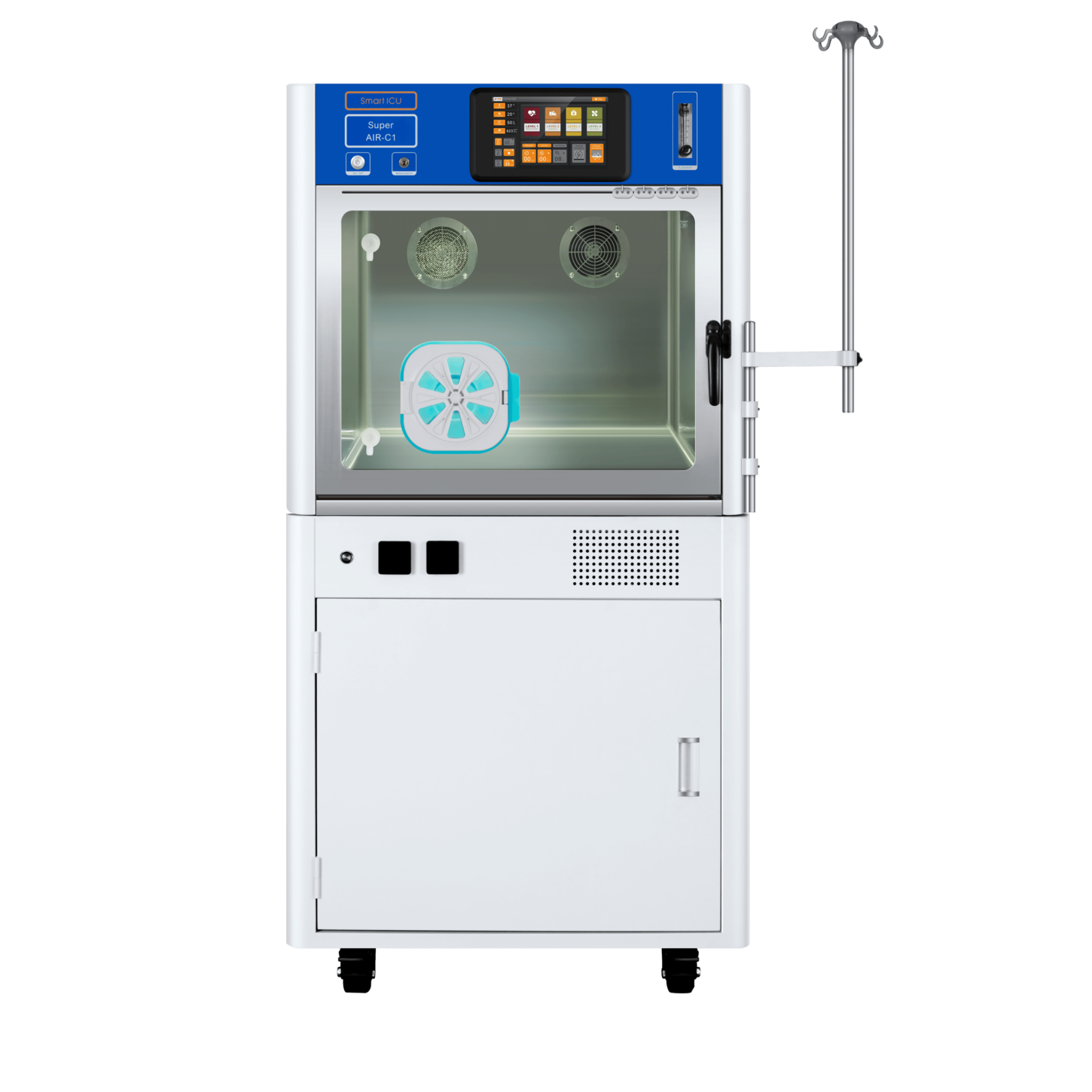

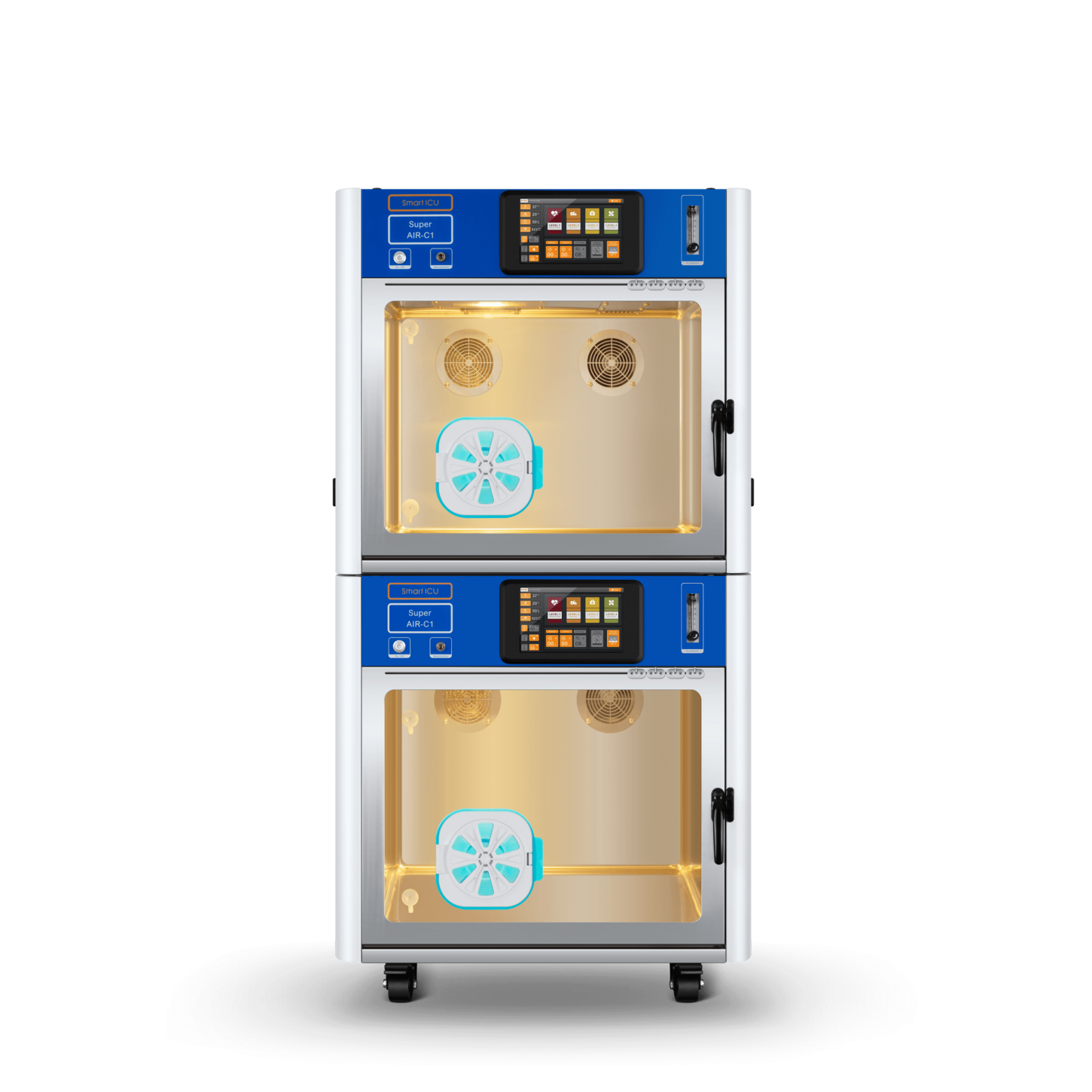

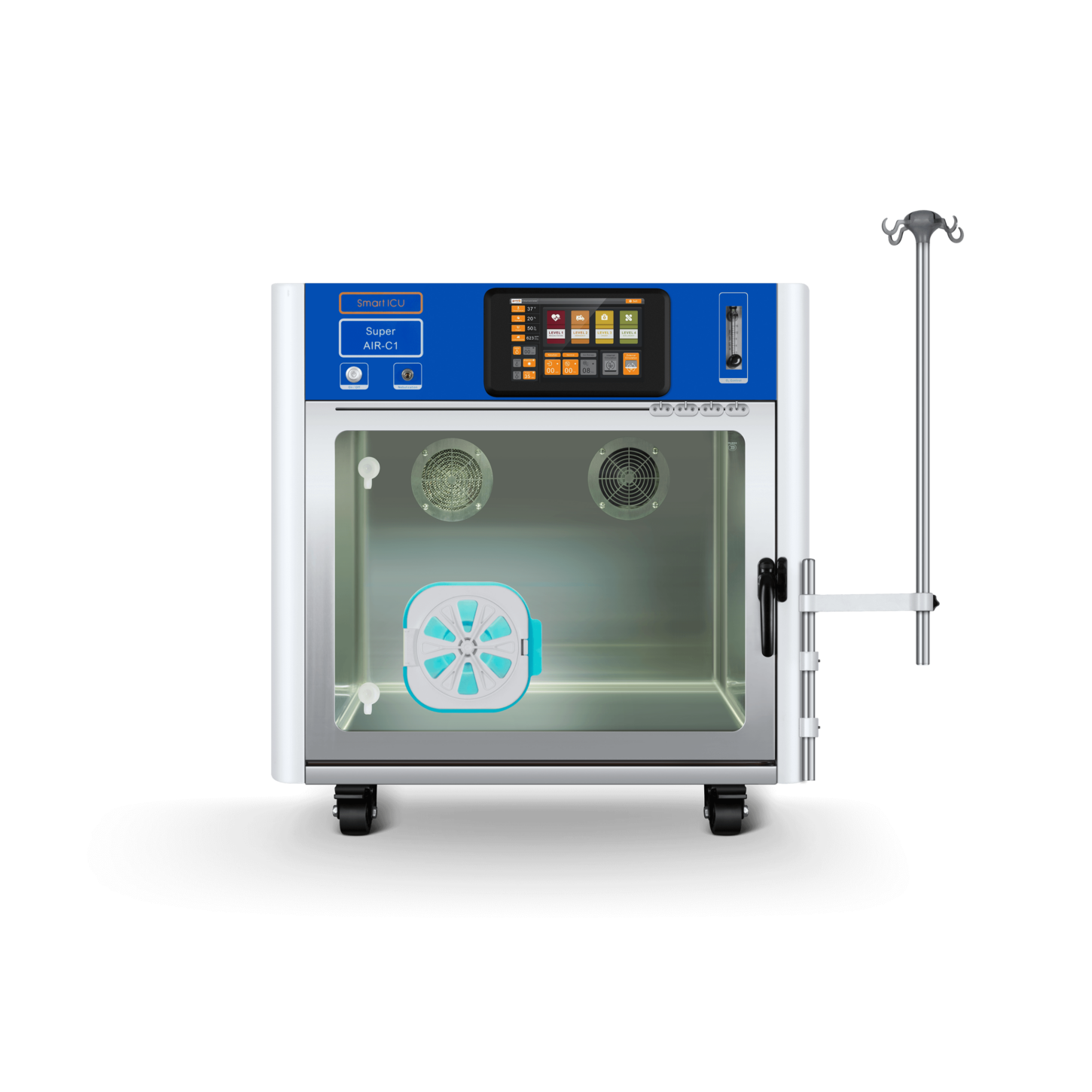

Super Air-C1-S, Super Air-C1-D, Super Air-C1-T
| wdt_ID | Item | Specification |
|---|---|---|
| 100 | Chamber and internal dimensions | Air-C1-S: 1 Chamber / 27.2”W x 19.5”D x 20.5”H Air-C1-D: 1 Chamber / 27.2”W x 19.5”D x 20.5”H Air-C1-T: 2 Chambers / 27.2”W x 19.5”D x 20.5”H (each) |
| 101 | Controller | Air-C1-S: 1 Controller Air-C1-D: 1 Controller Air-C1-T: 2 Controllers |
| 102 | Nebulizer Port | Air-C1-S: 1 Port Air-C1-D: 1 Port Air-C1-T: 2 Ports |
| 103 | Stand(Stroage) | Air-C1-S: No Air-C1-D: Yes Air-C1-T: No |
| 104 | External Dimension | Air-C1-S: 34.8”W x 30.3”D x 35.8”H Air-C1-D: 34.8”W x 30.3”D x 67.6”H (Including Stand) Air-C1-T: 34.8”W x 30.3”D x 67.6”H |
| 114 | Max Power Outlet Capacity (Total) | 600W (C1-S & C1-D) / 600W + 600W (C1-T) |

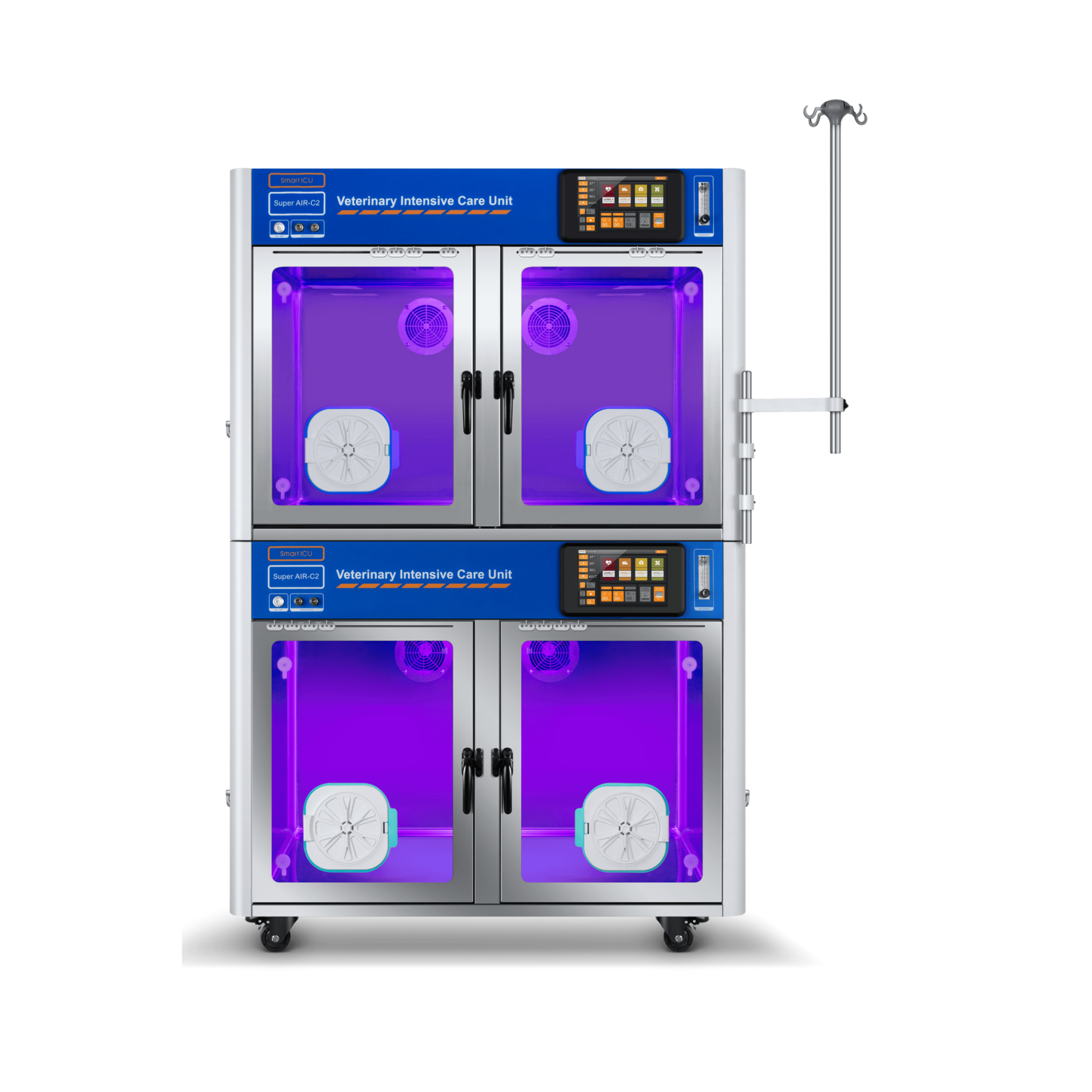

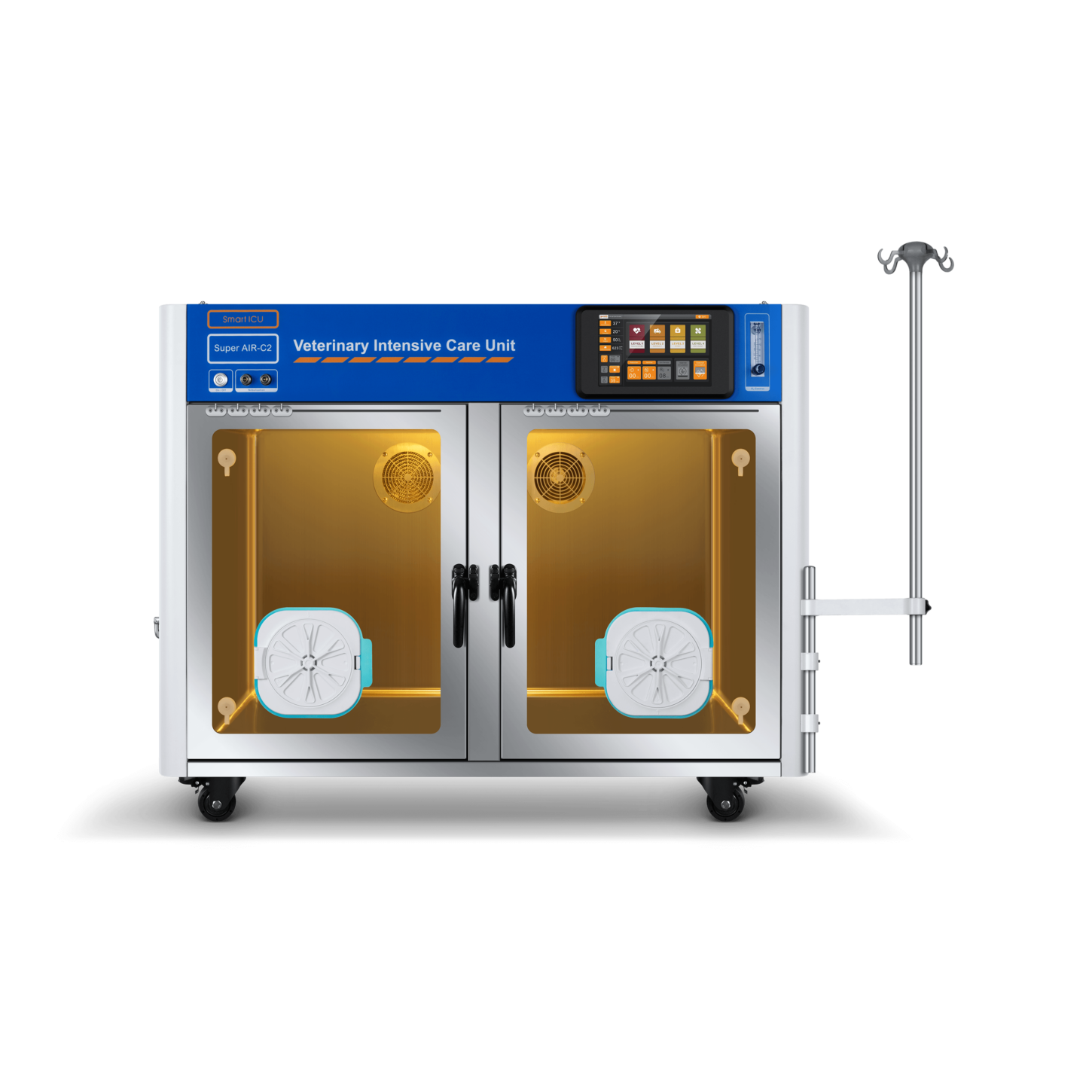

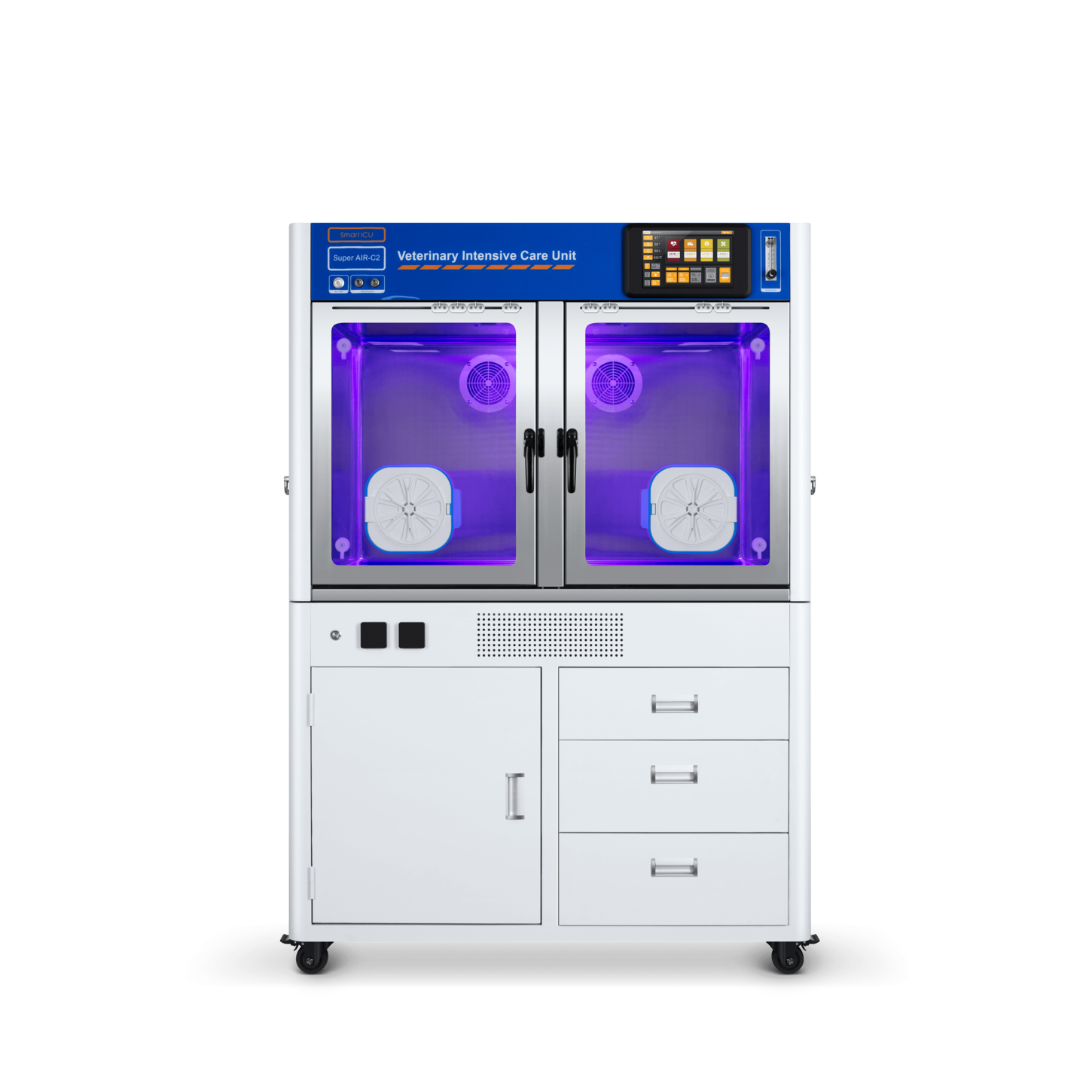

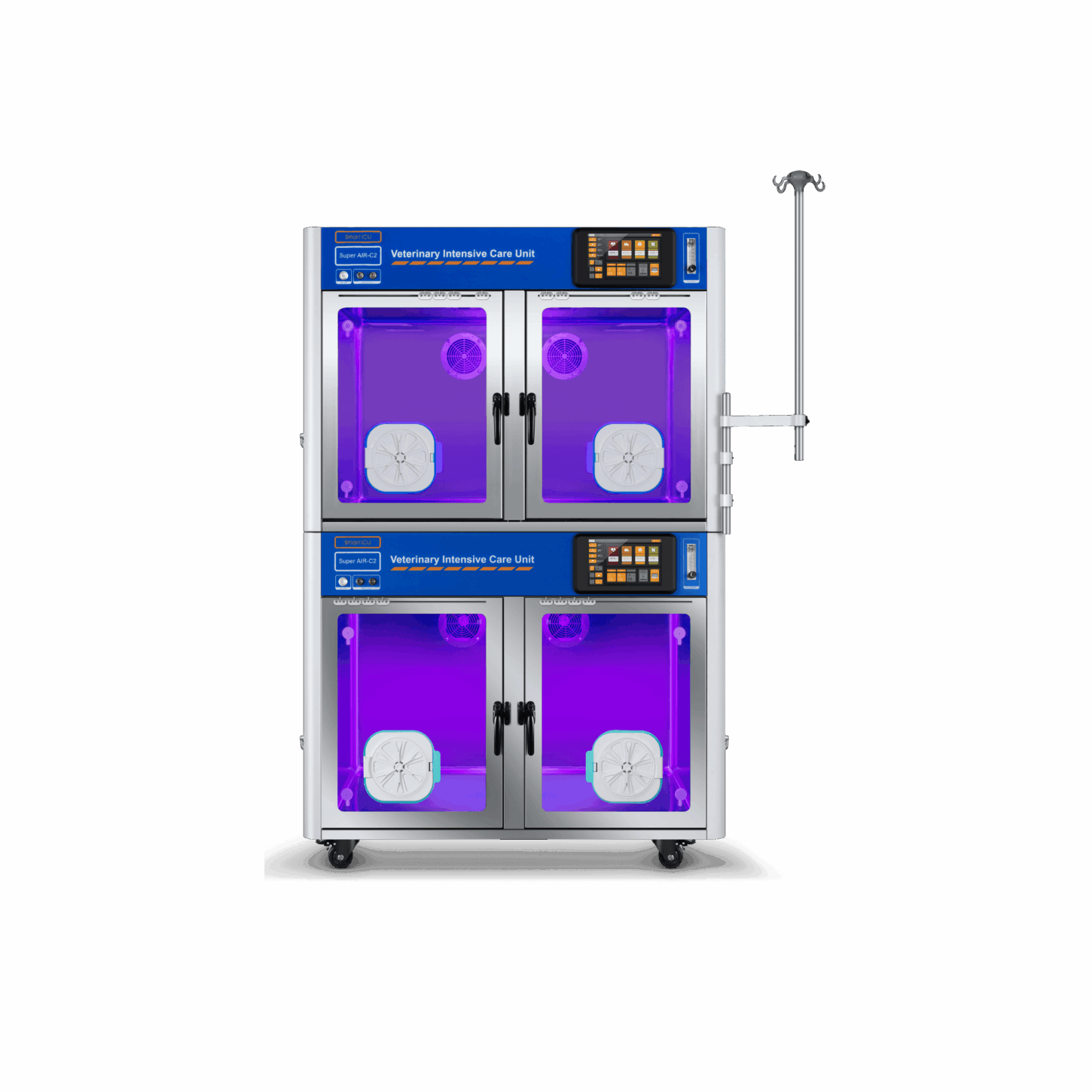

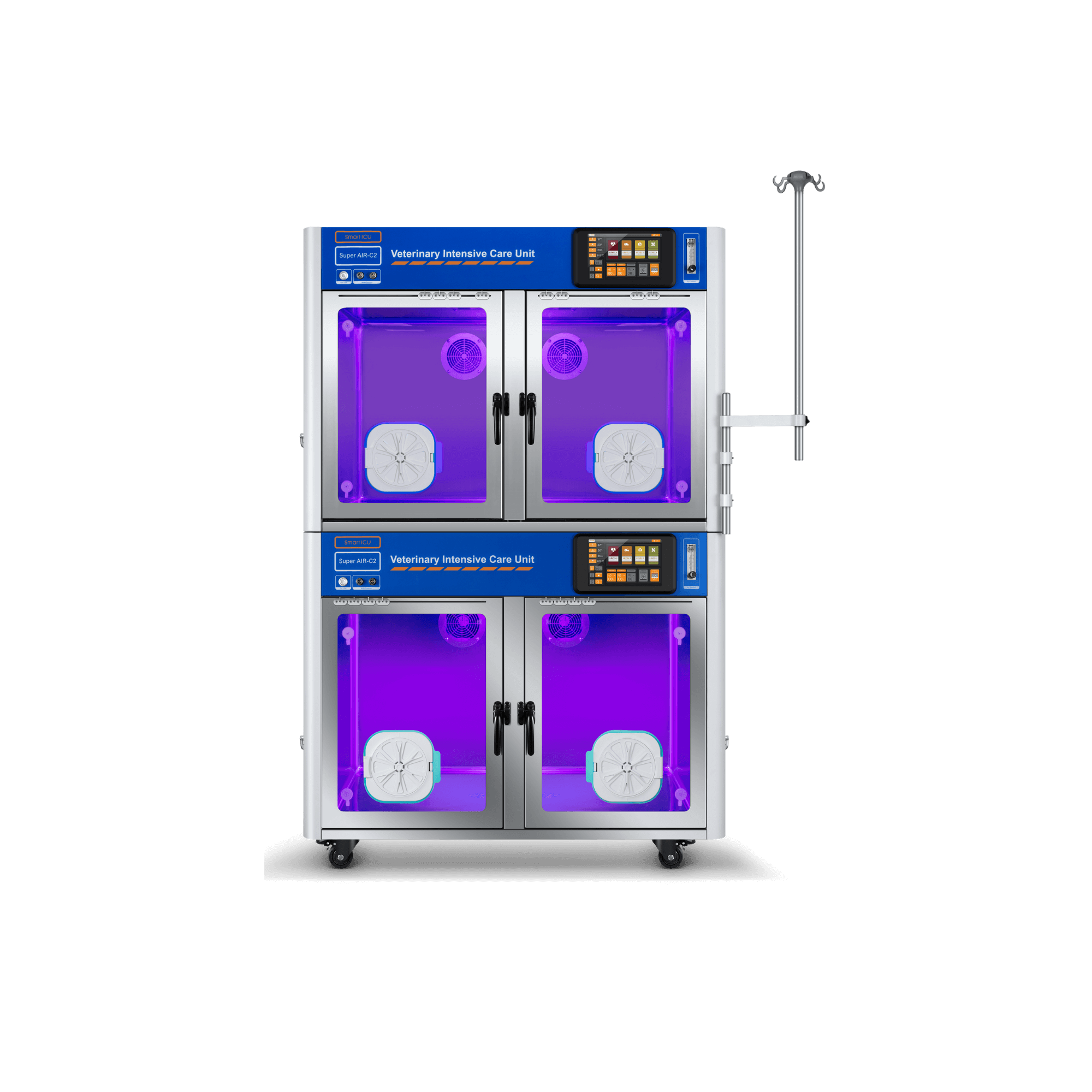

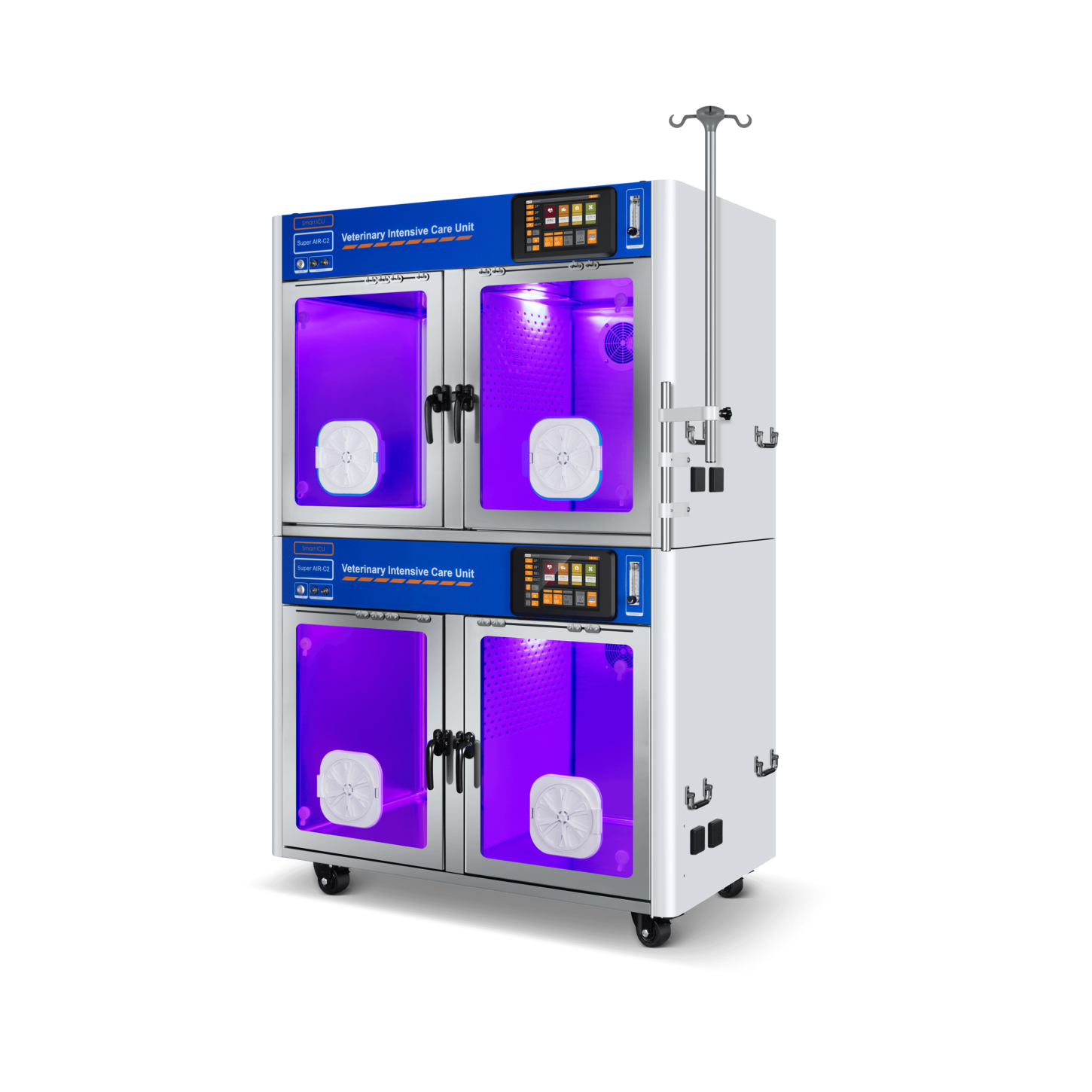

Super Air-C2-S, Super Air-C2-D, Super Air-C2-T
| wdt_ID | Item | Specification |
|---|---|---|
| 100 | Chamber and internal dimensions | Air-C2-S: 1 Chamber / 42.0”W x 24.6”D x 24.0”H / Dividable Air-C2-D: 1 Chamber / 42.0”W x 24.6”D x 24.0”H / Dividable Air-C2-T: 2 Chambers / 42.0”W x 24.6”D x 24.0”H / Dividable (each) |
| 101 | Controller | Air-C2-S: 1 Controller Air-C2-D: 1 Controller Air-C2-T: 2 Controllers |
| 102 | Nebulizer port | Air-C2-S: 2 Ports Air-C2-D: 2 Ports Air-C2-T: 4 Ports |
| 103 | Stand(Stroage) | Air-C2-S: No Air-C2-D: Yes Air-C2-T: No |
| 104 | External dimensions | Air-C2-S: 49.3”W x 34.8”D x 39.0”H Air-C2-D: 49.3”W x 34.8”D x 74.2”H (Including Stand) Air-C2-T: 49.3”W x 34.8”D x 74.2”H |
| 105 | Max Power Outlet Capacity (Total) | 600W (C2-S & C2-D) / 600W + 600W (C2-T) |
Super Air-C4
| wdt_ID | Item | Specification |
|---|---|---|
| 100 | Chamber and inetrnal dimensions | 3 Chambers Upper: 2 Chambers / 21.5”W x 28.0”D x 20.4”H / Each Lower: 1 Chamber / 47.9”W x 28.0”D x 28.3”H / Dividable |
| 101 | Controller | 4 Controllers |
| 102 | Nebulizer port | 4 ports |
| 103 | Stand(Stroage) | No |
| 104 | External dimensions | 55.2”W x 34.8”D x 75.4”H |
| 105 | Max Power Outlet Capacity (Total) | 600W + 600W + 600W |
* Specifications can be changed without prior notification.
| Item Code | Item Description | ||
|---|---|---|---|
| wdt_ID | Item Image | Item Code | Item Description |
| 1 |
|
Tube_Assbly | 3-Way Tube Set for an Oxygen Generator to support C1-Twins and C2-Twins |
| 2 |
|
Front_Curtain_C1 | Front Door Curtain for C1, 1 PC |
| 3 |
|
Front_Curtain_C2 | Front Door Curtain for C2, 1 PC |
| 4 |
|
Front_Curtain_C4 | Front Door Curtain for C4, 1 PC |
| 5 |
|
DISS_Adapter | Oxygen Supply Line Adapter with DISS (male) Connector |
| 6 |
|

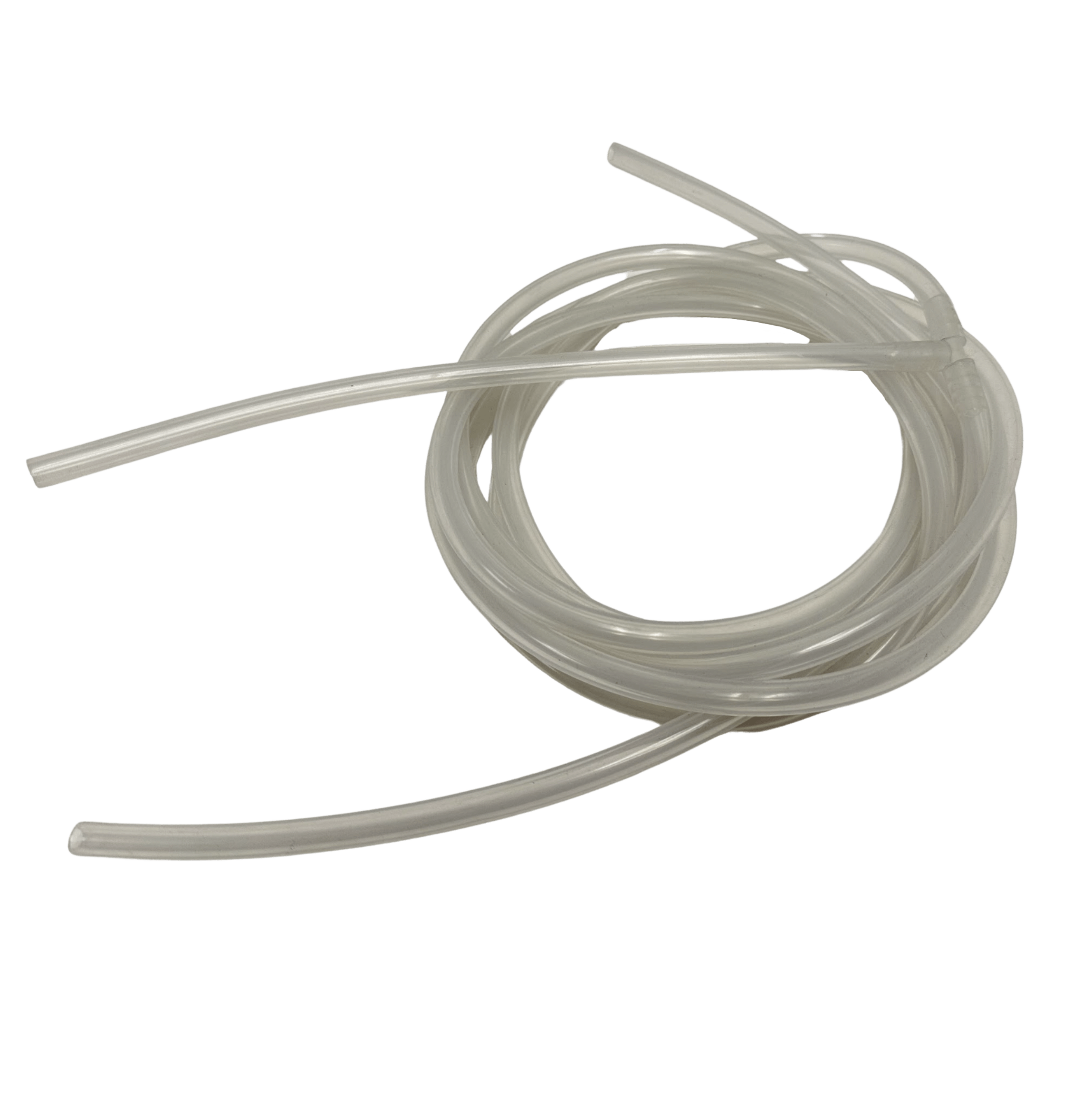

Drain_Tube | Drainage tube for Air Conditioner, Silicone, 1.5m |
| 7 |
|
GasTube_O2 | Oxygen Supply Line for Super Air Gas Inlet, PU, 1.5m |
| 8 |
|
Mounting_Pole | Mounting Pole Assembly for IV Bag |
| 9 |
|
Nebulizer_set | Nubulizer and attachment accessories w/2 Port adapters |
| 10 |
|
Silicon_HoleCap | Dual-hole Silicone Cap for the front doors |
| 11 |
|
Wheel_ICU | Wheel for Super Air unit, 1PC |
Smart Veterinary ICU – Introduction and Walkthrough
- Overview
-
The SuperVet Smart ICU is an innovative solution designed to deliver optimal care for veterinary patients.
Engineered for flexibility and efficiency, it creates an ideal healing environment with state-of-the-art features, intuitive operation, and user-focused design. Key benefits include precise oxygenation, effective CO2 removal, superior temperature control, and enhanced air quality, ensuring comprehensive support for both surgical and non-surgical cases.
With customizable configurations to meet the needs of hospitals of all sizes and budgets, the SuperVet Smart ICU enhances critical care capabilities and provides a valuable new revenue stream for veterinary facilities.
Features
Precise Oxygenation and Control
- Oxygen concentration reaches 40% in just 10 minutes.
- Compatible with facility oxygen lines or individual generators.
Automatic CO2 Management
- Advanced external and internal circulation technology
- Soda-lime-free CO2 removal reduces costs and ensures optimal recovery
Temperature Control / Humidity Monitoring
- Integrated air-heating and cooling for patient comfort.
- Humidity monitoring optimized the healing environment.
Enhanced Air Circulation with Ionization
- Continued air purification and deodorization.
- Supports faster healing with improved oxygen uptake and disinfection.
3-in-1 Lighting system
- Warm Light (Lamp): Gentle yellow light for patient comfort.
- Inspection Light (Check): Bright white light for clear visibility.
- Therapy Light (Blue): Gentle and safe blue light for accelerated wound healing.
Intuitive design focusing on user experience
User-Friendly Design
- 10 in LED screen for displaying patient status.
- Built-in nebulizer ports for medication delivery.
- Superior noise reduction and energy efficiency.
Emergency-Ready Features
- Built-in 30-minute battery backup.
Durable and Versatile Construction
- Rust-free stainless steel for high-stress environments.
- Dividable chambers available in specific models (C2 and C4).
- Customizable configurations for facilities of all sizes.
Applications
Critical Care
Comprehensive support for critically ill patientsSurgical Recovery
Optimal environment for post-operative healing.Respiratory Distress
Advanced oxygenation and CO2 management.Cardiopulmonary Disorders
Support for heart and lung conditions.Infectious Diseases
Controlled, sanitized environment for isolation and treatment.Temperature Regulation
Effective management of hypothermia and hyperthermia.Neonatal Care
Gentle, precise conditions for fragile newborns.Geriatric Care
Tailored support for aging patients with complex needs.Many More
Configurations to fit hospital of all sizes and operations
A wide range configurations for hospitals of all specialties and sizes that accommodates the unique and diverse needs of hospital with different operational requirement and budgetary constraints.
High Return on the Investment
SuperVet Smart ICU represents a valuable new revenue stream for hospitals, recovering their investment in a very short period of time and enhancing their service offerings and attracting new clientele.”
Estimated time to recover the investment : Approximately 3-4 months.
Estimation based on the Air-C4-T, the highest model, moderate patient traffic, 20 working days per month. The actual outcome will vary based on the actual operation of the hospitals.
Sustainable and growing revenue steam for your hospital after recovering the investment.
- Specifications
-
Common
wdt_ID Item Specification 100 Controller 10-inch Color LED Touch Screen 101 O2 Contentration Control Range 21 – 80%vol. 102 CO2 Cocentration Monitoring Range 400 – 2000PPM (± 10PPM) 103 Temperature Control and Range Air-conditioner for AIR heating and cooling / 59 – 99°F 104 Humidity Monitoring Range 55 – 75%RH 105 Nebulization Timer 1 – 60min (adjustable)
Maximum atomization rate = 0.2mI/min
Mist particles (0.5 – 2um)
Noise ≤ 40dB(A)106 Inspection Lighting (White/Check) Timer, 1 – 60min, adjustable by min / Brightness, 3 levels 107 Warm Lighting (Yellow/Lamp) Timer, 1 – 60min, adjustable by min / Brightness, 3 levels 108 Therapy Lighting (Blue) Timer, 60 – 600min, adjustable by hour / Brightness, 3 levels
415nm blue light Inhibits the growth of bacteria and reduces skin inflammation109 Operational Temperature 14 – 104°F room temperature 110 Power Supply Voltage AC 100 ~ 120, 50/60Hz 111 Backup Battery 6000mAH / (approx. 30 minutes) 112 Power Consumption 300W (typical) / 600W (max) 113 Main Material 304 Stainless Steel Model-Specific
Super Air-C1-S, Super Air-C1-D, Super Air-C1-T
wdt_ID Item Specification 100 Chamber and internal dimensions Air-C1-S: 1 Chamber / 27.2”W x 19.5”D x 20.5”H
Air-C1-D: 1 Chamber / 27.2”W x 19.5”D x 20.5”H
Air-C1-T: 2 Chambers / 27.2”W x 19.5”D x 20.5”H (each)101 Controller Air-C1-S: 1 Controller
Air-C1-D: 1 Controller
Air-C1-T: 2 Controllers102 Nebulizer Port Air-C1-S: 1 Port
Air-C1-D: 1 Port
Air-C1-T: 2 Ports103 Stand(Stroage) Air-C1-S: No
Air-C1-D: Yes
Air-C1-T: No104 External Dimension Air-C1-S: 34.8”W x 30.3”D x 35.8”H
Air-C1-D: 34.8”W x 30.3”D x 67.6”H (Including Stand)
Air-C1-T: 34.8”W x 30.3”D x 67.6”H114 Max Power Outlet Capacity (Total) 600W (C1-S & C1-D) / 600W + 600W (C1-T) Super Air-C2-S, Super Air-C2-D, Super Air-C2-T
wdt_ID Item Specification 100 Chamber and internal dimensions Air-C2-S: 1 Chamber / 42.0”W x 24.6”D x 24.0”H / Dividable
Air-C2-D: 1 Chamber / 42.0”W x 24.6”D x 24.0”H / Dividable
Air-C2-T: 2 Chambers / 42.0”W x 24.6”D x 24.0”H / Dividable (each)101 Controller Air-C2-S: 1 Controller
Air-C2-D: 1 Controller
Air-C2-T: 2 Controllers102 Nebulizer port Air-C2-S: 2 Ports
Air-C2-D: 2 Ports
Air-C2-T: 4 Ports103 Stand(Stroage) Air-C2-S: No
Air-C2-D: Yes
Air-C2-T: No104 External dimensions Air-C2-S: 49.3”W x 34.8”D x 39.0”H
Air-C2-D: 49.3”W x 34.8”D x 74.2”H (Including Stand)
Air-C2-T: 49.3”W x 34.8”D x 74.2”H105 Max Power Outlet Capacity (Total) 600W (C2-S & C2-D) / 600W + 600W (C2-T) Super Air-C4
wdt_ID Item Specification 100 Chamber and inetrnal dimensions 3 Chambers
Upper: 2 Chambers / 21.5”W x 28.0”D x 20.4”H / Each
Lower: 1 Chamber / 47.9”W x 28.0”D x 28.3”H / Dividable101 Controller 4 Controllers 102 Nebulizer port 4 ports 103 Stand(Stroage) No 104 External dimensions 55.2”W x 34.8”D x 75.4”H 105 Max Power Outlet Capacity (Total) 600W + 600W + 600W * Specifications can be changed without prior notification.
- Accessories
-
Item Code Item Description wdt_ID Item Image Item Code Item Description 1
Tube_Assbly 3-Way Tube Set for an Oxygen Generator to support C1-Twins and C2-Twins 2
Front_Curtain_C1 Front Door Curtain for C1, 1 PC 3 Front_Curtain_C2 Front Door Curtain for C2, 1 PC 4 Front_Curtain_C4 Front Door Curtain for C4, 1 PC 5
DISS_Adapter Oxygen Supply Line Adapter with DISS (male) Connector 6
Drain_Tube Drainage tube for Air Conditioner, Silicone, 1.5m 7
GasTube_O2 Oxygen Supply Line for Super Air Gas Inlet, PU, 1.5m 8
Mounting_Pole Mounting Pole Assembly for IV Bag 9
Nebulizer_set Nubulizer and attachment accessories w/2 Port adapters 10
Silicon_HoleCap Dual-hole Silicone Cap for the front doors 11
Wheel_ICU Wheel for Super Air unit, 1PC - Videos
-
Smart Veterinary ICU – Introduction and Walkthrough
