Dual Gas Sensor
EtCO2 and Anesthetic Gas Monitoring Module

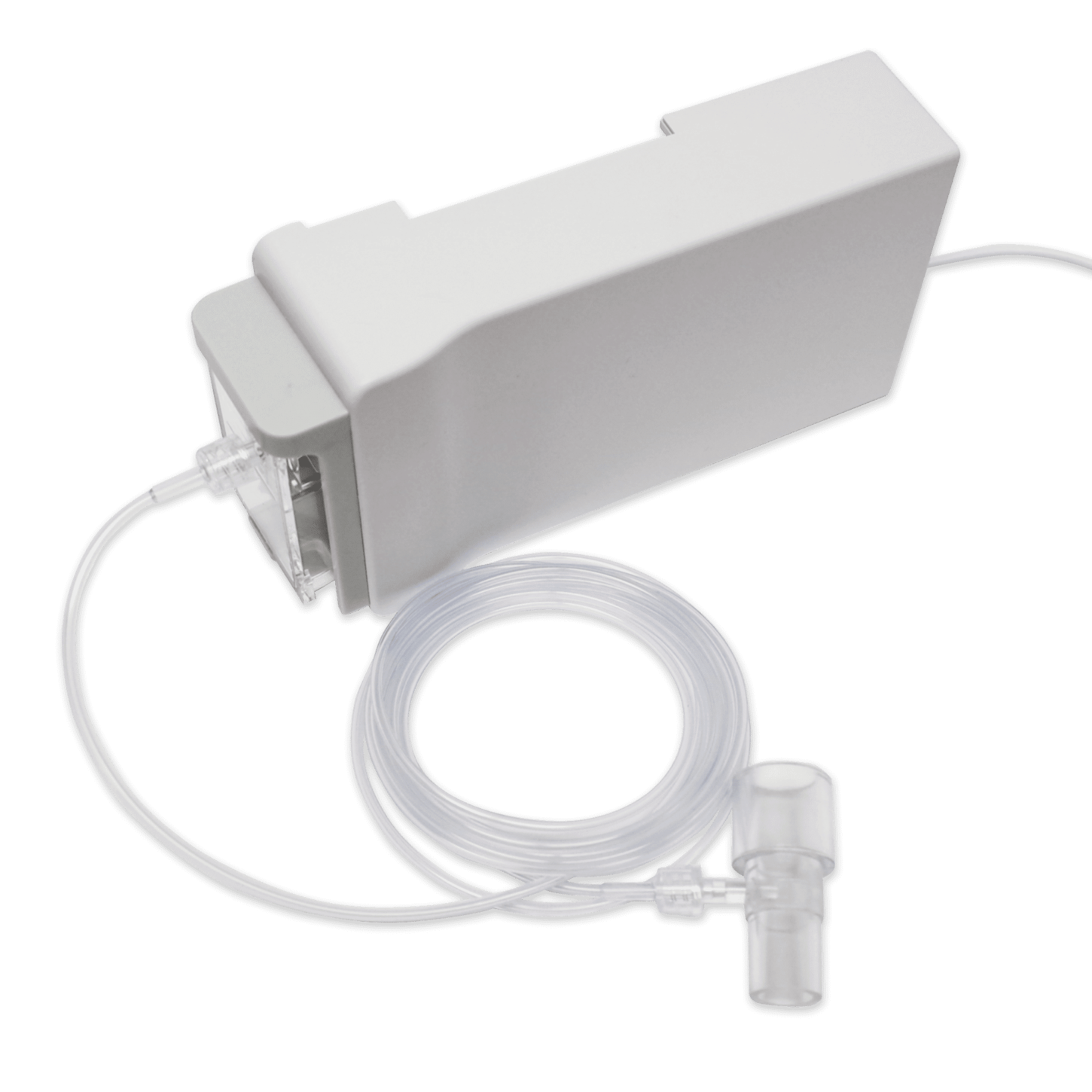

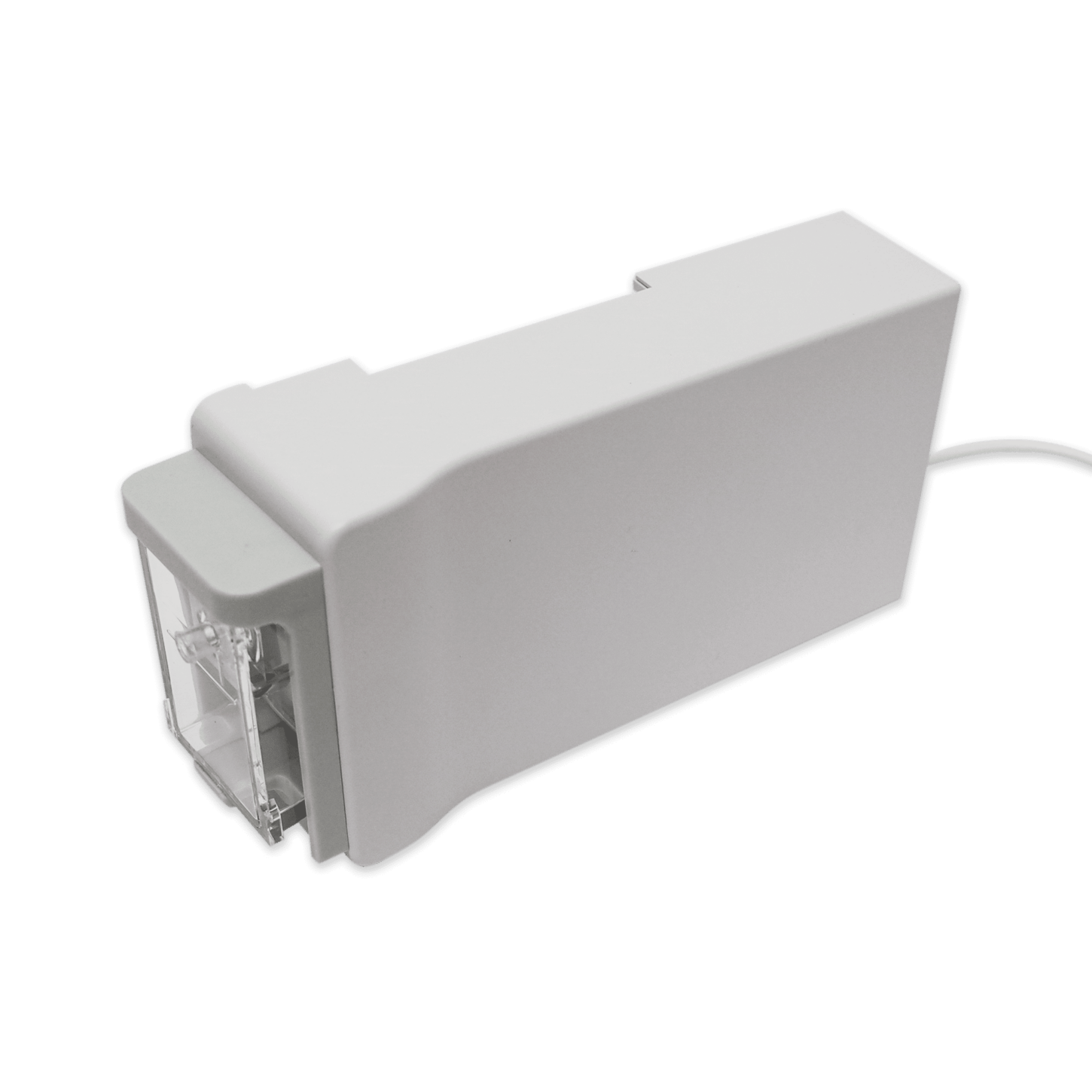

The Dual Gas module is a sidestream multi-gas analyzer measuring end-tidal carbon dioxide (EtCO2) and one of the 3 anesthetic agents (isoflurane, sevoflurane, and desflurane) with manual selection of the specific agent type. The Dual Gas parameter window shows the concentration of EtCO2 and a selected anesthetic agent, respiration rate, and MAC (Minimum Alveolar Concentration). The Dual Gas module is designed for plug-and-play with the Bionet Brio XVet Series (Brio X3Vet / Brio X5Vet / Brio X7Vet), BM Vet Elite Series (BM3Vet Elite / BM5Vet Elite / BM7Vet Elite), BM Vet Pro Series (BM3Vet Pro / BM5Vet Pro / BM7Vet Pro), BM3Vet Touch, and BM7Vet Monitors.
The Dual Gas module is a sidestream multi-gas analyzer measuring end-tidal carbon dioxide (EtCO2) and one of the 3 anesthetic agents (isoflurane, sevoflurane, and desflurane) with manual selection of the specific agent type. The Dual Gas parameter window shows the concentration of EtCO2 and a selected anesthetic agent, respiration rate, and MAC (Minimum Alveolar Concentration). The Dual Gas module is designed for plug-and-play with the Bionet Brio XVet Series (Brio X3Vet / Brio X5Vet / Brio X7Vet), BM Vet Elite Series (BM3Vet Elite / BM5Vet Elite / BM7Vet Elite), BM Vet Pro Series (BM3Vet Pro / BM5Vet Pro / BM7Vet Pro), BM3Vet Touch, and BM7Vet Monitors.
Product Highlights
3 Major Anesthetic Agents
Isoflurane, sevoflurane, and desflurane
Sidestream
Gives a Sidestream EtCO2 reading
Add On
Works with BM Vet Series and GA3Vet monitors
No Calibration
Unit is self calibrating
Plug and Play
Ready for use
Warranty
2 year warranty
Quick Link
Product Highlights
3 Major Anesthetic Agents
Isoflurane, sevoflurane, and desflurane
Sidestream
Gives a Sidestream EtCO2 reading
Add On
Works with BM Vet Series and GA3Vet monitors
No Calibration
Unit is self calibrating
Plug and Play
Ready for use
Warranty
2 year warranty
Quick Link
The Dual Gas module is a sidestream multi-gas analyzer measuring end-tidal carbon dioxide (EtCO2) and one of the 3 anesthetic agents (isoflurane, sevoflurane, and desflurane) with manual selection of the specific agent type. The Dual Gas parameter window shows the concentration of EtCO2 and a selected anesthetic agent, respiration rate, and MAC (Minimum Alveolar Concentration). The Dual Gas module is designed for plug-and-play with the Bionet Brio XVet Series (Brio X3Vet / Brio X5Vet / Brio X7Vet), BM Vet Elite Series (BM3Vet Elite / BM5Vet Elite / BM7Vet Elite), BM Vet Pro Series (BM3Vet Pro / BM5Vet Pro / BM7Vet Pro), BM3Vet Touch, and BM7Vet Monitors.
Measuring Gases
- EtCO2
- Isoflurane
- Sevoflurane
- Desflurane

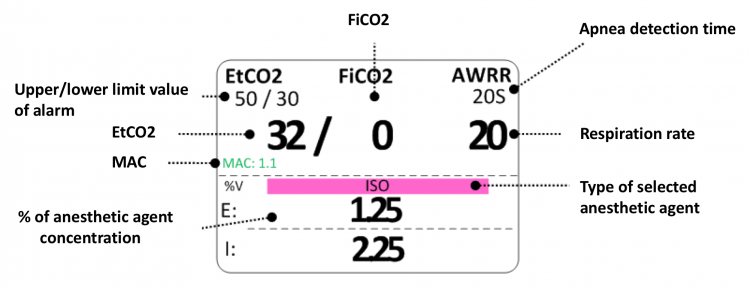

Parameters
- EtCO2: Display of concentration value of carbon dioxide during expiration
- FiCO2: Display of concentration value of carbon dioxide during inspiration
- AWRR: Airway Respiration Rate. Display of the number of respirations per minute
- Upper/lower limit value of alarm: Display of alarm setting range value for the concentration of EtCO2
- Apnea detection time: Display of apnea setting time in second unit
- % of anesthetic agent concentration: Display of concentration value of anesthetic agent during inspiration and expiration under mechanically ventilated general anesthesia.
- MAC: Minimum Alveolar Concentration of a gas at which 50% of subjects do not respond to surgical incision – MAC is a population average; not a true predictor of an individual’s response
Benefits of anesthetic gas monitoring
- An alarm will sound if the values are out of range, while simultaneously monitoring CO2 and anesthetic gas.
- Monitor the anesthesia maintenance through MAC parameter.
- May help prevent overdose of anesthetic gas.
- Monitor anesthetic gas concentration to help ensure proper functioning of your vaporizer.
- Records anesthetic gas volume from procedure.
Superior Advantages and Features
- Low cost, durable, and proven sidestream technology that accurately measures both EtCO2 and the concentration of the anesthetic agent (3 different anesthetic agents selectable).
- 30 seconds warm-up time upon system initiation, and offers fast response time.
- Infrared (IR) light source with optical bandpass filtering technology allows the Dual Gas system to be free from frequent or routine high calibration (gain calibration) procedures using calibration gas, eliminating routine hustle of conducting system calibration to maintain accurate performance.
- Zero calibration ensures the system performs accurately regardless of environment.
- Proprietary advanced pneumatics and filtering system offer the highest protection and safety of the system in the sidestream technology.
- Large Water Trap filtering system allows the Dual Gas system to continually run without the need to frequently change the water trap, even in highly moisturized situations. Many other systems use moisture-absorbing filters, which require frequent filter changes.
- Water level detection feature helps prevent excess moisture for safer operation.
- Provides EtCO2, FiCO2, Respiration Rate, Anesthetic Agent Concentraion, and MAC (Minimum Alveolar Concentration) parameters

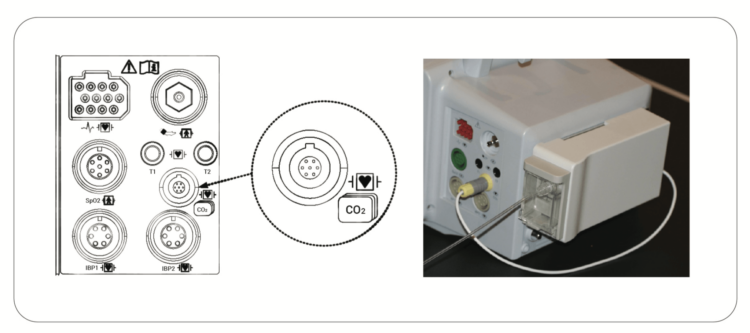

How to connect Dual Gas module to BM Vet Series
Includes:

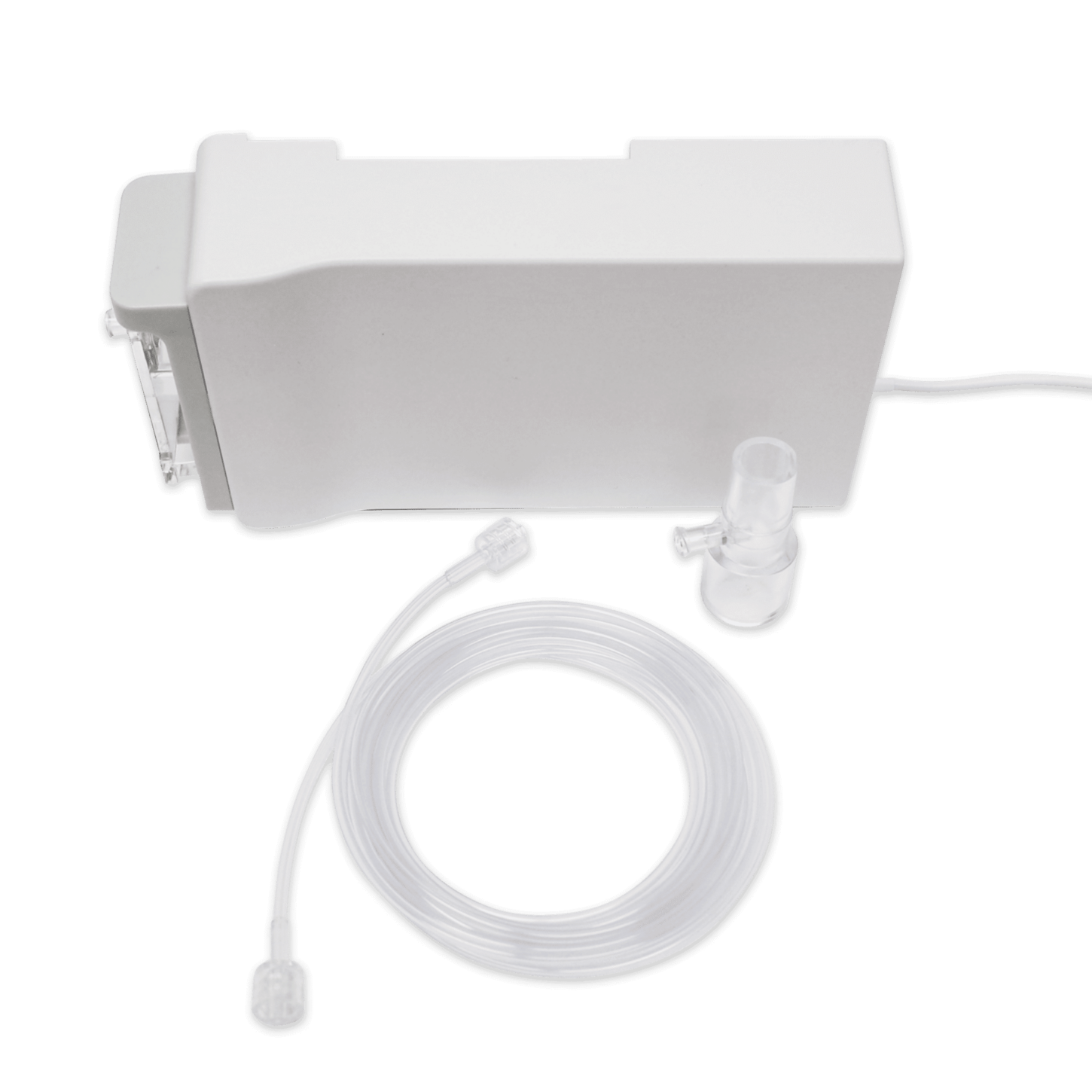

Dual Gas module 1 ea, Water Trap 1 ea, Sampling Line 1 ea, Airway Adapter 1 ea, Mounting Brackets 1 set and Quick Guide 1 ea
| wdt_ID | Feature | Specification |
|---|---|---|
| 1 | CO2 | |
| 2 | - Range | 0 – 100 mmHg; 0 – 13.3 kPa; 0-10% CO2 STPD (standard temperature and pressure dry) |
| 3 | - Accuracy | ± (0.2 vol% + 4% relative) |
| 4 | - Rise Time | 400 ms (average) |
| 5 | Anesthetic Agents | |
| 6 | - Gases | Isoflurane, Sevoflurane, Desflurane |
| 7 | - Range | Iso. and Sev.: 0 – 6% Des.: 0 – 18% |
| 8 | - Resolution | 0 .01% |
| 9 | - Accuracy | ± (0.15% vol% + 4% relative) |
| 10 | - Rise Time | 450 ms (average) |
| 11 | Calibration | Factory calibrated |
| 12 | Power Up Time | 30 sec |
| 13 | Delay Time | < 4 sec |
| 14 | Dimensions | 175mm x 85mm x 50mm (L x W x H) |
| 15 | Respiration | |
| 16 | - Range | 0-150 breaths/min |
| 17 | - Accuracy | ±1 breath/min |
| 18 | Flow Rate | |
| 19 | - Range | 170 ml/min |
| 20 | - Accuracy | ±20ml/min |
| 21 | Environment Condition | |
| 22 | - Operating Temperature | 15 – 35°C |
| 23 | - Storage Temperature | -5 to 50°C |
| 24 | - Ambient Humidity | 15-95% RH |
| 25 | - Ambient Pressure | 70kPa to 106kPa (525mmHg to 795mmHg) |
| 26 | Weight | 400g |
| 53 | Water Removal System | Water trap tank |
| 54 | Sampling Line | Anesthetic gas tolerant standard sample line |
| 55 | Appication | Veterinary use Only Species: Canine, Feline, Equine |
* Specifications can be changed without prior notification.
| Item Code | Item Description | ||
|---|---|---|---|
| wdt_ID | Item Image | Item Code | Item Description |
| 61 |  |
DGA-WT | Water Trap |
| 62 |  |
DGA-SL | Sample Line with Luer Lock (8') |
| 64 |  |
DGA-AAS | Airway Adapter (Straight) |
| 66 |  |
DGA-AAL | Airway Adapter (L type) |
- Overview
-
The Dual Gas module is a sidestream multi-gas analyzer measuring end-tidal carbon dioxide (EtCO2) and one of the 3 anesthetic agents (isoflurane, sevoflurane, and desflurane) with manual selection of the specific agent type. The Dual Gas parameter window shows the concentration of EtCO2 and a selected anesthetic agent, respiration rate, and MAC (Minimum Alveolar Concentration). The Dual Gas module is designed for plug-and-play with the Bionet Brio XVet Series (Brio X3Vet / Brio X5Vet / Brio X7Vet), BM Vet Elite Series (BM3Vet Elite / BM5Vet Elite / BM7Vet Elite), BM Vet Pro Series (BM3Vet Pro / BM5Vet Pro / BM7Vet Pro), BM3Vet Touch, and BM7Vet Monitors.
Measuring Gases
- EtCO2
- Isoflurane
- Sevoflurane
- Desflurane
Parameters
- EtCO2: Display of concentration value of carbon dioxide during expiration
- FiCO2: Display of concentration value of carbon dioxide during inspiration
- AWRR: Airway Respiration Rate. Display of the number of respirations per minute
- Upper/lower limit value of alarm: Display of alarm setting range value for the concentration of EtCO2
- Apnea detection time: Display of apnea setting time in second unit
- % of anesthetic agent concentration: Display of concentration value of anesthetic agent during inspiration and expiration under mechanically ventilated general anesthesia.
- MAC: Minimum Alveolar Concentration of a gas at which 50% of subjects do not respond to surgical incision – MAC is a population average; not a true predictor of an individual’s response
Benefits of anesthetic gas monitoring
- An alarm will sound if the values are out of range, while simultaneously monitoring CO2 and anesthetic gas.
- Monitor the anesthesia maintenance through MAC parameter.
- May help prevent overdose of anesthetic gas.
- Monitor anesthetic gas concentration to help ensure proper functioning of your vaporizer.
- Records anesthetic gas volume from procedure.
Superior Advantages and Features
- Low cost, durable, and proven sidestream technology that accurately measures both EtCO2 and the concentration of the anesthetic agent (3 different anesthetic agents selectable).
- 30 seconds warm-up time upon system initiation, and offers fast response time.
- Infrared (IR) light source with optical bandpass filtering technology allows the Dual Gas system to be free from frequent or routine high calibration (gain calibration) procedures using calibration gas, eliminating routine hustle of conducting system calibration to maintain accurate performance.
- Zero calibration ensures the system performs accurately regardless of environment.
- Proprietary advanced pneumatics and filtering system offer the highest protection and safety of the system in the sidestream technology.
- Large Water Trap filtering system allows the Dual Gas system to continually run without the need to frequently change the water trap, even in highly moisturized situations. Many other systems use moisture-absorbing filters, which require frequent filter changes.
- Water level detection feature helps prevent excess moisture for safer operation.
- Provides EtCO2, FiCO2, Respiration Rate, Anesthetic Agent Concentraion, and MAC (Minimum Alveolar Concentration) parameters
How to connect Dual Gas module to BM Vet Series
Includes:
Dual Gas module 1 ea, Water Trap 1 ea, Sampling Line 1 ea, Airway Adapter 1 ea, Mounting Brackets 1 set and Quick Guide 1 ea - Specifications
-
wdt_ID Feature Specification 1 CO2 2 - Range 0 – 100 mmHg; 0 – 13.3 kPa; 0-10% CO2 STPD (standard temperature and pressure dry) 3 - Accuracy ± (0.2 vol% + 4% relative) 4 - Rise Time 400 ms (average) 5 Anesthetic Agents 6 - Gases Isoflurane, Sevoflurane, Desflurane 7 - Range Iso. and Sev.: 0 – 6%
Des.: 0 – 18%8 - Resolution 0 .01% 9 - Accuracy ± (0.15% vol% + 4% relative) 10 - Rise Time 450 ms (average) 11 Calibration Factory calibrated 12 Power Up Time 30 sec 13 Delay Time < 4 sec 14 Dimensions 175mm x 85mm x 50mm (L x W x H) 15 Respiration 16 - Range 0-150 breaths/min 17 - Accuracy ±1 breath/min 18 Flow Rate 19 - Range 170 ml/min 20 - Accuracy ±20ml/min 21 Environment Condition 22 - Operating Temperature 15 – 35°C 23 - Storage Temperature -5 to 50°C 24 - Ambient Humidity 15-95% RH 25 - Ambient Pressure 70kPa to 106kPa (525mmHg to 795mmHg) 26 Weight 400g 53 Water Removal System Water trap tank 54 Sampling Line Anesthetic gas tolerant standard sample line 55 Appication Veterinary use Only
Species: Canine, Feline, Equine* Specifications can be changed without prior notification.
- Accessories
-
Item Code Item Description wdt_ID Item Image Item Code Item Description 61
DGA-WT Water Trap 62 DGA-SL Sample Line with Luer Lock (8') 64 DGA-AAS Airway Adapter (Straight) 66
DGA-AAL Airway Adapter (L type) - Downloads
