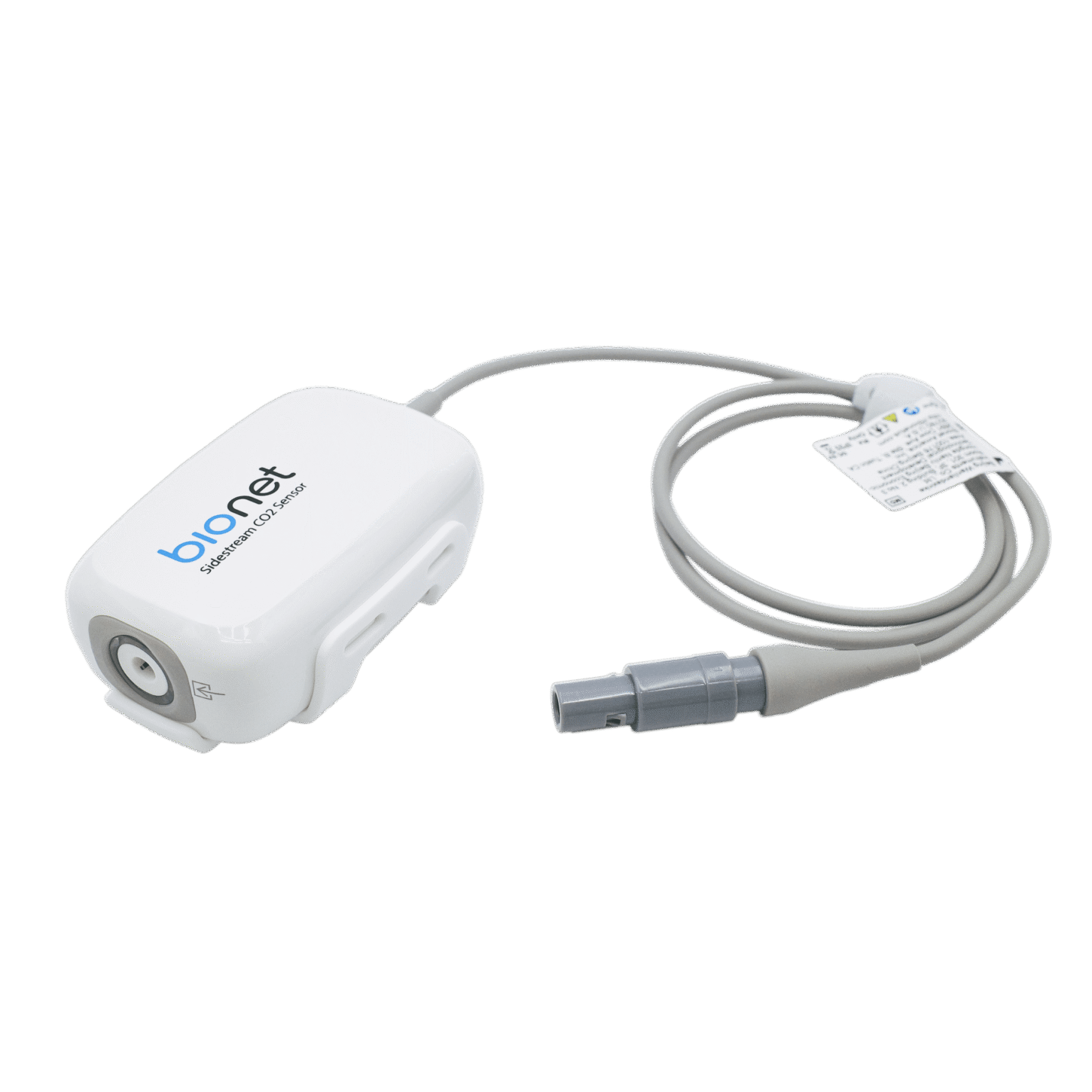

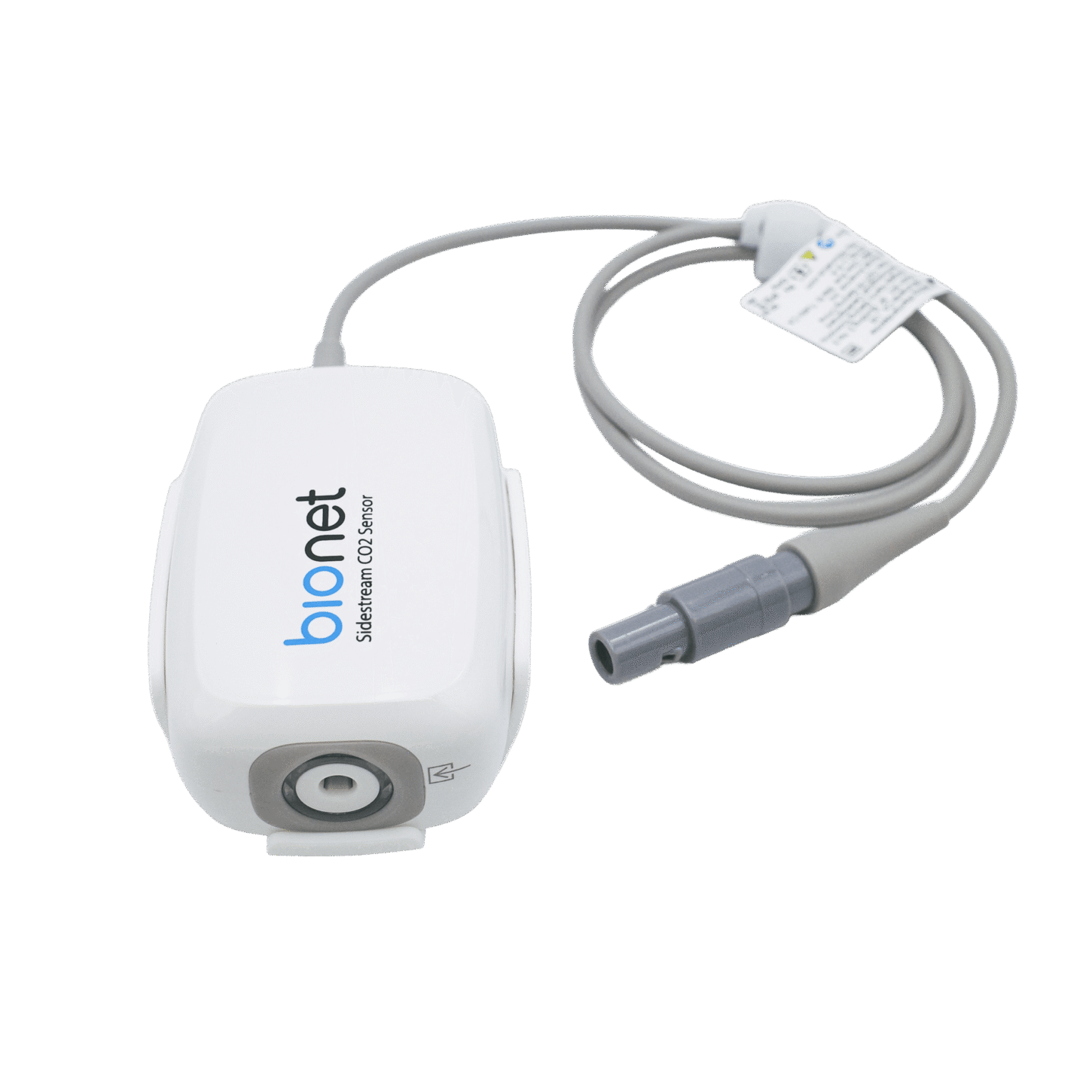

Bionet Sidestream EtCO₂ Sensor
Reliable Sidestream Capnography for Veterinary Patients
The Bionet Sidestream CO₂ Sensor continuously measures end-tidal CO₂, inspired CO₂ and respiration rate using a low sample flow of 50 mL/min. With the CO₂ sensor positioned away from the patient’s airway, only the lightweight sampling connection attaches to the breathing circuit.
Designed for use with the Brio XVet Series, the Bionet Sidestream CO₂ Sensor supports respiratory monitoring during anesthesia, recovery, emergency care and other procedures requiring continuous assessment of ventilation.
The Bionet Sidestream CO₂ Sensor continuously measures end-tidal CO₂, inspired CO₂ and respiration rate using a low sample flow of 50 mL/min. With the CO₂ sensor positioned away from the patient’s airway, only the lightweight sampling connection attaches to the breathing circuit.
Designed for use with the Brio XVet Series, the Bionet Sidestream CO₂ Sensor supports respiratory monitoring during anesthesia, recovery, emergency care and other procedures requiring continuous assessment of ventilation.
Product Highlights
Fast Response
Displays the capnogram in less than four seconds for rapid assessment of patient ventilation
Low Sample Flow
Uses a low 50 mL/min sampling rate to minimize gas removal from the breathing circuit
Broad Patient Compatibility
Sampling options for adult to infant patients accommodate a wide range of veterinary patient sizes
Reliable CO₂ Measurement
Dual-wavelength NDIR technology continuously measures EtCO₂, inspired CO₂ and respiration rate
Lightweight Airway Connection
Keeps the CO₂ sensor away from the patient’s airway, with only the lightweight sampling connection attached to the breathing circuit
Anesthesia Compensation
Supports operator-selectable anesthetic-agent compensation for reliable monitoring during anesthesia
Quick Link
Product Highlights
Fast Response
Displays the capnogram in less than four seconds for rapid assessment of patient ventilation
Low Sample Flow
Uses a low 50 mL/min sampling rate to minimize gas removal from the breathing circuit
Broad Patient Compatibility
Sampling options for adult to infant patients accommodate a wide range of veterinary patient sizes
Reliable CO₂ Measurement
Dual-wavelength NDIR technology continuously measures EtCO₂, inspired CO₂ and respiration rate
Lightweight Airway Connection
Keeps the CO₂ sensor away from the patient’s airway, with only the lightweight sampling connection attached to the breathing circuit
Anesthesia Compensation
Supports operator-selectable anesthetic-agent compensation for reliable monitoring during anesthesia
Quick Link
The Bionet Sidestream CO₂ Sensor continuously measures end-tidal CO₂, inspired CO₂ and respiration rate using a low sample flow of 50 mL/min. With the CO₂ sensor positioned away from the patient’s airway, only the lightweight sampling connection attaches to the breathing circuit.
Designed for use with the Brio XVet Series, the Bionet Sidestream CO₂ Sensor supports respiratory monitoring during anesthesia, recovery, emergency care and other procedures requiring continuous assessment of ventilation.
The Bionet Sidestream EtCO₂ Sensor is compatible with Bionet Brio XVet Series.
Intended Use: To monitor vital signs in veterinary patients (feline, canine), including: EtCO2
Key Features
- Fast: Displays the capnogram in less than four seconds and reaches full specified performance within 30 seconds at 25°C.
- Low-Flow: Uses a sampling rate of only 50 mL/min, helping minimize the amount of gas removed from the patient’s breathing circuit.
- Versatile: Adult/pediatric and infant/pediatric sampling options support a broad range of veterinary patient sizes and clinical applications.
- Accurate: Dual-wavelength non-dispersive infrared technology provides continuous CO₂ measurement across a range of 0–150 mmHg.
- Airway-Friendly: The sensor is located away from the patient’s airway. Only the lightweight sampling line and airway connection attach to the breathing circuit.
- Anesthesia Ready: Supports operator-selectable anesthetic-agent compensation and host-controlled settings for oxygen, nitrous oxide, helium and barometric pressure.
- Low Maintenance: No routine user gas calibration is required. The sensor requires a zero procedure, preferably after a five-minute warmup, to establish an accurate baseline.
- Measurements
- End-tidal CO₂
- Inspired CO₂
- Respiration rate
- Continuous CO₂ waveform
Setup and Zero Calibration
The Bionet Mainstream EtCO₂ Sensor does not require routine gas calibration. However, an adapter-zero procedure is recommended before patient use.
For the most reliable results, connect the sensor and allow it to warm up for five minutes before performing the zero-calibration procedure. Complete the procedure with the appropriate airway adapter installed and exposed to room air. Do not perform zero calibration while the adapter is connected to the patient or breathing circuit.
| wdt_ID | Item | Specification |
|---|---|---|
| 73 | Bionet part number | B-RSCO2-C |
| 74 | Compatible monitors | Brio XVet Series |
| 75 | Sampling method | Sidestream |
| 77 | Measurement principle | Dual-wavelength NDIR |
| 78 | Sample flow rate | 50 mL/min, ±20% |
| 79 | CO₂ measurement range | 0–150 mmHg |
| 80 | CO₂ rise time | Less than 300 ms |
| 82 | Response time at 50 mL/min | Less than four seconds |
| 83 | Capnogram display | Less than four seconds |
| 84 | Full specified performance | Within 30 seconds at 25°C |
| 85 | CO₂ resolution | 0.10% |
| 86 | Respiration rate range | 0–150 breaths/min |
| 87 | Respiration rate accuracy | ±1 breath/min |
| 88 | Routine gas calibration | Not required |
| 89 | Zeroing | Required |
| 90 | Weight | 0.37 lb |
| 91 | Cable length | 33 inches |
| 92 | IP rating | IP33 |
| 93 | Warranty | Two years |
* Specifications can be changed without prior notification.
| Item Code | Item Description | |||
|---|---|---|---|---|
| wdt_ID | Item Image | Item Code | Item Description | Buy Now |
| 1 |
|

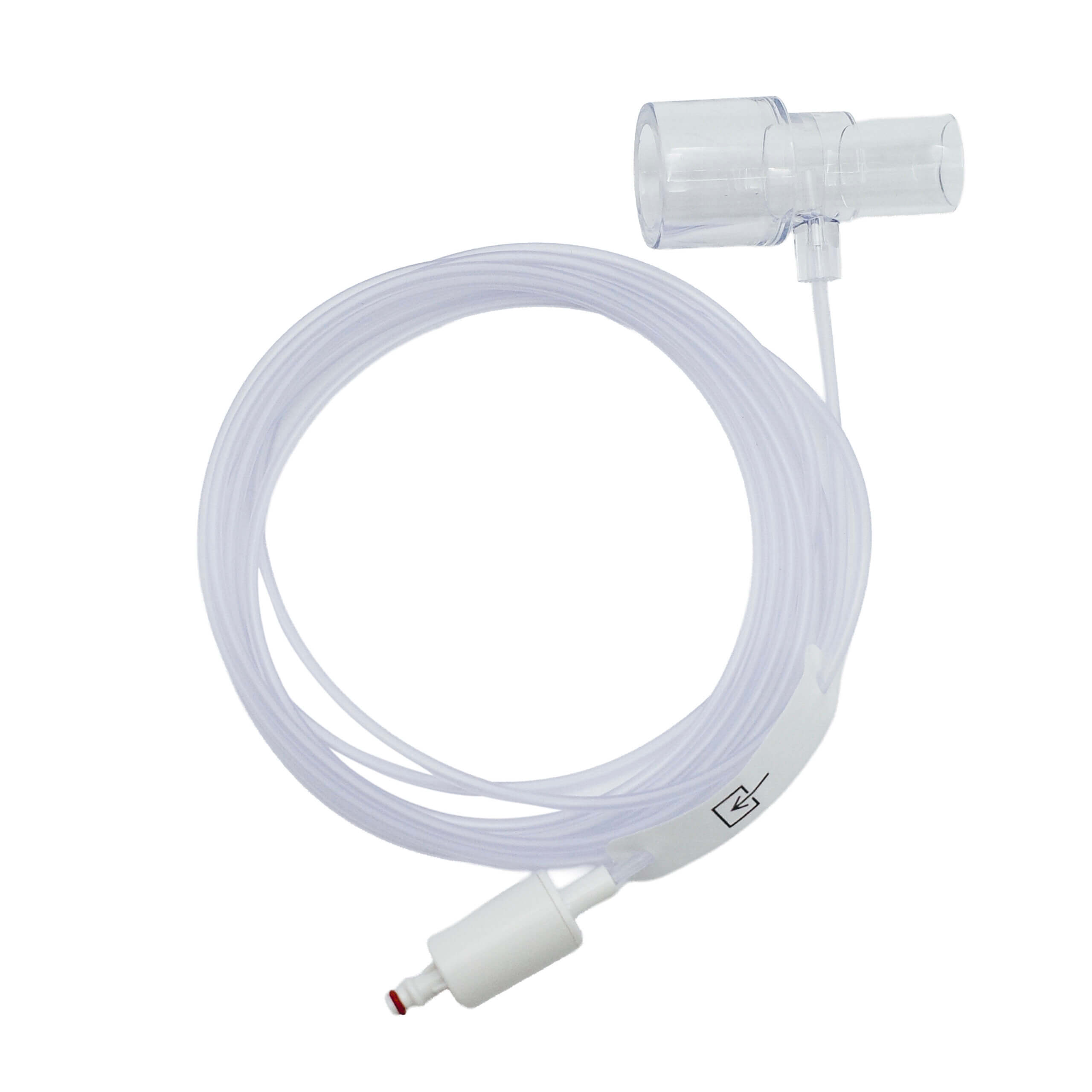

SampleLine-ADU | Bionet Airway Adapter Kit with Dehumidification, up to 120 hours • Adult/Pediatric: ET tube > 4mm |
Buy Now |
| 2 |
|

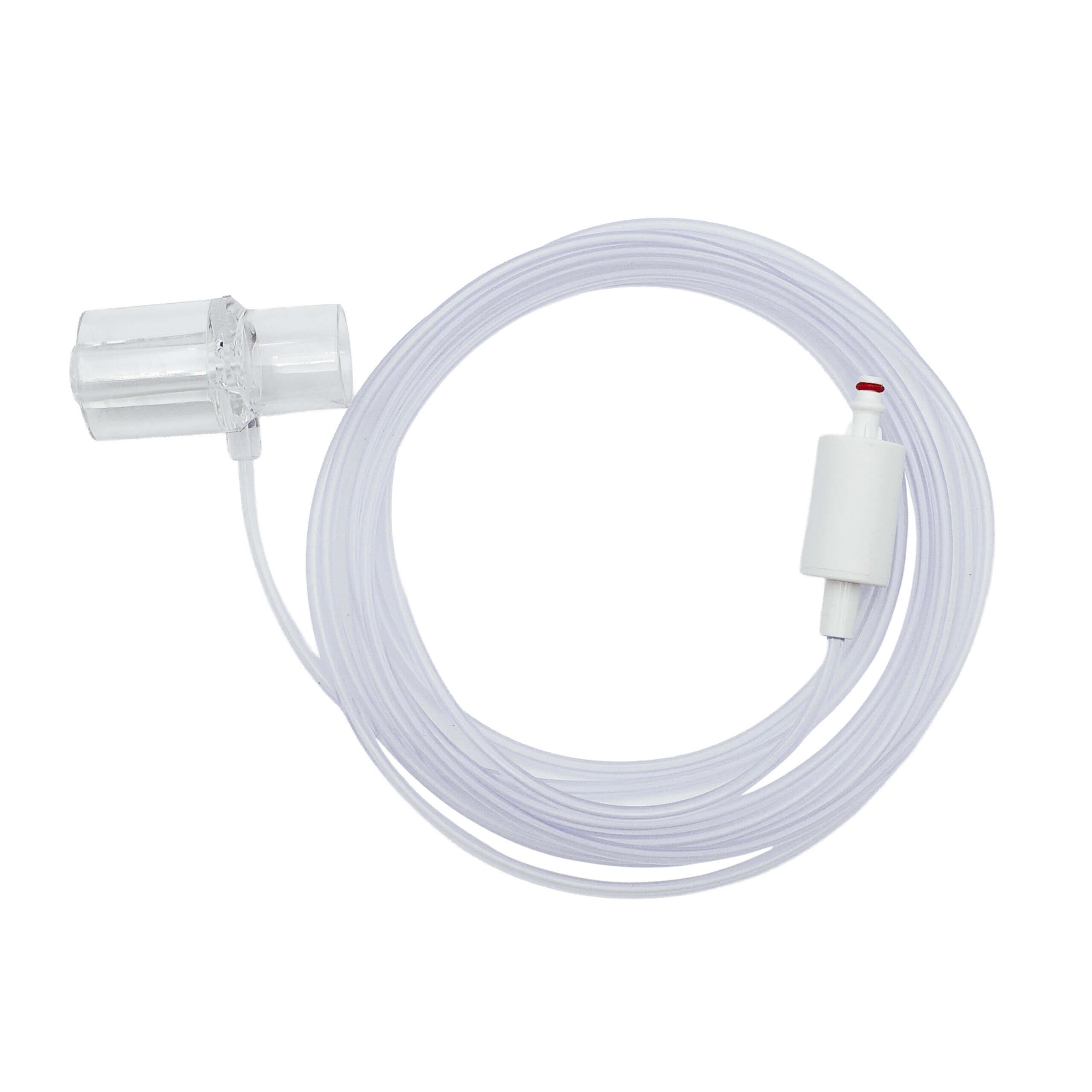

SampleLine-INF | Bionet Airway Adapter Kit with Dehumidification, up to 120 hours • Infant/Pediatric: ET tube < 4mm |
Buy Now |
| 3 |
|

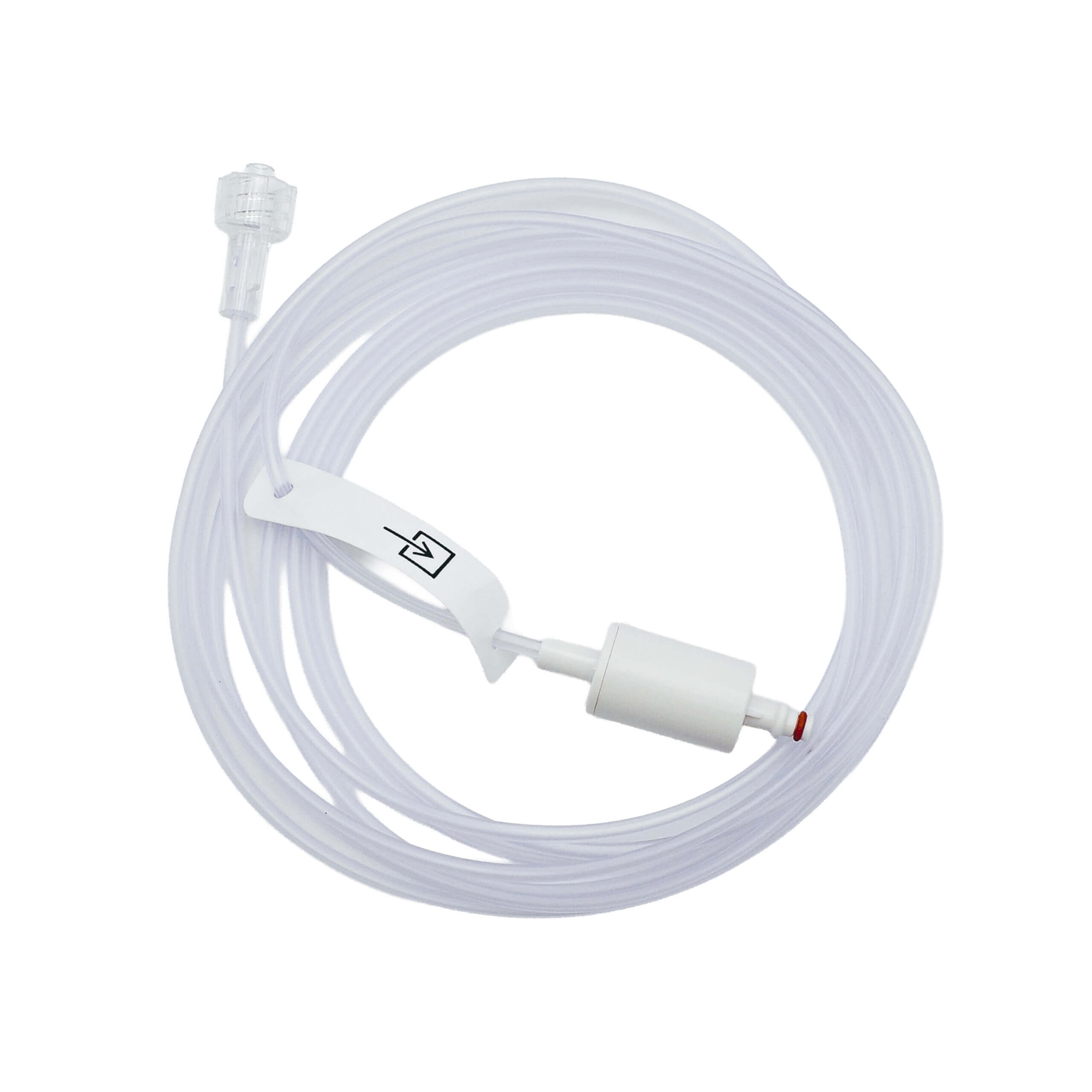

SampleLine-ML | Bionet Sampling line with male Luer adapter • Used with Bionet Sidestream CO2 sensor(B-RSCO2-C) |
Buy Now |
- Overview
-
The Bionet Sidestream CO₂ Sensor continuously measures end-tidal CO₂, inspired CO₂ and respiration rate using a low sample flow of 50 mL/min. With the CO₂ sensor positioned away from the patient’s airway, only the lightweight sampling connection attaches to the breathing circuit.
Designed for use with the Brio XVet Series, the Bionet Sidestream CO₂ Sensor supports respiratory monitoring during anesthesia, recovery, emergency care and other procedures requiring continuous assessment of ventilation.
The Bionet Sidestream EtCO₂ Sensor is compatible with Bionet Brio XVet Series.
Intended Use: To monitor vital signs in veterinary patients (feline, canine), including: EtCO2
Key Features
- Fast: Displays the capnogram in less than four seconds and reaches full specified performance within 30 seconds at 25°C.
- Low-Flow: Uses a sampling rate of only 50 mL/min, helping minimize the amount of gas removed from the patient’s breathing circuit.
- Versatile: Adult/pediatric and infant/pediatric sampling options support a broad range of veterinary patient sizes and clinical applications.
- Accurate: Dual-wavelength non-dispersive infrared technology provides continuous CO₂ measurement across a range of 0–150 mmHg.
- Airway-Friendly: The sensor is located away from the patient’s airway. Only the lightweight sampling line and airway connection attach to the breathing circuit.
- Anesthesia Ready: Supports operator-selectable anesthetic-agent compensation and host-controlled settings for oxygen, nitrous oxide, helium and barometric pressure.
- Low Maintenance: No routine user gas calibration is required. The sensor requires a zero procedure, preferably after a five-minute warmup, to establish an accurate baseline.
- Measurements
- End-tidal CO₂
- Inspired CO₂
- Respiration rate
- Continuous CO₂ waveform
Setup and Zero Calibration
The Bionet Mainstream EtCO₂ Sensor does not require routine gas calibration. However, an adapter-zero procedure is recommended before patient use.
For the most reliable results, connect the sensor and allow it to warm up for five minutes before performing the zero-calibration procedure. Complete the procedure with the appropriate airway adapter installed and exposed to room air. Do not perform zero calibration while the adapter is connected to the patient or breathing circuit.
- Specifications
-
wdt_ID Item Specification 73 Bionet part number B-RSCO2-C 74 Compatible monitors Brio XVet Series 75 Sampling method Sidestream 77 Measurement principle Dual-wavelength NDIR 78 Sample flow rate 50 mL/min, ±20% 79 CO₂ measurement range 0–150 mmHg 80 CO₂ rise time Less than 300 ms 82 Response time at 50 mL/min Less than four seconds 83 Capnogram display Less than four seconds 84 Full specified performance Within 30 seconds at 25°C 85 CO₂ resolution 0.10% 86 Respiration rate range 0–150 breaths/min 87 Respiration rate accuracy ±1 breath/min 88 Routine gas calibration Not required 89 Zeroing Required 90 Weight 0.37 lb 91 Cable length 33 inches 92 IP rating IP33 93 Warranty Two years * Specifications can be changed without prior notification.
- Accessories
-
Item Code Item Description wdt_ID Item Image Item Code Item Description Buy Now 1
SampleLine-ADU Bionet Airway Adapter Kit with Dehumidification, up to 120 hours
• Adult/Pediatric: ET tube > 4mmBuy Now 2
SampleLine-INF Bionet Airway Adapter Kit with Dehumidification, up to 120 hours
• Infant/Pediatric: ET tube < 4mmBuy Now 3
SampleLine-ML Bionet Sampling line with male Luer adapter
• Used with Bionet Sidestream CO2 sensor(B-RSCO2-C)Buy Now
