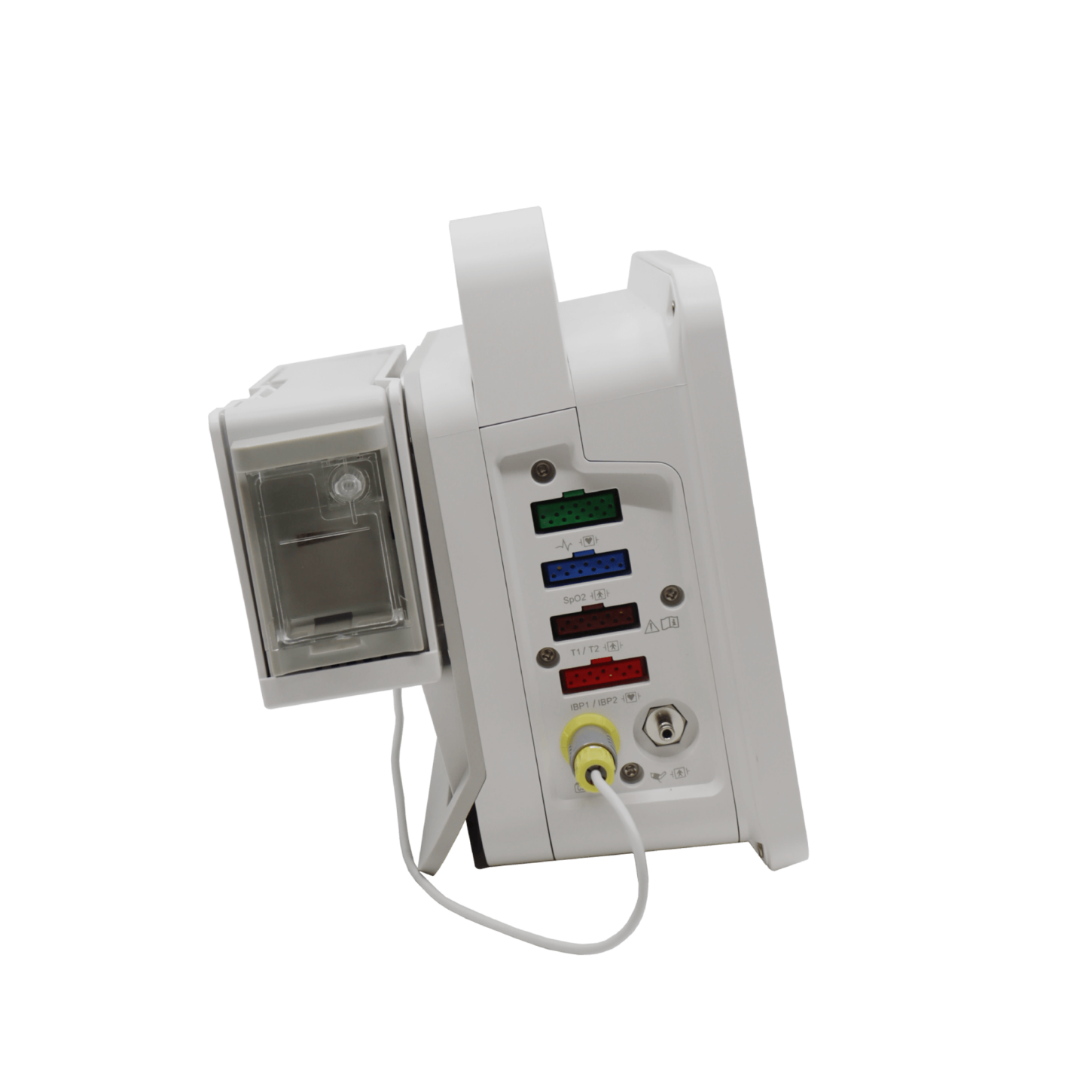

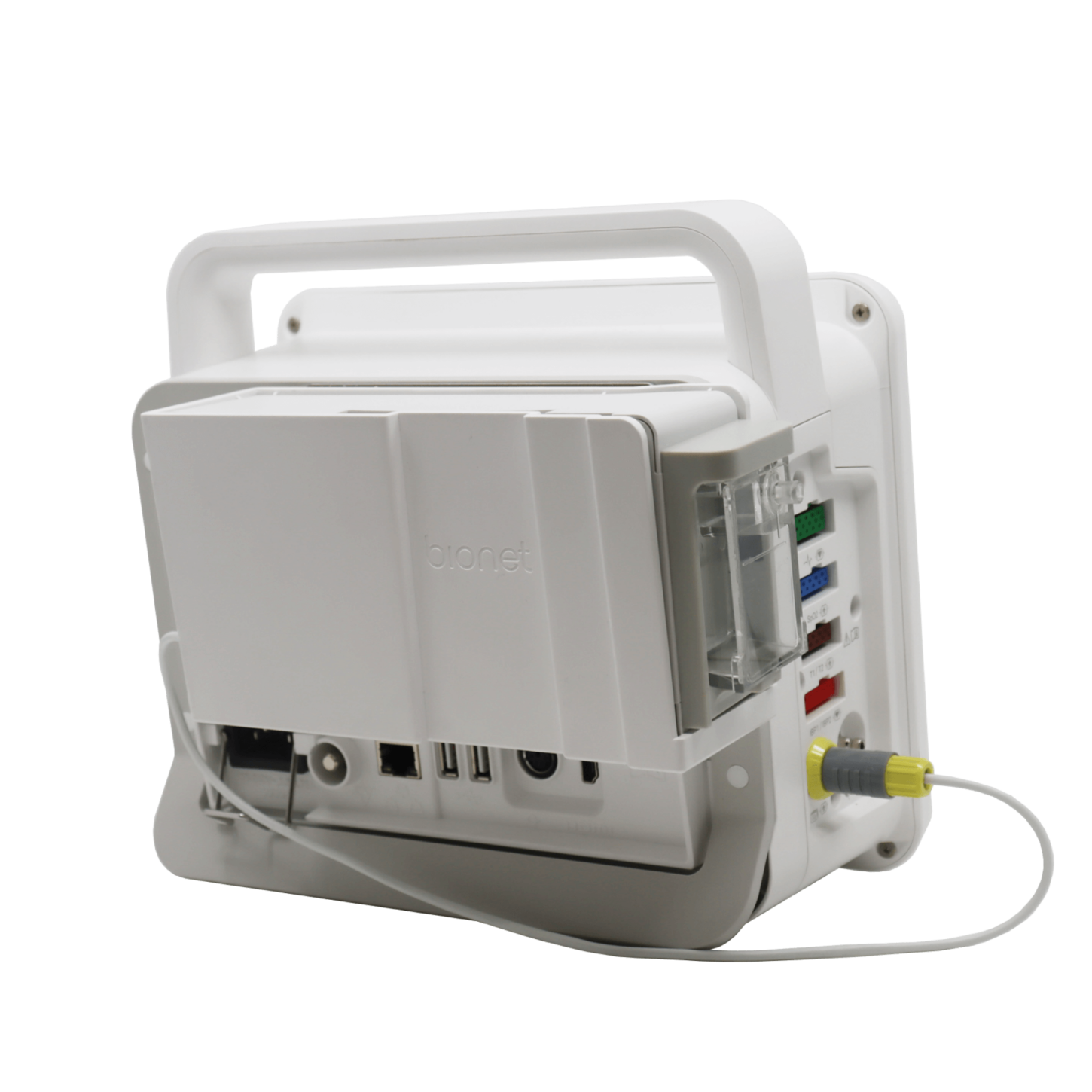

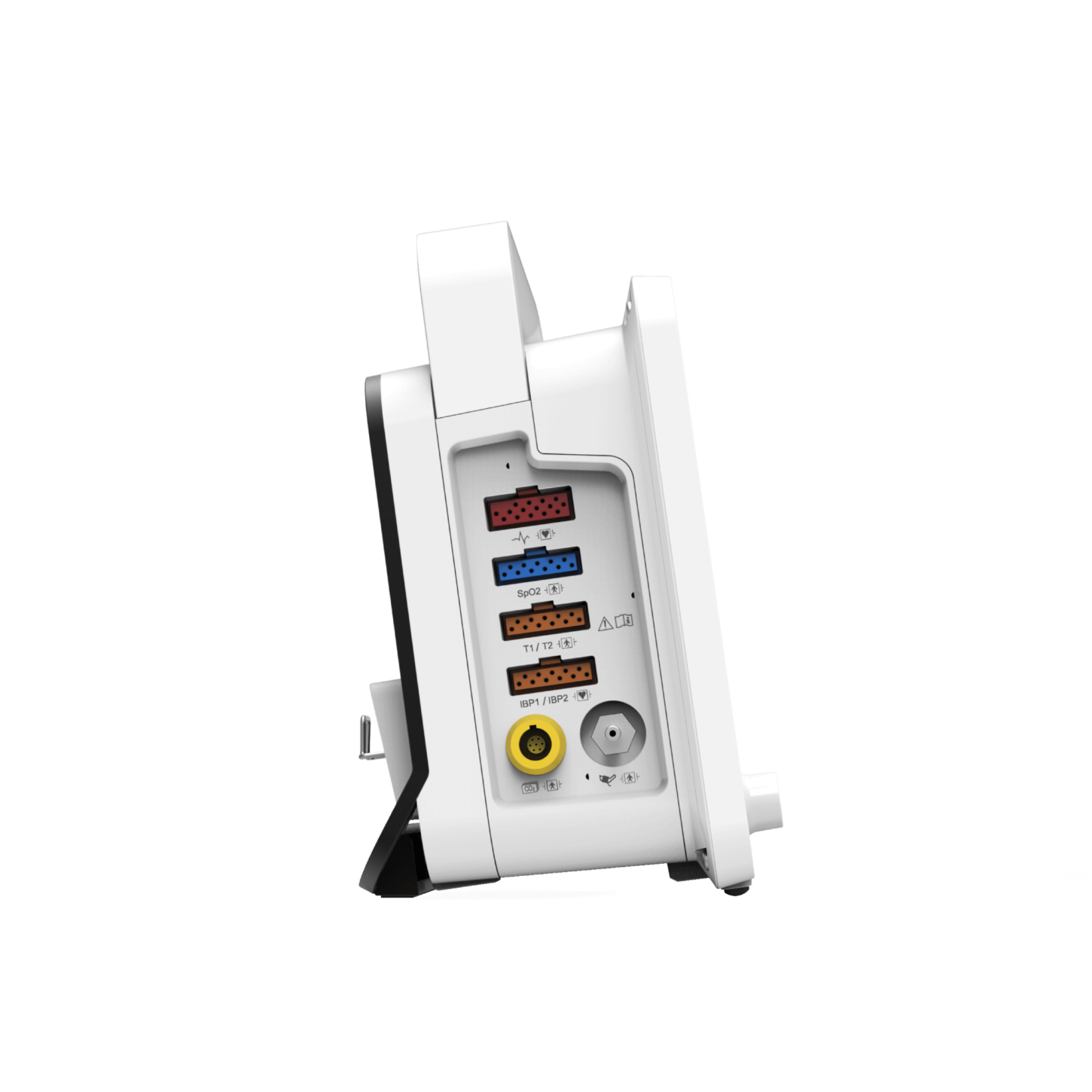

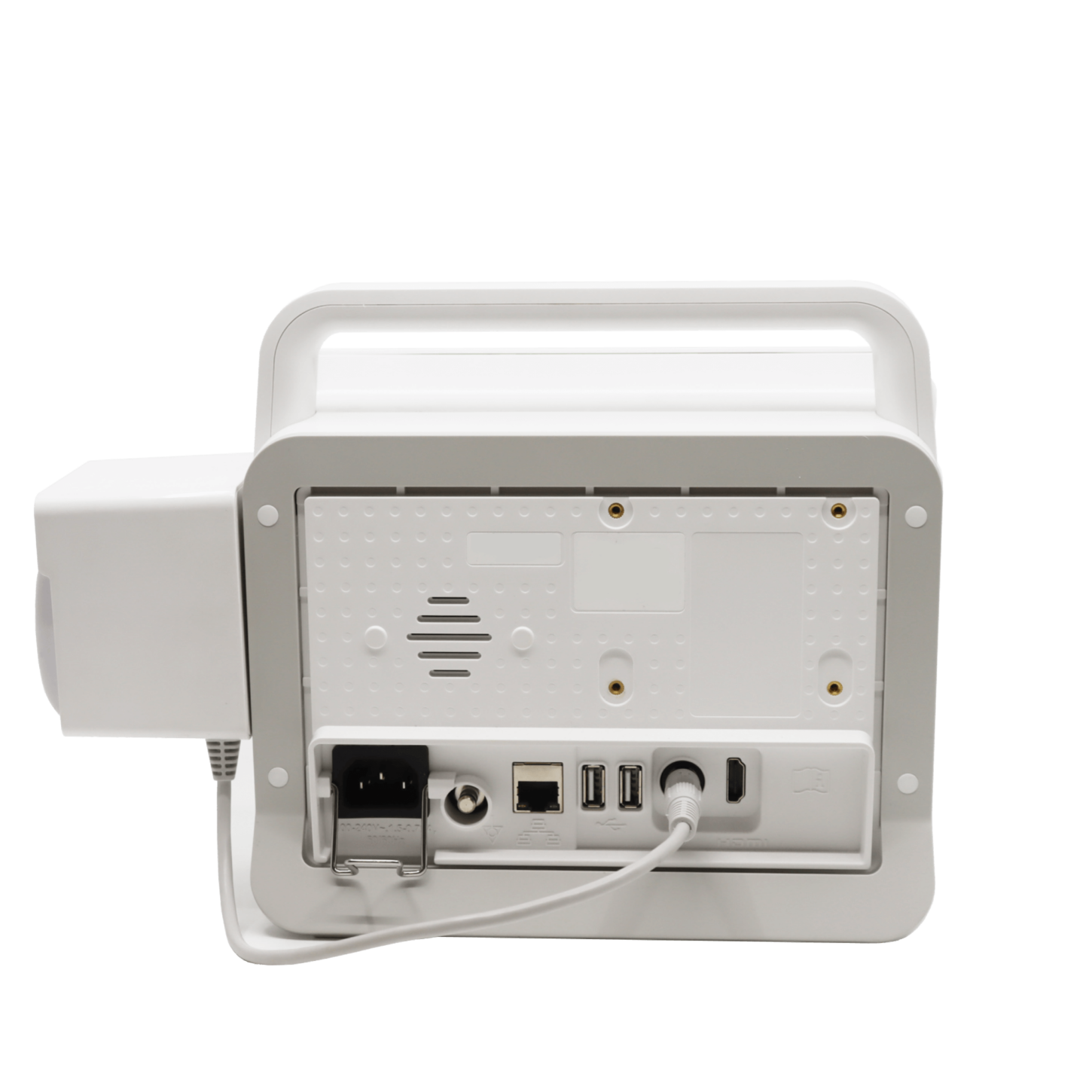

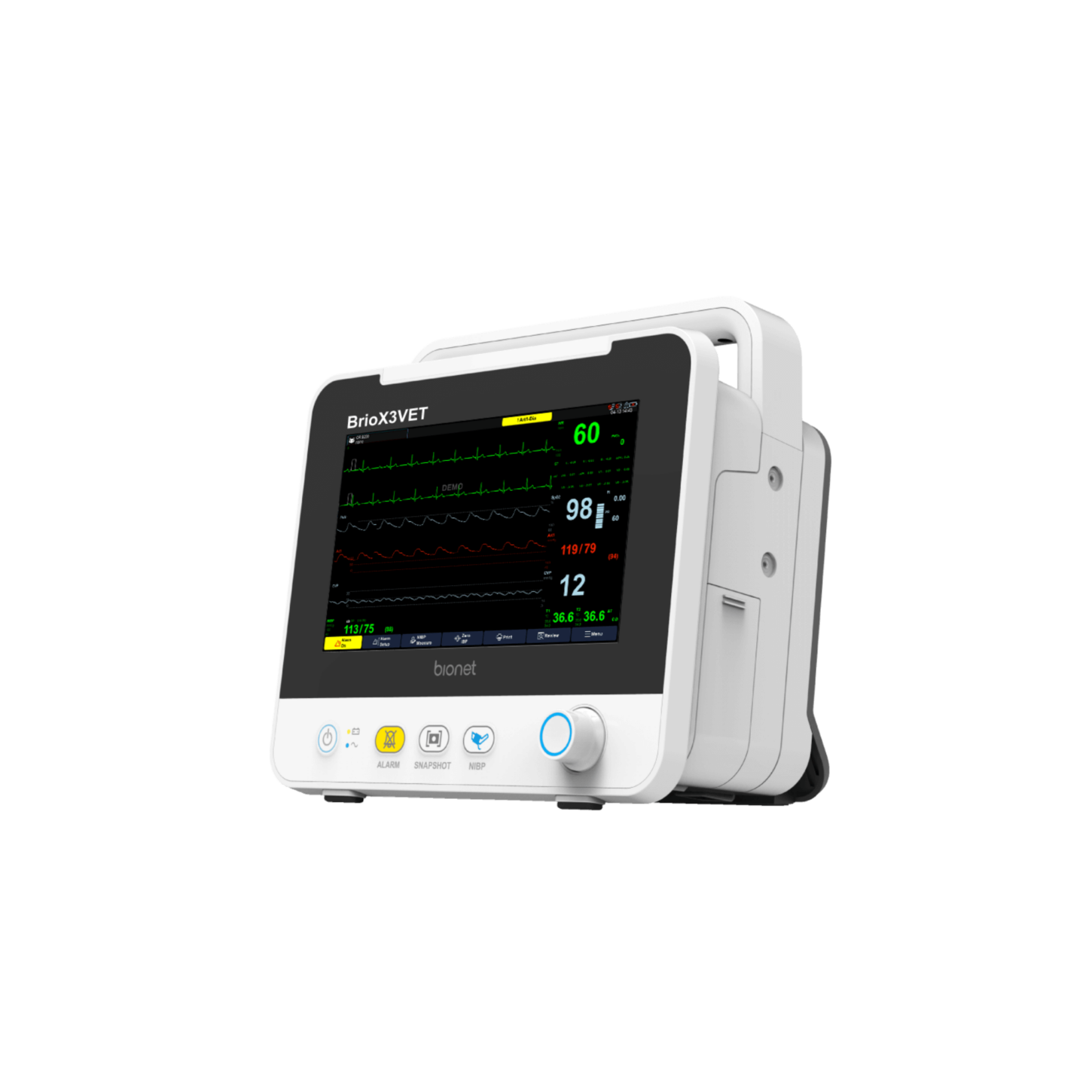

Brio X3Vet
Uncompromising Performance
The new Brio X3Vet packs monitoring power into a compact and sleek profile, providing robust and accurate vital sign data in any veterinary clinical environment. The simplified Brio user interface combined with an 8” capacitive touchscreen provides a seamless experience for all clinicians. Monitor settings, including alarm settings, are customizable to the user’s preference and are retained between monitoring cases. Whether used for the most critical of surgeries or for monitoring in areas where clinical space is a commodity, the Brio X3Vet is certain to exceed your expectations.
- Standard Parameters: 3 Lead ECG, SpO2, Temp, NIBP, RR
- Optional Parameters: 5 Lead ECG, EtCO2 (Mainstream or Sidestream), Dual Gas (Sidestream EtCO2 + Anesthetic Gas Concentration)
- Screen: 8” Capacitive touchscreen
- Monitor Printer: Included
- Monitor Warranty: 4 Years
- Includes BT Link Next Central Monitoring and Data Management Software (Windows only)
- Includes BT Link Next Mobile App (iOS and Android)
- Standard Parameters: 3 Lead ECG, SpO2, Temp, NIBP, RR
- Optional Parameters: 5 Lead ECG, EtCO2 (Mainstream or Sidestream), Dual Gas (Sidestream EtCO2 + Anesthetic Gas Concentration)
- Screen: 8” Capacitive touchscreen
- Monitor Printer: Included
- Monitor Warranty: 4 Years
- Includes BT Link Next Central Monitoring and Data Management Software (Windows only)
- Includes BT Link Next Mobile App (iOS and Android)
Product Highlights
8” Capacitive Touchscreen
Similar to the screen on a smartphone, the Brio X3Vet’s capacitive touchscreen offers a simple and seamless user experience
3 EtCO2 Options
Monitoring EtCO2? 3 options include mainstream CO2, sidestream CO2, and Dual Gas Monitoring (EtCO2 + Anesthetic Gas)
Robust Data Management
Use the included BT Link Next Software to automate vital sign recording and data transfer to medical records
Long-Term Reliability
Practice veterinary medicine confidently knowing Brio carries an industry leading 4 year warranty
Free Training
Our free remote monitor training provides tips and insights to make sure you and your staff maximize your Brio experience
Award Winning Service
Need troubleshooting? Reach one of our knowledgeable US based tech support representatives directly.
Quick Link
Product Highlights
8” Capacitive Touchscreen
Similar to the screen on a smartphone, the Brio X3Vet’s capacitive touchscreen offers a simple and seamless user experience
3 EtCO2 Options
Monitoring EtCO2? 3 options include mainstream CO2, sidestream CO2, and Dual Gas Monitoring (EtCO2 + Anesthetic Gas)
Robust Data Management
Use the included BT Link Next Software to automate vital sign recording and data transfer to medical records
Long-Term Reliability
Practice veterinary medicine confidently knowing Brio carries an industry leading 4 year warranty
Free Training
Our free remote monitor training provides tips and insights to make sure you and your staff maximize your Brio experience
Award Winning Service
Need troubleshooting? Reach one of our knowledgeable US based tech support representatives directly.
Quick Link
The new Brio X3Vet packs monitoring power into a compact and sleek profile, providing robust and accurate vital sign data in any veterinary clinical environment. The simplified Brio user interface combined with an 8” capacitive touchscreen provides a seamless experience for all clinicians. Monitor settings, including alarm settings, are customizable to the user’s preference and are retained between monitoring cases. Whether used for the most critical of surgeries or for monitoring in areas where clinical space is a commodity, the Brio X3Vet is certain to exceed your expectations.
Intended Use: To monitor vital signs in veterinary patients (feline, canine), including: ECG, SpO2, NIBP, Respiration, and Temperature. (Option: IBP, EtCO2, and Dual Gas)
Superior Advantages
- ECG, SpO2, NIBP, Respiration, IBP, and Temperature (Option: EtCO2 – Mainstream / Sidestream, Dual Gas)
- 8.0″ color high capacitive touch screen with 5 wave forms
- Individual sweep speed setting for each parameter
- Remembers your settings
- Multiple display modes available
- Screen Freeze ON/OFF
Enhanced & Extendible Multi-Parameters (Option)
- Mainstream / Sidestream EtCO2
- Bionet Dual Gas (Sidestream EtCO2 and anesthetic gas monitoring)
Enhanced Data Management
- 168 full hours of trend data can be stored
- Easy network connectivity, supports wireless LAN
- Search for available Wi-Fi networks
- BT-Link Next and BT-Link Next Mobile for real-time monitoring and recording
- 2 USB Ports
High-Performance Measurement
- ST level, PVC count real-time display
- 13 kinds of arrhythmia analysis
Transportable
- Li-ion rechargeable battery allows cordless use for up to 2 hours
- External HDMI output for large screen
Industry’s longest warranty – 4-YEAR WARRANTY (6 months on accessories)
Includes:
Main body of Brio X3Vet, 3-Lead ECG extension cable, 3-Lead ECG patient cable (Alligator Type), Esophageal probe (Medium), Temperature extension cable, NIBP extension tube, NIBP Infant Cuff, SpO2 extension Cable, Reusable animal SpO2 probe Y clip, Reusable animal SpO2 probe transflectance, Operation manual, Printer module, Printer Paper (2 rolls), Rechargeable Battery (Standard 3250 mAh), Temperature probe, Veterinary NIBP Cuff (#1~#5), Power Cord (110V), Wi-Fi Dongle TP Link TL-WN725N
* Standard items included may change without a prior notice.
Options:
Reusable temperature probe, Sidestream EtCO2 module (Respironics), Mainstream EtCO2 module (Respironics), Sidestream EtCO2 sample lines, Mainstream EtCO2 airway adapters, 5-Lead ECG extension cable, 5-Lead ECG patient cable, IBP extension cable, IBP transducer set (Disposable/Reusable), Dual Gas module, Esophageal probe (Extra Small), 3-Lead ECG patient cable (Snap Type)
* Optional items may change without a prior notice.
Caution: Federal law restricts this device to sale by or on the order of a licensed veterinarian.
General
| wdt_ID | Feature | Specification |
|---|---|---|
| 73 | Display, Resolution | 8" Wide color TFT LCD (1024 x 600 pixels) |
| 74 | Dimension, Weight | 237 (W) X 221 (H) X 136.5 (D) mm, approx. 2.0 kg |
| 75 | Trace | 5 waveforms: ECG, SpO2, RR or EtCO2, IBP x 2 Sweep speed: 6.25, 12.5, 25, 50 mm/sec |
| 77 | Indicators | Categorized alarms (3 priority levels) Visual alarm lamp on top of the cover QRS beep & SpO2 pulse beep Percent(%) SpO2 pitch tone Battery status, external power LED Touch screen, rotary knob |
| 78 | Interfaces | Power supply: AC 100 - 240V, 1.5 ~ 0.75A, 50/60Hz LAN digital output for transferring data External HDMI monitor connection USB barcode reader Printer module connector USB connector X 2 |
| 79 | Battery | Rechargeable Li-ion battery (Standard: 10.8V, 3250 mAh, Optional: 10.8V, 6500mAh) 2 hours for continuous operation |
| 80 | Thermal Printer (Optional) | Speed: 25, 50mm/sec Paper width: 58mm |
| 82 | Data Storage | 168 hours trends, 20 cases of 10 sec alarm waveform |
| 83 | Language | English, French, Spanish, Italian, German, Chinese, Russian, Czech, Polish, Turkish, Romanian, Portuguese, Bulgarian, Hungarian, Korean, Japanese, Greek |
| 84 | Standard Accessories | 3 lead vet ECG cable - 1 ea ECG extension cable for Brio - 1 ea NIBP extension hose (3m) - 1 ea NIBP vet cuff Neonate disposable #1 - #5 - 1 set NIBP vet cuff infant (reusable) - 1 ea SpO2 extension cable for Brio (2m) - 1 ea Esophageal ECG probe with temperature - 1 ea Reusable multisite SpO2 probe - 1 ea Transflectance SpO2 probe - 1 ea Temperature extension cable for Brio - 1 ea Temperature probe (rectal/esophageal) - 1 ea Printer module assembly for Brio - 1 ea Printer paper - 2 ea USB Wi-Fi Dongle 2.4 GHz - 1 ea PC-A (V) power cable - 1 set BT-Link Next automated record keeping software - 1 ea |
| 85 | Optional Accessories | 5 lead vet ECG cable Mainstream EtCO2 airway adapter kit Sidestream EtCO2 airway adapter kit ECG alligator clip (5ea) 3 lead ECG cable (snap type) Dual Gas accessories (water trap, patient sample line/adapter, mount) |
| 86 | Optional Module | Mainstream EtCO2 module (sensor) Sidestream EtCO2 module (sensor) Dual Gas module (sensor) |
Performance
| wdt_ID | ECG | Specification |
|---|---|---|
| 88 | Lead Type | 3-lead 5-lead (option) |
| 89 | Lead Selection | 3-lead: I, II, III 5-lead (option): I, II, III, aVR, aVL, aVF, V |
| 91 | ECG Waveforms | 3-lead: 1 channel 5-lead (option): 2/7 channels |
| 93 | Heart Rate Range | 15 to 350 BPM |
| 94 | Heart Rate Accuracy | ± 1 BPM or ± 1%, whichever is greater |
| 95 | Sweep Speed | 6.25, 12.5, 25, 50 mm/sec |
| 96 | Filter | Diagnosis: 0.05 ~ 150 Hz Monitoring: 0.5 ~ 40 Hz Moderate: 0.5 ~ 25 Hz Maximum: 5 ~ 25 Hz |
| 97 | S-T Segment Detection Range | -2.0 to 2.0 mV |
| 98 | Arrhythmia Analysis | Asystole, V-Tach, V-Tach/V-Fib, Bigeminy, Trigeminy, Acc Vent Couplet, Irregular, Pause, R on T, V-Brady, Short Run, PVC |
| 99 | Protection | Against electrosurgical interference and defibrillation |
| wdt_ID | Respiration | Specification |
|---|---|---|
| 100 | Method | Thoracic impedance |
| 101 | Channel Selection | RA-LL / RA-LA |
| 102 | Measurement Range | 5 - 120 breath per minute |
| 103 | Accuracy | ±1 breath per minute |
| 104 | Apnea Alarm | Yes |
| wdt_ID | SpO2 | Specification |
|---|---|---|
| 105 | Saturation Range | 0 to 100 % |
| 106 | Saturation Accuracy | 70 to 100% ±2 digits, 0 to 69% unspecified |
| 107 | Pulse Rate Range | 18 to 450 BPM |
| 108 | Pulse Rate Accuracy | ±2 BPM |
| wdt_ID | NIBP - Suntech | Specification |
|---|---|---|
| 110 | Method | Oscillometric |
| 111 | Operation Mode | Manual / Automatic / Continuous |
| 112 | Pressure Range | 0 to 300mmHg (accuracy : ±3mmHg) |
| 113 | Measurement Range | Systolic: 40 to 260 mmHg MAP: 26 to 220 mmHg Diastolic: 20 to 200 mmHg |
| 114 | Initial Inflation Pressure | Large animal mode: 160mmHg (default), Variable from 120 - 280mmHg Small animal mode: 160mmHg (default), Variable from 60 - 280mmHg |
| 115 | Pulse Rate Range | 25-300 BPM (Beat Per Minute) |
| wdt_ID | Temperature | Specification |
|---|---|---|
| 117 | Channels | 2 |
| 118 | Measurement Range | 0 to 50°C (32°F to 122°F) |
| 119 | Accuracy | 25 to 50°C: ±0.1°C 0 to 24°C: ±0.2°C |
| 120 | Compatibility | 98ME04GA603 temperature probes |
| wdt_ID | Mainstream EtCO2 - Respironics (Option) | Specification |
|---|---|---|
| 126 | Measurement Range | 0 to 150 mmHg, 0 to 19% |
| 127 | Accuracy | 0 - 40 mmHg ± 2 mmHg 41 - 70 mmHg ± 5% of reading 71 - 100 mmHg ± 8% of reading 101 - 150 mmHg ± 10% of reading |
| 128 | Respiration Rate | 0 to 150 breaths per minute |
| 129 | Respiration Accuracy | ± 1 breath per minute |
| wdt_ID | Sidestream EtCO2 - Respironics (Option) | Specification |
|---|---|---|
| 121 | Measurement Range | 0 to 150 mmHg, 0 to 19% |
| 122 | Accuracy | 0 - 40 mmHg ± 2 mmHg 41 - 70 mmHg ± 5% of reading 71 - 100 mmHg ± 8% of reading 101 - 150 mmHg ± 10% of reading |
| 123 | Respiration Rate | 2 to 150 breaths per minute |
| 124 | Respiration Accuracy | ± 1 breath per minute |
| wdt_ID | Dual Gas - Bionet (Option) | Specification |
|---|---|---|
| 110 | Method | Sidestream |
| 111 | CO₂ | Range: 0 – 76 mmHg; 0 – 10.1 kPa; 0-10% CO2 STPD (standard temperature and pressure dry) Accuracy: ± (0.2 vol% + 4% relative) |
| 112 | Anesthetic Agents | Gas: Isoflurane, Desflurane, Sevoflurane Range: Iso., Sev.: 0 – 6%, Des.: 0 – 18% Resolution: 0.01% Accuracy: ± (0.15% vol% + 4% relative) Rise time: Sensor only: 450 ms (average), With water removal system: 650 ms (average) |
| 113 | Respiration | Range: 0-150 breaths/min Accuracy: ±1 breath/min |
* Specifications can be changed without prior notification.
* You may have distortion or signal noise when you use nonstandard or other brands’ accessories. We strongly recommend you use only the authorized accessories which we supply.
* The ST algorithm has been tested for accuracy of the ST segment data. The significance of the ST segment changes needs to be determined by a veterinarian.
| Item Code | Item Description | Type | |||
|---|---|---|---|---|---|
| wdt_ID | Item Image | Item Code | Item Description | Type | Buy Now |
| 1 |
|
B-RMCO2 | CAPNOSTAT 5 mainstream CO2 sensor (includes one of each single use airway adapter, items 6063-00 and 6312-00) |
ETCO2 and Accessories | Buy Now |
| 2 |
|
6063-00 | Single patient use adult airway adapter: ET tube > 4 mm | ETCO2 and Accessories | Buy Now |
| 3 |
|
6312-00 | Single patient use neonatal airway adapter: ET tube ≤ 4 mm | ETCO2 and Accessories | Buy Now |
| 4 |
|
B-RSCO2-V | LoFlo sidestream CO2 sensor (includes one of each airway adapter, items 3473-ADU-00 and 3473INF-00) |
ETCO2 and Accessories | Buy Now |
| 5 |
|
3473ADU-00 | Airway adapter kit with dehumidification, up to 120 hours – adult/pediatric: ET tube > 4 mm | ETCO2 and Accessories | Buy Now |
| 6 |
|
3473INF-00 | Airway adapter kit with dehumidification, up to 120 hours – infant/neonate: ET tube ≤ 4 mm | ETCO2 and Accessories | Buy Now |
| 7 |
|
3475-00 | Respironics LoFlo Sampling Line Kit with luer adapter | ETCO2 and Accessories | Buy Now |
| 8 |
|
B-RSCO2-MB | Mounting Bracket for LoFlo Sidestream Unit | ETCO2 and Accessories | Buy Now |
| 9 |
|

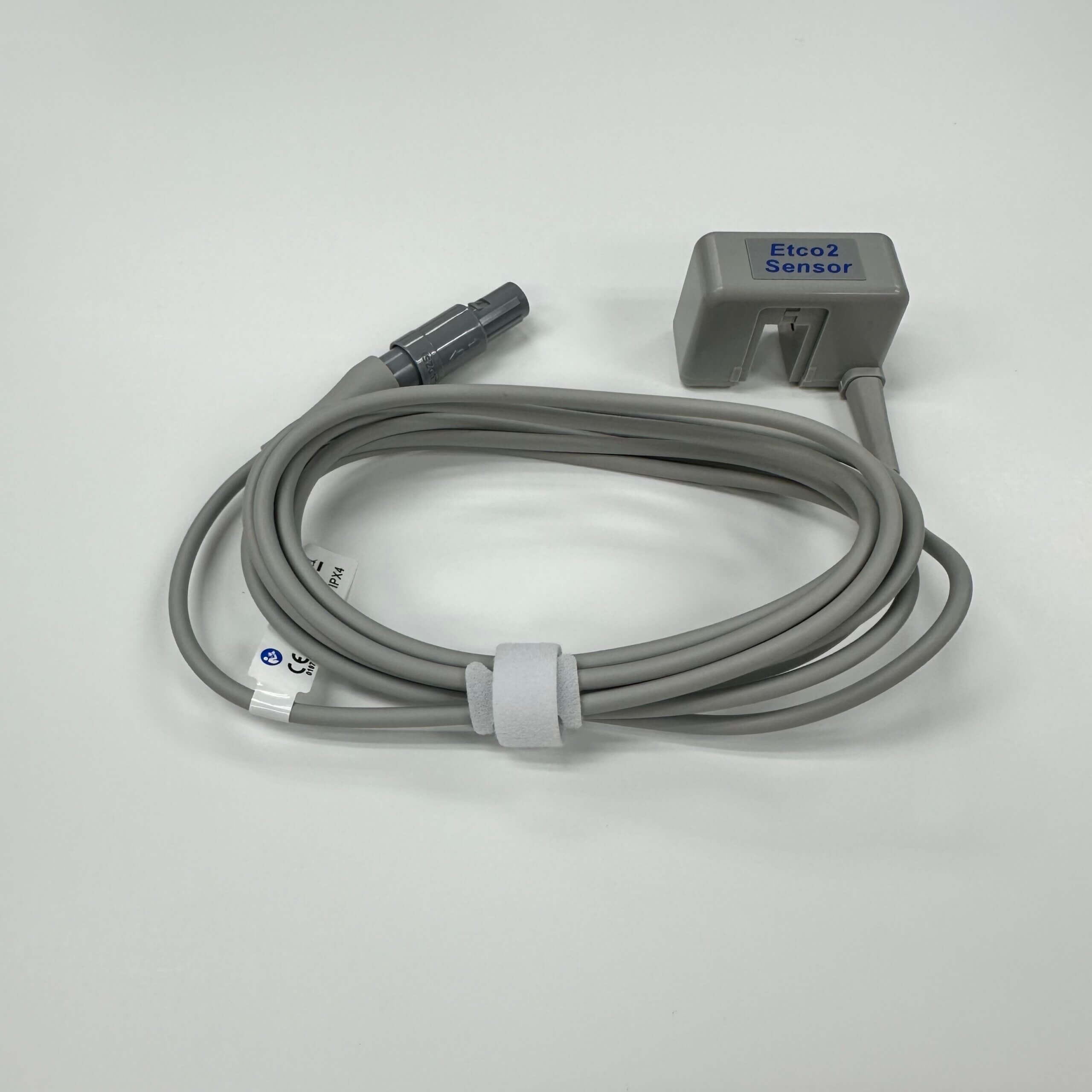

B-RMCO2-C | Mainstream EtCO2 Sensor (includes one of each single use airway adapter, items 6063-00-C and 6312-00-C) | ETCO2 and Accessories | Buy Now |
| 10 |
|
6063-00-C | - Single Patient Use Adult Airway Adapter: ET Tube > 4mm - Used with Capnostat 5 mainstream CO2 sensor(B-RMCO2) or Bionet mainstream CO2 sensor(B-RMCO2-C) |
ETCO2 and Accessories | Buy Now |
| 11 |
|
6312-00-C | - Single Patient Use Neonatal Airway Adapter: ET Tube < 4mm - Used with Capnostat 5 mainstream CO2 sensor(B-RMCO2) or Bionet mainstream CO2 sensor(B-RMCO2-C) |
ETCO2 and Accessories | Buy Now |
| 12 |
|
DG-SENSOR[B] | Bionet dual gas module set Includes: Dual Gas Module, Water Trap(1 ea.), Sample Line(1 ea.), Airway Adaptor (straight - 1 ea.), Mounting Kit (1 set) |
Dual Gas Sensor and Accessories | Buy Now |
| 13 |
|
DGA-WT | Water trap | Dual Gas Sensor and Accessories | Buy Now |
| 14 |
|
DGA-SL | Sample line with Luer lock (8') | Dual Gas Sensor and Accessories | Buy Now |
| 15 |
|
DGA-AAS | Airway adapter (straight) | Dual Gas Sensor and Accessories | Buy Now |
| 16 |
|
DGA-AAL | Airway adapter (L type) | Dual Gas Sensor and Accessories | Buy Now |
| 18 |
|
B-CBL3-Brio | Extension cable for 3 Lead ECG cable(B-WIRE-N, B-WIRE-SA) and esophageal probe(B-EPRB-XS, B-EPRB-M) | ECG Accessories | Buy Now |
| 19 |
|
B-WIRE-SA | 3 lead ECG cable (Snap type) | ECG Accessories | Buy Now |
| 20 |
|
B-ME-S | ECG monitoring electrode snap type (30 electrodes/pouch) | ECG Accessories | Buy Now |
| 21 |
|
B-WIRE-N | 3 lead ECG cable (alligator type) – New | ECG Accessories | Buy Now |
| 22 |
|
B-EPRB-XS | Esophageal probe with 3-lead ECG and temperature, extra small size ● 20 inches - from where the transparent tube goes into the gray plastic to the end of the probe ● 1.75 inch apart - between the metal contacts |
ECG Accessories | Buy Now |
| 23 |
|
B-EPRB-M | Esophageal probe with 3-lead ECG and temperature, medium size ● 36 inches - from where the transparent tube goes into the gray plastic to the end of the probe ● 2.75 inches apart - between the metal contacts |
ECG Accessories | Buy Now |
| 24 |
|
B-CBL5-Brio | Extension cable for 5 Lead ECG cable(B-WIRE5-N) | ECG Accessories | Buy Now |
| 30 |
|
B-WIRE5-N | 5 lead ECG cable (alligator type) – New | ECG Accessories | Buy Now |
| 31 |
|
ECG-GEL | ECG GEL (260ML) | ECG Accessories | Buy Now |
| 32 |
|
B-SPCBL-Brio | SPO2 Extension Cable for Brio | SPO2 Accessories | Buy Now |
| 33 |
|
B-SPO2-V | SpO2 multi-site Y sensor | SPO2 Accessories | Buy Now |
| 34 |
|
B-SPO2-CLIP | Replacement clip for B-SPO2-V or OXW-SPO2-V | SPO2 Accessories | Buy Now |
| 35 |
|
B-SPO2-R | Transflectance SpO2 probe for veterinary (black) | SPO2 Accessories | Buy Now |
| 36 |
|
B-NBPCBL | NIBP extension tube | NIBP Accessories | Buy Now |
| 45 |
|
B-CCUFF | NIBP child cuff (arm circumference: 20.5~28.5 cm) | NIBP Accessories | Buy Now |
| 46 |
|
B-PCUFF | NIBP pediatric cuff (arm circumference: 13.8~21.5 cm) | NIBP Accessories | Buy Now |
| 47 |
|
B-ICUFF | NIBP infant cuff (arm circumference: 9~14.8 cm) | NIBP Accessories | Buy Now |
| 48 |
|
B-NCUFF-SET | NIBP neonate cuffs (1 of each, #1 - #5) | NIBP Accessories | Buy Now |
| 49 |
|
B-NCUFF1 | NIBP neonate cuff #1 | NIBP Accessories | Buy Now |
| 50 |
|
B-NCUFF2 | NIBP neonate cuff #2 | NIBP Accessories | Buy Now |
| 51 |
|
B-NCUFF3 | NIBP neonate cuff #3 | NIBP Accessories | Buy Now |
| 52 |
|
B-NCUFF4 | NIBP neonate cuff #4 | NIBP Accessories | Buy Now |
| 53 |
|
B-NCUFF5 | NIBP neonate cuff #5 | NIBP Accessories | Buy Now |
| 54 |
|
B-NCUFF6 | NIBP neonate cuff #6 | NIBP Accessories | Buy Now |
| 55 |
|
B-NCUFF7 | NIBP neonate cuff #7 | NIBP Accessories | Buy Now |
| 56 |
|
B-NCUFF8 | NIBP neonate cuff #8 | NIBP Accessories | Buy Now |
| 57 |
|
B-IBP-BD(Brio) | BD type IBP Extension Cable for Brio X Vet series monitor | IBP Accessories (BD Type IBP Solutions) | Buy Now |
| 58 |
|
TD_IBP_BD | BD type disposable IBP Transducer | IBP Accessories (BD Type IBP Solutions) | Buy Now |
| 59 |
|
B-IBPEXT-Brio | IBP Extension Cable for Brio X Vet series monitor | IBP Accessories (Medex Type IBP Solutions) | Buy Now |
| 60 |
|
MX9505T_IP-MX-300 | TranStar® 84" single line monitoring kit (Compatible with TranStar® 84" single line monitoring kit-Smiths Medical) |
IBP Accessories (Medex Type IBP Solutions) | Buy Now |
| 61 |
|

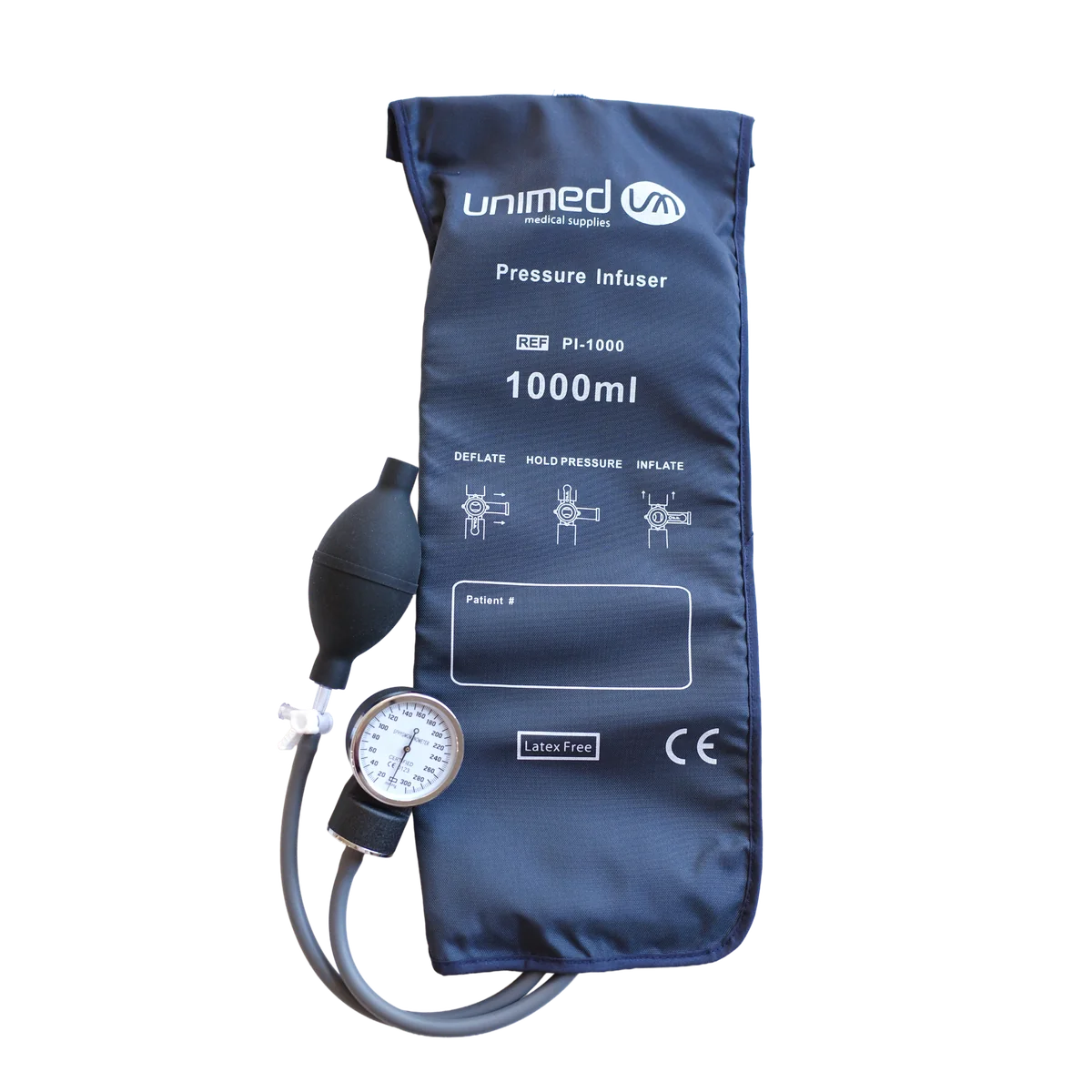

MX4810 | C-Fusor® 1000ml pressure infusor: complete with squeeze bulb and pressure gauge | IBP Accessories (Medex Type IBP Solutions) | Buy Now |
| 62 |
|
MX800 | Modular transducer mounting plate (1 each) | IBP Accessories (Medex Type IBP Solutions) | Buy Now |
| 63 |
|
MX240 | Pole clamp for mounting a transducer plate (fits 3/4" to 1-1/2" I.V. pole) | IBP Accessories (Medex Type IBP Solutions) | Buy Now |
| 64 |
|
B-TEMEXT-Brio | Temp Extension Cable for Brio to use esophageal/rectal Temp probe (TEM-PRV-R) | TEMP Accessories | Buy Now |
| 65 |
|
TEM-PRV-R | Temperature probe (Esophageal/Rectal Type) * Veterinary use only |
TEMP Accessories | Buy Now |
| 101 |
|
BAT-Brio | BM Battery for Brio(Li-ion 10.8V, 3.25A. 3-Cell) | Battery | Buy Now |
| 102 |
|
BAT-Brio-2 Option | Optional Battery for Brio( Li-ion, 10.8V, 6.50Ah, 6-Cell) | Battery | Buy Now |
| 104 |
|
BM-CART-Brio | Rolling Cart for Brio Series Monitor | Cart and Mounting | Buy Now |
| 105 |
|
WM-Brio | Wall Mount for Brio Series Monitor | Cart and Mounting | Buy Now |
| 106 |
|
PC-A (V) | Power cable | Power | Buy Now |
| 107 |
|
BM-PP | BM paper (10 rolls/box) | Printer | Buy Now |
| 108 |
|
Printer Ass'y_Brio | Printer Module Ass'y w/2 screws for Brio Vet series monitors | Printer | Buy Now |
| 109 |
|
USB-WIFI25 | USB WiFi dongle (Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity) | Others | Buy Now |
| 110 |
|
Stylus-Brio | Touch Screen Stylus for Brio | Others | Buy Now |
- Overview
-
The new Brio X3Vet packs monitoring power into a compact and sleek profile, providing robust and accurate vital sign data in any veterinary clinical environment. The simplified Brio user interface combined with an 8” capacitive touchscreen provides a seamless experience for all clinicians. Monitor settings, including alarm settings, are customizable to the user’s preference and are retained between monitoring cases. Whether used for the most critical of surgeries or for monitoring in areas where clinical space is a commodity, the Brio X3Vet is certain to exceed your expectations.
Intended Use: To monitor vital signs in veterinary patients (feline, canine), including: ECG, SpO2, NIBP, Respiration, and Temperature. (Option: IBP, EtCO2, and Dual Gas)
Superior Advantages
- ECG, SpO2, NIBP, Respiration, IBP, and Temperature (Option: EtCO2 – Mainstream / Sidestream, Dual Gas)
- 8.0″ color high capacitive touch screen with 5 wave forms
- Individual sweep speed setting for each parameter
- Remembers your settings
- Multiple display modes available
- Screen Freeze ON/OFF
Enhanced & Extendible Multi-Parameters (Option)
- Mainstream / Sidestream EtCO2
- Bionet Dual Gas (Sidestream EtCO2 and anesthetic gas monitoring)
Enhanced Data Management
- 168 full hours of trend data can be stored
- Easy network connectivity, supports wireless LAN
- Search for available Wi-Fi networks
- BT-Link Next and BT-Link Next Mobile for real-time monitoring and recording
- 2 USB Ports
High-Performance Measurement
- ST level, PVC count real-time display
- 13 kinds of arrhythmia analysis
Transportable
- Li-ion rechargeable battery allows cordless use for up to 2 hours
- External HDMI output for large screen
Industry’s longest warranty – 4-YEAR WARRANTY (6 months on accessories)
Includes:
Main body of Brio X3Vet, 3-Lead ECG extension cable, 3-Lead ECG patient cable (Alligator Type), Esophageal probe (Medium), Temperature extension cable, NIBP extension tube, NIBP Infant Cuff, SpO2 extension Cable, Reusable animal SpO2 probe Y clip, Reusable animal SpO2 probe transflectance, Operation manual, Printer module, Printer Paper (2 rolls), Rechargeable Battery (Standard 3250 mAh), Temperature probe, Veterinary NIBP Cuff (#1~#5), Power Cord (110V), Wi-Fi Dongle TP Link TL-WN725N* Standard items included may change without a prior notice.
Options:
Reusable temperature probe, Sidestream EtCO2 module (Respironics), Mainstream EtCO2 module (Respironics), Sidestream EtCO2 sample lines, Mainstream EtCO2 airway adapters, 5-Lead ECG extension cable, 5-Lead ECG patient cable, IBP extension cable, IBP transducer set (Disposable/Reusable), Dual Gas module, Esophageal probe (Extra Small), 3-Lead ECG patient cable (Snap Type)* Optional items may change without a prior notice.
Caution: Federal law restricts this device to sale by or on the order of a licensed veterinarian.
- Specifications
-
General
wdt_ID Feature Specification 73 Display, Resolution 8" Wide color TFT LCD (1024 x 600 pixels) 74 Dimension, Weight 237 (W) X 221 (H) X 136.5 (D) mm, approx. 2.0 kg 75 Trace 5 waveforms: ECG, SpO2, RR or EtCO2, IBP x 2
Sweep speed: 6.25, 12.5, 25, 50 mm/sec77 Indicators Categorized alarms (3 priority levels)
Visual alarm lamp on top of the cover
QRS beep & SpO2 pulse beep
Percent(%) SpO2 pitch tone
Battery status, external power LED
Touch screen, rotary knob78 Interfaces Power supply: AC 100 - 240V, 1.5 ~ 0.75A, 50/60Hz
LAN digital output for transferring data
External HDMI monitor connection
USB barcode reader
Printer module connector
USB connector X 279 Battery Rechargeable Li-ion battery (Standard: 10.8V, 3250 mAh, Optional: 10.8V, 6500mAh)
2 hours for continuous operation80 Thermal Printer (Optional) Speed: 25, 50mm/sec
Paper width: 58mm82 Data Storage 168 hours trends, 20 cases of 10 sec alarm waveform 83 Language English, French, Spanish, Italian, German, Chinese, Russian, Czech, Polish, Turkish, Romanian, Portuguese, Bulgarian, Hungarian, Korean, Japanese, Greek 84 Standard Accessories 3 lead vet ECG cable - 1 ea
ECG extension cable for Brio - 1 ea
NIBP extension hose (3m) - 1 ea
NIBP vet cuff Neonate disposable #1 - #5 - 1 set
NIBP vet cuff infant (reusable) - 1 ea
SpO2 extension cable for Brio (2m) - 1 ea
Esophageal ECG probe with temperature - 1 ea
Reusable multisite SpO2 probe - 1 ea
Transflectance SpO2 probe - 1 ea
Temperature extension cable for Brio - 1 ea
Temperature probe (rectal/esophageal) - 1 ea
Printer module assembly for Brio - 1 ea
Printer paper - 2 ea
USB Wi-Fi Dongle 2.4 GHz - 1 ea
PC-A (V) power cable - 1 set
BT-Link Next automated record keeping software - 1 ea85 Optional Accessories 5 lead vet ECG cable
Mainstream EtCO2 airway adapter kit
Sidestream EtCO2 airway adapter kit
ECG alligator clip (5ea)
3 lead ECG cable (snap type)
Dual Gas accessories (water trap, patient sample line/adapter, mount)86 Optional Module Mainstream EtCO2 module (sensor)
Sidestream EtCO2 module (sensor)
Dual Gas module (sensor)Performance
wdt_ID ECG Specification 88 Lead Type 3-lead
5-lead (option)89 Lead Selection 3-lead: I, II, III
5-lead (option): I, II, III, aVR, aVL, aVF, V91 ECG Waveforms 3-lead: 1 channel
5-lead (option): 2/7 channels93 Heart Rate Range 15 to 350 BPM 94 Heart Rate Accuracy ± 1 BPM or ± 1%, whichever is greater 95 Sweep Speed 6.25, 12.5, 25, 50 mm/sec 96 Filter Diagnosis: 0.05 ~ 150 Hz
Monitoring: 0.5 ~ 40 Hz
Moderate: 0.5 ~ 25 Hz
Maximum: 5 ~ 25 Hz97 S-T Segment Detection Range -2.0 to 2.0 mV 98 Arrhythmia Analysis Asystole, V-Tach, V-Tach/V-Fib, Bigeminy, Trigeminy, Acc Vent Couplet, Irregular, Pause, R on T, V-Brady, Short Run, PVC 99 Protection Against electrosurgical interference and defibrillation
wdt_ID Respiration Specification 100 Method Thoracic impedance 101 Channel Selection RA-LL / RA-LA 102 Measurement Range 5 - 120 breath per minute 103 Accuracy ±1 breath per minute 104 Apnea Alarm Yes
wdt_ID SpO2 Specification 105 Saturation Range 0 to 100 % 106 Saturation Accuracy 70 to 100% ±2 digits, 0 to 69% unspecified 107 Pulse Rate Range 18 to 450 BPM 108 Pulse Rate Accuracy ±2 BPM
wdt_ID NIBP - Suntech Specification 110 Method Oscillometric 111 Operation Mode Manual / Automatic / Continuous 112 Pressure Range 0 to 300mmHg (accuracy : ±3mmHg) 113 Measurement Range Systolic: 40 to 260 mmHg
MAP: 26 to 220 mmHg
Diastolic: 20 to 200 mmHg114 Initial Inflation Pressure Large animal mode: 160mmHg (default), Variable from 120 - 280mmHg
Small animal mode: 160mmHg (default), Variable from 60 - 280mmHg115 Pulse Rate Range 25-300 BPM (Beat Per Minute)
wdt_ID Temperature Specification 117 Channels 2 118 Measurement Range 0 to 50°C (32°F to 122°F) 119 Accuracy 25 to 50°C: ±0.1°C
0 to 24°C: ±0.2°C120 Compatibility 98ME04GA603 temperature probes
wdt_ID Mainstream EtCO2 - Respironics (Option) Specification 126 Measurement Range 0 to 150 mmHg, 0 to 19% 127 Accuracy 0 - 40 mmHg ± 2 mmHg
41 - 70 mmHg ± 5% of reading
71 - 100 mmHg ± 8% of reading
101 - 150 mmHg ± 10% of reading128 Respiration Rate 0 to 150 breaths per minute 129 Respiration Accuracy ± 1 breath per minute
wdt_ID Sidestream EtCO2 - Respironics (Option) Specification 121 Measurement Range 0 to 150 mmHg, 0 to 19% 122 Accuracy 0 - 40 mmHg ± 2 mmHg
41 - 70 mmHg ± 5% of reading
71 - 100 mmHg ± 8% of reading
101 - 150 mmHg ± 10% of reading123 Respiration Rate 2 to 150 breaths per minute 124 Respiration Accuracy ± 1 breath per minute
wdt_ID Dual Gas - Bionet (Option) Specification 110 Method Sidestream 111 CO₂ Range: 0 – 76 mmHg; 0 – 10.1 kPa; 0-10% CO2 STPD (standard temperature and pressure dry)
Accuracy: ± (0.2 vol% + 4% relative)112 Anesthetic Agents Gas: Isoflurane, Desflurane, Sevoflurane
Range: Iso., Sev.: 0 – 6%, Des.: 0 – 18%
Resolution: 0.01%
Accuracy: ± (0.15% vol% + 4% relative)
Rise time: Sensor only: 450 ms (average), With water removal system: 650 ms (average)113 Respiration Range: 0-150 breaths/min
Accuracy: ±1 breath/min* Specifications can be changed without prior notification.
* You may have distortion or signal noise when you use nonstandard or other brands’ accessories. We strongly recommend you use only the authorized accessories which we supply.
* The ST algorithm has been tested for accuracy of the ST segment data. The significance of the ST segment changes needs to be determined by a veterinarian. - Accessories
-
Item Code Item Description Type wdt_ID Item Image Item Code Item Description Type Buy Now 1
B-RMCO2 CAPNOSTAT 5 mainstream CO2 sensor
(includes one of each single use airway adapter, items 6063-00 and 6312-00)ETCO2 and Accessories Buy Now 2 6063-00 Single patient use adult airway adapter: ET tube > 4 mm ETCO2 and Accessories Buy Now 3 6312-00 Single patient use neonatal airway adapter: ET tube ≤ 4 mm ETCO2 and Accessories Buy Now 4 B-RSCO2-V LoFlo sidestream CO2 sensor
(includes one of each airway adapter, items 3473-ADU-00 and 3473INF-00)ETCO2 and Accessories Buy Now 5 3473ADU-00 Airway adapter kit with dehumidification, up to 120 hours – adult/pediatric: ET tube > 4 mm ETCO2 and Accessories Buy Now 6 3473INF-00 Airway adapter kit with dehumidification, up to 120 hours – infant/neonate: ET tube ≤ 4 mm ETCO2 and Accessories Buy Now 7 3475-00 Respironics LoFlo Sampling Line Kit with luer adapter ETCO2 and Accessories Buy Now 8 B-RSCO2-MB Mounting Bracket for LoFlo Sidestream Unit ETCO2 and Accessories Buy Now 9 B-RMCO2-C Mainstream EtCO2 Sensor (includes one of each single use airway adapter, items 6063-00-C and 6312-00-C) ETCO2 and Accessories Buy Now 10 6063-00-C - Single Patient Use Adult Airway Adapter: ET Tube > 4mm
- Used with Capnostat 5 mainstream CO2 sensor(B-RMCO2) or Bionet mainstream CO2 sensor(B-RMCO2-C)ETCO2 and Accessories Buy Now 11 6312-00-C - Single Patient Use Neonatal Airway Adapter: ET Tube < 4mm
- Used with Capnostat 5 mainstream CO2 sensor(B-RMCO2) or Bionet mainstream CO2 sensor(B-RMCO2-C)ETCO2 and Accessories Buy Now 12 DG-SENSOR[B] Bionet dual gas module set
Includes: Dual Gas Module, Water Trap(1 ea.), Sample Line(1 ea.), Airway Adaptor (straight - 1 ea.), Mounting Kit (1 set)Dual Gas Sensor and Accessories Buy Now 13 DGA-WT Water trap Dual Gas Sensor and Accessories Buy Now 14 DGA-SL Sample line with Luer lock (8') Dual Gas Sensor and Accessories Buy Now 15 DGA-AAS Airway adapter (straight) Dual Gas Sensor and Accessories Buy Now 16 DGA-AAL Airway adapter (L type) Dual Gas Sensor and Accessories Buy Now 18 B-CBL3-Brio Extension cable for 3 Lead ECG cable(B-WIRE-N, B-WIRE-SA) and esophageal probe(B-EPRB-XS, B-EPRB-M) ECG Accessories Buy Now 19 B-WIRE-SA 3 lead ECG cable (Snap type) ECG Accessories Buy Now 20 B-ME-S ECG monitoring electrode snap type (30 electrodes/pouch) ECG Accessories Buy Now 21 B-WIRE-N 3 lead ECG cable (alligator type) – New ECG Accessories Buy Now 22 B-EPRB-XS Esophageal probe with 3-lead ECG and temperature, extra small size
● 20 inches - from where the transparent tube goes into the gray plastic to the end of the probe
● 1.75 inch apart - between the metal contactsECG Accessories Buy Now 23 B-EPRB-M Esophageal probe with 3-lead ECG and temperature, medium size
● 36 inches - from where the transparent tube goes into the gray plastic to the end of the probe
● 2.75 inches apart - between the metal contactsECG Accessories Buy Now 24 B-CBL5-Brio Extension cable for 5 Lead ECG cable(B-WIRE5-N) ECG Accessories Buy Now 30 B-WIRE5-N 5 lead ECG cable (alligator type) – New ECG Accessories Buy Now 31 ECG-GEL ECG GEL (260ML) ECG Accessories Buy Now 32 B-SPCBL-Brio SPO2 Extension Cable for Brio SPO2 Accessories Buy Now 33 B-SPO2-V SpO2 multi-site Y sensor SPO2 Accessories Buy Now 34 B-SPO2-CLIP Replacement clip for B-SPO2-V or OXW-SPO2-V SPO2 Accessories Buy Now 35 B-SPO2-R Transflectance SpO2 probe for veterinary (black) SPO2 Accessories Buy Now 36 B-NBPCBL NIBP extension tube NIBP Accessories Buy Now 45 B-CCUFF NIBP child cuff (arm circumference: 20.5~28.5 cm) NIBP Accessories Buy Now 46 B-PCUFF NIBP pediatric cuff (arm circumference: 13.8~21.5 cm) NIBP Accessories Buy Now 47 B-ICUFF NIBP infant cuff (arm circumference: 9~14.8 cm) NIBP Accessories Buy Now 48 B-NCUFF-SET NIBP neonate cuffs (1 of each, #1 - #5) NIBP Accessories Buy Now 49 B-NCUFF1 NIBP neonate cuff #1 NIBP Accessories Buy Now 50 B-NCUFF2 NIBP neonate cuff #2 NIBP Accessories Buy Now 51 B-NCUFF3 NIBP neonate cuff #3 NIBP Accessories Buy Now 52 B-NCUFF4 NIBP neonate cuff #4 NIBP Accessories Buy Now 53 B-NCUFF5 NIBP neonate cuff #5 NIBP Accessories Buy Now 54 B-NCUFF6 NIBP neonate cuff #6 NIBP Accessories Buy Now 55 B-NCUFF7 NIBP neonate cuff #7 NIBP Accessories Buy Now 56 B-NCUFF8 NIBP neonate cuff #8 NIBP Accessories Buy Now 57 B-IBP-BD(Brio) BD type IBP Extension Cable for Brio X Vet series monitor IBP Accessories (BD Type IBP Solutions) Buy Now 58 TD_IBP_BD BD type disposable IBP Transducer IBP Accessories (BD Type IBP Solutions) Buy Now 59 B-IBPEXT-Brio IBP Extension Cable for Brio X Vet series monitor IBP Accessories (Medex Type IBP Solutions) Buy Now 60 MX9505T_IP-MX-300 TranStar® 84" single line monitoring kit
(Compatible with TranStar® 84" single line monitoring kit-Smiths Medical)IBP Accessories (Medex Type IBP Solutions) Buy Now 61 MX4810 C-Fusor® 1000ml pressure infusor: complete with squeeze bulb and pressure gauge IBP Accessories (Medex Type IBP Solutions) Buy Now 62 MX800 Modular transducer mounting plate (1 each) IBP Accessories (Medex Type IBP Solutions) Buy Now 63 MX240 Pole clamp for mounting a transducer plate (fits 3/4" to 1-1/2" I.V. pole) IBP Accessories (Medex Type IBP Solutions) Buy Now 64 B-TEMEXT-Brio Temp Extension Cable for Brio to use esophageal/rectal Temp probe (TEM-PRV-R) TEMP Accessories Buy Now 65 TEM-PRV-R Temperature probe (Esophageal/Rectal Type)
* Veterinary use onlyTEMP Accessories Buy Now 101 BAT-Brio BM Battery for Brio(Li-ion 10.8V, 3.25A. 3-Cell) Battery Buy Now 102 BAT-Brio-2 Option Optional Battery for Brio( Li-ion, 10.8V, 6.50Ah, 6-Cell) Battery Buy Now 104 BM-CART-Brio Rolling Cart for Brio Series Monitor Cart and Mounting Buy Now 105 WM-Brio Wall Mount for Brio Series Monitor Cart and Mounting Buy Now 106 PC-A (V) Power cable Power Buy Now 107 BM-PP BM paper (10 rolls/box) Printer Buy Now 108 Printer Ass'y_Brio Printer Module Ass'y w/2 screws for Brio Vet series monitors Printer Buy Now 109 USB-WIFI25 USB WiFi dongle (Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity) Others Buy Now 110 Stylus-Brio Touch Screen Stylus for Brio Others Buy Now - Downloads
