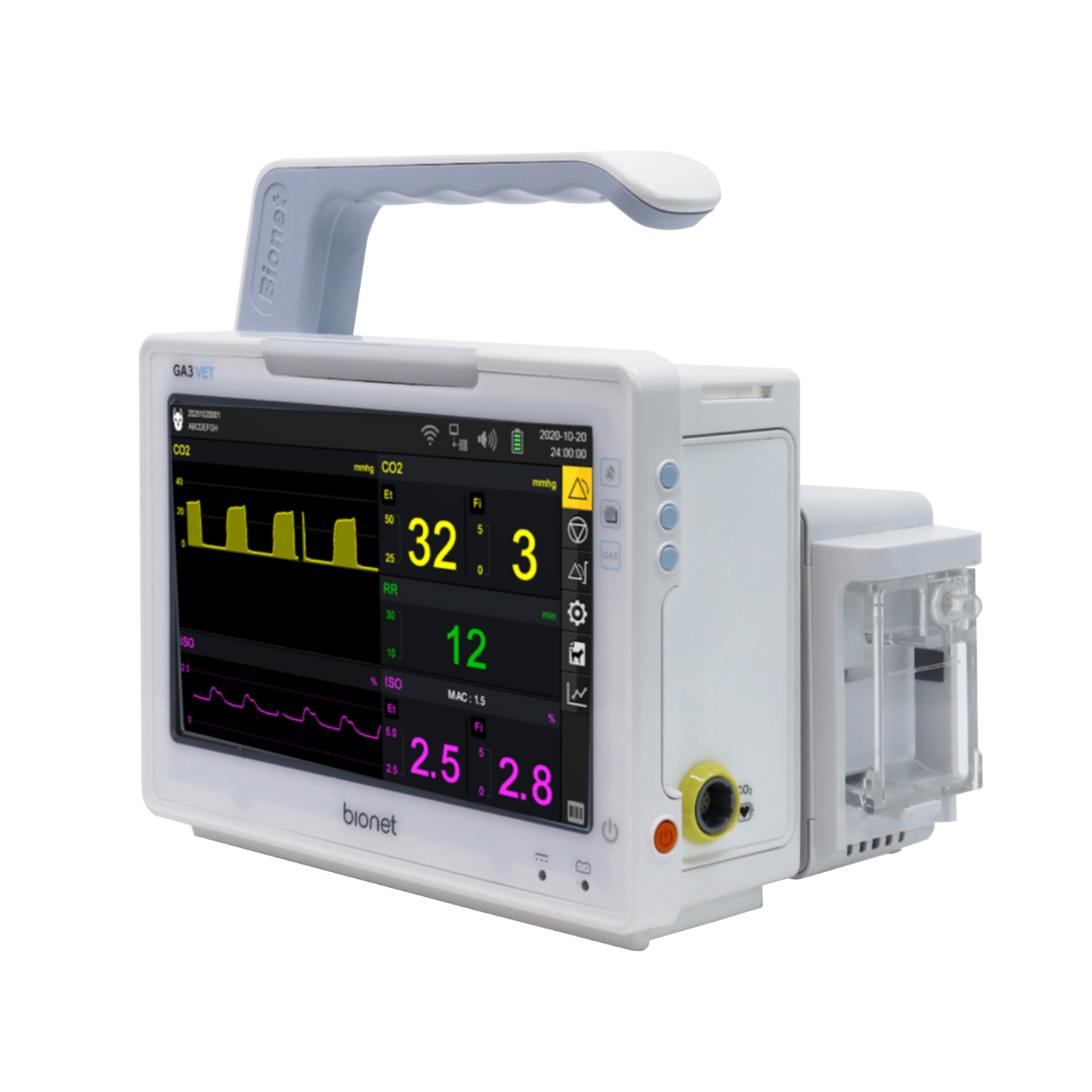

GA3VET
EtCO2/Anesthetic Gas Analyzer
Bionet introduces the portable, versatile, and affordable GA3VET EtCO2/anesthetic gas analyzer. At just 2.46 lbs, the GA3VET gives you portable cordless control with sidestream EtCO2 and anesthetic gas monitoring. All with easy wireless compatibility and FREE BT-Link Pro and BT-Link mobile app for real-time monitoring and data recording.
Bionet introduces the portable, versatile, and affordable GA3VET EtCO2/anesthetic gas analyzer. At just 2.46 lbs, the GA3VET gives you portable cordless control with sidestream EtCO2 and anesthetic gas monitoring. All with easy wireless compatibility and FREE BT-Link Pro and BT-Link mobile app for real-time monitoring and data recording.
Product Highlights
Parameters
EtCO2, FiCO2, RR, Anesthetic Agent Concentration, and MAC
Safety
Prevent over and under dosing patients with anesthetic gases
Touchscreen
7.0″ Color TFT LCD Touchscreen
Monitoring
Connect unit to BT-Link computer software over Wi-Fi
Lightweight
Weighs only 2.46 lbs
Warranty
2 year warranty
Product Highlights
Parameters
EtCO2, FiCO2, RR, Anesthetic Agent Concentration, and MAC
Safety
Prevent over and under dosing patients with anesthetic gases
Touchscreen
7.0″ Color TFT LCD Touchscreen
Monitoring
Connect unit to BT-Link computer software over Wi-Fi
Lightweight
Weighs only 2.46 lbs
Warranty
2 year warranty
Bionet introduces the portable, versatile, and affordable GA3VET EtCO2/anesthetic gas analyzer. At just 2.46 lbs, the GA3VET gives you portable cordless control with sidestream EtCO2 and anesthetic gas monitoring. All with easy wireless compatibility and FREE BT-Link Pro and BT-Link mobile app for real-time monitoring and data recording.
Intended Use: To monitor vital signs in veterinary patients (feline, canine), including: EtCO2, FiCO2, RR, Anesthetic Agent Concentration, and MAC
Superior Advantages
- EtCO2, FiCO2, Respiration Rate, Anesthetic Agent Concentration, and MAC
- 7.0″ color TFT touch screen
- Sweep speed: 6, 25, 12.5, 25 mm/s
- Helps ensure anesthesia maintenance through monitoring MAC parameters.
- May help prevent overdosing or underdosing of anesthetic gas.
- Monitors anesthetic gas concentration to help ensure proper vaporizer function.
- Fast 30 sec. warm-up time upon system initiation.
- Optical Bandpass Filtering technology eliminates the need for frequent calibration.
Enhanced Data Management
- 168 full hours of trend data can be stored
- Records EtCO2 and Anesthetic Gas Volume during surgery
- Easy network connectivity, supports wireless LAN
- Automatic Search for available Wi-Fi networks
- USB memory storage (64GB)
- BT-Link Pro and BT-Link Mobile for real-time monitoring and recording
Transportable
- Li-ion rechargeable battery with longer lifetime (Up to 4hrs for continuous operation)
- Lightweight Portability – 2.46 lbs
- 2 USB Ports
Includes:
GA3VET Main Unit, Dual Gas Sensor, Dual Gas Sensor accessories, DG Bracket, Power Adaptor & Power Cord, Operation Manual, USB Wi-Fi dongle, Operation Manual, BT-Link Pro Software, and 2-Year Warranty Card.
Caution: Federal law restricts this device to sale by or on the order of a licensed veterinarian.
wdt_ID Item Feature Specification
73
General
Screen
7” Color TFT LCD Touchscreen
74
Parameters
- Default: EtCO2, FiCO2, Respiration Rate
- Options: Anesthetic Agent Concentration, MAC, Isoflurane % Volume, Sevoflurane % Volume, Halothane % Volume, Enflurane % Volume, Desflurane % Volume
75
Trace
CO2, anesthetic gas (Dual Gas Module)
1 Waveform: CO2 (EtCO2 sensor)
Sweep speed: 6, 25, 12.5, 25 mm/s
Scales: 40, 50, 60, 80, 100, 150 mmHg
77
Performance
CO2
Range: 0 - 100 mmHg; 0-13.3kPa; 0 - 10% CO2 STPD
Accuracy: ± (0.2 vol% + 4% relative)
Rise Time: 400 ms (average)
78
Anesthetic Agents
Gas: Isoflurane, Enflurane, Halothane, Desflurane, Sevoflurane
Range: Iso., Enf., Hal., Sev.: 0-6%
Des.: 0 - 18%
Resolution: 0.01%
Accuracy: ± (0.15% vol% + 4 relative)
Rise Time: 450 ms (average)
79
Respiration Rate
Range: 0 - 150 breaths/min
Accuracy: ± 1 breath/min
80
Flow Rate
Range: 170 ml/min
Accuracy: ± 20 ml/min
* Specifications can be changed without prior notification.
| Item Code | Item Description | ||
|---|---|---|---|
| wdt_ID | Item Image | Item Code | Item Description |
| 61 |  |
DGA-WT | Water Trap |
| 62 |  |
DGA-SL | Sample Line with Luer Lock (8') |
| 64 |  |
DGA-AAS | Airway Adapter (Straight) |
| 66 |  |
DGA-AAL | Airway Adapter (L type) |
| 67 |  |

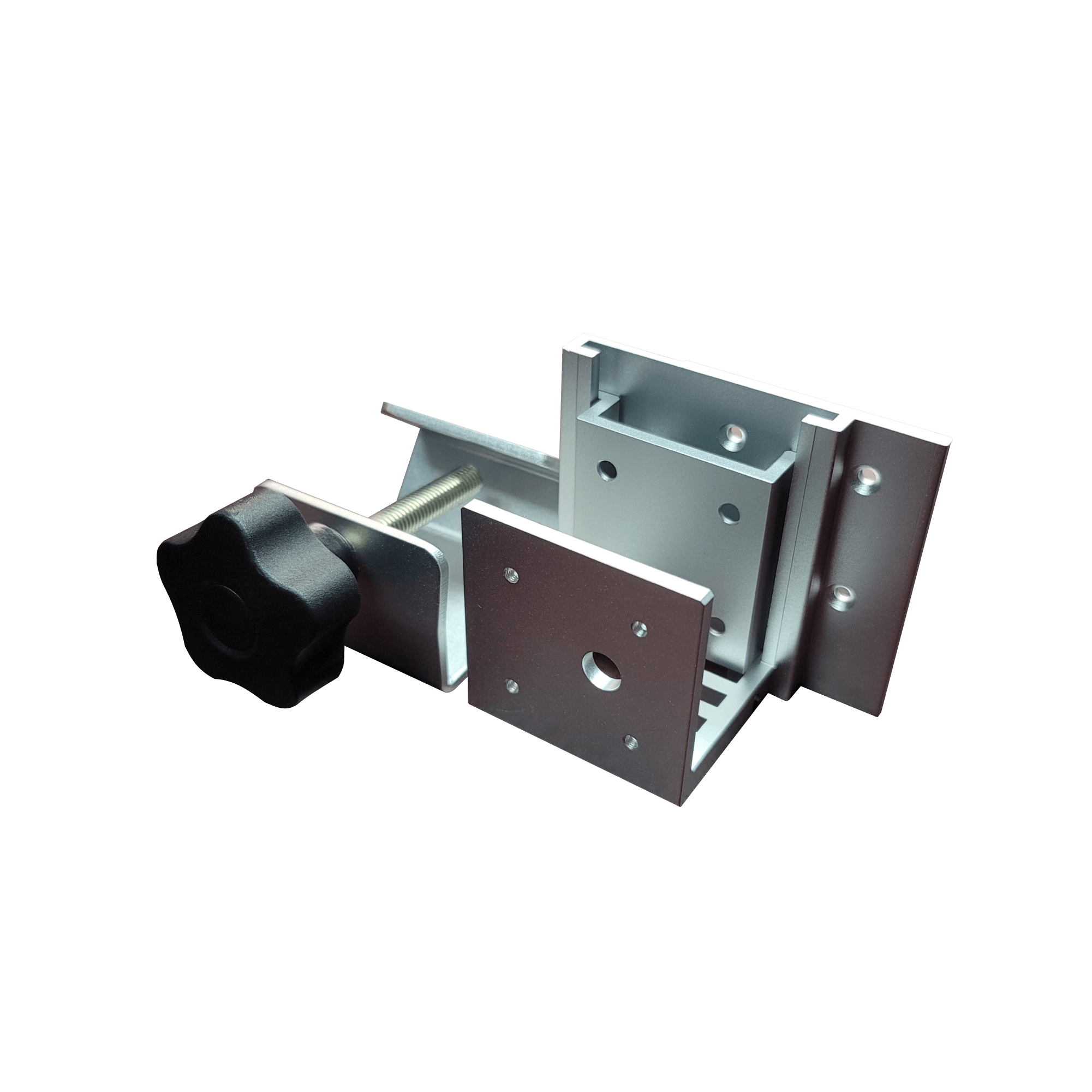

GA3VET-DG Bracket | Dual Gas Module Bracket(Main Clamp/Bracket/4 Screws) |
| 68 |  |

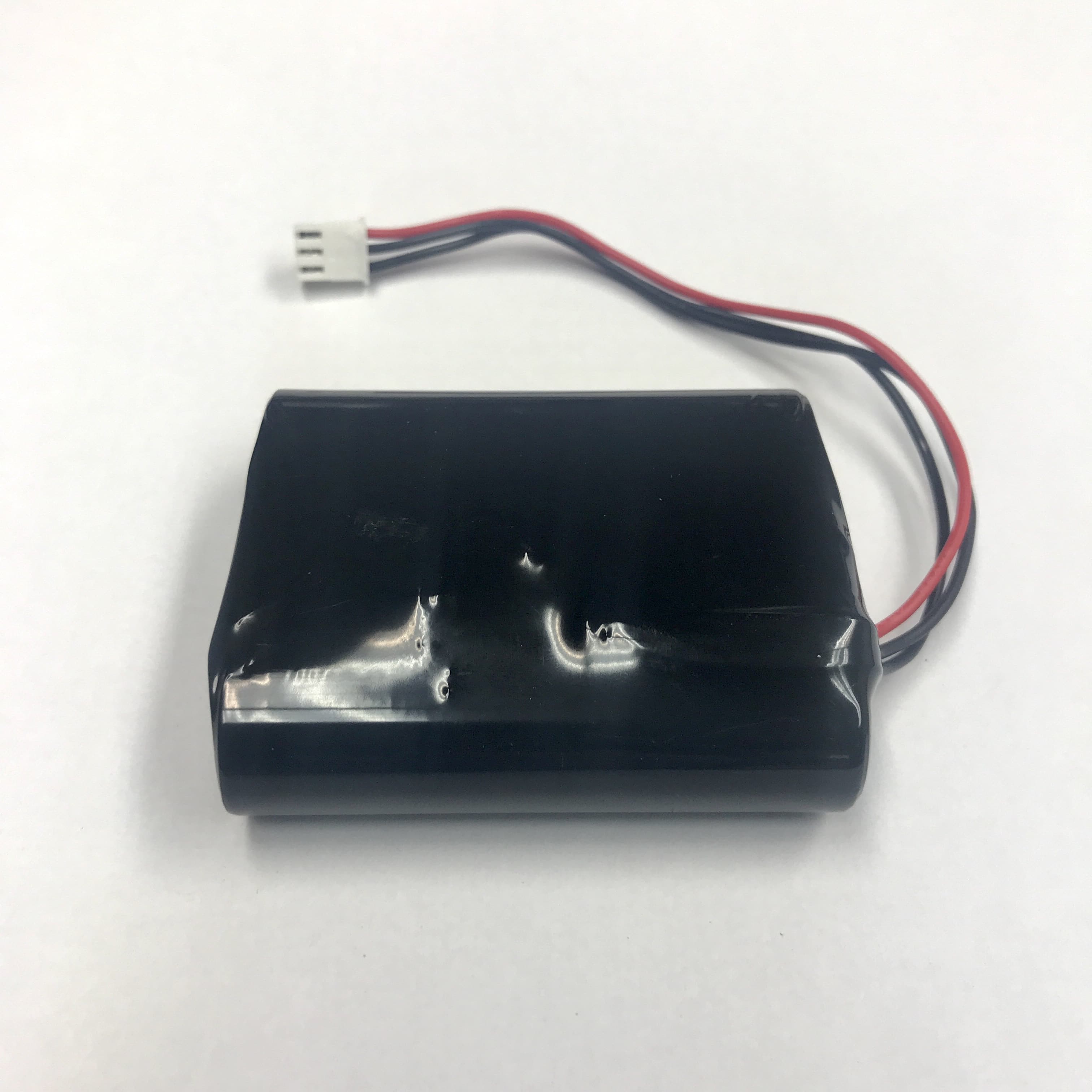

BM-BAT-3&5(N) | Battery Console Li-ion 1 Line, 3 Cell, 10.8V, 3250mA/h |
| 69 |  |

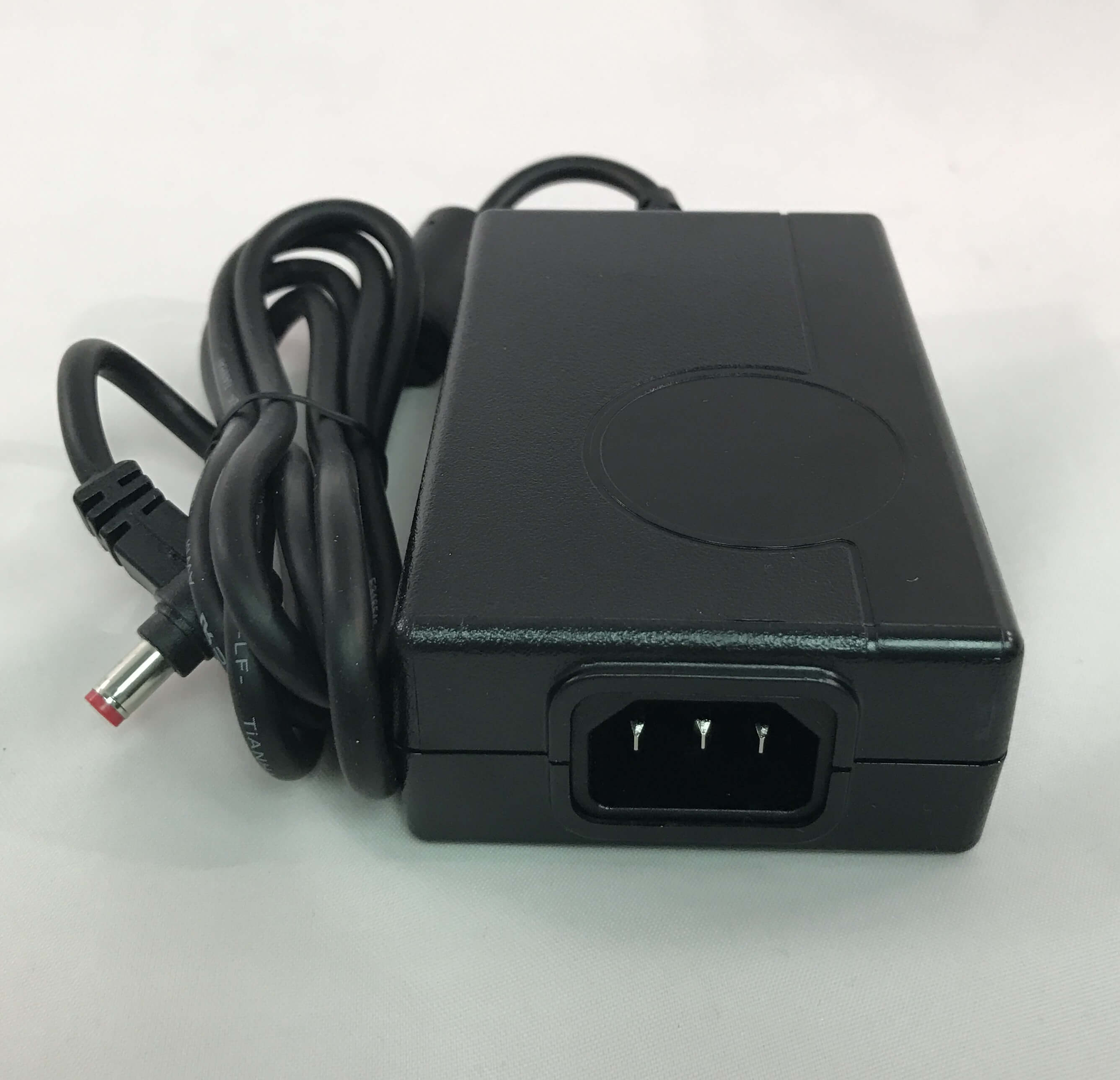

TRANS | Power transformer (DC adaptor, output: +18V, 2.8A) |
| 70 |  |

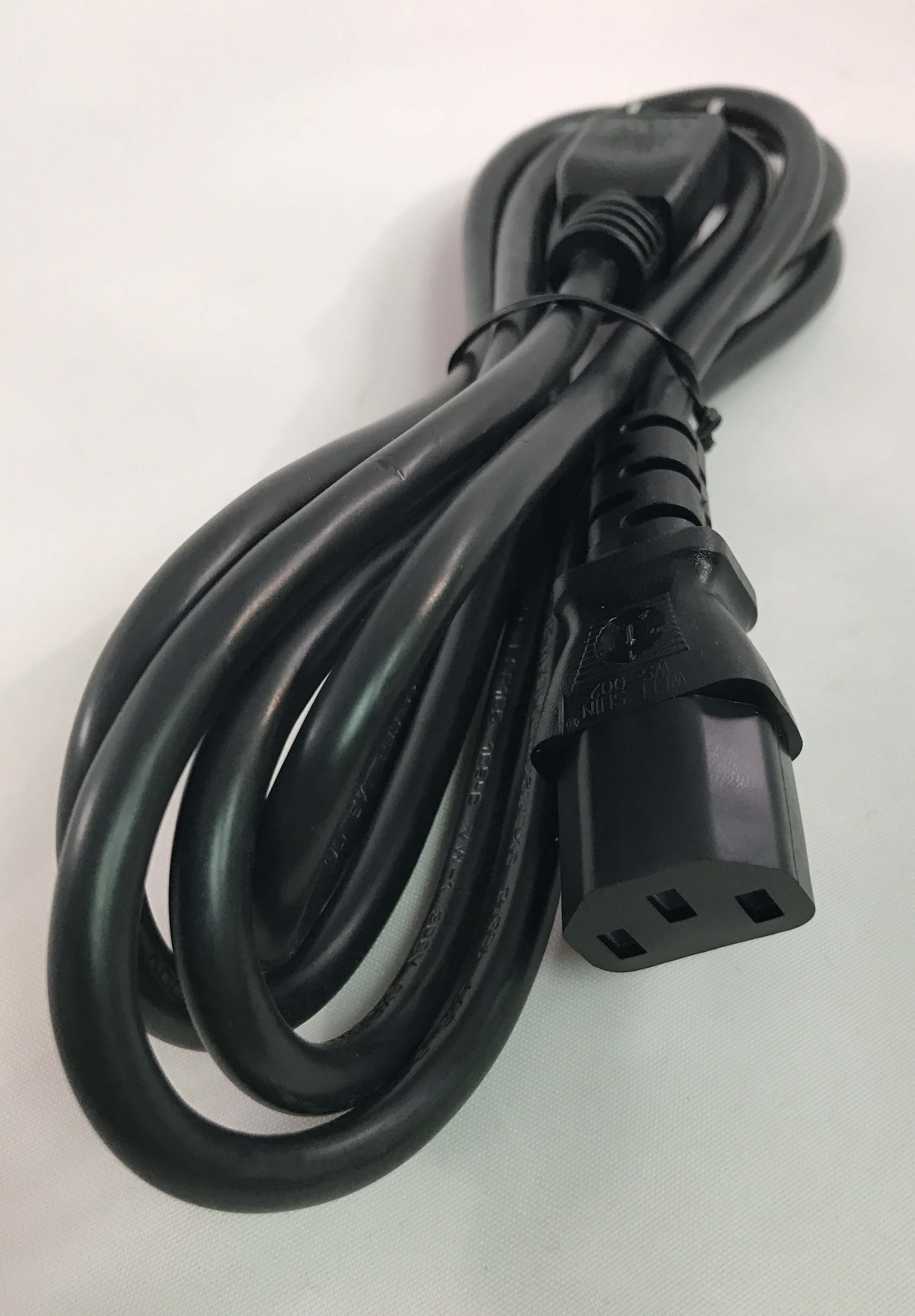

PC-A (V) | Power cable |
| 71 |  |

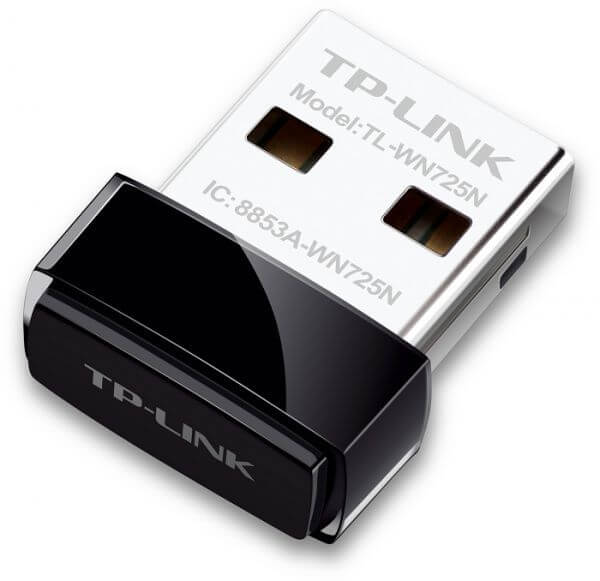

USB-WIFI25 | USB WiFi dongle (Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity) |
- Overview
-
Bionet introduces the portable, versatile, and affordable GA3VET EtCO2/anesthetic gas analyzer. At just 2.46 lbs, the GA3VET gives you portable cordless control with sidestream EtCO2 and anesthetic gas monitoring. All with easy wireless compatibility and FREE BT-Link Pro and BT-Link mobile app for real-time monitoring and data recording.
Intended Use: To monitor vital signs in veterinary patients (feline, canine), including: EtCO2, FiCO2, RR, Anesthetic Agent Concentration, and MAC
Superior Advantages
- EtCO2, FiCO2, Respiration Rate, Anesthetic Agent Concentration, and MAC
- 7.0″ color TFT touch screen
- Sweep speed: 6, 25, 12.5, 25 mm/s
- Helps ensure anesthesia maintenance through monitoring MAC parameters.
- May help prevent overdosing or underdosing of anesthetic gas.
- Monitors anesthetic gas concentration to help ensure proper vaporizer function.
- Fast 30 sec. warm-up time upon system initiation.
- Optical Bandpass Filtering technology eliminates the need for frequent calibration.
Enhanced Data Management
- 168 full hours of trend data can be stored
- Records EtCO2 and Anesthetic Gas Volume during surgery
- Easy network connectivity, supports wireless LAN
- Automatic Search for available Wi-Fi networks
- USB memory storage (64GB)
- BT-Link Pro and BT-Link Mobile for real-time monitoring and recording
Transportable
- Li-ion rechargeable battery with longer lifetime (Up to 4hrs for continuous operation)
- Lightweight Portability – 2.46 lbs
- 2 USB Ports
Includes:
GA3VET Main Unit, Dual Gas Sensor, Dual Gas Sensor accessories, DG Bracket, Power Adaptor & Power Cord, Operation Manual, USB Wi-Fi dongle, Operation Manual, BT-Link Pro Software, and 2-Year Warranty Card.Caution: Federal law restricts this device to sale by or on the order of a licensed veterinarian.
- Specifications
-
wdt_ID Item Feature Specification 73 General Screen 7” Color TFT LCD Touchscreen 74 Parameters - Default: EtCO2, FiCO2, Respiration Rate
- Options: Anesthetic Agent Concentration, MAC, Isoflurane % Volume, Sevoflurane % Volume, Halothane % Volume, Enflurane % Volume, Desflurane % Volume75 Trace CO2, anesthetic gas (Dual Gas Module)
1 Waveform: CO2 (EtCO2 sensor)
Sweep speed: 6, 25, 12.5, 25 mm/s
Scales: 40, 50, 60, 80, 100, 150 mmHg77 Performance CO2 Range: 0 - 100 mmHg; 0-13.3kPa; 0 - 10% CO2 STPD
Accuracy: ± (0.2 vol% + 4% relative)
Rise Time: 400 ms (average)78 Anesthetic Agents Gas: Isoflurane, Enflurane, Halothane, Desflurane, Sevoflurane
Range: Iso., Enf., Hal., Sev.: 0-6%
Des.: 0 - 18%
Resolution: 0.01%
Accuracy: ± (0.15% vol% + 4 relative)
Rise Time: 450 ms (average)79 Respiration Rate Range: 0 - 150 breaths/min
Accuracy: ± 1 breath/min80 Flow Rate Range: 170 ml/min
Accuracy: ± 20 ml/min* Specifications can be changed without prior notification.
- Accessories
-
Item Code Item Description wdt_ID Item Image Item Code Item Description 61
DGA-WT Water Trap 62 DGA-SL Sample Line with Luer Lock (8') 64 DGA-AAS Airway Adapter (Straight) 66
DGA-AAL Airway Adapter (L type) 67 GA3VET-DG Bracket Dual Gas Module Bracket(Main Clamp/Bracket/4 Screws) 68 BM-BAT-3&5(N) Battery Console Li-ion 1 Line, 3 Cell, 10.8V, 3250mA/h 69 TRANS Power transformer
(DC adaptor, output: +18V, 2.8A)70 PC-A (V) Power cable 71 USB-WIFI25 USB WiFi dongle (Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity) - Downloads
