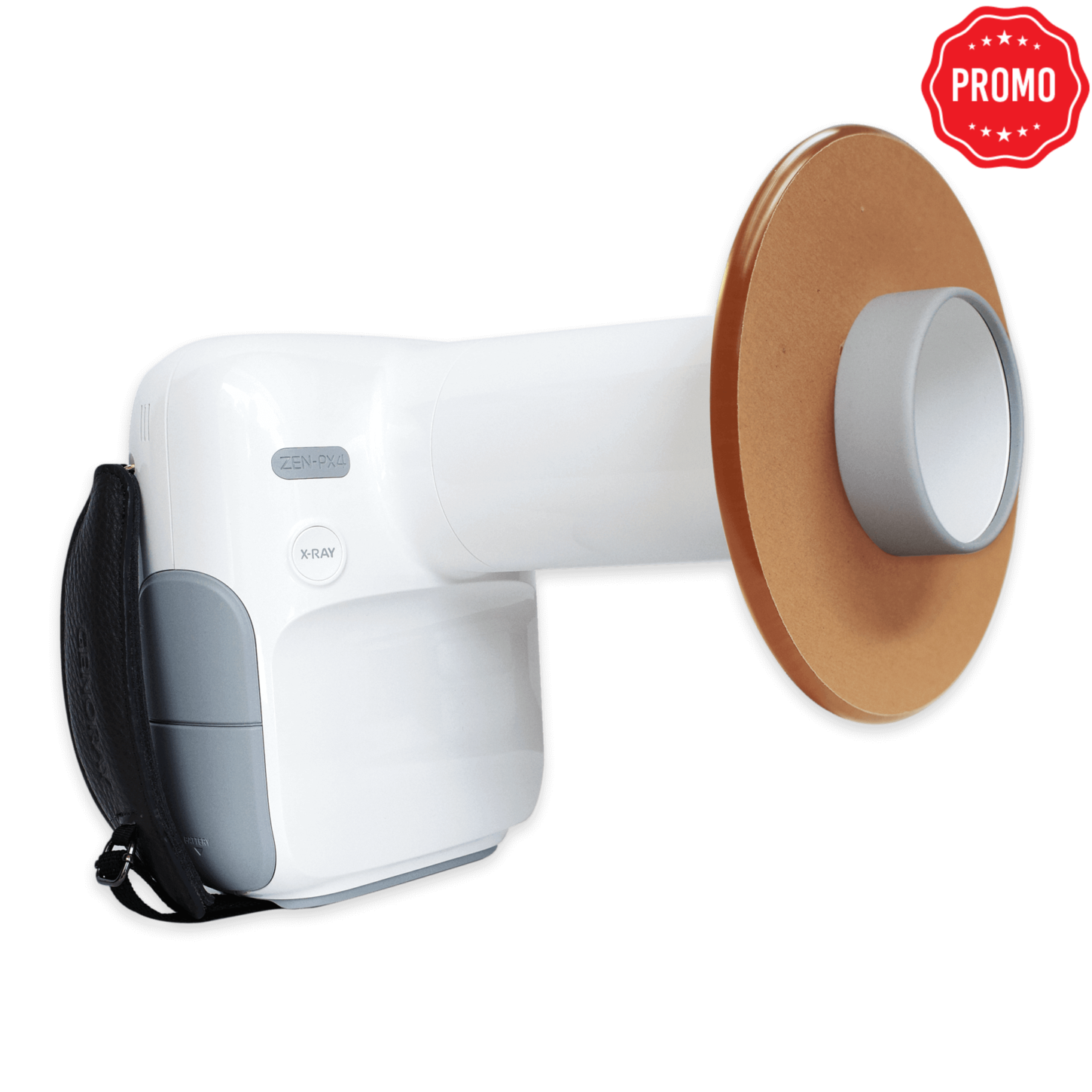

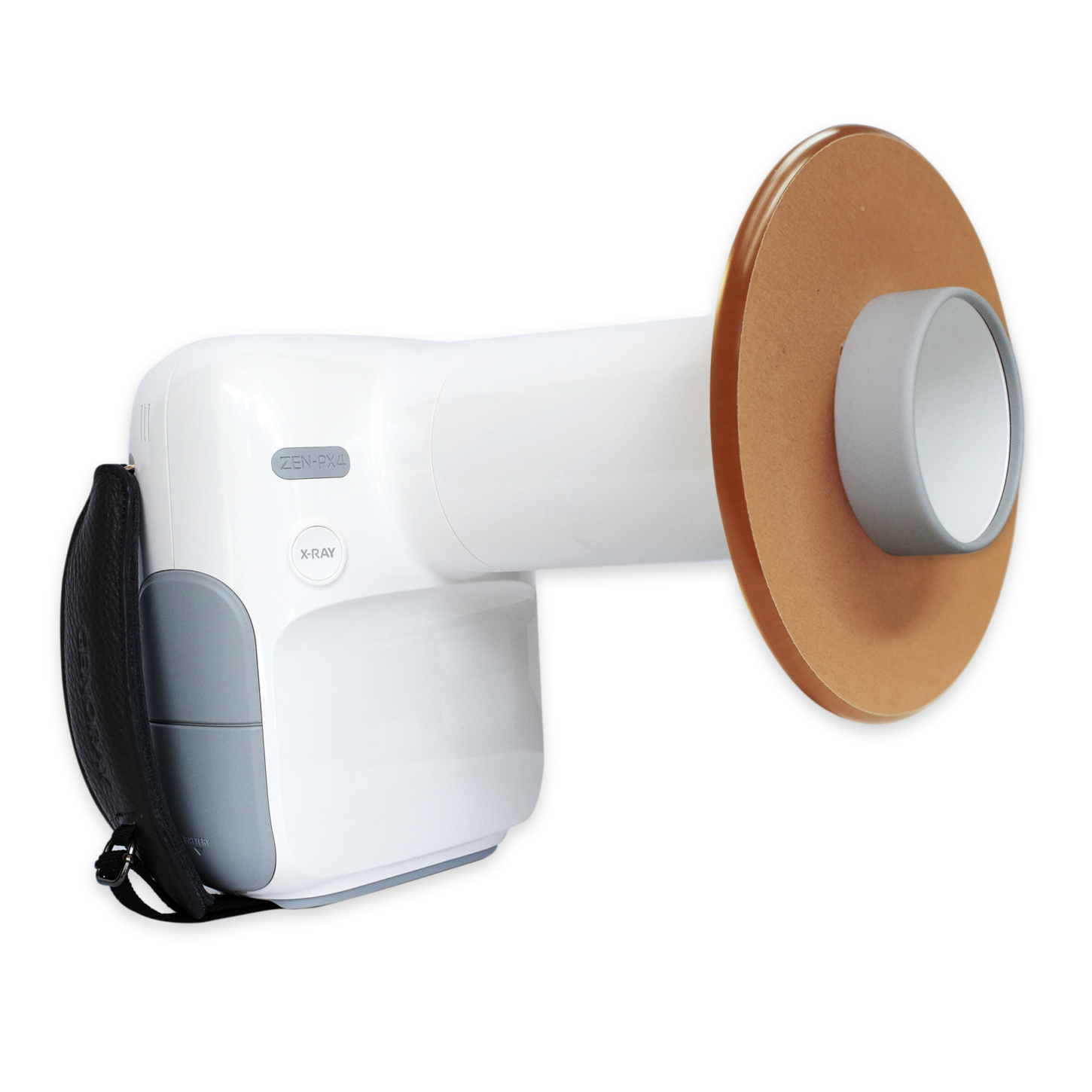

ZEN-PX4 VET
Veterinary Portable Dental X-Ray System
The diagnostic veterinary dental X-ray system ZEN-PX4 Vet* is a device for photographing the teeth of animals for accurate diagnosis. It is designed to realize high quality images and reduce unnecessary radiation exposure, and is a portable device which can be operated by one hand.
or |
BUY NOW |
The diagnostic veterinary dental X-ray system ZEN-PX4 Vet* is a device for photographing the teeth of animals for accurate diagnosis. It is designed to realize high quality images and reduce unnecessary radiation exposure, and is a portable device which can be operated by one hand.
or
BUY NOW
Product Highlights
Veterinary Interface
Veterinary specific menu and icons
Light-Weight
One hand operation, only 3.3 lbs
Mobile
Anywhere, anytime, when you need it
Safety
Optimized and shorter exposure times
Wi-Fi
Transfer images to PC wirelessly with PortView Sensors
Warranty
2 year warranty (6 months on accessories)
Quick Link
Product Highlights
Veterinary Interface
Veterinary specific menu and icons
Light-Weight
One hand operation, only 3.3 lbs
Mobile
Anywhere, anytime, when you need it
Safety
Optimized and shorter exposure times
Wi-Fi
Transfer images to PC wirelessly with PortView Sensors
Warranty
2 year warranty (6 months on accessories)
Quick Link
The diagnostic veterinary dental X-ray system ZEN-PX4 Vet* is a device for photographing the teeth of animals for accurate diagnosis. It is designed to realize high quality images and reduce unnecessary radiation exposure, and is a portable device which can be operated by one hand.
Versatile!
Did your dental x-ray generator go down and you need to replace it? Don’t worry, the Zen-PX4 will work with ANY sensor, phosphor plate or film**!

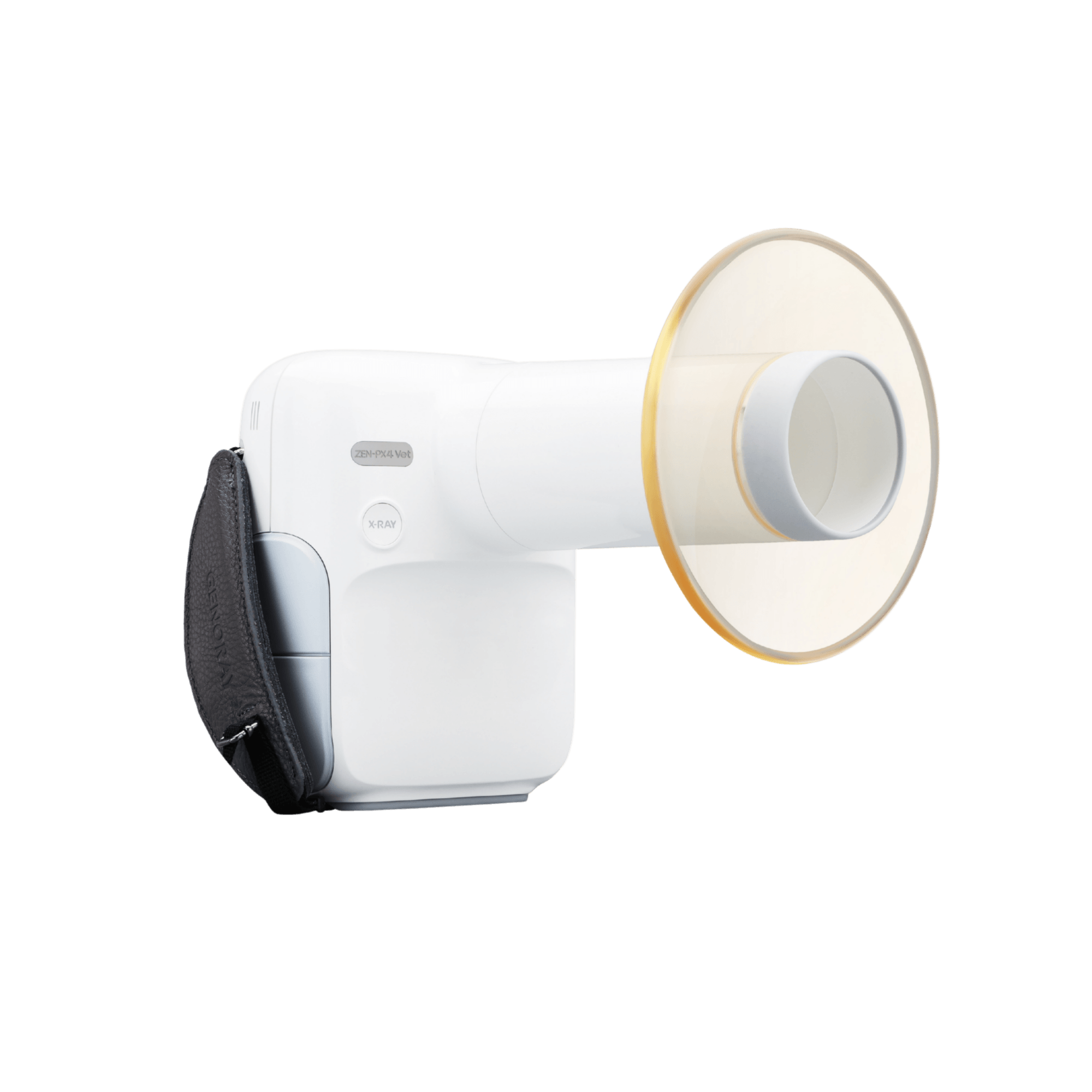

Smaller & Lighter
- Handheld Portability
- 3.3 lbs based on optimized design of tank
- 55.1(W) X 68.1(H) X 100(D) mm
Powerful
- Tube Voltage : 70Kv
- Tube current : 2mA
- Exposure time : 0.05Sec : 0.5Sec ~ 1.6Sec

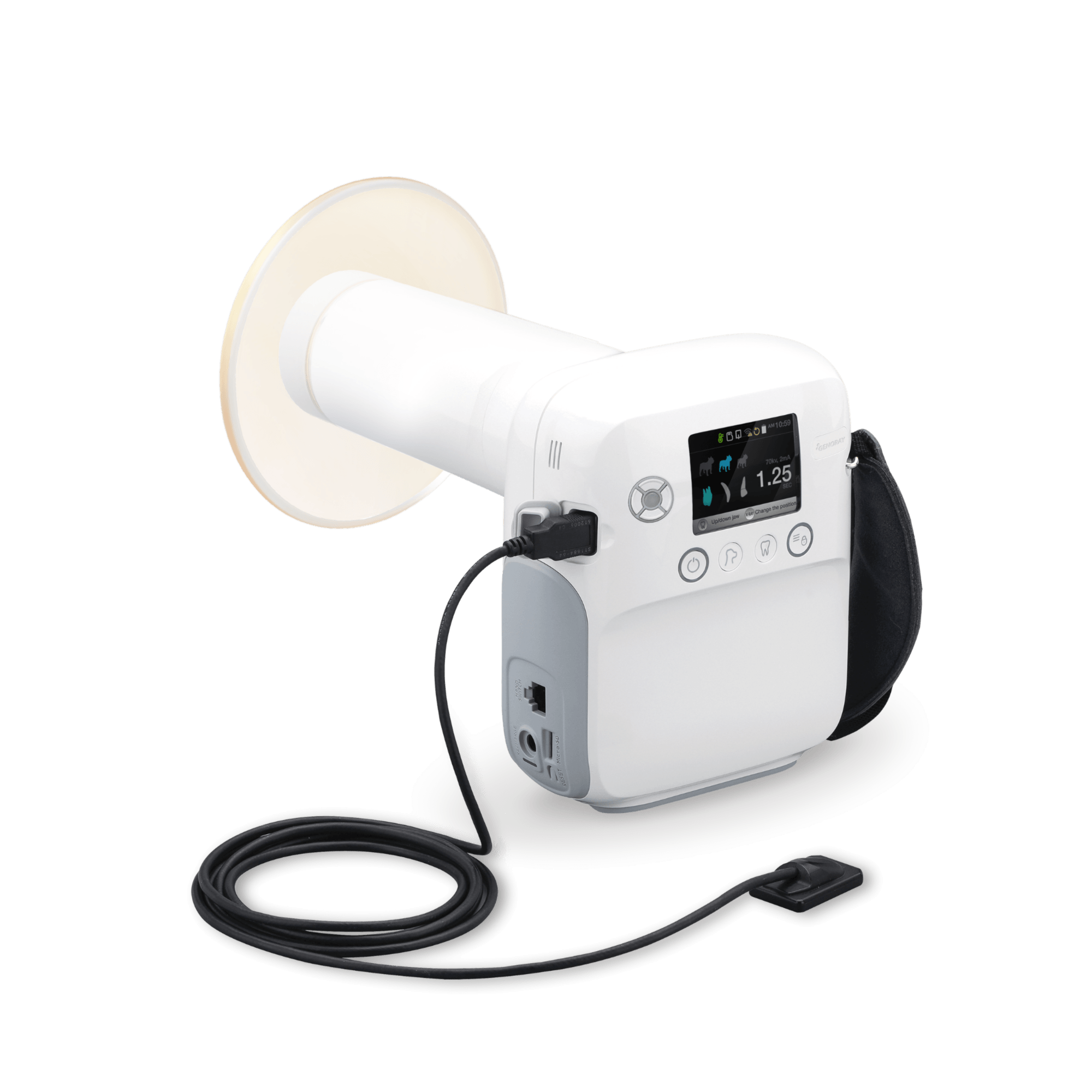

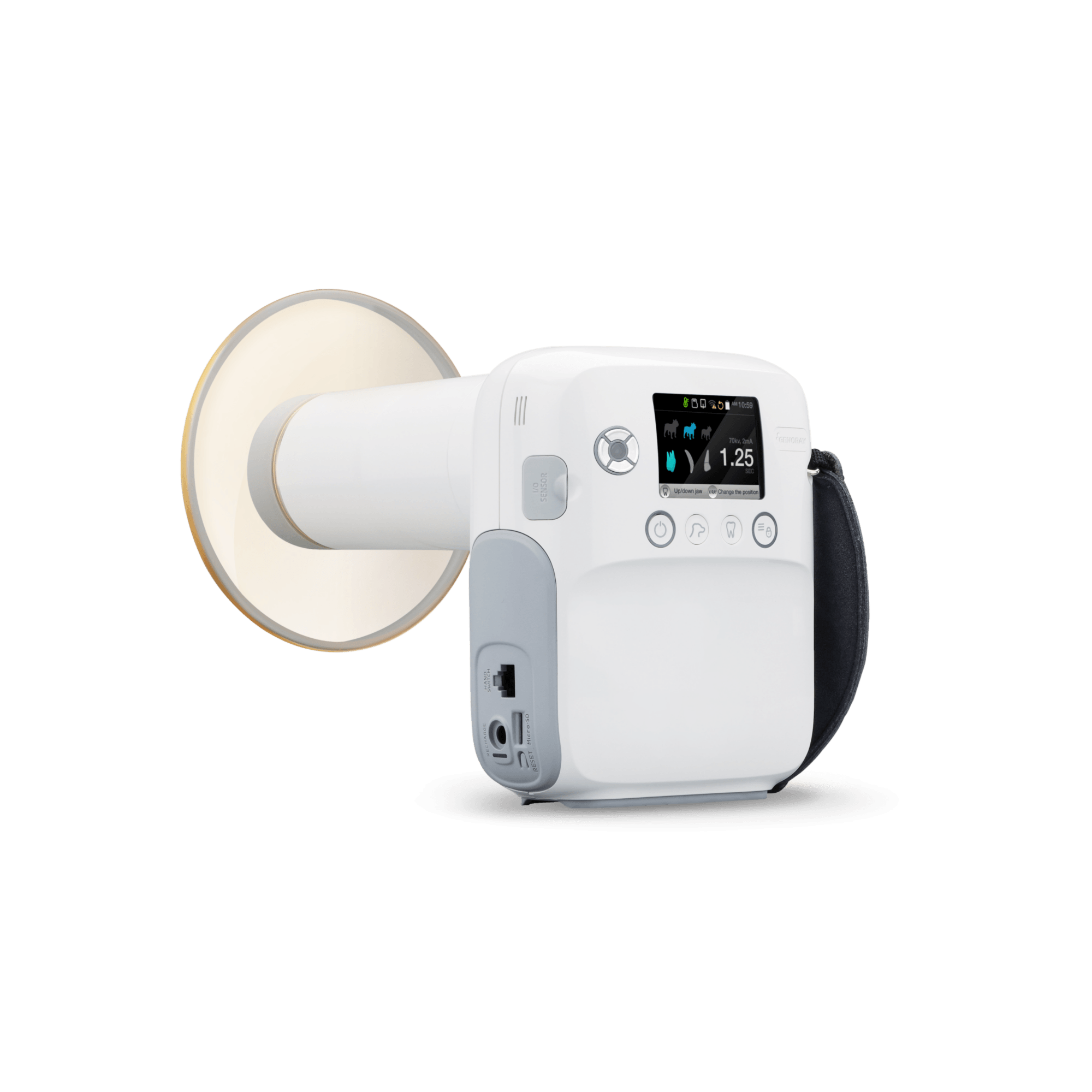

User Interface
- Integrated patient management and image viewer
- Provides integrated functions from shooting to diagnosis
Wireless Image Transfer
- Image storage on a Micro SD card and can be transferred to a PC via Wi-Fi
- Direct interface with the PortView software for easy transmission of patient information and images
Remote Upgrade
- Wireless technology enabled service that allows you to upgrade the device firmware wirelessly.
- Upgrading the latest firmware at any time in a Wi-Fi environment without connecting your device to PC or visiting a customer service center.
Includes:
ZEN-PX4 Vet Main Unit, Battery, Battery Recharger, Power Cable, Hand Switch, Long Cone, Micro SD Card, USB Dongle, FFC Jig, Backscatter Shield
* Due to compliance with state regulations, we currently do not sell the ZEN-PX4 Vet handheld, portable X-Ray devices to customers in the following states: Kansas and North Carolina.
** To utilize the wireless functionality of the Zen-PX4 Vet, you MUST have the PortView sensor.
| wdt_ID | Item | Feature | Specification |
|---|---|---|---|
| 1 | X-ray generator | Tube voltage | 70 kV |
| 2 | Tube current | 2 mA | |
| 3 | X-ray control device | Epicycle | 22 VDC |
| 4 | Exposure time | 0.05 ~ 1.6 sec | |
| 5 | Irradiation control equipment | Type | Round type |
| 6 | Irradiated area | 1.5 mm | |
| 7 | Battery | Type | Li Polymer |
| 8 | Voltage | 22.2 VDC | |
| 9 | Volume | 1000 mAh | |
| 10 | Adapter | Rated voltage | 100~240 V~, 50/60Hz, 1.0A |
| 11 | Output voltage | 28 VDC | |
| 12 | Output current | 1.42 A | |
| 13 | Dimensions and weight | Size | 55.1(W) X 68.1(H) X 100(D) inch |
| 14 | Weight | 3.3 lbs | |
| 15 | X-ray tube | Manufacturer | Canon |
| 16 | Model | D-045S | |
| 17 | TYPE | Fixed anode X-ray tube | |
| 18 | Focus | 0.4 mm | |
| 19 | Target angle | 12.5° | |
| 20 | Material | Tungsten | |
| 21 | Cooling method | Oil cooling | |
| 22 | Maximum allowable tube voltage | 70kV | |
| 23 | Minimum allowable tube voltage | 50kV | |
| 24 | Maximum allowable tube current | 12mA | |
| 25 | Temperature characteristics | ||
| 26 | - Anode heat capacity | 4.3kJ | |
| 27 | - Maximum anode thermal efficiency | 100W |
* Specifications can be changed without prior notification.
Item Code
Item Description
wdt_ID Item Image Item Code Item Description Buy Now
1
PortView_S2
Portview S2 Sensor
Buy Now
2
PortView_S1
Portview S1 Sensor
Buy Now
3
Port4_Strap
Strap for Portable Dental X-Ray compatible with ZEN-PX4, ZEN-PX4 Vet
Buy Now
4
Port4_N.Strap
Neck Strap for Portable Dental X-Ray
Buy Now
5
Port4_Battery
BATTERY / (P4 BATTERY) / EEPROM
Buy Now
6
Port4_Adaptor
ADAPTOR / CHARGER MEANWELL
Buy Now
7
Port4_S.hand
SWITCH HAND extension (6ft)
Buy Now
9
Port4_B.S.Shield
Back Scatter Shield
Buy Now
10
Port_Wifi
USB WiFi dongle (2.4 GHz)
Buy Now
11
Port4_FFC.Jig
FFC Jig
Buy Now
12
Port4_S.Cover_S2
IO Sensor Cover for Portview_S2 / Silicon Clear
Buy Now
13
Port4_S.Cover_S1
IO Sensor Cover for Portview_S1 / Silicon Clear
Buy Now
14
Port_D.Cover
Intraoral Cover (500ea/box)
Buy Now
ZEN-PX4 Vet – Introduction and Walkthrough
ZEN-PX4 Vet – Basic Operation
- Overview
-
The diagnostic veterinary dental X-ray system ZEN-PX4 Vet* is a device for photographing the teeth of animals for accurate diagnosis. It is designed to realize high quality images and reduce unnecessary radiation exposure, and is a portable device which can be operated by one hand.
Versatile!
Did your dental x-ray generator go down and you need to replace it? Don’t worry, the Zen-PX4 will work with ANY sensor, phosphor plate or film**!
Smaller & Lighter
- Handheld Portability
- 3.3 lbs based on optimized design of tank
- 55.1(W) X 68.1(H) X 100(D) mm
Powerful
- Tube Voltage : 70Kv
- Tube current : 2mA
- Exposure time : 0.05Sec : 0.5Sec ~ 1.6Sec
User Interface
- Integrated patient management and image viewer
- Provides integrated functions from shooting to diagnosis
Wireless Image Transfer
- Image storage on a Micro SD card and can be transferred to a PC via Wi-Fi
- Direct interface with the PortView software for easy transmission of patient information and images
Remote Upgrade
- Wireless technology enabled service that allows you to upgrade the device firmware wirelessly.
- Upgrading the latest firmware at any time in a Wi-Fi environment without connecting your device to PC or visiting a customer service center.
Includes:
ZEN-PX4 Vet Main Unit, Battery, Battery Recharger, Power Cable, Hand Switch, Long Cone, Micro SD Card, USB Dongle, FFC Jig, Backscatter Shield* Due to compliance with state regulations, we currently do not sell the ZEN-PX4 Vet handheld, portable X-Ray devices to customers in the following states: Kansas and North Carolina.
** To utilize the wireless functionality of the Zen-PX4 Vet, you MUST have the PortView sensor.
- Specifications
-
wdt_ID Item Feature Specification 1 X-ray generator Tube voltage 70 kV 2 Tube current 2 mA 3 X-ray control device Epicycle 22 VDC 4 Exposure time 0.05 ~ 1.6 sec 5 Irradiation control equipment Type Round type 6 Irradiated area 1.5 mm 7 Battery Type Li Polymer 8 Voltage 22.2 VDC 9 Volume 1000 mAh 10 Adapter Rated voltage 100~240 V~, 50/60Hz, 1.0A 11 Output voltage 28 VDC 12 Output current 1.42 A 13 Dimensions and weight Size 55.1(W) X 68.1(H) X 100(D) inch 14 Weight 3.3 lbs 15 X-ray tube Manufacturer Canon 16 Model D-045S 17 TYPE Fixed anode X-ray tube 18 Focus 0.4 mm 19 Target angle 12.5° 20 Material Tungsten 21 Cooling method Oil cooling 22 Maximum allowable tube voltage 70kV 23 Minimum allowable tube voltage 50kV 24 Maximum allowable tube current 12mA 25 Temperature characteristics 26 - Anode heat capacity 4.3kJ 27 - Maximum anode thermal efficiency 100W * Specifications can be changed without prior notification.
- Accessories
-
Item Code Item Description wdt_ID Item Image Item Code Item Description Buy Now 1
PortView_S2 Portview S2 Sensor Buy Now 2 PortView_S1 Portview S1 Sensor Buy Now 3 Port4_Strap Strap for Portable Dental X-Ray compatible with ZEN-PX4, ZEN-PX4 Vet Buy Now 4 Port4_N.Strap Neck Strap for Portable Dental X-Ray Buy Now 5 Port4_Battery BATTERY / (P4 BATTERY) / EEPROM Buy Now 6 Port4_Adaptor ADAPTOR / CHARGER MEANWELL Buy Now 7 Port4_S.hand SWITCH HAND extension (6ft) Buy Now 9 Port4_B.S.Shield Back Scatter Shield Buy Now 10 Port_Wifi USB WiFi dongle (2.4 GHz) Buy Now 11 Port4_FFC.Jig FFC Jig Buy Now 12 Port4_S.Cover_S2 IO Sensor Cover for Portview_S2 / Silicon Clear Buy Now 13 Port4_S.Cover_S1 IO Sensor Cover for Portview_S1 / Silicon Clear Buy Now 14 Port_D.Cover Intraoral Cover (500ea/box) Buy Now - Videos
-
ZEN-PX4 Vet – Introduction and Walkthrough
ZEN-PX4 Vet – Basic Operation
- Downloads
