Cardio7-S

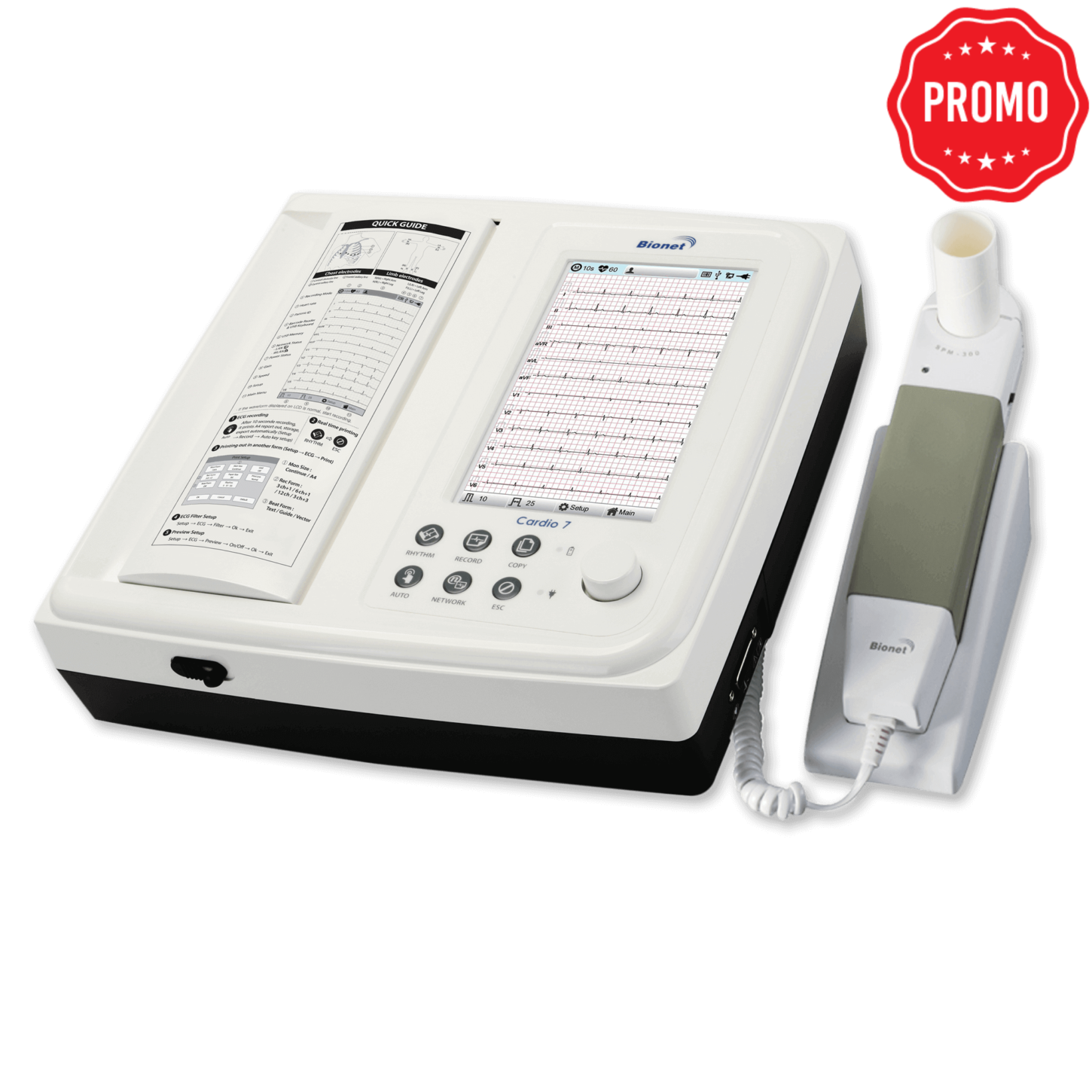

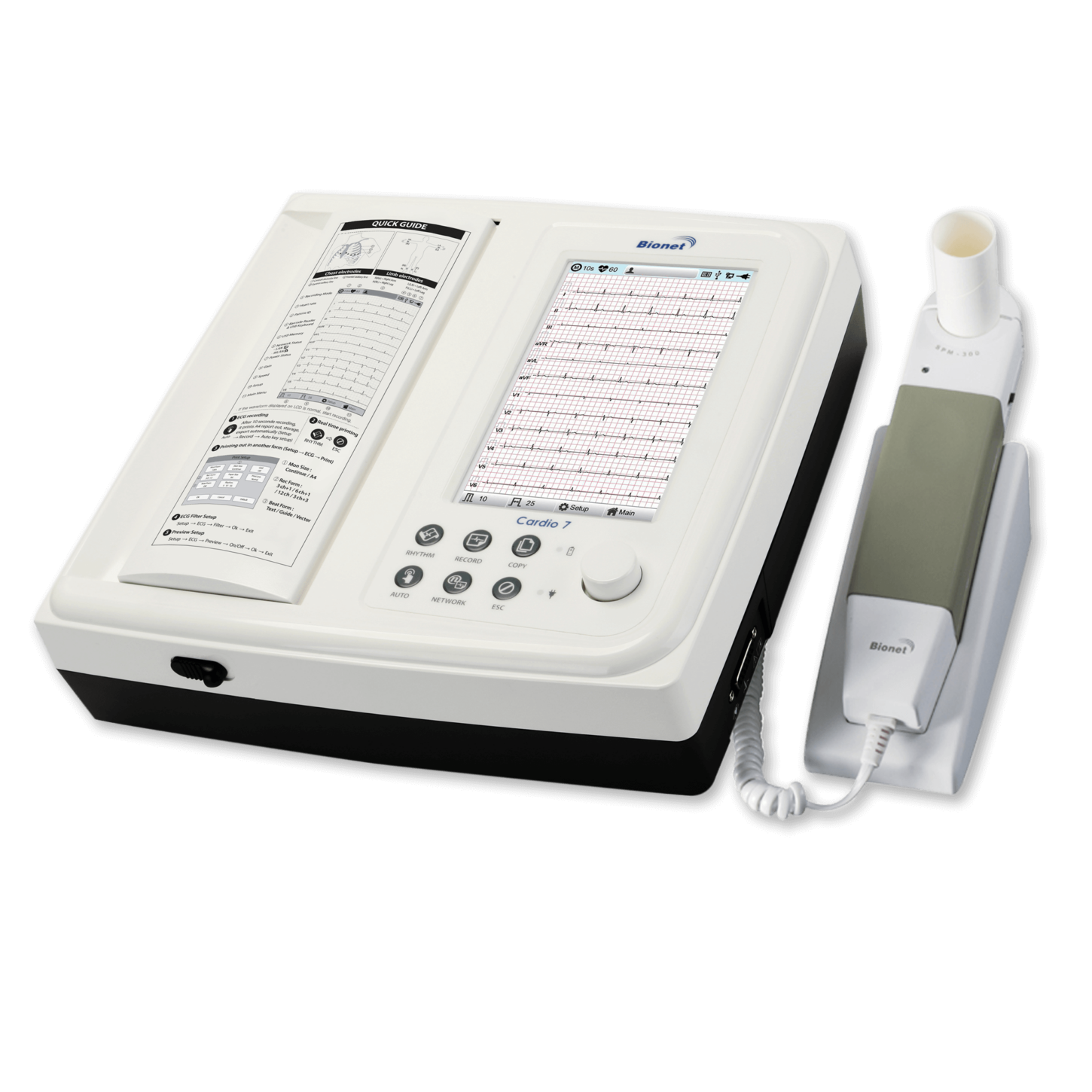

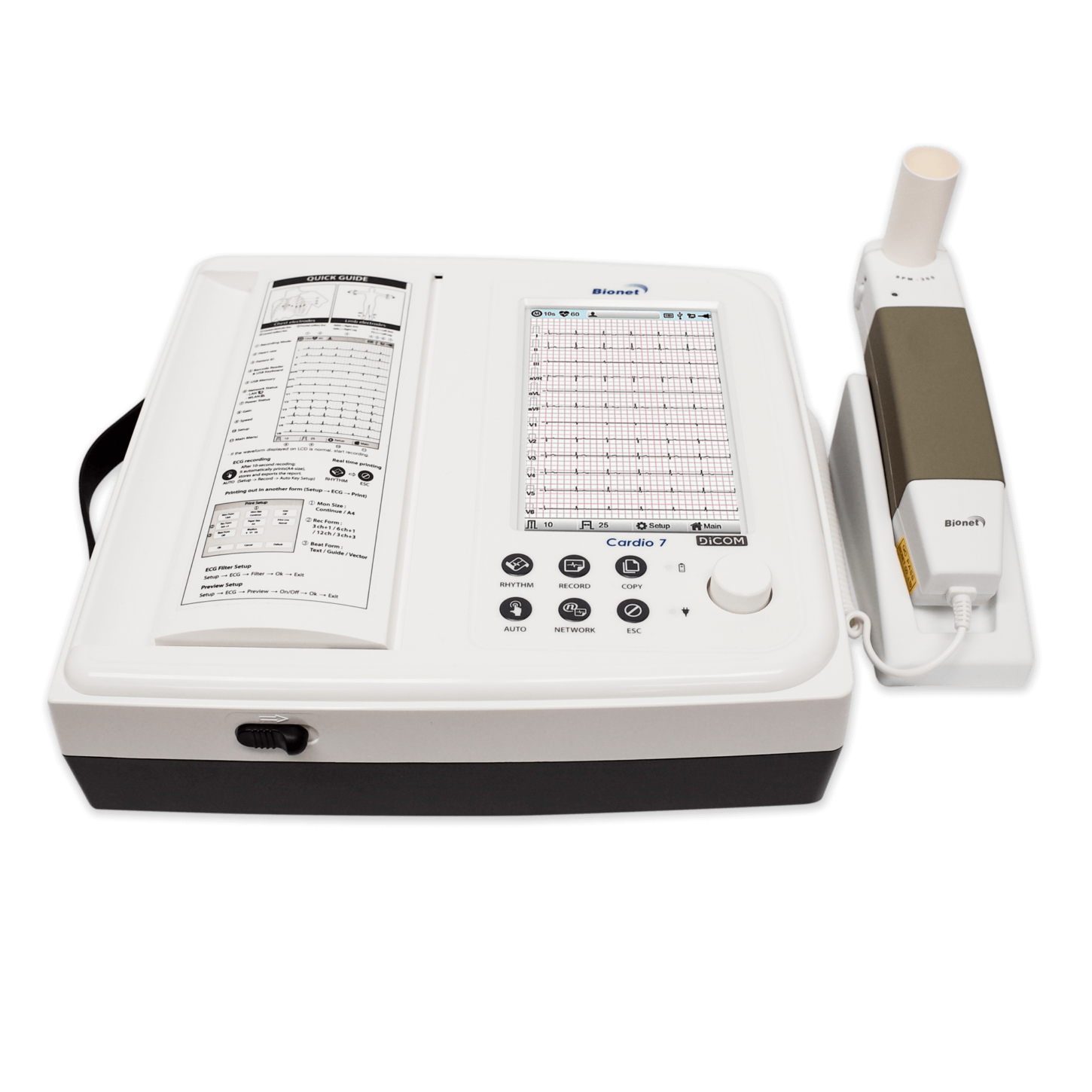

Interpretive Touch Screen Electrocardiogram ECG/EKG Machine Combined with Spirometry
The Cardio7-S is a reliable interpretive touch screen electrocardiogram (ECG / EKG) machine combined with spirometry. It features a large 7” TFT LCD touch screen with Wi-Fi. It supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs and PFT tests. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12/6/3 channel ECG reports, and FVC/SVC/MVV pulmonary test reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECG and spirometer test reports to the server.
The Cardio7-S is a reliable interpretive touch screen electrocardiogram (ECG / EKG) machine combined with spirometry. It features a large 7” TFT LCD touch screen with Wi-Fi. It supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs and PFT tests. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12/6/3 channel ECG reports, and FVC/SVC/MVV pulmonary test reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECG and spirometer test reports to the server.
Product Highlights
Simultaneous, interpretive 12 channel resting ECG
7” color TFT LCD touch screen, real time preview
Spirometer function included
Disposable mouthpiece with patented sensing method
Internal storage up to 200 cases and USB storage
BMS Plus software. Transfer of digital ECG to Windows based PC
Product Highlights
Spirometer function included
7” color TFT LCD touch screen, real time preview
Simultaneous, interpretive 12 channel resting ECG
Disposable mouthpiece with patented sensing method
Internal storage up to 200 cases and USB storage
BMS Plus software. Transfer of digital ECG to Windows based PC
It is highly recommended to calibrate a spirometer with Bionet 3L calibration syringe periodically, in order to ensure accurate calibration of your spirometer.
Our calibration recommendations are based upon guidelines from the American Thoracic Society (ATS) and the European Respiratory Society (ERS)
- The volume accuracy of the spirometer must be checked at least daily with a single discharge of a 3-L calibrated syringe.
- At least quarterly, volume spirometers must have their calibration checked over their entire volume range using a calibrated syringe or an equivalent volume standard. The measured volume should be within 3.5% of the reading or 65 mL, whichever is greater. This limit includes the 0.5% accuracy limit for a 3-L syringe.
The Cardio7-S is a reliable, interpretive touch screen electrocardiogram (ECG / EKG) machine combined with spirometry. It features a large 7” TFT LCD touch screen with Wi-Fi. It supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs and PFT tests. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12/6/3 channel ECG reports, and FVC/SVC/MVV pulmonary test reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECG and spirometer test reports to the server.
Details for ECG Features (click here to see spirometer details)
Cardio7 stands out for its advanced technology, high functionality, ease of use, and an unbeatable price/performance ratio.
Maximized Ease of Use
Cardio7 combines menu-guided touch screen technology with a convenient rotary key and buttons to maximize ease of use. USB barcode reader and keyboard can be attached through USB ports.
Built-In Memory and Supports USB Flash Drive
Stores up to 200 ECGs in internal flash memory. The saved ECGs can be converted to various standard file formats, like JPG, PDF, XML, MFER, and DCM, and exported to external USB flash drive.
EMR support
The Cardio7-S sends ECGs to PC by using BMS-Plus Windows-based PC software through LAN or Wi-Fi. It supports DICOM 3.0 protocol to retrieve work lists from PACS and save ECG images to PACS. USB flash drive can be used to move ECGs stored in Cardio7 to PC.
Clinically Important Simultaneous 12 Lead Acquisition
Cardio7-S acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis.
Pulmonary Function Test
Cardio7-S provides the pulmonary function tests, including: FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Maximum). Pre-post bronchodilator comparison is supported. With disposable mouthpiece, no cleaning and sterilization are needed.
Full Disclosure Function
Cardio7-S stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms.
Enhanced Interpretation
The ECG printout offers detailed interpretation information in text/guide/vector report format to aid in diagnosis. Provides 12 channel, 6 channel + 1 rhythm, 3 channel + 1 rhythm, and 3 channel + 3 rhythm reports. Supports pediatric interpretation.
Long-Term Recording & Automatic Arrhythmia Detection
Cardio7 provides one channel long-term recording like 1, 3, 5, 10 minute with arrhythmia detection and HRV (Heart Rate Variability) analysis.
A4 Full Size Paper

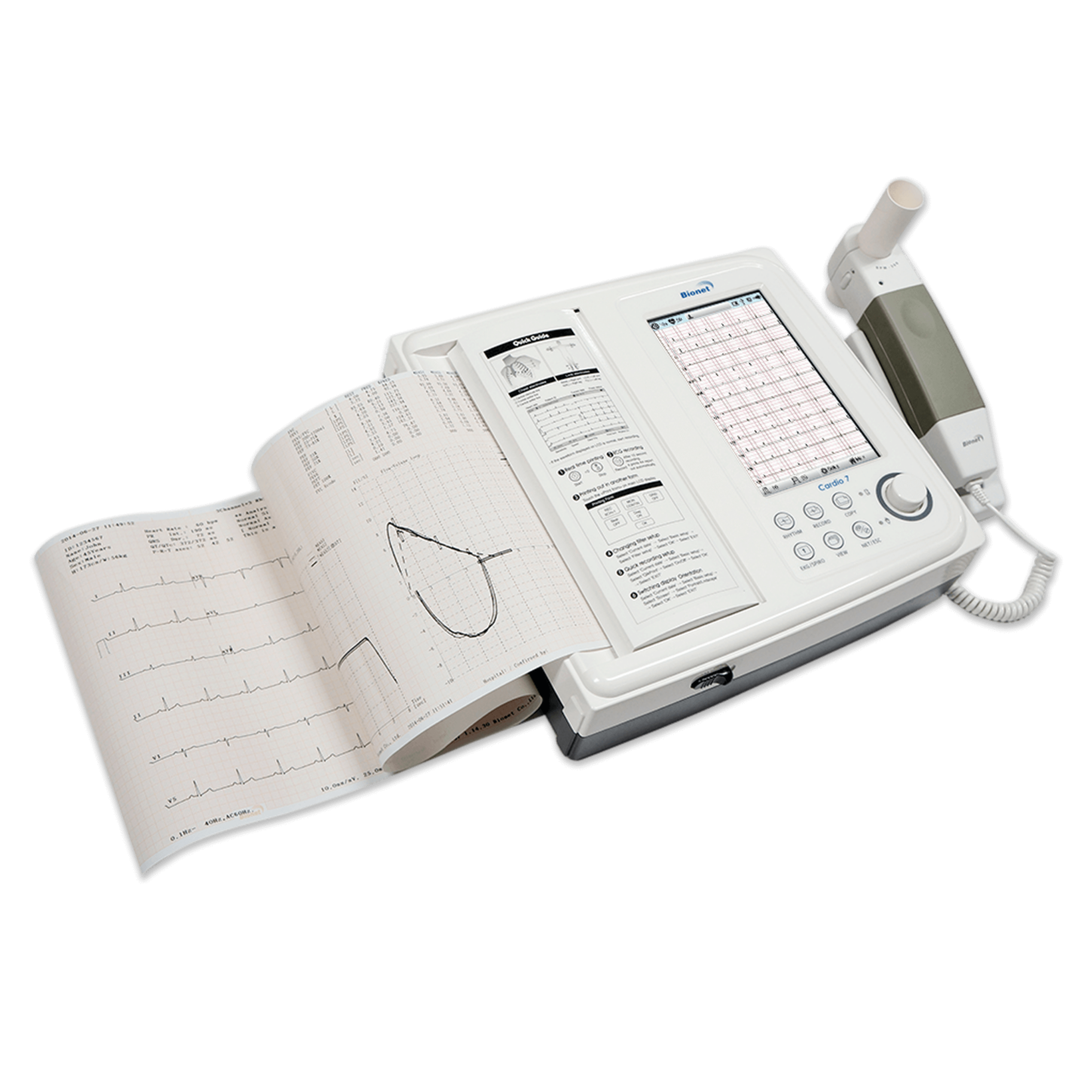

Cardio7-S produces full size A4 printouts in 1, 3, 6, and 12 channel formats and FVC/SVC/MVV test formats. Full size printouts improve readability and make it easier for filing in the patient chart.
ECG Filing System BMS-Plus
BMS-Plus is an ECG software program that enables you to interface Cardio7-S to Windows-based computers through LAN or Wi-Fi. The ECG and PFT data from Cardio7-S is saved in either Bionet’s proprietary file format, JPEG or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements, and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.
Includes:
Cardio7 Main Unit, SPM-300 (Spirometer), 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, 100 Disposable Mouthpieces, 1 Nose Clip, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book, Quick Reference Guide and 3-Year Warranty Card. Wi-Fi USB dongle and USB Flash Drive with BMS-Plus Software Included.
Option:
ECG Cart, Hanger, DICOM 3.0
Electrocardiograph ECG / EKG
| wdt_ID | Feature | Specification |
|---|---|---|
| 1 | ECG Leads | 12 channel simultaneous ECG and acquisition |
| 2 | Dimension | 300 (w) x 299 (h) x 123 (d) mm Approximately 4 kg |
| 3 | Record | Auto, Rhythm, Disclosure, Arrhythmia Detect |
| 4 | Recording Channel | 3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 1 channel long time (1 min, 3 min, 5 min, 10 min) and special reports (text, guide, vector) |
| 5 | Sensitivity | 2.5, 5, 10, 20, auto (I~aVF: 10, V1~V6: 5) mm/mV |
| 6 | Printing Speed | 5, 12.5, 25, 50, 100 mm/s |
| 7 | Sampling Rate | 2,000 samples per second |
| 8 | Filters | AC (50/60Hz, - 20dB or better) Muscle (25~35Hz, -3dB or better) Base line drift (0.05, 0.1, 0.2 Hz, -3dB or better) Low pass filter: off, 40Hz, 100Hz, 150 Hz |
| 12 | Display | 7" color TFT wide display (800 x 480) |
| 13 | Monitor Display | HR, ID, date, AC or battery state, sensitivity, speed, number of saved data, printing form, rhythm lead |
| 14 | User Interface | Touch screen, hot key, barcode scanner, USB keyboard |
| 15 | Patient Data | ID, name, age, sex, height, weight, smoke, race |
| 16 | Basic Measurement | Heart rate, PR, QRS, QT/QTc, P-R-T axis |
| 17 | Recorder | Thermal print head, thermal roll paper Report papers: (width x length) - A4: 215 mm (8.5") x 297 mm (11.7") - Letter: 215 mm (8.5") x 280 mm (11") Resolution: - Vertical: 8 dot/mm - Horizontal: 16 dot/mm |
| 25 | Electrical | Internal noise: 20uV (p-p )max Input impedance: More than 50M? Input voltage range: ±5mV CMRR: +105dB DC offset voltage: >= ±400mV Patient leakage current: Frequency response 0.05~150Hz within -3 db Isolated, defibrillation and ESU protected |
| 33 | Signal Quality Control | Pacemaker pulse detection lead fault detection, signal saturation detection. |
| 34 | ECG Data Storage | Internal storage for 200 ECGs and external USB flash drive |
| 35 | Power | Input: 100-240 VAC, 2-1 A, 50/60 Hz Output: 60 VA max |
| 37 | External Link | LAN, 2 USB Port |
| 38 | File Format | PDF, JPG, XML, MFER, DCM |
| 39 | Battery | Type: Replaceable and rechargeable Lithium Ion Capacity: 6 hours of continuous operation without printing or Approx. 3 hours of 200 ECG printouts |
| 41 | Communication | RS232, LAN, WiFi, USB flash drive, USB barcode scanner |
| 42 | Safety Conformity | Class 1, Type CF, CE, FDA, KFDA, CFDA, NCC |
| 43 | Environment | Operating humidity: 30~85% Operating temperature: 10° ~ 40° C |
| 45 | Standard Accessories | Power Cord - 1 ea Patient Cable - 1 ea ECG clips - 1 set Disposable Electrodes - 1 pouch Chart paper - 1 ea Operation manual - 1 ea Diagnose guide - 1 ea Rechargeable battery - 1 ea USB WiFi dongle - 1 ea |
| 46 | Options | Cart, Hanger, DICOM 3.0 |
* Specifications can be changed without prior notification.
Spirometer
| wdt_ID | Feature | Specification |
|---|---|---|
| 47 | Dimension | 47 (W) x 200 (H) x 34 (D)mm, approx. 250g |
| 48 | Measuring Values | FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2 - 1.2L, FEF 25 - 75%, FEF 75 - 85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET 100% SVC: SVC, ERV, IRV, TV, EC MVV: MVV, FB, TV |
| 51 | Presentation | Flow volume loop Flow time plot Measurment values table |
| 54 | Measuring Range | Flow: 0 to ±14 L/s Volume: 0 to ± 12L |
| 56 | Measuring Method | Differential pressure method |
| 57 | Prediction Equation | Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK |
| 58 | Sample Rate | 200 samples/sec |
| 59 | Flow Impedance | |
| 60 | Measuring Accuracy | Complies with ATS (American Thoracic Society) |
| 62 | Environment | Ambient temperature: 15 to 40°C (59 to 104°F) Relative humidity: 10 to 90% (non-condensing) Atmospheric pressure: 700 to 1060 hPa |
| 65 | Standard Accessories | Dispoabla moutpiece - 100 ea Nose clip - 1 ea Adapter - 1 ea Handle dock - 1 ea Operation manual - 1 ea Diagnosis guide - 1 ea |
* Specifications can be changed without prior notification.
Item Code
Item Description
wdt_ID Item Image Item Code Item Description Buy Now
61
ECG-CBL
10 lead ECG patient cable
Buy Now
63
ECG/FC-BAT
Battery Console Li-ion 1 Line, 4 Cell, 10.8V, 3250mA/h
Buy Now
64
ECG-CLIP(N)
ECG alligator clip (10 pcs/set)
Buy Now
65
USB-WIFI25
USB WiFi dongle (Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity)
Buy Now
66
PC-A (H)
Hospital grade power cable
Buy Now
67
ECG-CART
ECG cart for CardioCare 2000 and Cardio7 (hanger not included, must be purchased separately)
Buy Now
68
ECG-HANGER
ECG cable hanger for ECG-CART
Buy Now
69
ECG-RE
ECG resting electrode (5 packs/bag)
Buy Now
70
ECG-PP
ECG medi-graph paper (10 rolls/box)
Buy Now
71
ECG-STYLUS
ECG touch screen stylus pen (for Cardio7 only)
Buy Now
72
SPM-300(U)
Spirometer – requires Cardio7 ECG unit.
Includes: one sensor, one handle dock, one nose clip, one diagnosis guide, one operation manual, and 100 mouthpieces – Does Not include calibration syringe.Buy Now
73
SPM-MP

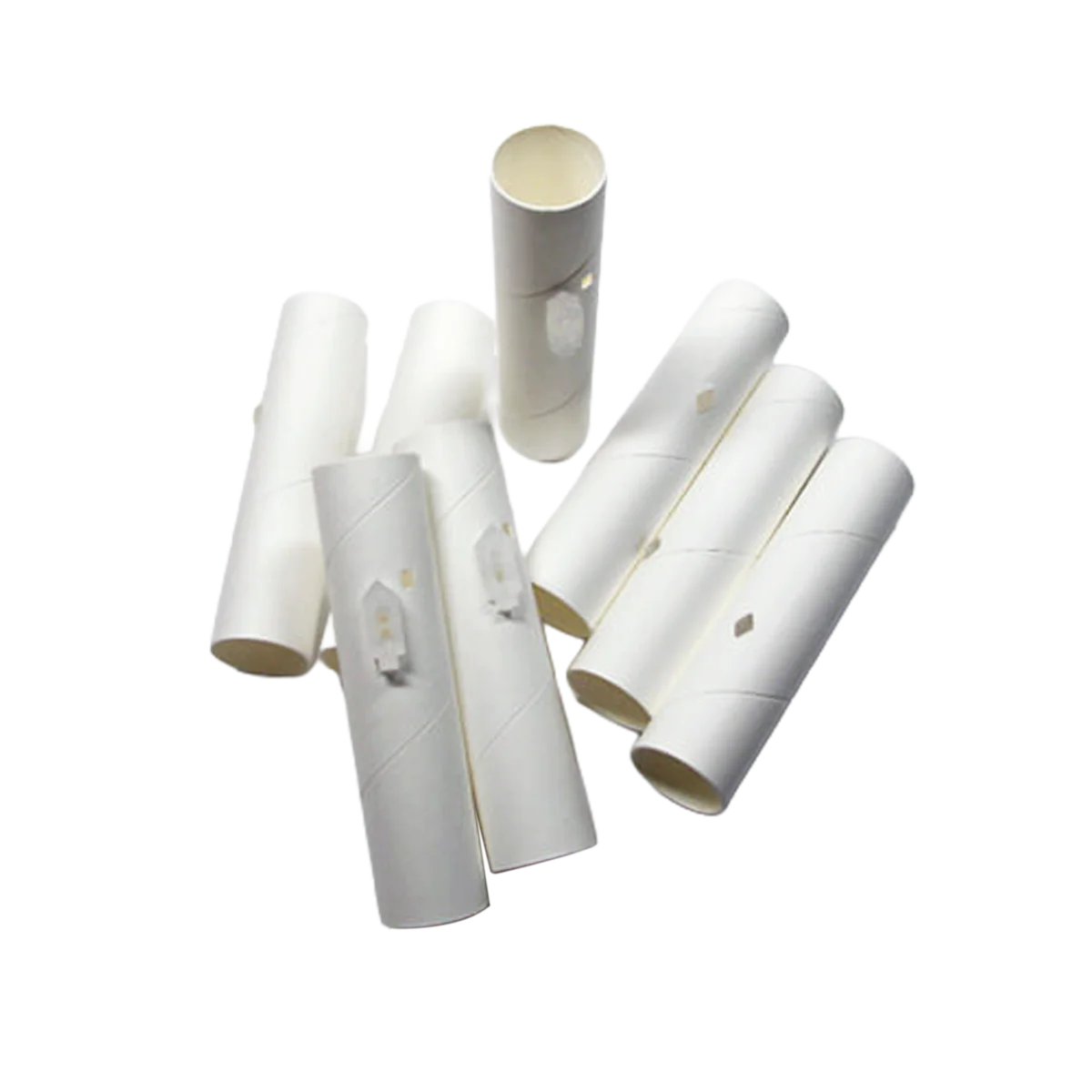

SmarTube (disposable mouthpiece - 100/box) (no warranty)
Buy Now
74
SPM-CS

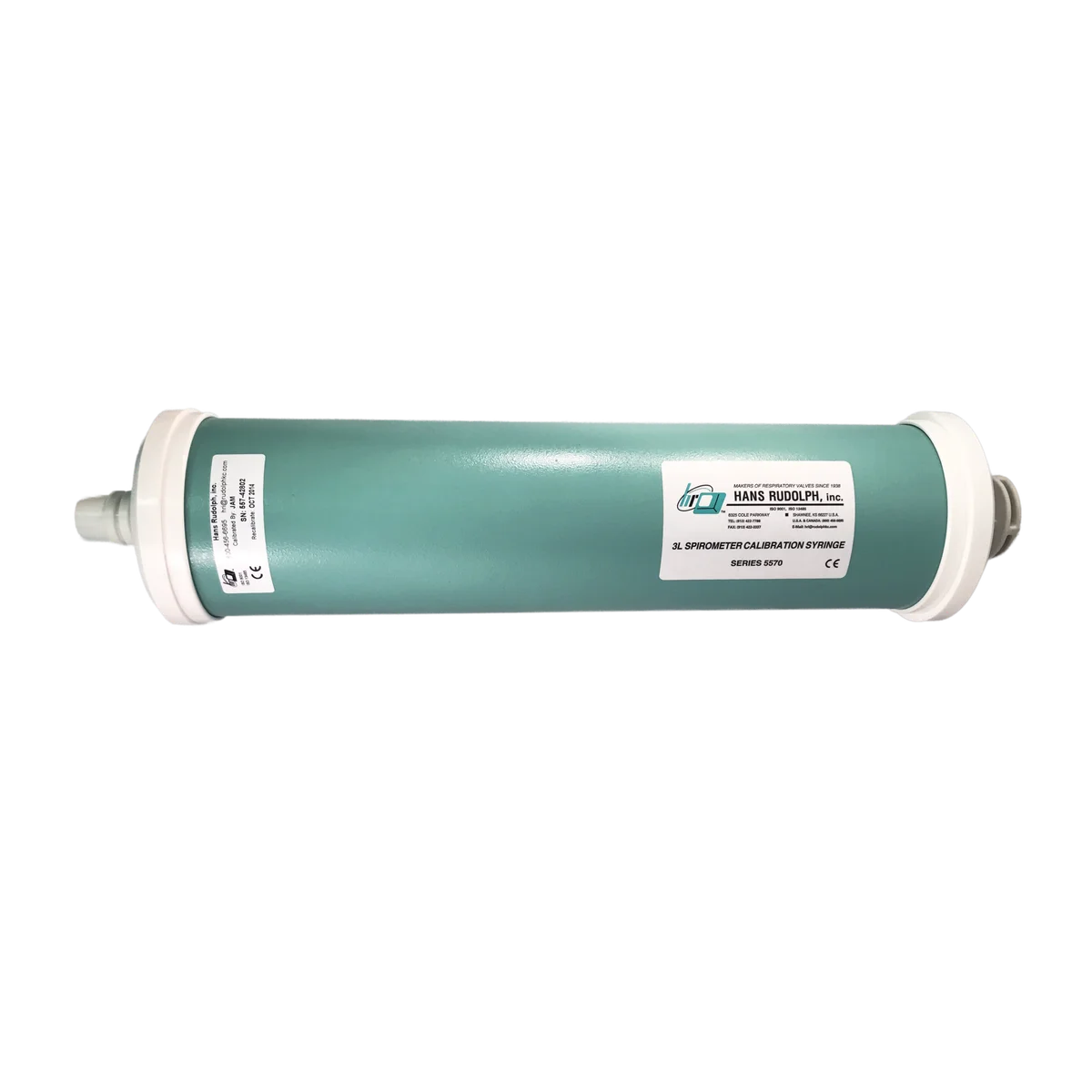

3L calibration syringe (90-day warranty)
Buy Now
75
SPM-CSHandle

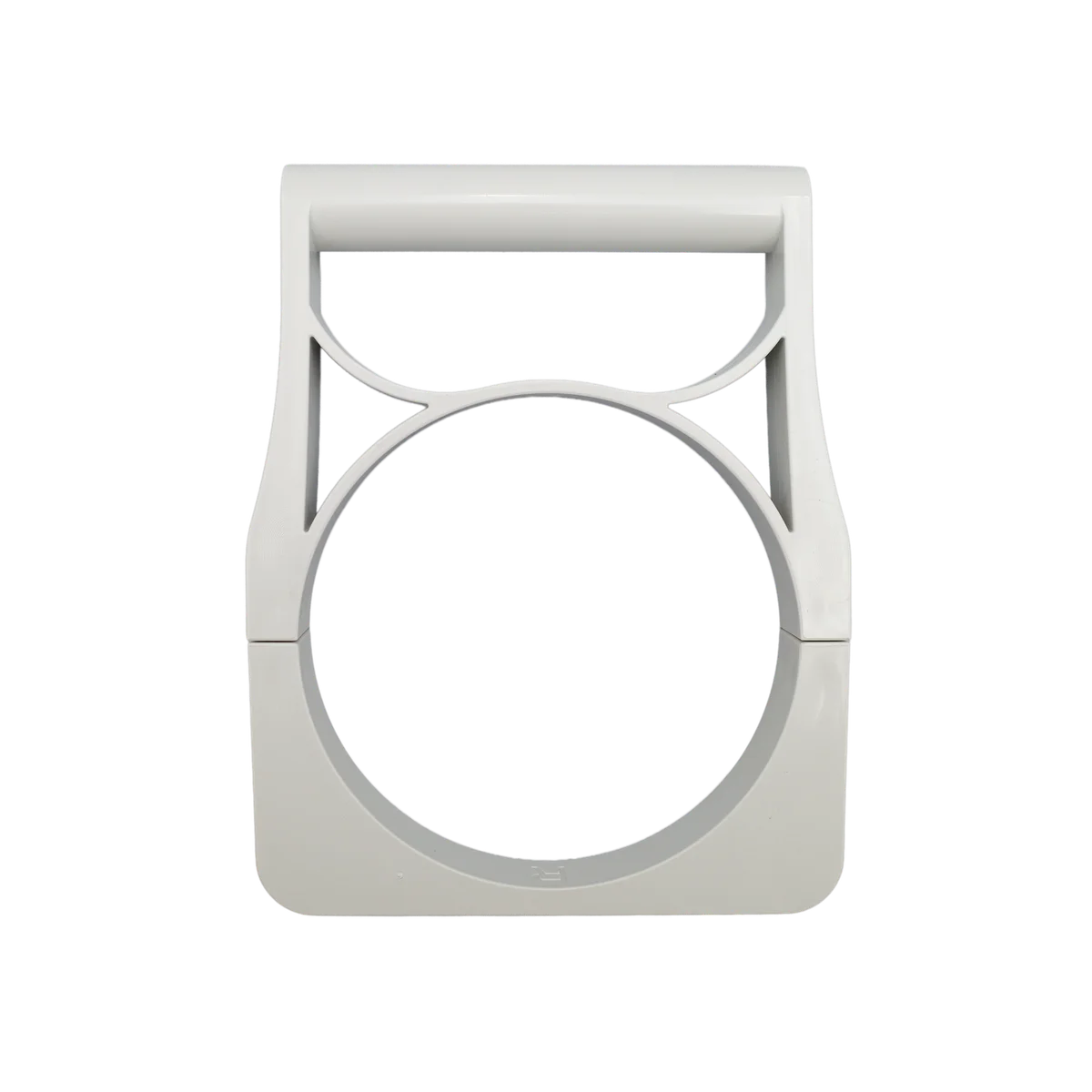

REF 201824 Handle for Rudolph Syringes
Buy Now
Spirometer FVC Test (SPM-300 + Cardio7)
SPM-300(Bionet Spirometer) + Cardio7 Calibration
Bionet Cardio7 Video Manual
How to use Bionet BMS Plus
How to connect BMS Plus to Bionet ECG Machine
How to install Bionet BMS Plus
- Overview
-
It is highly recommended to calibrate a spirometer with Bionet 3L calibration syringe periodically, in order to ensure accurate calibration of your spirometer.
Our calibration recommendations are based upon guidelines from the American Thoracic Society (ATS) and the European Respiratory Society (ERS)
- The volume accuracy of the spirometer must be checked at least daily with a single discharge of a 3-L calibrated syringe.
- At least quarterly, volume spirometers must have their calibration checked over their entire volume range using a calibrated syringe or an equivalent volume standard. The measured volume should be within 3.5% of the reading or 65 mL, whichever is greater. This limit includes the 0.5% accuracy limit for a 3-L syringe.
The Cardio7-S is a reliable, interpretive touch screen electrocardiogram (ECG / EKG) machine combined with spirometry. It features a large 7” TFT LCD touch screen with Wi-Fi. It supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs and PFT tests. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12/6/3 channel ECG reports, and FVC/SVC/MVV pulmonary test reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECG and spirometer test reports to the server.
Details for ECG Features (click here to see spirometer details)
Cardio7 stands out for its advanced technology, high functionality, ease of use, and an unbeatable price/performance ratio.
Maximized Ease of Use
Cardio7 combines menu-guided touch screen technology with a convenient rotary key and buttons to maximize ease of use. USB barcode reader and keyboard can be attached through USB ports.Built-In Memory and Supports USB Flash Drive
Stores up to 200 ECGs in internal flash memory. The saved ECGs can be converted to various standard file formats, like JPG, PDF, XML, MFER, and DCM, and exported to external USB flash drive.EMR support
The Cardio7-S sends ECGs to PC by using BMS-Plus Windows-based PC software through LAN or Wi-Fi. It supports DICOM 3.0 protocol to retrieve work lists from PACS and save ECG images to PACS. USB flash drive can be used to move ECGs stored in Cardio7 to PC.Clinically Important Simultaneous 12 Lead Acquisition
Cardio7-S acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis.Pulmonary Function Test
Cardio7-S provides the pulmonary function tests, including: FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Maximum). Pre-post bronchodilator comparison is supported. With disposable mouthpiece, no cleaning and sterilization are needed.Full Disclosure Function
Cardio7-S stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms.Enhanced Interpretation
The ECG printout offers detailed interpretation information in text/guide/vector report format to aid in diagnosis. Provides 12 channel, 6 channel + 1 rhythm, 3 channel + 1 rhythm, and 3 channel + 3 rhythm reports. Supports pediatric interpretation.Long-Term Recording & Automatic Arrhythmia Detection
Cardio7 provides one channel long-term recording like 1, 3, 5, 10 minute with arrhythmia detection and HRV (Heart Rate Variability) analysis.A4 Full Size Paper
Cardio7-S produces full size A4 printouts in 1, 3, 6, and 12 channel formats and FVC/SVC/MVV test formats. Full size printouts improve readability and make it easier for filing in the patient chart.ECG Filing System BMS-Plus
BMS-Plus is an ECG software program that enables you to interface Cardio7-S to Windows-based computers through LAN or Wi-Fi. The ECG and PFT data from Cardio7-S is saved in either Bionet’s proprietary file format, JPEG or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements, and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.
Includes:
Cardio7 Main Unit, SPM-300 (Spirometer), 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, 100 Disposable Mouthpieces, 1 Nose Clip, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book, Quick Reference Guide and 3-Year Warranty Card. Wi-Fi USB dongle and USB Flash Drive with BMS-Plus Software Included.Option:
