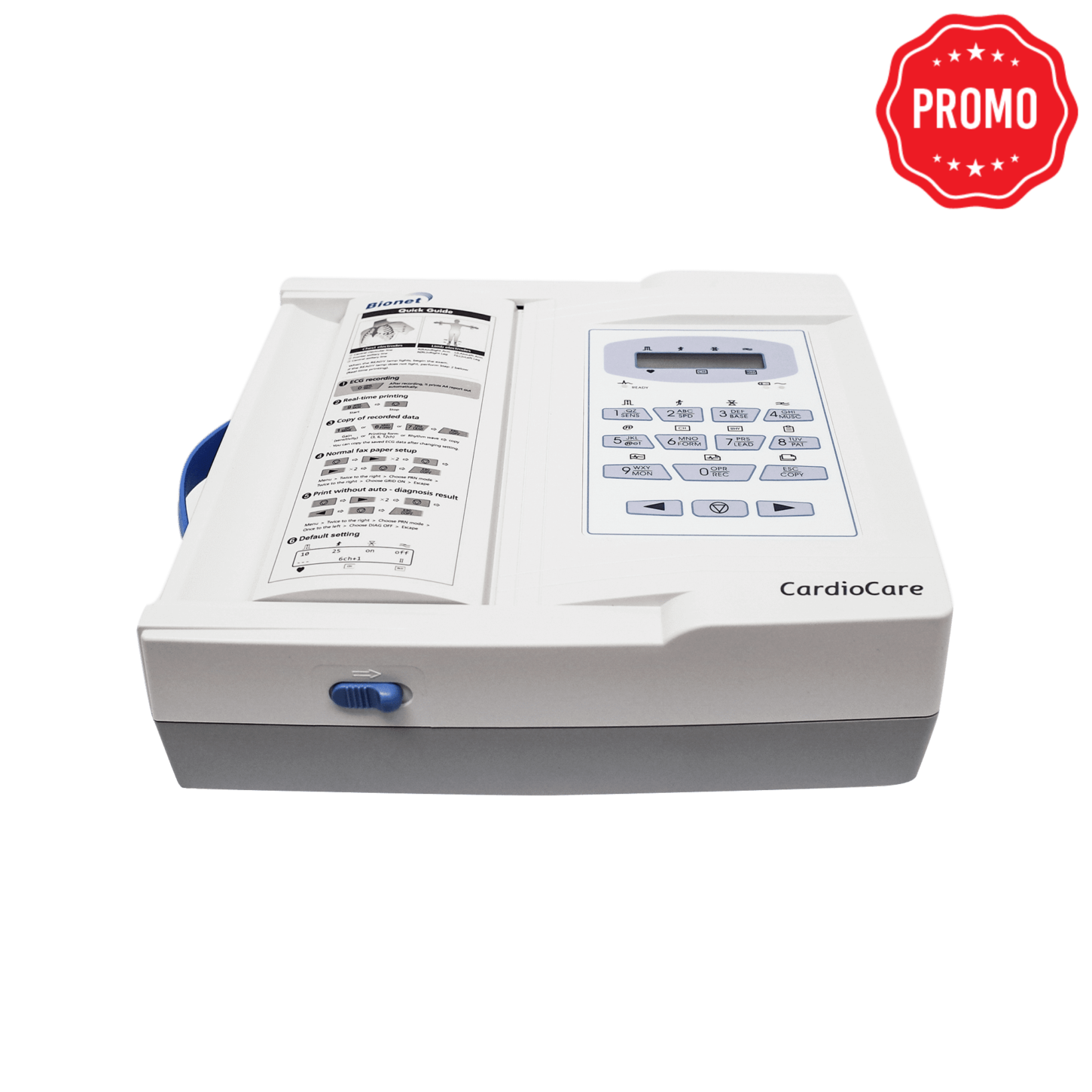

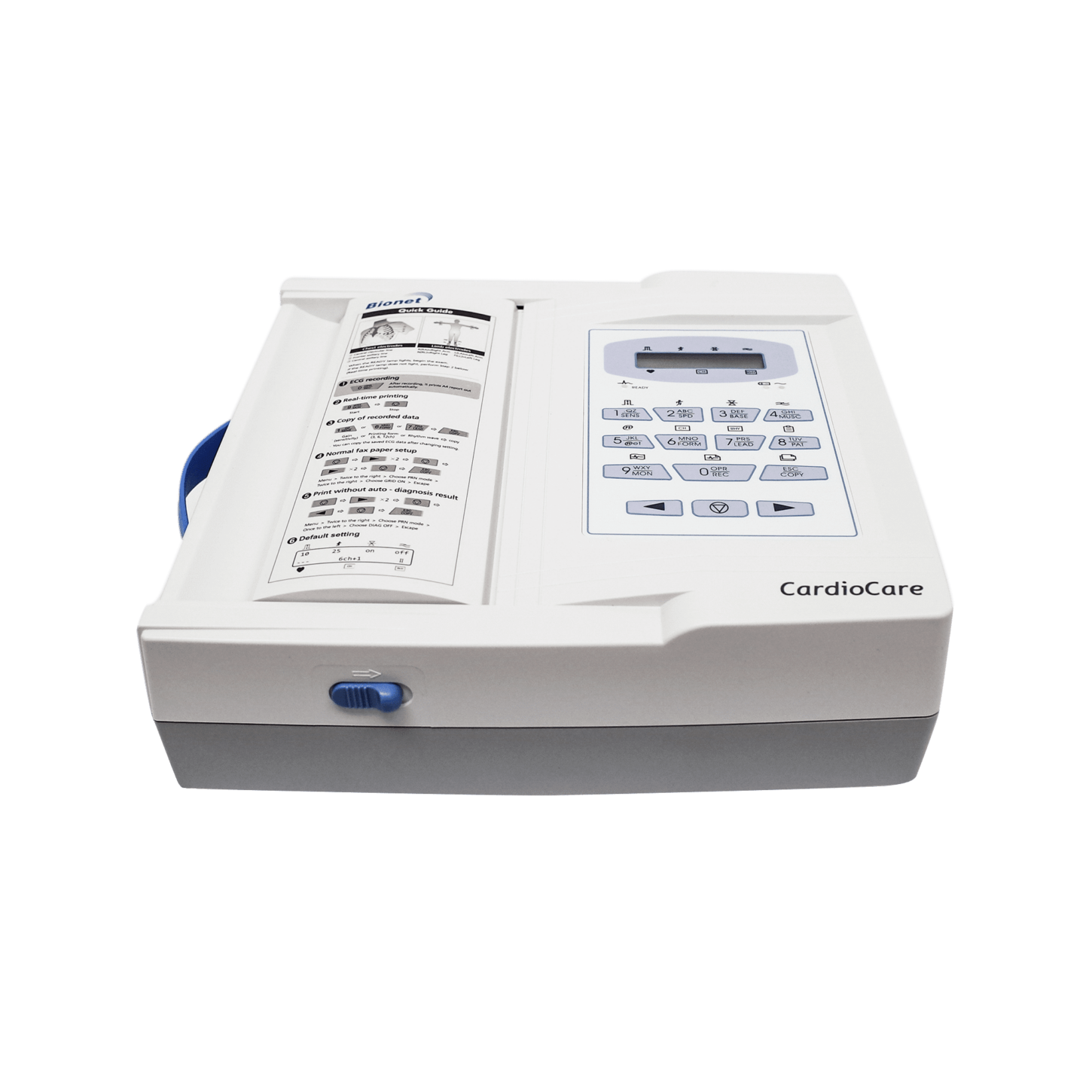

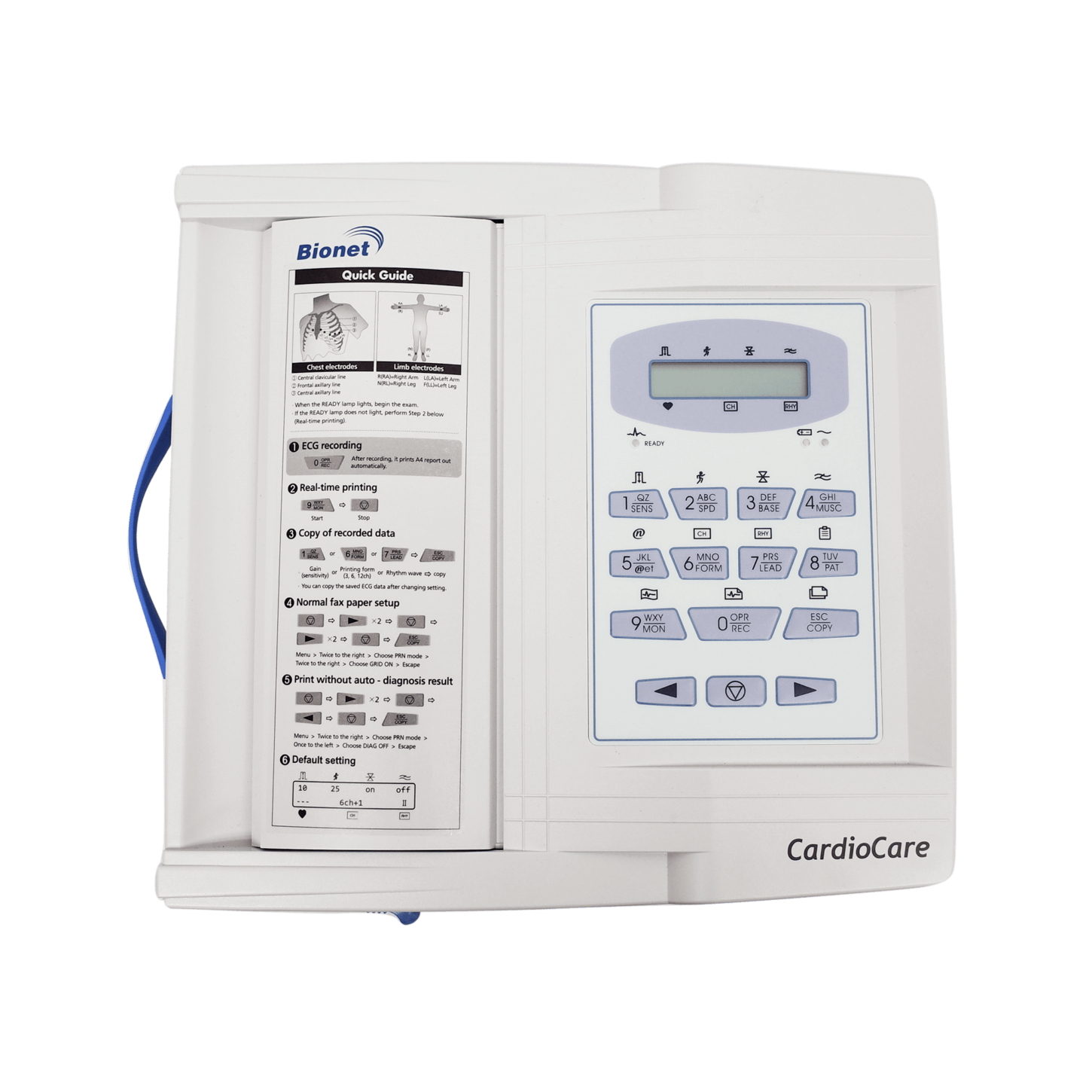

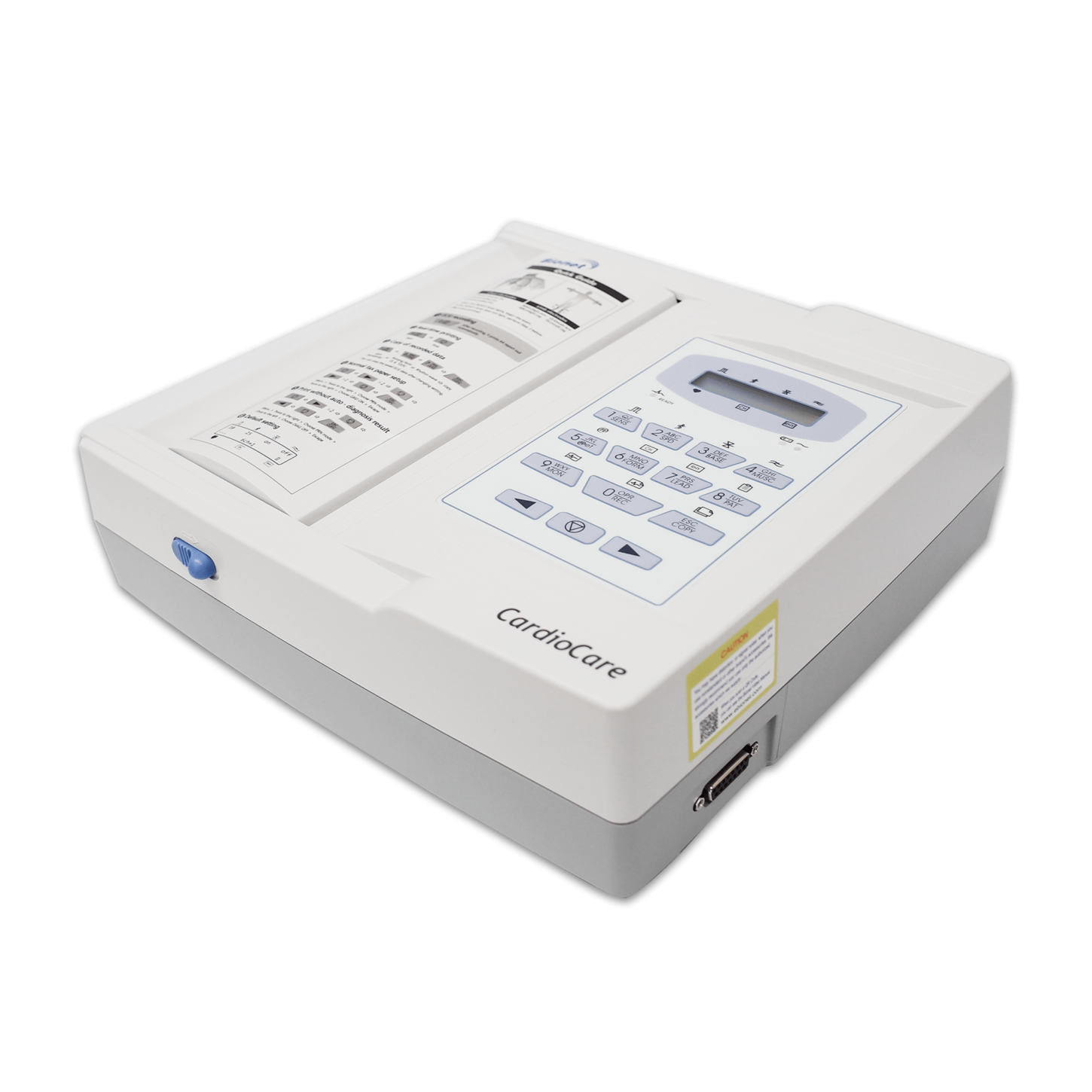

CardioCare 2000
Interpretive 12 Channel Electrocardiogram ECG/EKG Machine
The CardioCare 2000 is an economically priced interpretive 12 channel electrocardiogram (ECG/EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioCare 2000 is designed for maximum ease of use and convenience.
The CardioCare 2000 is an economically priced interpretive 12 channel electrocardiogram (ECG/EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioCare 2000 is designed for maximum ease of use and convenience.
Product Highlights
Simultaneous 12 channel resting ECG
ECG interpretation program
One-touch operation (monitoring, recording mode)
A4 full-size paper, multiple printing formats, easy chart filing
Varied printouts from single patient sample
BMS Plus software. Transfer of digital ECG to Windows based PC
Quick Link
Product Highlights
BMS Plus software. Transfer of digital ECG to Windows based PC
Varied printouts from single patient sample
A4 full-size paper, multiple printing formats, easy chart filing
One-touch operation (monitoring, recording mode)
ECG interpretation program
Simultaneous 12 channel resting ECG
Quick Link
The CardioCare 2000 is an economically priced interpretive 12 channel electrocardiogram (ECG/EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioCare 2000 is designed for maximum ease of use and convenience. Software upgradeable and networkable, the CardioCare 2000 is an excellent choice for your diagnostic needs.
Simultaneous 12 Channel Electrocardiograph (ECG/EKG)
The CardioCare 2000 acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis.
ECG Interpretation Program
Over 80 kinds of interpretation results based on the advanced Minnesota Code are provided to aid with your diagnosis. The interpretation algorithms are expanded with regular software updates.
A4 Full Size Paper

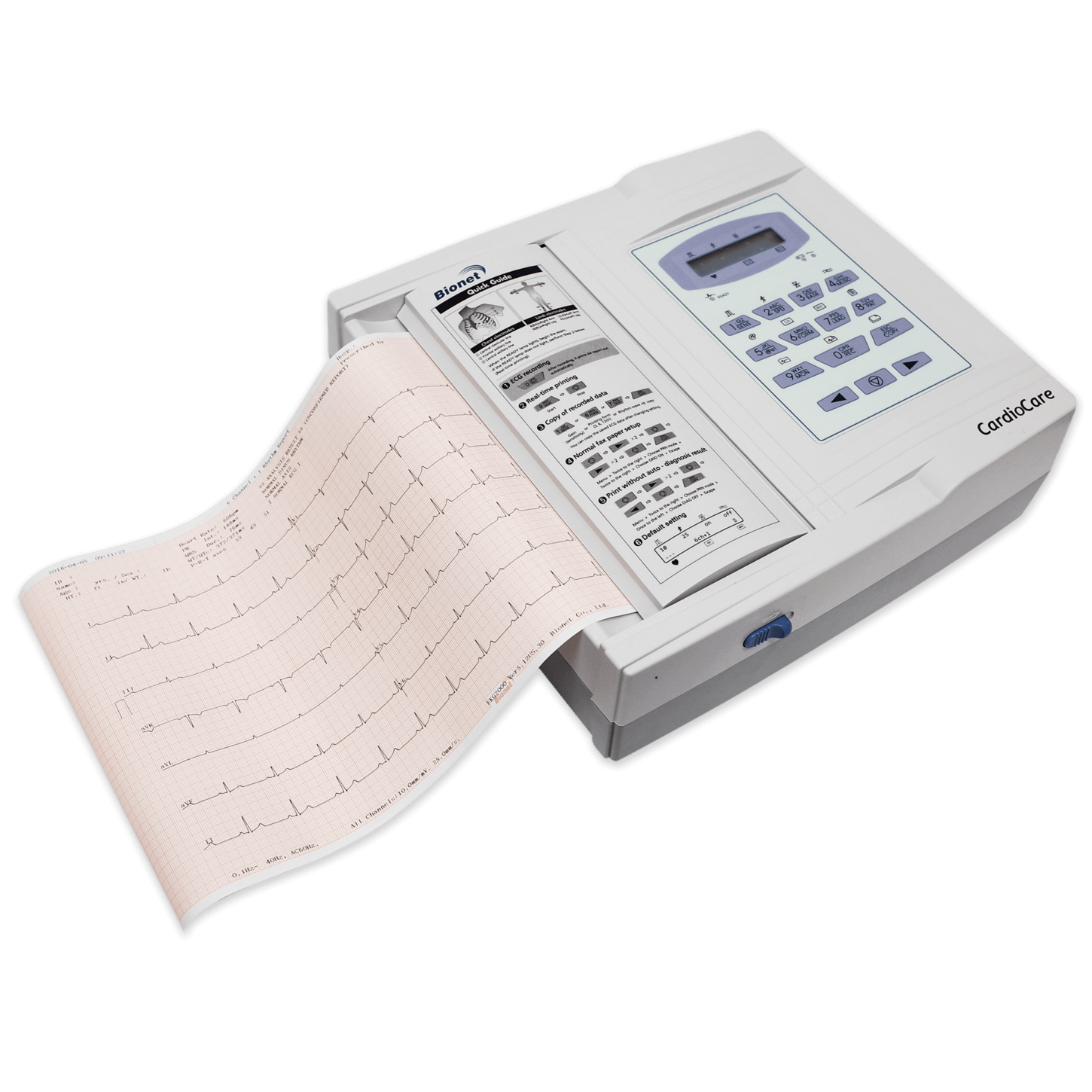

The CardioCare 2000 will produce full size A4 printouts in 1, 3, 6, and 12 channel formats. Full size printouts improve readability and make it easier for filing in patient charts. A convenient Copy button lets you generate ECG copies in any of the available formats.
ECG Filing System BMS-Plus
BMS-Plus is an ECG software program that enables you to interface CardioCare 2000 to Windows-based computers through LAN. The ECG data from CardioCare 2000 is saved in either Bionet’s proprietary file format (.ecg), JPEG or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements, and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.
Upgradeable Software
The CardioCare 2000 software is user upgradeable and is constantly being improved.
Includes:
CardioCare 2000 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book, Quick Reference Guide and 3-Year Warranty Card.
Option:
ECG Cart, Hanger
| wdt_ID | Feature | Specification |
|---|---|---|
| 1 | ECG Leads | 10 lead 12 channel simulataneous 10-second resting ECG |
| 2 | Dimension | 296 (w) x 305.5 (h) x 92.5 (d) mm |
| 3 | Approximately 2.98 kg | |
| 4 | Recording Channel | 3, 6, 12 channel and 1 channel (60 sec) |
| 5 | Sensitivity | 5, 10, 20 auto (I~aVF: 10, V1~V6:5) mm/mV |
| 6 | Printing Speed | 12.5, 25, 50 mm/s |
| 7 | Filters | AC (50/60 Hz, -20dB or better) |
| 8 | Muscle (25~35Hz, -3dB or better) | |
| 9 | Base Line Drift (0.1Hz, -3dB or better) | |
| 10 | Low pass filter (off, 40Hz, 100Hz, 150Hz) | |
| 11 | Display | 2 x 16 character LCD display |
| 12 | LCD Display | Sensitivity, speed, filter status, HR, printing form, rhythm lead |
| 13 | LED Indicator | Signal quality, power source, battery |
| 14 | Keyboard | Membrane keyboard |
| 15 | Alphanumeric and symbol available | |
| 16 | Patient Data | ID, name, age, sex, height, weight |
| 17 | Basic Measurement | Heart rate, PR, QRS, QT/QTc, P-R-T axis |
| 18 | Recorder | Thermal print head, thermal roll paper |
| 19 | Report papers: | |
| 20 | -Width: A4: 210mm or 8.5" | |
| 21 | -Length: A4: 300mm or 11" | |
| 22 | Effective writing width: 204mm | |
| 23 | Resolution: | |
| 24 | - Vertical: 8 dots/mm | |
| 25 | - Horizontal: 16 dots/mm | |
| 26 | Electrical | Internal noise: 20uV(p-p) max |
| 27 | Input circuit: Floating input | |
| 28 | Isolated and defibrillation protected | |
| 29 | Input impedance: >10MQ | |
| 30 | Input range: > +/- 5mV | |
| 31 | Common Mode Rejection: > +100dB | |
| 32 | DC offset voltage: > +/- 300mV | |
| 33 | Time constant: 3.2 sec | |
| 34 | Patient leakage current: | |
| 35 | Frequency response: 0.05~150Hz | |
| 36 | Signal Quality Control | Disconnected lead detection |
| 37 | Power | Power Supply: AC or built-in Battery (option) |
| 38 | Power requirement: 100 - 240 Vac, 50/60Hz, 1.0 - 0.5A | |
| 39 | Power consumption: 60w max | |
| 40 | Battery Capacity | 1 hour of normal use (approximately 100 automatic ECG printouts) |
| 41 | Communication | PC connection with RS-232 interface and LAN |
| 42 | Safety | Class 1, Type BF |
| 43 | Conformity | CE, CSA |
| 44 | Environment | Operating humidity: 30~85% |
| 45 | Operating temperature: 10° ~40° C | |
| 46 | Atmospheric pressure: 70 ~ 106 KPa | |
| 47 | Standard Accessories | Power Cable - 1 ea Patient Cable - 1 ea Electrode - 10 ea Chart Paper - 1 ea Operation Manual - 1 ea |
| 52 | Options | Rechargeable Battery (ni-mh), Cart, Hanger, Bag, PC s/w, Limb electrode, Chest electrode, RS-232C null cagle, LAN cable (Ethernet-RJ-45) |
* Specifications can be changed without prior notification.
Item Code
Item Description
wdt_ID Item Image Item Code Item Description Buy Now
61
ECG-CBL
10 lead ECG patient cable
Buy Now
62
ECG/FC-BAT
Battery Console Li-ion 1 Line, 4 Cell, 10.8V, 3250mA/h
Buy Now
64
ECG-CLIP(N)
ECG alligator clip (10 pcs/set)
Buy Now
66
PC-A (H)
Hospital grade power cable
Buy Now
67
ECG-CART
ECG cart for CardioCare 2000 and Cardio7 (hanger not included, must be purchased separately)
Buy Now
68
ECG-HANGER
ECG cable hanger for ECG-CART
Buy Now
69
ECG-RE
ECG resting electrode (5 packs/bag)
Buy Now
70
ECG-PP
ECG medi-graph paper (10 rolls/box)
Buy Now

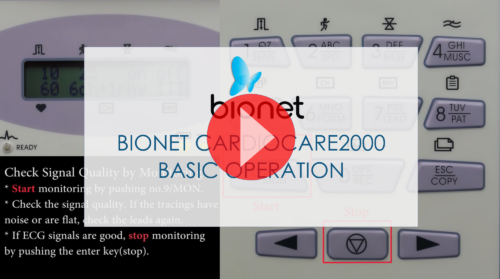

Bionet CardioCare 2000 Basic Operation

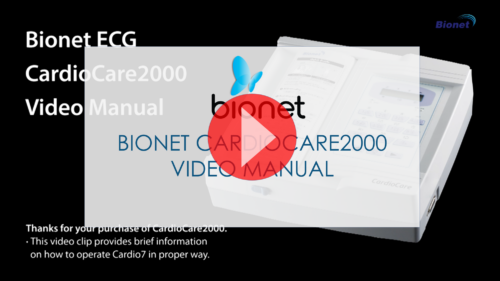

CardioCare 2000 Video Manual
How to use Bionet BMS Plus
How to connect BMS Plus to Bionet ECG Machine
How to install Bionet BMS Plus
- Overview
-
The CardioCare 2000 is an economically priced interpretive 12 channel electrocardiogram (ECG/EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioCare 2000 is designed for maximum ease of use and convenience. Software upgradeable and networkable, the CardioCare 2000 is an excellent choice for your diagnostic needs.
Simultaneous 12 Channel Electrocardiograph (ECG/EKG)
The CardioCare 2000 acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis.ECG Interpretation Program
Over 80 kinds of interpretation results based on the advanced Minnesota Code are provided to aid with your diagnosis. The interpretation algorithms are expanded with regular software updates.A4 Full Size Paper
The CardioCare 2000 will produce full size A4 printouts in 1, 3, 6, and 12 channel formats. Full size printouts improve readability and make it easier for filing in patient charts. A convenient Copy button lets you generate ECG copies in any of the available formats.
1 Channel + 1 Rhythm 3 Channel + 1 Rhythm 1 Channel (60 Sec 1 Rhythm) ECG Filing System BMS-Plus
BMS-Plus is an ECG software program that enables you to interface CardioCare 2000 to Windows-based computers through LAN. The ECG data from CardioCare 2000 is saved in either Bionet’s proprietary file format (.ecg), JPEG or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements, and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.
Upgradeable Software
The CardioCare 2000 software is user upgradeable and is constantly being improved.Includes:
CardioCare 2000 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book, Quick Reference Guide and 3-Year Warranty Card.Option:
ECG Cart, Hanger - Specifications
-
wdt_ID Feature Specification 1 ECG Leads 10 lead 12 channel simulataneous 10-second resting ECG 2 Dimension 296 (w) x 305.5 (h) x 92.5 (d) mm 3 Approximately 2.98 kg 4 Recording Channel 3, 6, 12 channel and 1 channel (60 sec) 5 Sensitivity 5, 10, 20 auto (I~aVF: 10, V1~V6:5) mm/mV 6 Printing Speed 12.5, 25, 50 mm/s 7 Filters AC (50/60 Hz, -20dB or better) 8 Muscle (25~35Hz, -3dB or better) 9 Base Line Drift (0.1Hz, -3dB or better) 10 Low pass filter (off, 40Hz, 100Hz, 150Hz) 11 Display 2 x 16 character LCD display 12 LCD Display Sensitivity, speed, filter status, HR, printing form, rhythm lead 13 LED Indicator Signal quality, power source, battery 14 Keyboard Membrane keyboard 15 Alphanumeric and symbol available 16 Patient Data ID, name, age, sex, height, weight 17 Basic Measurement Heart rate, PR, QRS, QT/QTc, P-R-T axis 18 Recorder Thermal print head, thermal roll paper 19 Report papers: 20 -Width: A4: 210mm or 8.5" 21 -Length: A4: 300mm or 11" 22 Effective writing width: 204mm 23 Resolution: 24 - Vertical: 8 dots/mm 25 - Horizontal: 16 dots/mm 26 Electrical Internal noise: 20uV(p-p) max 27 Input circuit: Floating input 28 Isolated and defibrillation protected 29 Input impedance: >10MQ 30 Input range: > +/- 5mV 31 Common Mode Rejection: > +100dB 32 DC offset voltage: > +/- 300mV 33 Time constant: 3.2 sec 34 Patient leakage current: 35 Frequency response: 0.05~150Hz 36 Signal Quality Control Disconnected lead detection 37 Power Power Supply: AC or built-in Battery (option) 38 Power requirement: 100 - 240 Vac, 50/60Hz, 1.0 - 0.5A 39 Power consumption: 60w max 40 Battery Capacity 1 hour of normal use (approximately 100 automatic ECG printouts) 41 Communication PC connection with RS-232 interface and LAN 42 Safety Class 1, Type BF 43 Conformity CE, CSA 44 Environment Operating humidity: 30~85% 45 Operating temperature: 10° ~40° C 46 Atmospheric pressure: 70 ~ 106 KPa 47 Standard Accessories Power Cable - 1 ea
Patient Cable - 1 ea
Electrode - 10 ea
Chart Paper - 1 ea
Operation Manual - 1 ea52 Options Rechargeable Battery (ni-mh), Cart, Hanger, Bag, PC s/w, Limb electrode, Chest electrode, RS-232C null cagle, LAN cable (Ethernet-RJ-45) * Specifications can be changed without prior notification.
- Accessories
-
Item Code Item Description wdt_ID Item Image Item Code Item Description Buy Now 61
ECG-CBL 10 lead ECG patient cable Buy Now 62 ECG/FC-BAT Battery Console Li-ion 1 Line, 4 Cell, 10.8V, 3250mA/h Buy Now 64 ECG-CLIP(N) ECG alligator clip (10 pcs/set) Buy Now 66 PC-A (H) Hospital grade power cable Buy Now 67 ECG-CART ECG cart for CardioCare 2000 and Cardio7 (hanger not included, must be purchased separately) Buy Now 68 ECG-HANGER ECG cable hanger for ECG-CART Buy Now 69 ECG-RE ECG resting electrode (5 packs/bag) Buy Now 70 ECG-PP ECG medi-graph paper (10 rolls/box) Buy Now - Videos
-
Bionet CardioCare 2000 Basic Operation
CardioCare 2000 Video Manual
How to use Bionet BMS Plus
How to connect BMS Plus to Bionet ECG Machine
How to install Bionet BMS Plus
- Downloads
