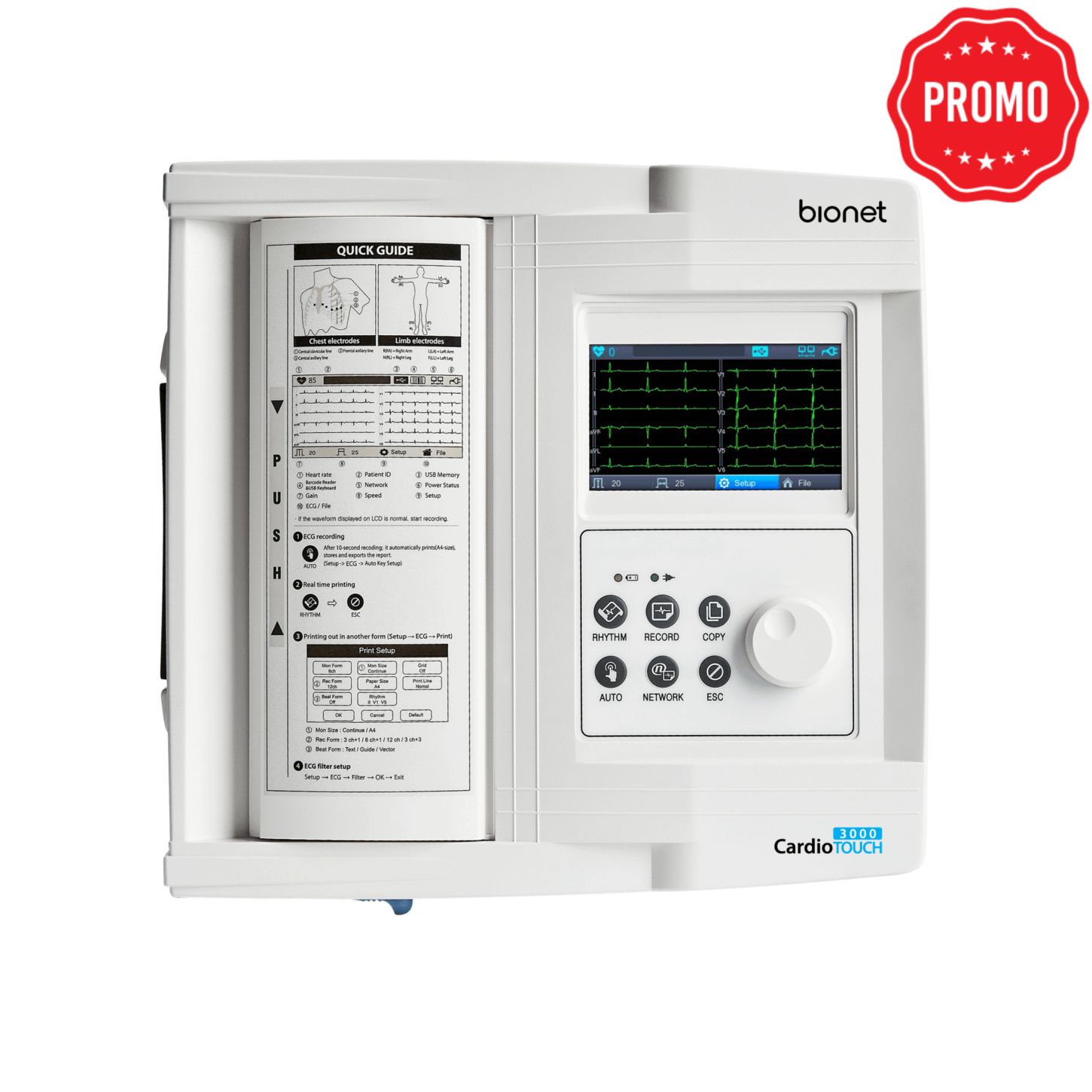

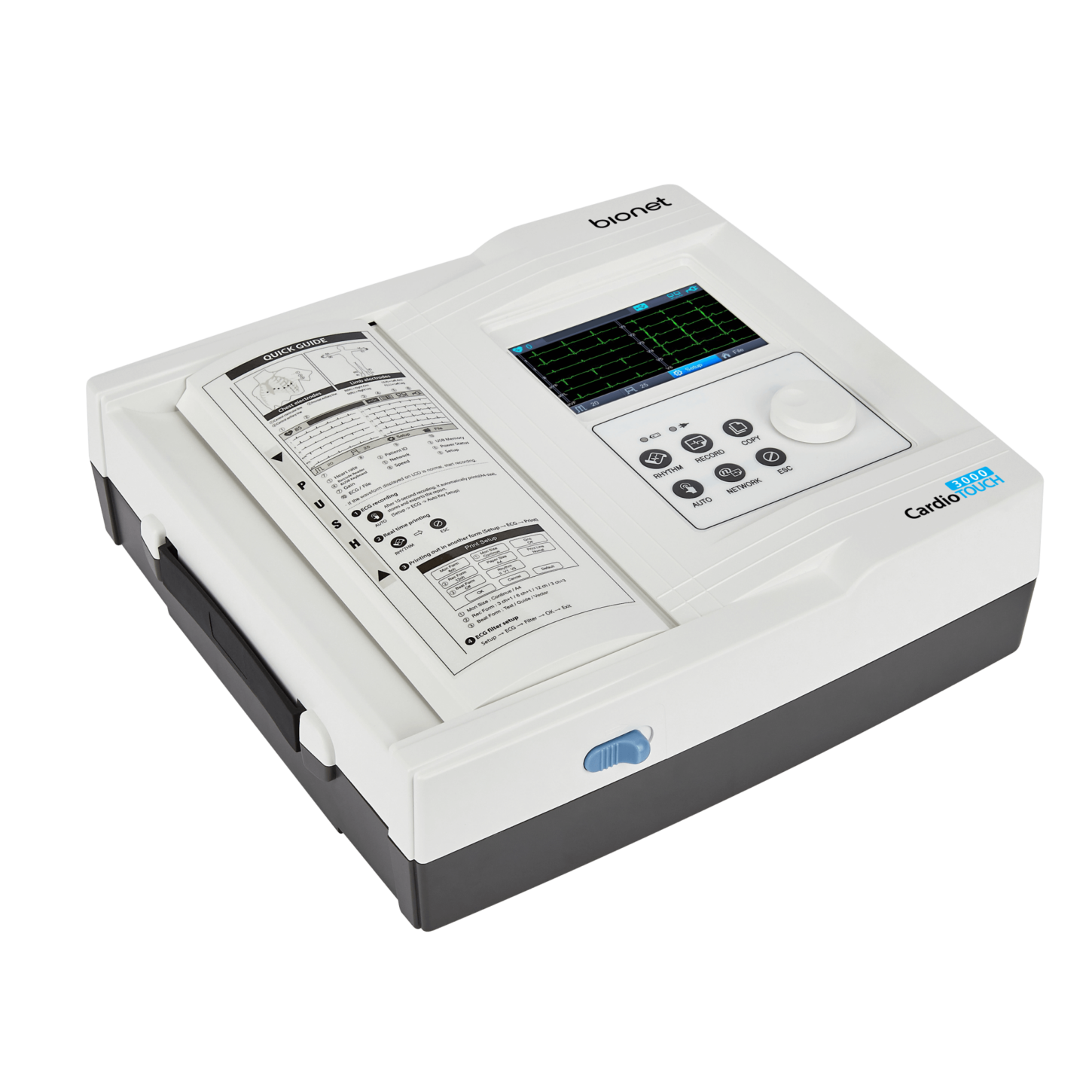

CardioTouch 3000
Premium Quality Interpretive 12 Channel Electrocardiogram ECG/EKG Machine
The CardioTouch 3000 is a premium quality interpretive 12 channel electrocardiogram (ECG / EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioTouch 3000 is designed for maximum ease of use and convenience.
The CardioTouch 3000 is a premium quality interpretive 12 channel electrocardiogram (ECG / EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioTouch 3000 is designed for maximum ease of use and convenience.
Product Highlights
Simultaneous 12 channel resting ECG
4.3” color TFT LCD touch screen, real time preview
One-touch operation (monitoring, recording mode)
A4 full-size paper, multiple printing formats, easy chart filing
Internal storage up to 200 cases
BMS Plus software. Transfer of digital ECG to Windows based PC
Product Highlights
BMS Plus software. Transfer of digital ECG to Windows based PC
Internal storage up to 200 cases
A4 full-size paper, multiple printing formats, easy chart filing
One-touch operation (monitoring, recording mode)
4.3” color TFT LCD touch screen, real time preview
Simultaneous 12 channel resting ECG
The CardioTouch 3000 is a premium quality interpretive 12 channel electrocardiogram (ECG / EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioTouch 3000 is designed for maximum ease of use and convenience.
Simultaneous 12 Channel Electrocardiograph (ECG/EKG) with a Touch of Succinct Report Simple, Intuitive yet Accurate
- Easy of use interface with 4.3” LCD TFT Touch screen with rotary knob button
- One button “AUTO” operation from acquisition to data storage, print-out & data transfer in 3 sec’
- Convenient A4 print-out for 12CH ECG with a single page report
- 8,000 sampling rate per second
User-Friendly Interface & Diagnosis
- Quick guide indication at printer cover for easy operation recognition
- Rotary knob push button for controlling all menus
- Thermal A4 paper compatible with grid printing mode
- 120 types of interpretation algorithm integrated
- Rechargeable Li-ion battery for 3hr operation / 200 pages printout
Network & Data management
- Wired, wireless connectivity with easy DHCP interface
- BMS-Plus connection to PC for data transfer to HIS (PACS/EMR) with various file format conversion JPEG, BMP, XML, PDF
ECG Filing System BMS-Plus
BMS-Plus is an ECG software program that enables you to interface CardioTouch 3000 to Windows-based computers through LAN or Wi-Fi. The ECG data from CardioTouch 3000 is saved in either Bionet’s proprietary file format (.ecg), JPEG or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements, and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.
Upgradeable Software
The CardioTouch 3000 software is user upgradeable and is constantly being improved.
Includes:
CardioTouch 3000 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Wi-Fi USB Dongle, Operation Manual, Diagnostics Guide Book, Quick Reference Guide and 3-Year Warranty Card.
Option:
ECG Cart, Hanger
wdt_ID Feature Specification
1
ECG Leads
Simultaneous 10 Leads Resting ECG (12 channel)
2
Dimension
290 (W) x 300 (D) x 97.5 (H) mm
3
Approximately 3.5 kg (Main Body)
4
Recording Channel
3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH,
1CH Long Time (1min) and Beat Report
5
Sensitivity
2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV
6
Printing Speed
5, 12.5, 25, 50, 100mm/sec
7
Sampling Rate
Analysis Sampling Rate: 500 sample/sec
Digital Sampling Rate: 8,000 sample/sec
8
Filters
AC (50/60Hz, -20dB or better),
Muscle (25~35Hz, -3dB or better),
Base Line Drift (off, 0.05, 0.1, 0.2Hz, -3dB or better),
Low Pass Filter (off, 40Hz, 100Hz, 150Hz)
11
Display
272 x 480 Pixel Resolution, 4.3” Color TFT Display
12 Channels Preview, ID, HR, Gain, Speed, Power Status
12
Export file format
ECG, XML, PDF, JPEG, MFER
13
User Interface
Touch Screen, Rotary Push-knob
14
Recorder
Thermal Print Head, Roll Paper
Report Paper
- Width: A4/Letter – 215mm (8.5”)
- Length: A4 – 297mm (11.7”)
Letter – 279mm (11”)
Resolution: 8dot/mm (0.125mm pitch)
15
Patient data
ID, Name, Age, Gender, Height, Weight
16
Basic Measurement
Heart Rate: 30~300bpm (±3bpm)
PR, QRS, QT/QTc, P-R-T axis
17
ECG Data Storage
Internal Storage for 200 ECGs: Built- in Memory
External memory available
18
Electrical
Internal Noise: 20uV(p-p)max
19
Input Impedance: More than 50MΩ
20
Input Voltage range: ±5mV
21
CMRR: Greater than 105dB
22
DC offset Voltage: ≥ ±400mV
23
Patient Leakage Current: < 10uA
24
Frequency Response: 0.05~150 with in –3dB
25
Isolated, Defibrillation and ESU Protected
26
Signal Quality Control
Pacemaker Pulse Detection
Lead Fault Detection, Signal Saturation Detection
27
Power
Input: 100-240Vac, 1.5-0.75A, 50-60Hz, Output: 15Vdc, 4.2A
28
Battery type
Replaceable and Rechargeable, Lithium ion, 11.1V, 2600mA
29
Battery Capacity
6 hours of normal use (without recording,200 ECGs) with 12 channel
Battery charge time is 3 hours.
30
Communication
LAN, USB, WIFI (option)
31
Safety Conformity
Class I, Type CF Defibrillation-proof applied Part
32
Environment
Operating Temperature: 5~40°C
Operating Humidity: 10~90%RH
Atmospheric Pressure: 70~106KPa
33
Standard Accessory
Power Cord - 1 ea
Patient Cable - 1 ea
ECG clips - 1 set
Disposable Electrodes - 1 pouch
Chart paper - 1 ea
Operation manual - 1 ea
Rechargeable battery - 1 ea
52
Options
Cart, Hanger, USB WiFi dongle
* Specifications can be changed without prior notification.
Item Code
Item Description
wdt_ID Item Image Item Code Item Description Buy Now
61
ECG-CBL
10 lead ECG patient cable
Buy Now
62
ECG/FC-BAT
Battery Console Li-ion 1 Line, 4 Cell, 10.8V, 3250mA/h
Buy Now
64
ECG-CLIP(N)
ECG alligator clip (10 pcs/set)
Buy Now
66
PC-A (H)
Hospital grade power cable
Buy Now
67
ECG-CART
ECG cart for CardioCare 2000 and Cardio7 (hanger not included, must be purchased separately)
Buy Now
68
ECG-HANGER
ECG cable hanger for ECG-CART
Buy Now
69
ECG-RE
ECG resting electrode (5 packs/bag)
Buy Now
70
ECG-PP
ECG medi-graph paper (10 rolls/box)
Buy Now
71
USB-WIFI25
USB WiFi dongle (Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity)
Buy Now
72
ECG-STYLUS
ECG touch screen stylus pen
Buy Now
