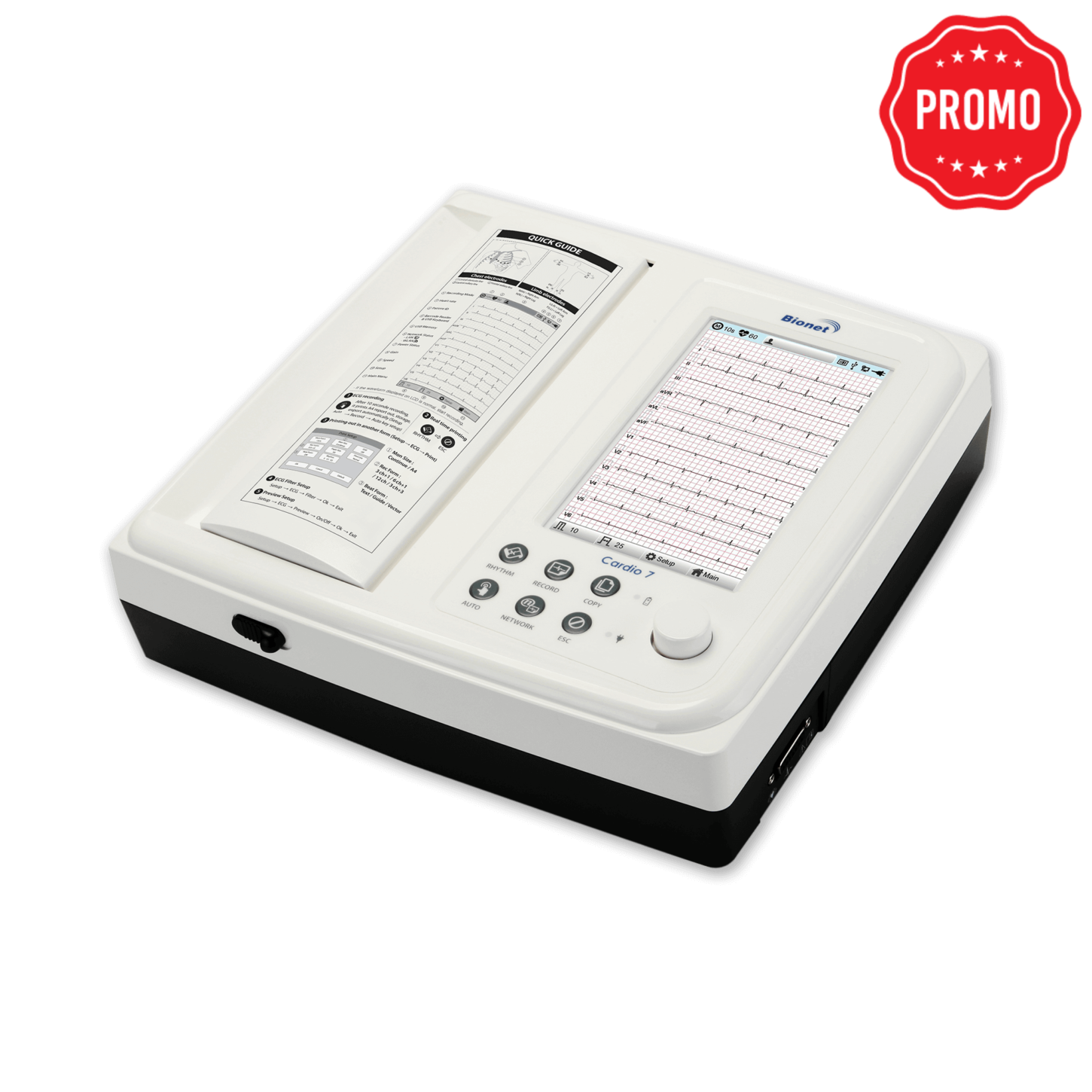

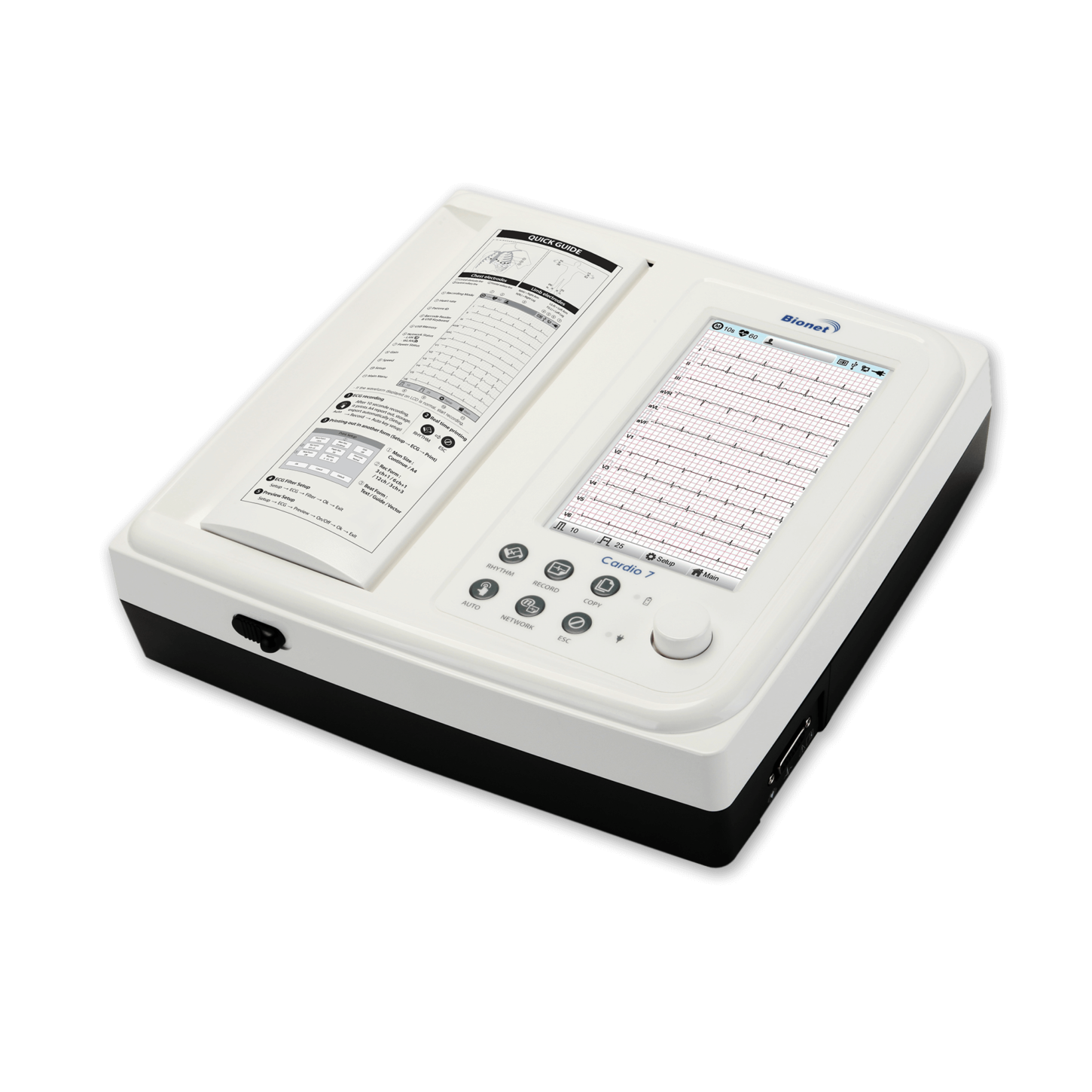

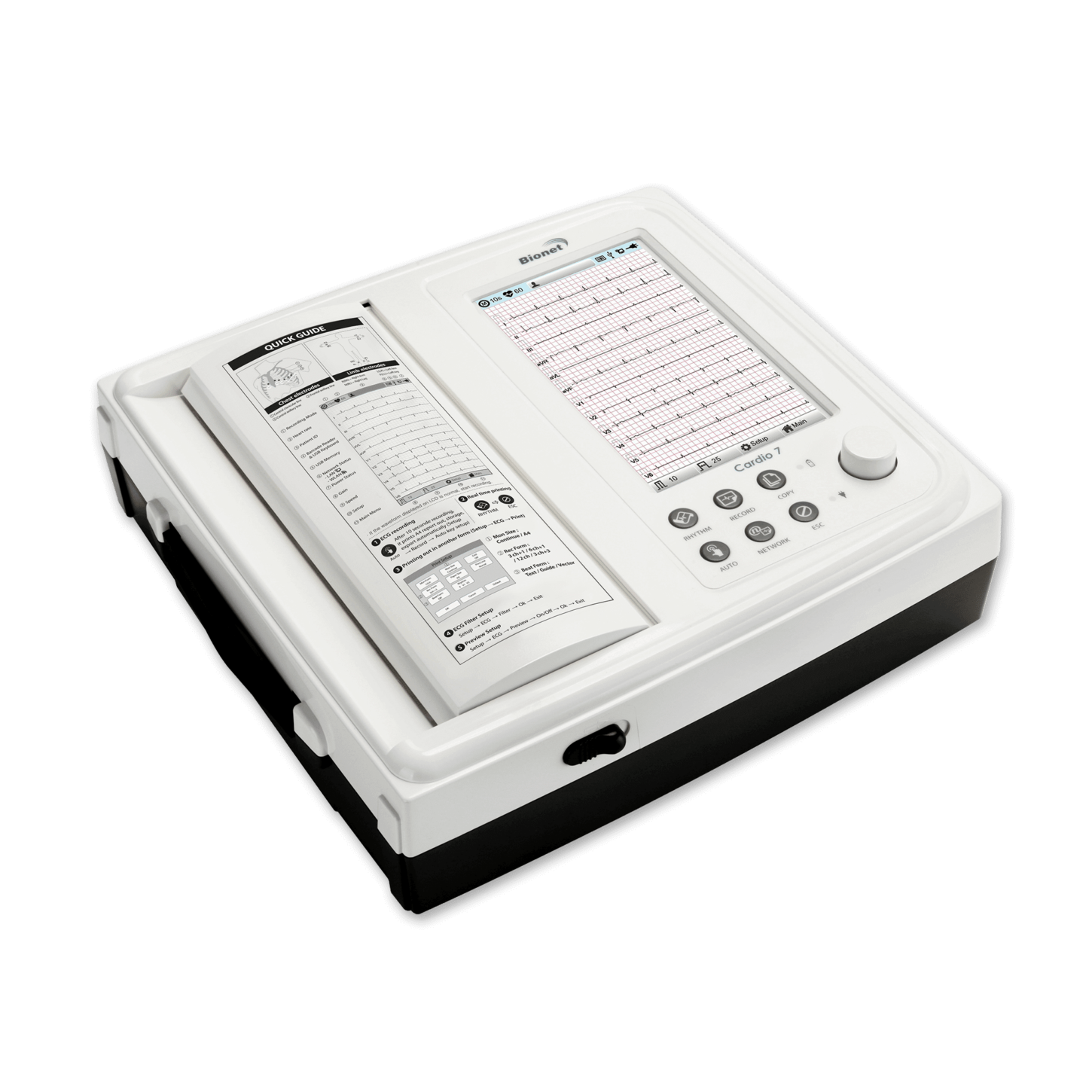

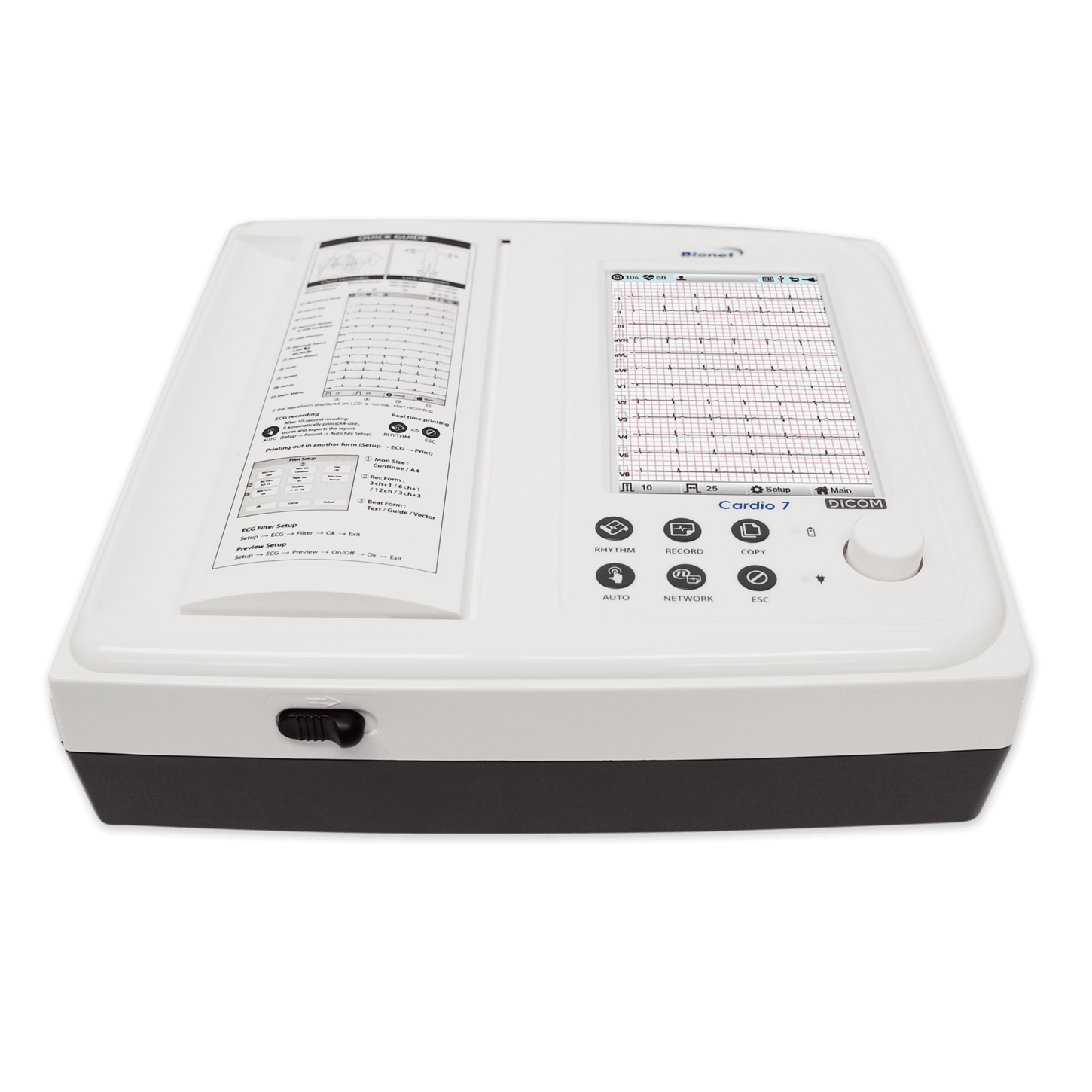

Cardio7
Interpretive 12 Channel Touch Screen Electrocardiogram ECG/EKG Machine
The Cardio7 is a reliable, interpretive touch screen electrocardiogram (ECG/EKG) machine. It features a large 7” TFT LCD touch screen with Wi-Fi. Supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12, 6 and 3 channel reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECGs to the server.
The Cardio7 is a reliable, interpretive touch screen electrocardiogram (ECG/EKG) machine. It features a large 7” TFT LCD touch screen with Wi-Fi. Supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12, 6 and 3 channel reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECGs to the server.
Product Highlights
Simultaneous, interpretive 12 channel resting ECG
7” color TFT LCD touch screen, real time preview
Over 130 kinds of interpretation results based on Minnesota code
3/5/10 min long-term recording & automatic arrhythmia detection
Internal storage up to 200 cases and USB storage
BMS Plus software. Transfer of digital ECG to Windows based PC
Product Highlights
Simultaneous, interpretive 12 channel resting ECG
7” color TFT LCD touch screen, real time preview
Over 130 kinds of interpretation results based on Minnesota code
3/5/10 min long-term recording & automatic arrhythmia detection
Internal storage up to 200 cases and USB storage
BMS Plus software. Transfer of digital ECG to Windows based PC
The Cardio7 is a reliable, interpretive touch screen electrocardiogram (ECG/EKG) machine. It features a large 7” TFT LCD touch screen with Wi-Fi. Supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12, 6 and 3 channel reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECGs to the server.
Cardio7 stands out for its advanced technology, high functionality, ease of use, and an unbeatable price/performance ratio.
Maximized Ease of Use
Cardio7 combines menu-guided touch screen technology with a convenient rotary key and buttons to maximize ease of use. USB barcode reader and keyboard can be attached through USB ports.
Built-In Memory and Supports USB Flash Drive
Store up to 200 ECGs in internal flash memory. Saved ECGs can be converted to various standard file formats: JPG, PDF, XML, MFER, and DCM, and exported to external USB flash drive.
EMR Support
NEW- Cardio7 is now fully integrated with MicroMD.
The Cardio7 sends ECGs to PC by using BMS-Plus windows based PC software through LAN or Wi-Fi. It supports DICOM 3.0 protocol to retrieve work lists from PACS and save ECG images to PACS. USB flash drive can be used to move ECGs stored in Cardio7 to PC.
Clinically Important Simultaneous 12 Lead Acquisition
Cardio7 acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis in less than 60 seconds.
Full Disclosure Function
Cardio7 stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms.
Enhanced Interpretation
The ECG printout offers detailed interpretation information in text/guide/vector report formats to aid in diagnosis. Provides 12 channel, 6 channel + 1 rhythm, 3 channel + 1 rhythm, and 3 channel + 3 rhythm reports. Supports pediatric interpretation.
Long-Term Recording & Automatic Arrhythmia Detection
Cardio7 provides one channel long-term recording like 1, 3, 5, 10 minute with arrhythmia detection and HRV (Heart Rate Variability) analysis.

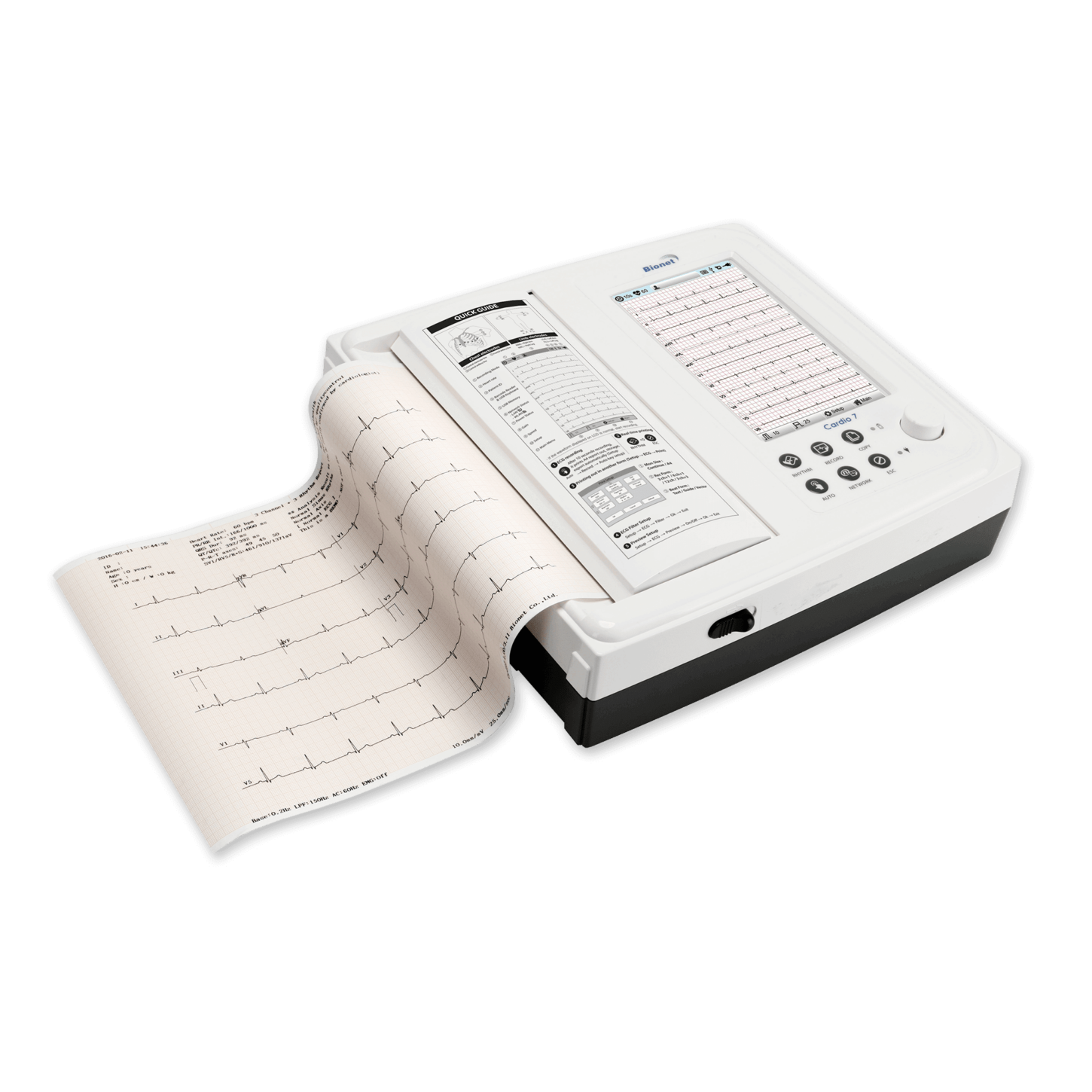

A4 Full Size Paper
Cardio7 produces full size A4 printouts in 1, 3, 6, and 12 channel formats. Full size printouts improve readability and make it easier for filing in the patient chart.
ECG Filing System BMS-Plus
BMS-Plus is an ECG software program that enables you to interface Cardio7 to Windows-based computers through LAN or Wi-Fi. The ECG data from Cardio7 is saved in either Bionet’s proprietary file format (.ecg), JPEG, or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.
Spirometer function available
SPM-300 spirometer sensor can be attached later to add the pulmonary function tests, including: FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Maximum).
Includes:
Cardio7 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book, Quick Reference Guide, and 3-Year Warranty Card. Wi-Fi USB Dongle and USB Flash Drive with BMS-Plus Software Included.
Option:
ECG Cart, Hanger, DICOM 3.0, Spirometer Sensor
wdt_ID Feature Specification
1
ECG Leads
12 channel simultaneous ECG and acquisition
2
Dimension
300 (w) x 299 (h) x 123 (d) mm Approximately 4 kg
3
Record
Auto, Rhythm, Disclosure, Arrhythmia Detect
4
Recording Channel
3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 1 channel long time (1 min, 3 min, 5 min, 10 min) and special reports (text, guide, vector)
5
Sensitivity
2.5, 5, 10, 20, auto (I~aVF: 10, V1~V6: 5) mm/mV
6
Printing Speed
5, 12.5, 25, 50, 100 mm/s
7
Sampling Rate
2,000 samples per second
8
Filters
AC (50/60Hz, - 20dB or better)
Muscle (25~35Hz, -3dB or better)
Base line drift (0.05, 0.1, 0.2 Hz, -3dB or better)
Low pass filter: off, 40Hz, 100Hz, 150 Hz
12
Display
7" color TFT wide display (800 x 480)
13
Monitor Display
HR, ID, date, AC or battery state, sensitivity, speed, number of saved data, printing form, rhythm lead
14
User Interface
Touch screen, hot key, barcode scanner, USB keyboard
15
Patient Data
ID, name, age, sex, height, weight, smoke, race
16
Basic Measurement
Heart rate, PR, QRS, QT/QTc, P-R-T axis
17
Recorder
Thermal print head, thermal roll paper
Report papers: (width x length)
- A4: 215 mm (8.5") x 297 mm (11.7")
- Letter: 215 mm (8.5") x 280 mm (11")
Resolution:
- Vertical: 8 dot/mm
- Horizontal: 16 dot/mm
25
Electrical
Internal noise: 20uV (p-p )max
Input impedance: More than 50M?
Input voltage range: ±5mV
CMRR: +105dB
DC offset voltage: >= ±400mV
Patient leakage current: Frequency response 0.05~150Hz within -3 db
Isolated, defibrillation and ESU protected
33
Signal Quality Control
Pacemaker pulse detection lead fault detection, signal saturation detection.
34
ECG Data Storage
Internal storage for 200 ECGs and external USB flash drive
35
Power
Input: 100-240 VAC, 2-1 A, 50/60 Hz
Output: 60 VA max
37
External Link
LAN, 2 USB Port
38
File Format
PDF, JPG, XML, MFER, DCM
39
Battery
Type: Replaceable and rechargeable Lithium Ion
Capacity: 6 hours of continuous operation without printing or Approx. 3 hours of 200 ECG printouts
41
Communication
RS232, LAN, WiFi, USB flash drive, USB barcode scanner
42
Safety Conformity
Class 1, Type CF, CE, FDA, KFDA, CFDA, NCC
43
Environment
Operating humidity: 30~85%
Operating temperature: 10° ~ 40° C
45
Standard Accessories
Power Cord - 1 ea
Patient Cable - 1 ea
ECG clips - 1 set
Disposable Electrodes - 1 pouch
Chart paper - 1 ea
Operation manual - 1 ea
Diagnose guide - 1 ea
Rechargeable battery - 1 ea
USB WiFi dongle - 1 ea
46
Options
Cart, Hanger, DICOM 3.0
* Specifications can be changed without prior notification.
Item Code
Item Description
wdt_ID Item Image Item Code Item Description Buy Now
61

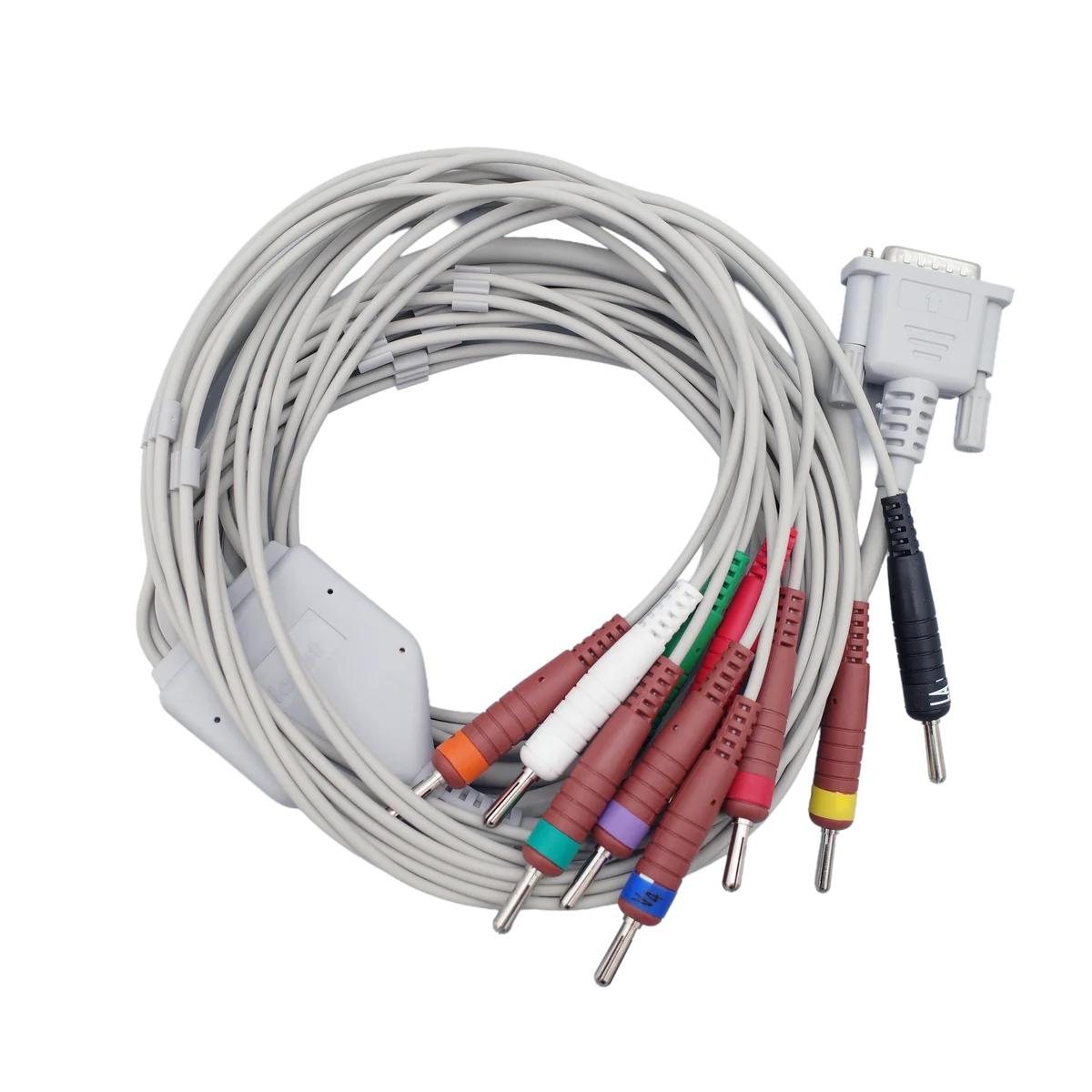

ECG-CBL
10 lead ECG patient cable
Buy Now
63

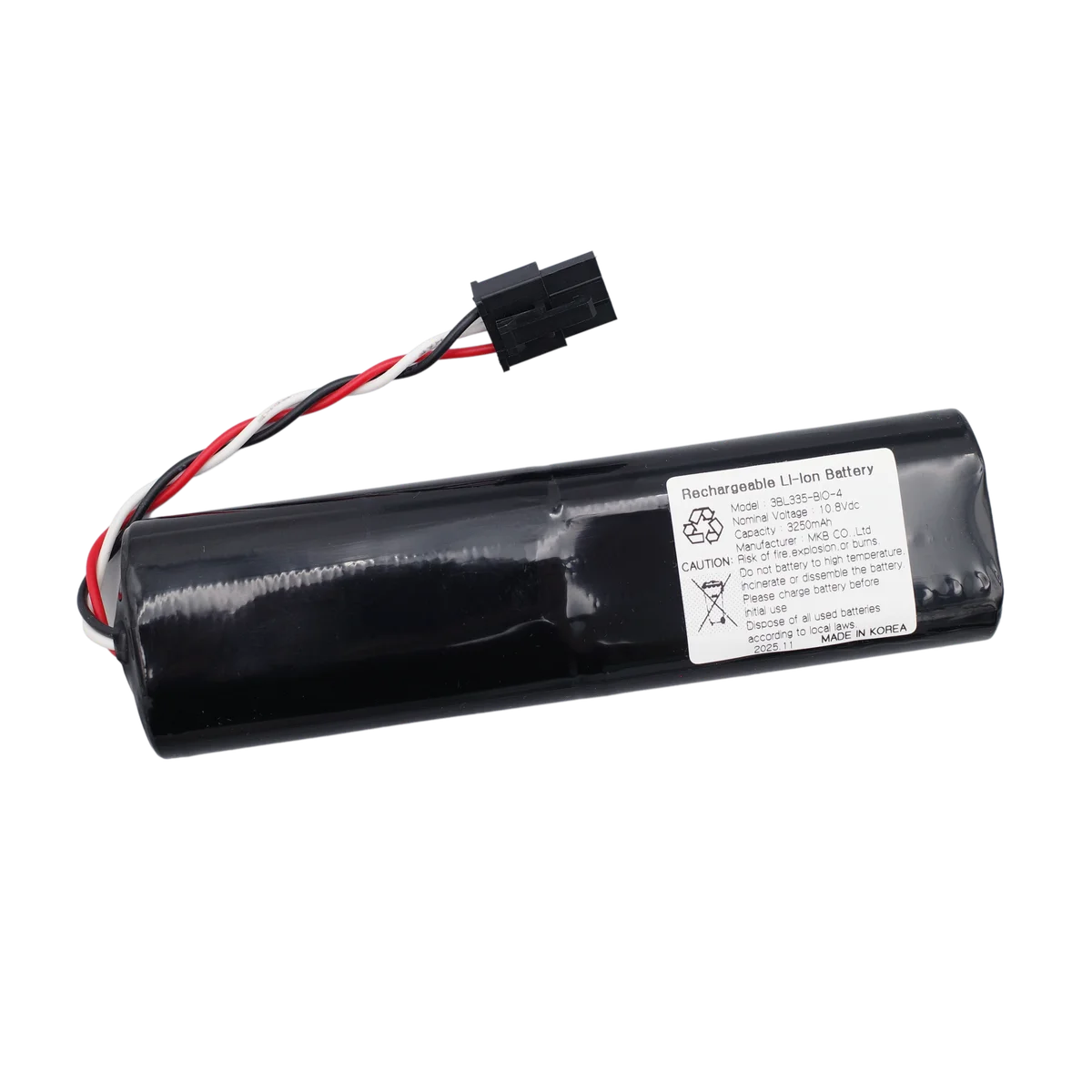

ECG/FC-BAT
Battery Console Li-ion 1 Line, 4 Cell, 10.8V, 3250mA/h
Buy Now
64

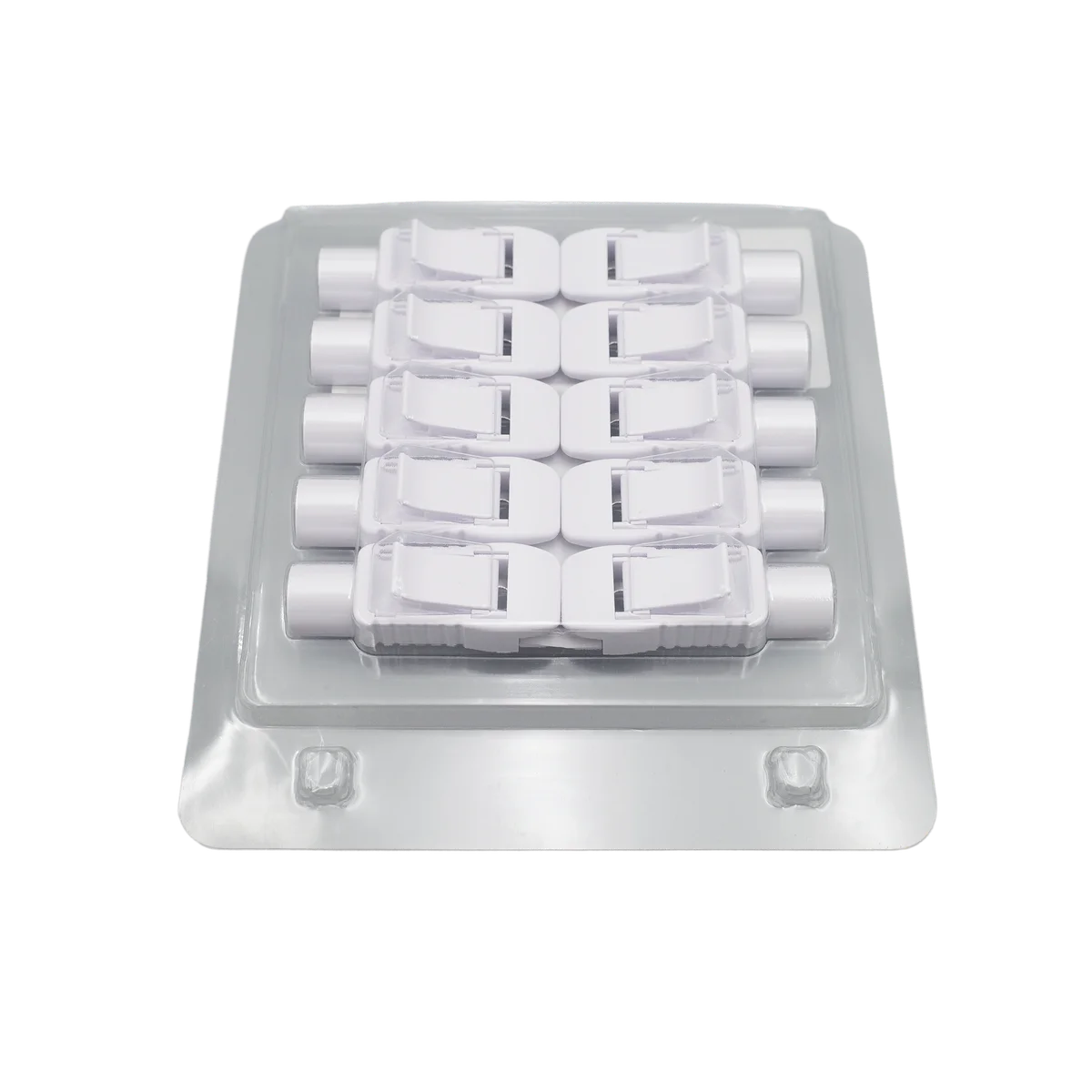

ECG-CLIP(N)
ECG alligator clip (10 pcs/set)
Buy Now
65

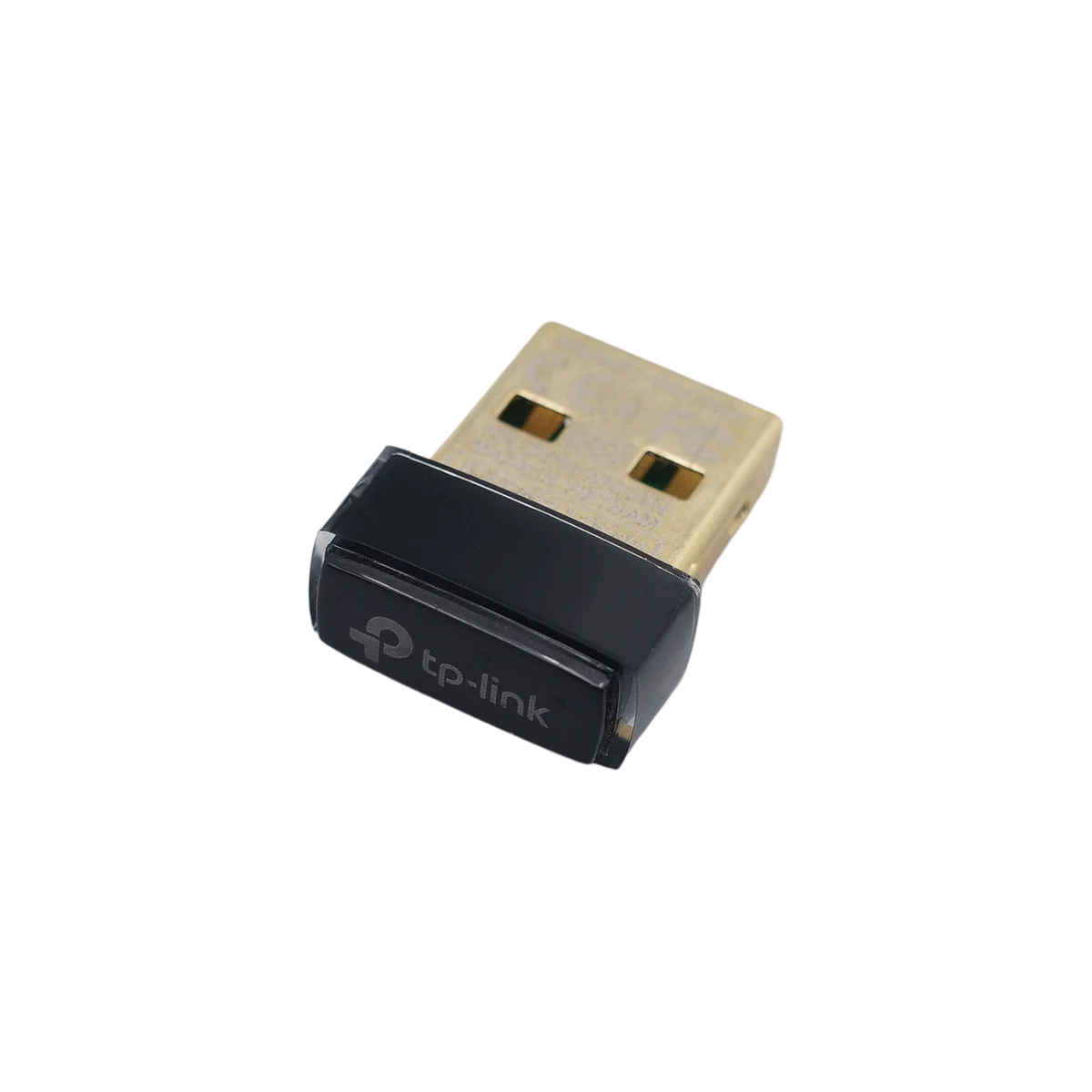

USB-WIFI25
USB WiFi dongle (Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity)
Buy Now
66

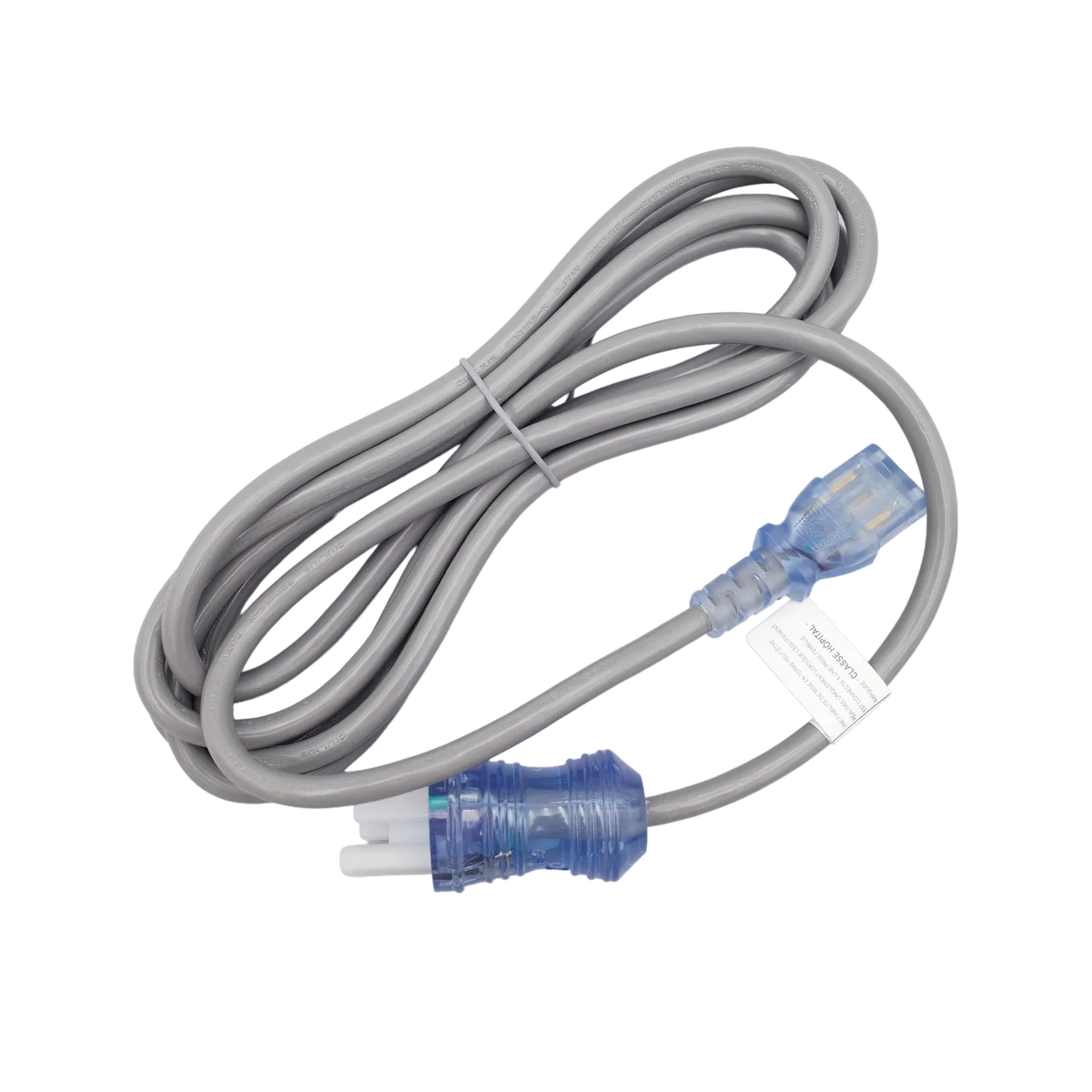

PC-A (H)
Hospital grade power cable
Buy Now
67

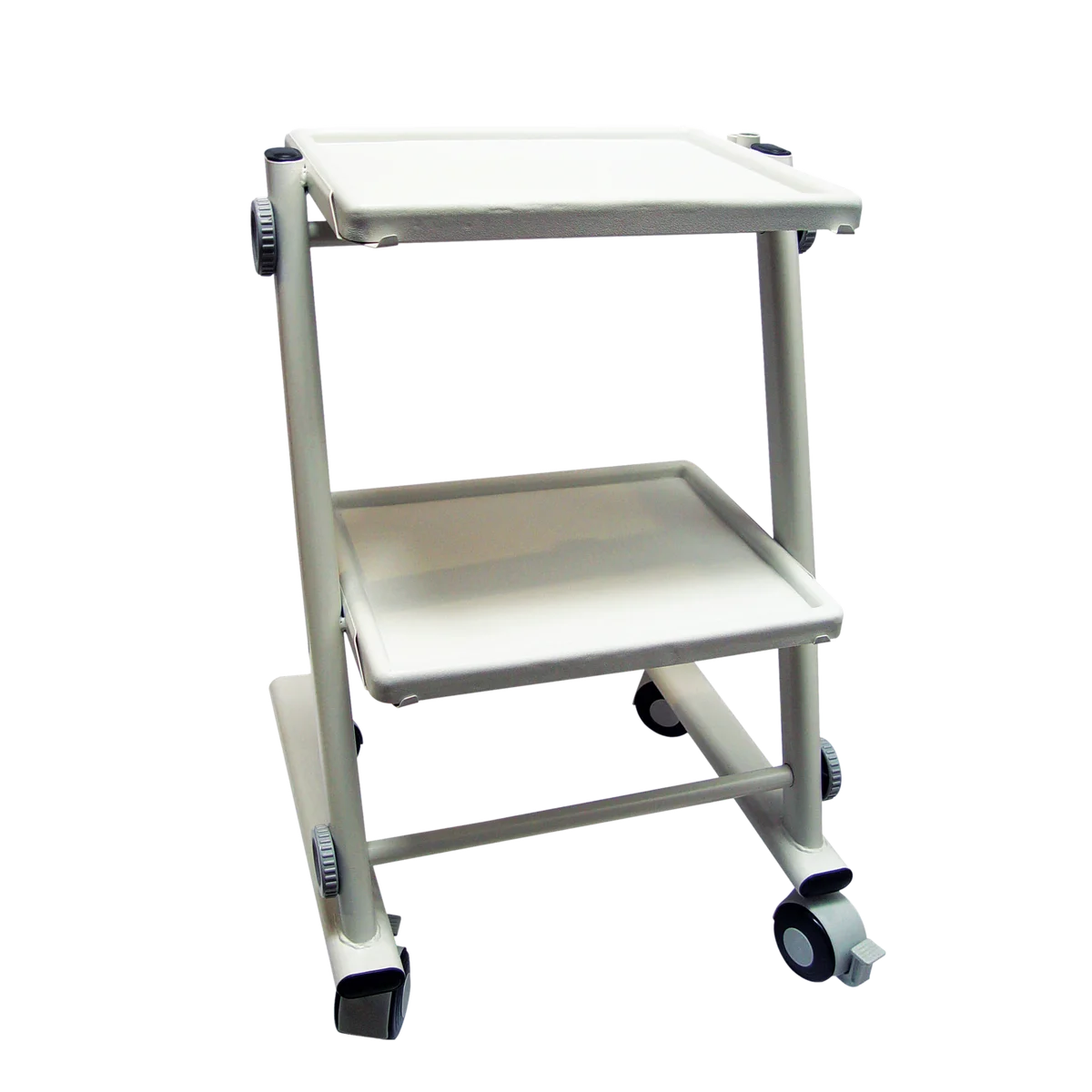

ECG-CART
ECG cart for CardioCare 2000 and Cardio7 (hanger not included, must be purchased separately)
Buy Now
68

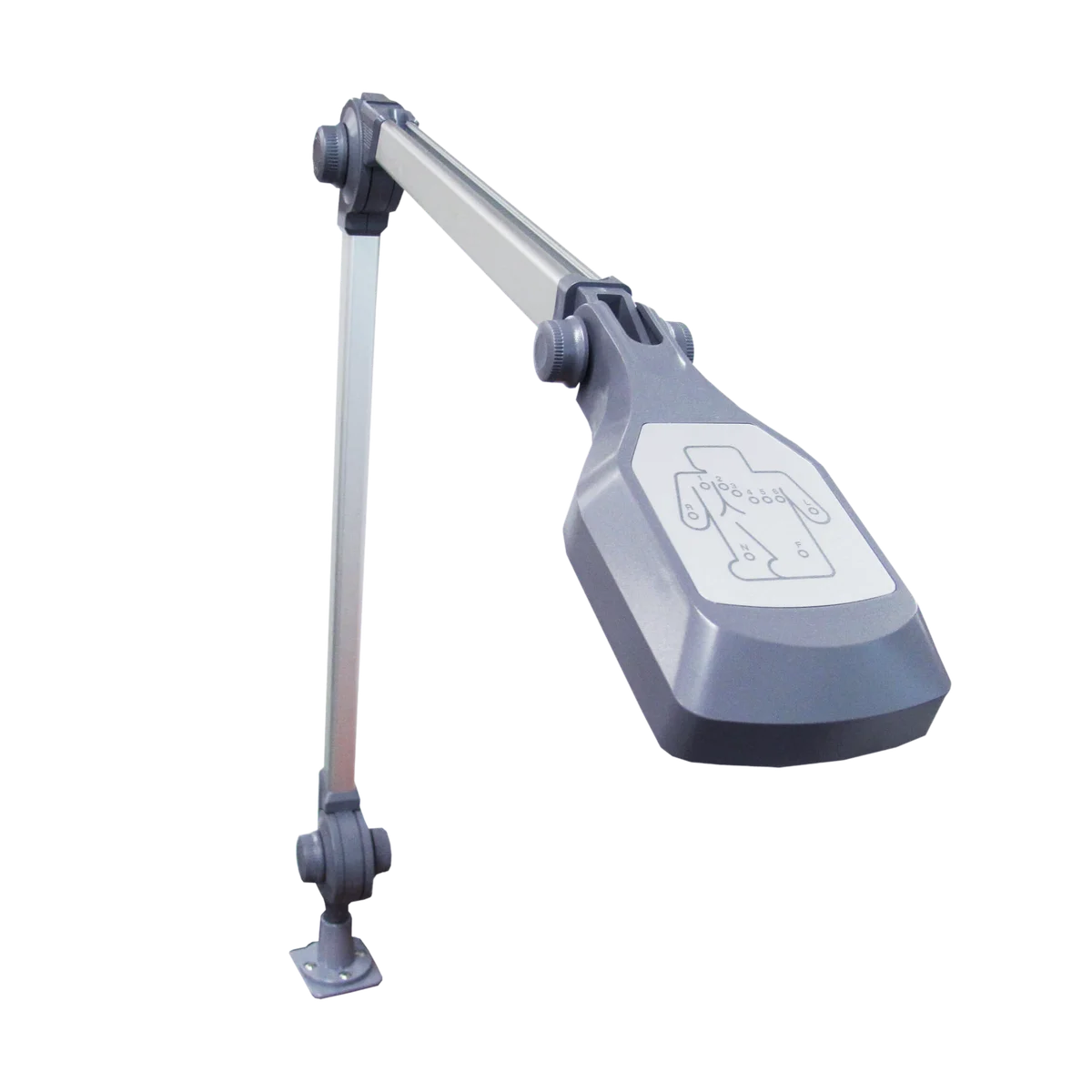

ECG-HANGER
ECG cable hanger for ECG-CART
Buy Now
69

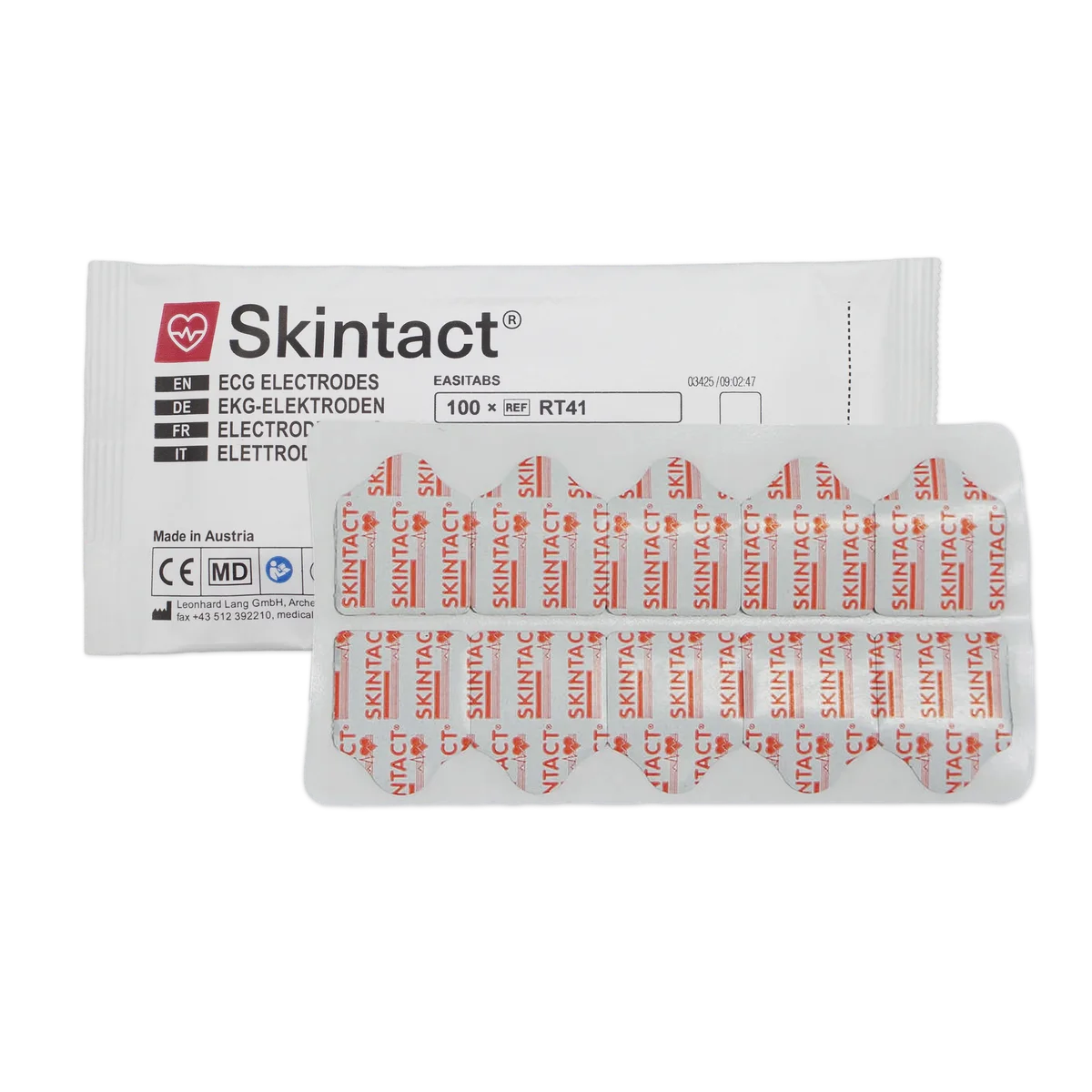

ECG-RE
ECG resting electrode (5 packs/bag)
Buy Now
70

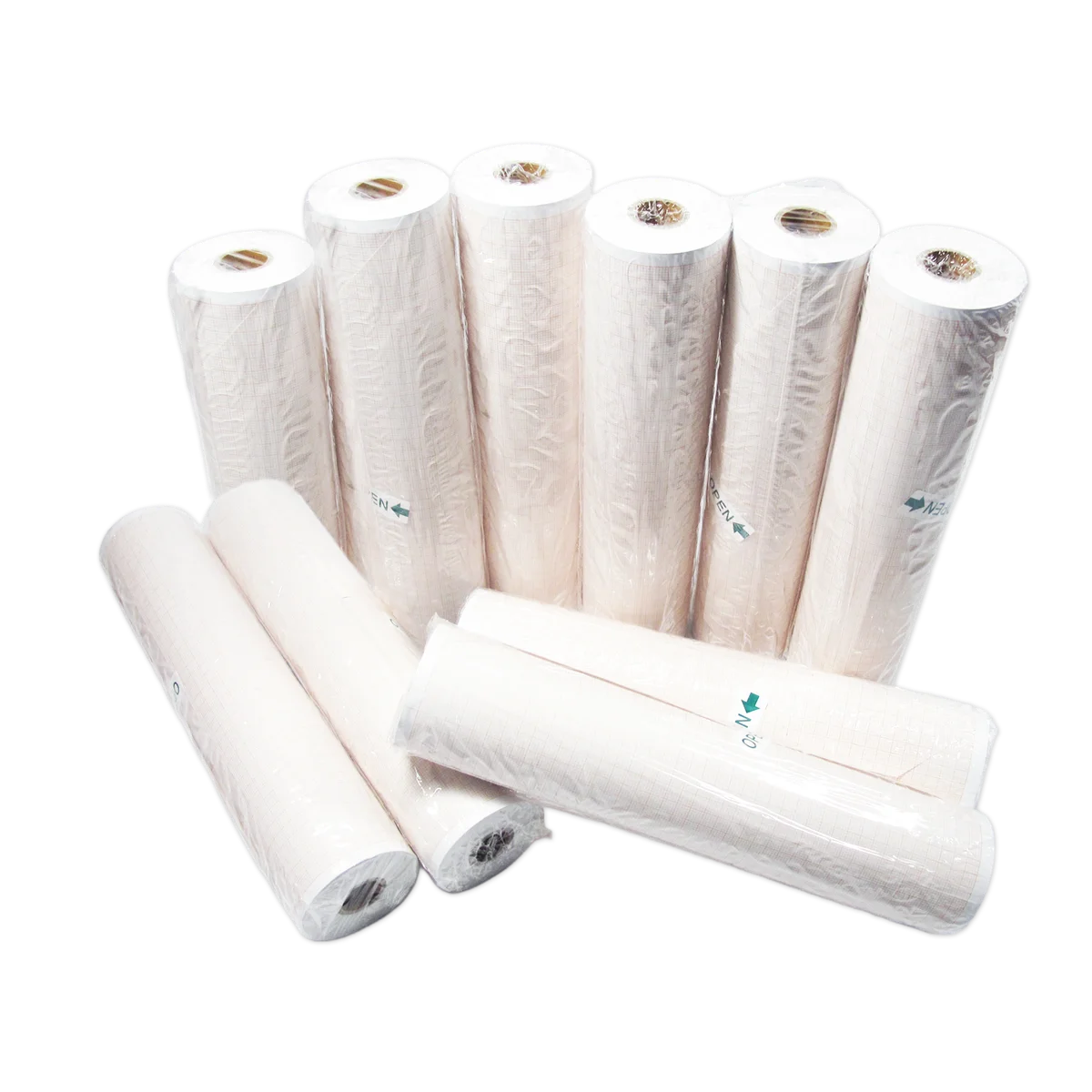

ECG-PP
ECG medi-graph paper (10 rolls/box)
Buy Now
71

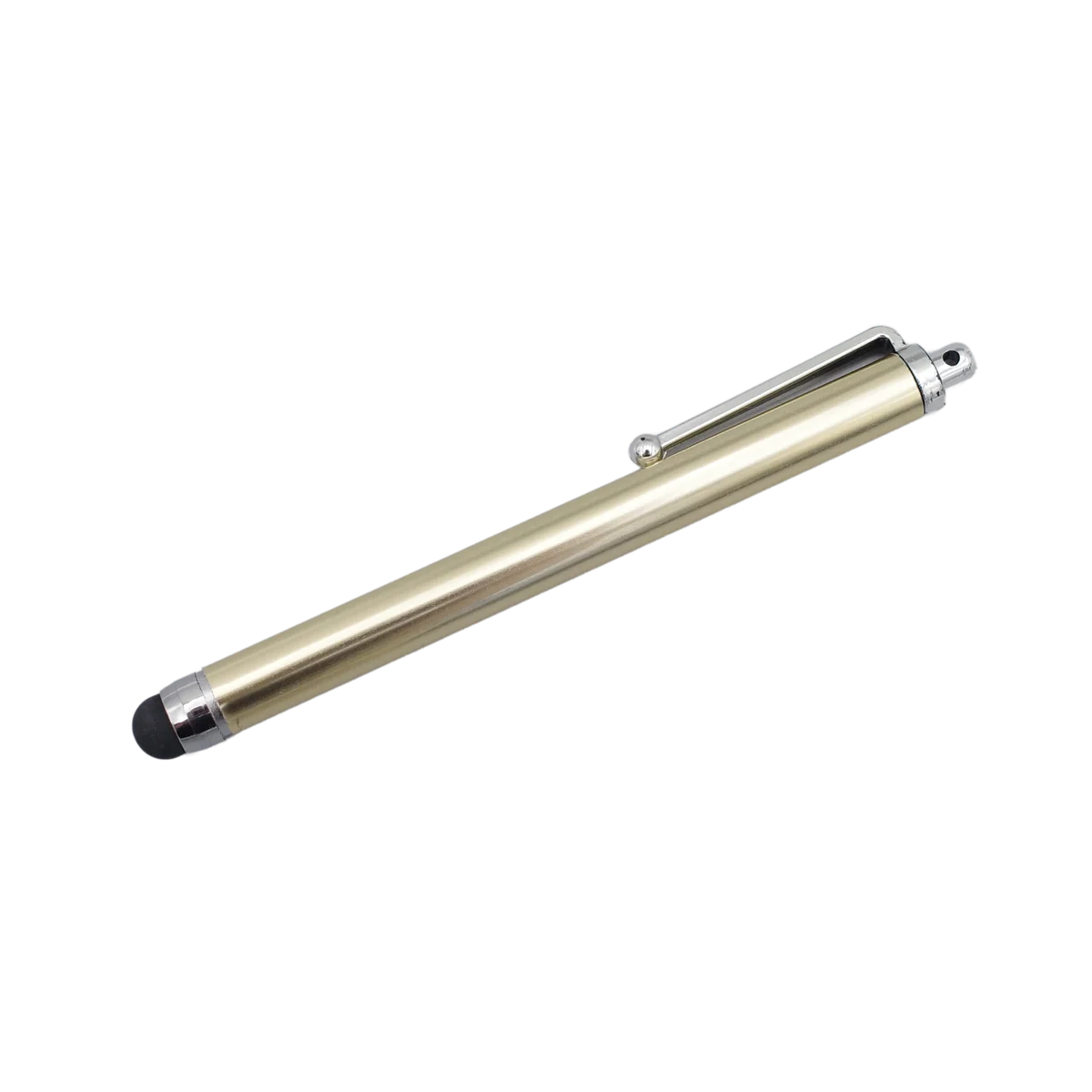

ECG-STYLUS
ECG touch screen stylus pen (for Cardio7 only)
Buy Now
Bionet Cardio7 Video Manual
Bionet Cardio7 Barcode ID scan
How to use Bionet BMS Plus
How to connect BMS Plus to Bionet ECG Machine
How to install Bionet BMS Plus
