Cardio P1
Optimized PC ECG for physician office
The Cardio P1 is a compact PC based ECG system that allows the physicians to streamline the ECG workflow, enabling prompt & accurate decision-making for ECG interpretation and diagnosis.
With its fully loaded interpretive diagnostic modes, the P1 features data export in XML, PDF, MFER, JPEG, BMP and DICOM for easy data management of patient information to any EMR/HIS system.
Its unique 30-minute full disclosure with ECG live mode, and real-time arrhythmia detection make ECG analysis faster and simpler, enhancing physicians’ productivity and allowing for better patient care.
The Cardio P1 is a compact PC based ECG system that allows the physicians to streamline the ECG workflow, enabling prompt & accurate decision-making for ECG interpretation and diagnosis.
With its fully loaded interpretive diagnostic modes, the P1 features data export in XML, PDF, MFER, JPEG, BMP and DICOM for easy data management of patient information to any EMR/HIS system.
Its unique 30-minute full disclosure with ECG live mode, and real-time arrhythmia detection make ECG analysis faster and simpler, enhancing physicians’ productivity and allowing for better patient care.
Product Highlights
Auto-key from acquisition to analysis, documentation and data export
Built-in memory up to 500 ECG datasets
On screen preview before print-out
30-minute full disclosure With real-time arrhythmia detection
Pre-acquisition mode for print-out and documentation in just 3 seconds
Enabling premium report formats TEXT/GUIDE/VECTOR and ST-MAP
Product Highlights
Auto-key from acquisition to analysis, documentation and data export
Built-in memory up to 500 ECG datasets
On screen preview before print-out
30-minute full disclosure With real-time arrhythmia detection
Pre-acquisition mode for print-out and documentation in just 3 seconds
Enabling premium report formats TEXT/GUIDE/VECTOR and ST-MAP
Optimized ECG solution for physician office
The P1 stands out as the optimal ECG solution for physician offices, addressing the challenge of efficiently managing a steady flow of patients during daily ECG exams. Its streamlined, one-touch workflow ensures a fast and easy process, seamlessly moving from ECG acquisition to data saving, and exporting to local storage, EMR,HIS, or PACS.
Designed with the busy daily practice of physicians in mind, the P1 simplifies the entire process at the touch of a button.
Automatic ECG acquisition with one touch of a button
With its built-in “AUTO” key, the P1 streamlines the ECG workflow with a single touch of a button, covering ECG acquisition, analysis, documentation, and export to EMR, HIS, and PACS.
The Pre-configured ECG acquisition time ranges from 10 seconds up to 30 minutes, providing physicians with an optimized diagnostic time range for their preferred ECG exam and further enhanced analysis.
Full-disclosure up to 30 minutes for highly accurate arrhythmia detection
The P1 features a 30-minute full-disclosure mode supporting automatic and real-time arrhythmia analysis up to 30 minutes, providing comprehensive full-waveform trend data. This functionality ensures accuracy in ECG interpretive diagnosis, leaving no beat unnoticed.
Enable Pre-acquisition for prompt interpretation and immediate print-out
Maintain continuous ECG acquisition : ECG leads are swiftly processed for print-out and data storage in just 3 seconds,
Facilitated by a running pre-acquisition mode. This allows for convenient ECG review and interpretation.
Enhanced built-in memory up to 500 ECGs
The P1 has its built-in memory up to 500 ECG datasets in a 10 second time frame.
Compact yet powerful resting ECG features with CardioSync
- Real time arrhythmia detection
- On screen preview before print-out
- Compare/zoom/RR Measurement functions for further data review
- Full disclosure up to 30 minutes for interpretive analysis
- Enabling premium report formats : TEXT/GUIDE/VECTOR and ST-MAP
CardioSync: Bionet ECG data management software
CardioSync is an ECG data management software program that enables you to interface P1 with Windows-based computers through a direct wired connection. The ECG data from P1 is saved and transferred in Bonet’s proprietary file format (.ecg), JPEG, PDF, XML, MFER, or DICOM, ensuring compatibility with most EMR packages. CardioSync displays real-time ECG data on-screen, instantly performs a real-time arrhythmia detection, and offers diagnostic aid. In addition, CardioSync can eliminate the need for costly thermal paper by printing a variety of comprehensive premium report formats of Text, Guide, Vector, and ST-MAP as a standard feature for further interpretive data review.
PC minimum system requirement for CardioSync
- Operation System: Window 10
- CPU: Core2Duo 1.86GHz
- RAM: 2GB
- Graphic Adapter: VGA RAM 256MB 1600 X 900
- Hard Drive: 500GB
- LAN Speed: 10Mbps
- # of USB: 2
Includes:

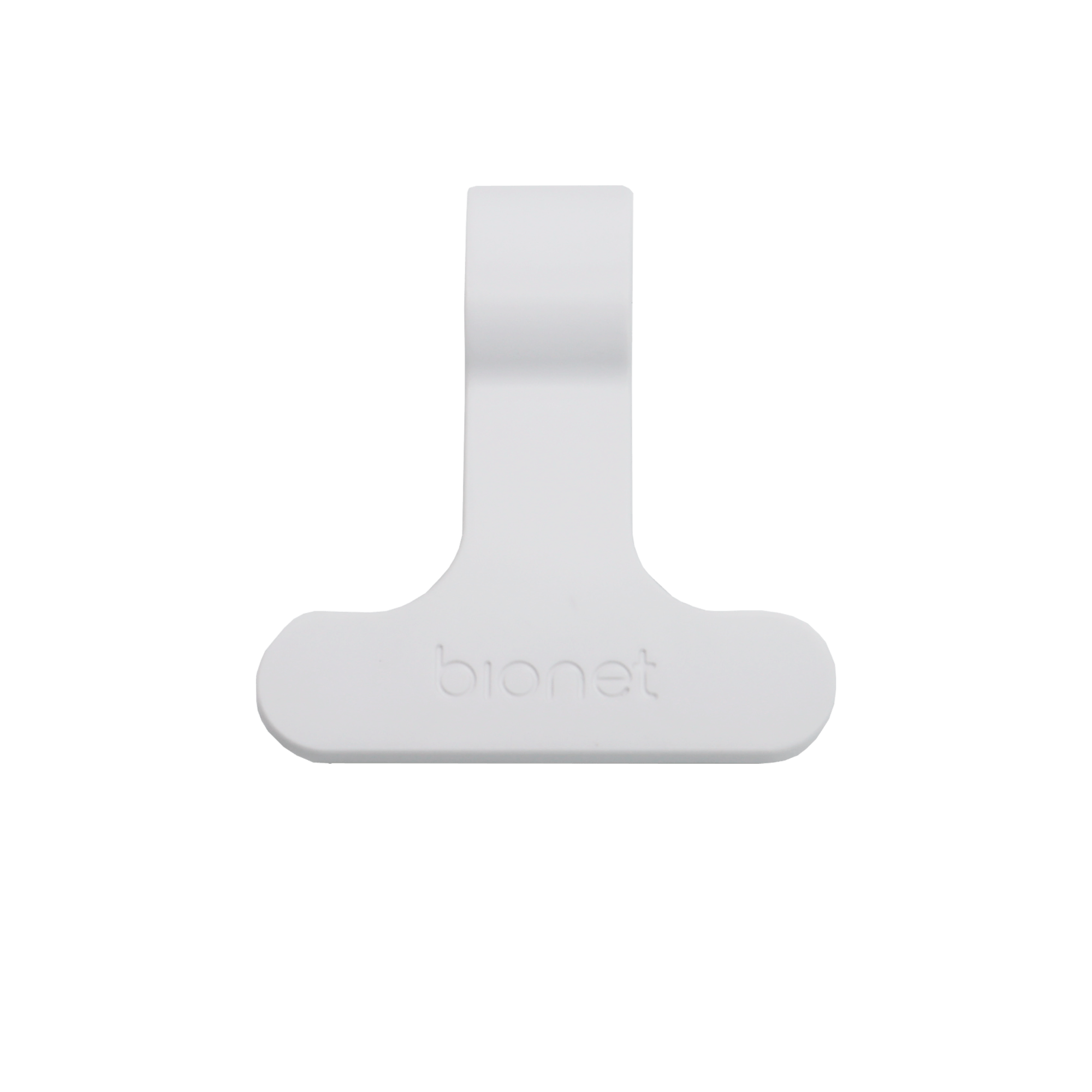

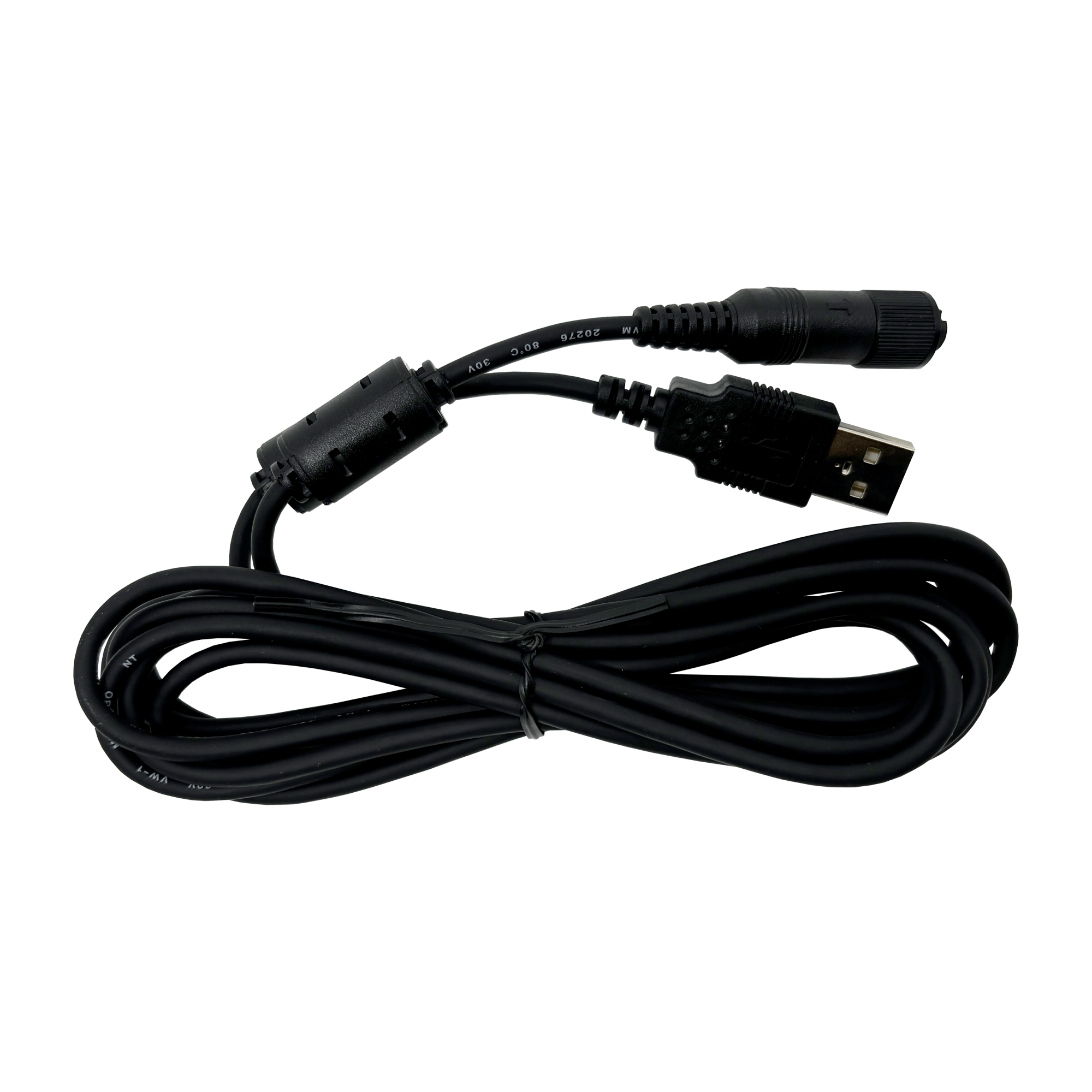

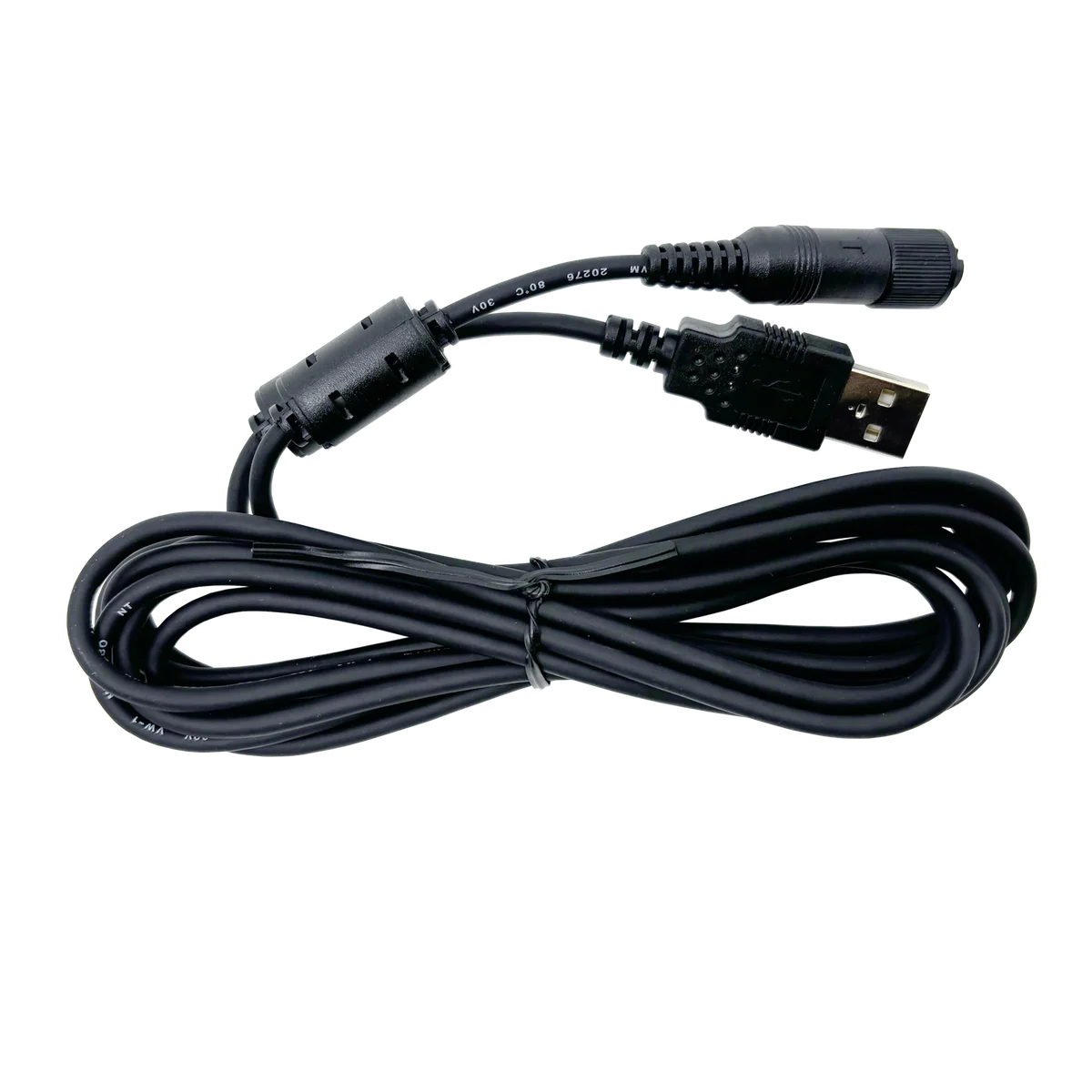

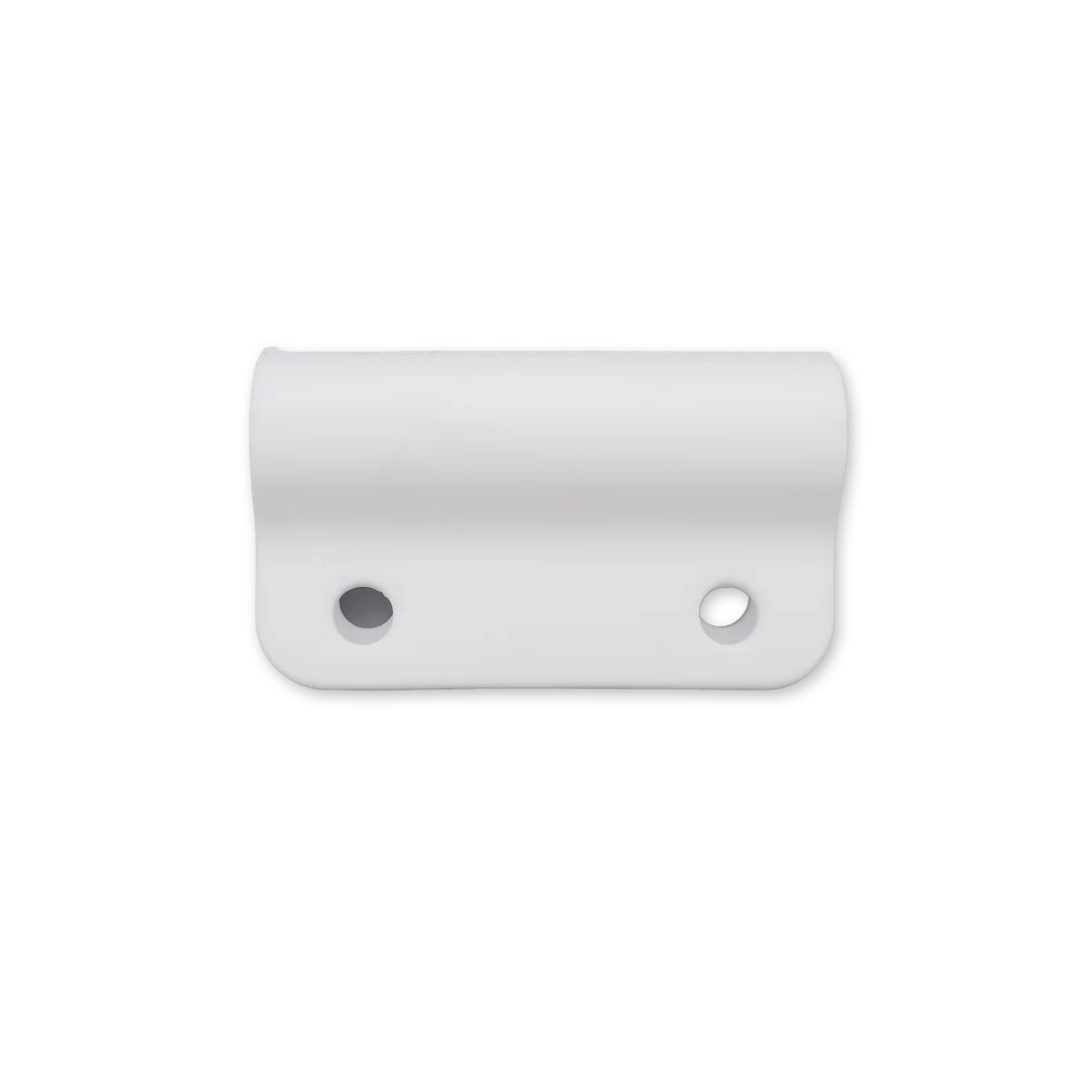

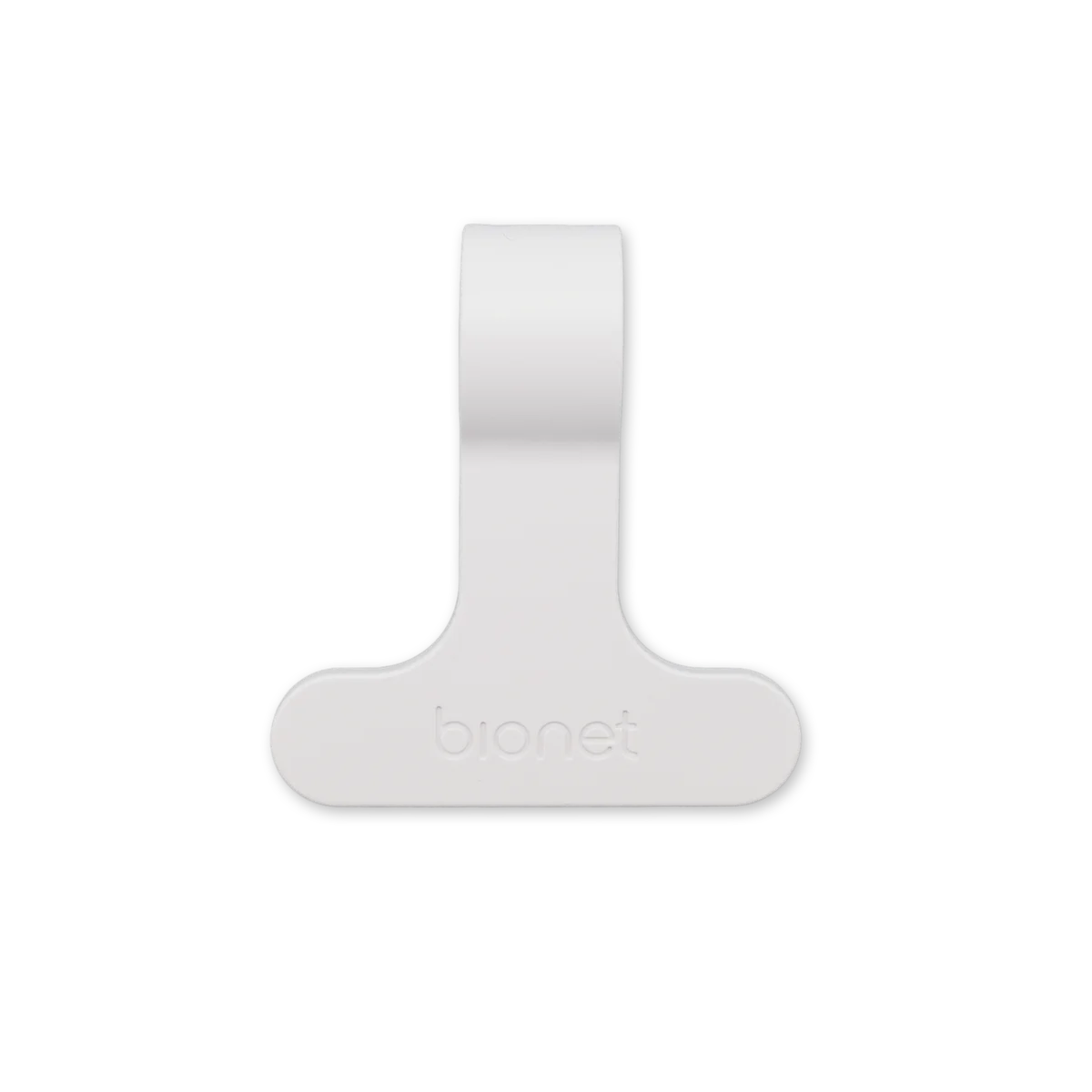

Cardio P1 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Power (USB) Cable, IV Pole hanger, Silicon Pad, Operation Manual, Diagnostics Guidebook, Quick Reference Guide, and 3-Year Warranty Card. and USB lock-key with Cardiosync Software Included
Option:

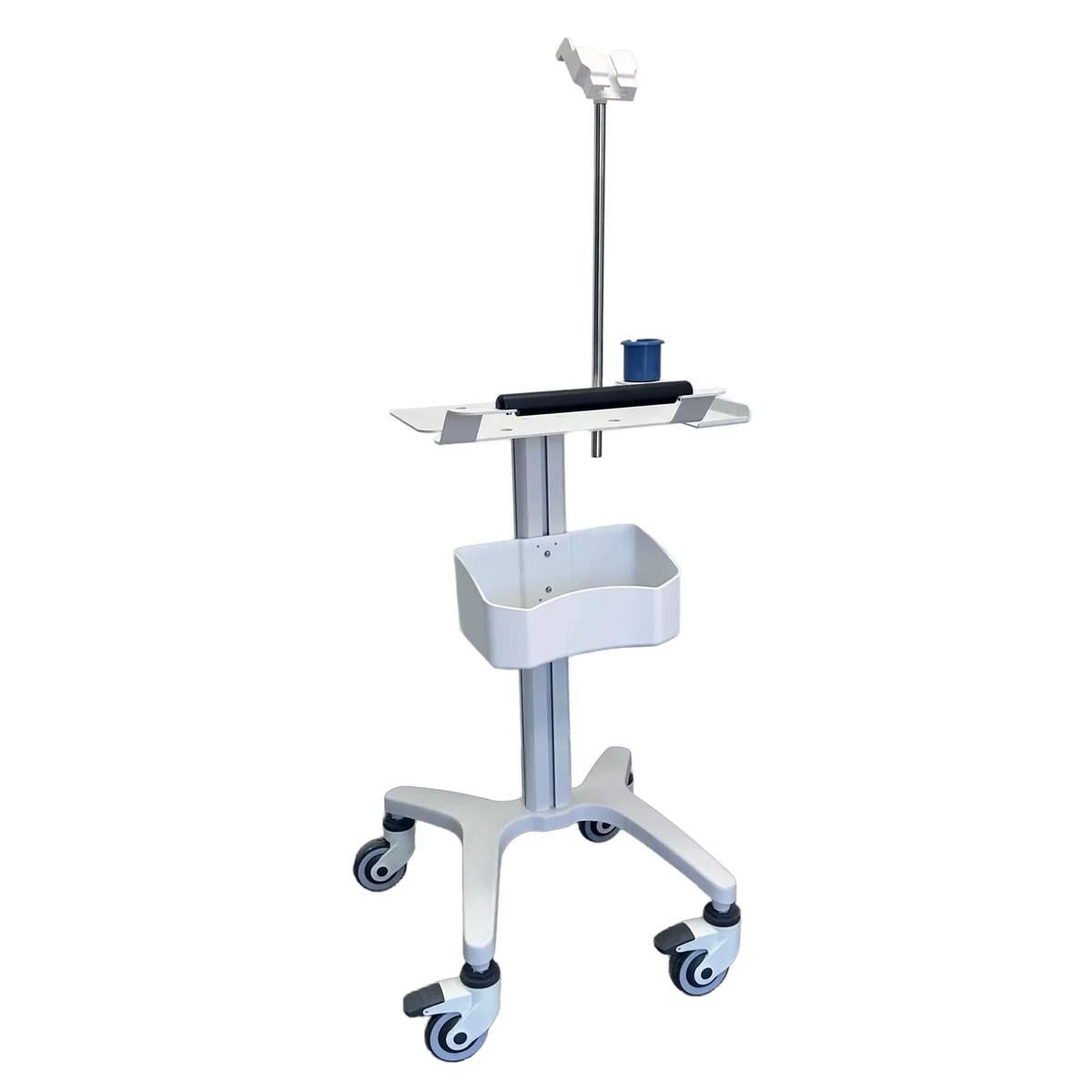

P1 cart with hanger arm
| wdt_ID | Feature | Specification |
|---|---|---|
| 1 | ECG Leads | Simultaneous 12 channel ECG and acquisition |
| 4 | Recording Channel | 3CH+3RHY, 3CH+1RHY, 6CH+1RHY, 12CH, 6CH+ST map 1CH Long Time (1min, 3min, 5min,10min, 20min, 30min) and Special Beat Report (Text, Guide, Vector, ST map) |
| 5 | Gain | 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV |
| 6 | Printing Speed | 5, 12.5, 25, 50, 100 mm/sec |
| 7 | Sampling Rate | Analysis Sampling Rate: 500Hz Digital Sampling Rate: 8,000Hz |
| 8 | Filters | AC (50/60 Hz, -20dB or better), Muscle (25~35Hz, -3dB or better), Baseline Drift (0.05Hz, 0.1Hz, 0.2Hz, -3dB or better), Low Pass Filter(off, 40Hz, 100Hz, 150Hz) |
| 11 | Patient Data | ID, Name, Birthday, Age, Gender, Height, Weight, Race, Smoke, Department, Room No., Study Desc., Accession No., Referring Physician |
| 12 | Basic Measurement | Heart Rate (30~300bpm, ±3bpm), PR/RR Int, QRS Dur, QT/QTc Int, P-R-T axis, SV1/RV5/R+S Amp |
| 13 | Electrical | Internal Noise: 20uV(p-p)max Input Impedance: ≥ 50MΩ Input Voltage Range: ±5mV CMRR: > 105dB DC Offset Voltage: ≥ ±400mV Patient Leakage Current: Frequency Response: 0.05~200 with in –3dB Isolated, Defibrillation and ESU Protected |
| 14 | Signal Quality Control | Pacemaker Pulse Detection Lead Fault Detection, Signal Saturation Detection |
| 15 | Input Power | 5VDC (USB), Max. 0.5A |
| 16 | Communication | USB data communication (to PC) |
| 17 | Safety Conformity | Class I, Type CF applied parts: ECG electrodes |
| 18 | Environmental (Operation) | Ambient Temperature : 10 to 40ºC Relative Humidity : 30 to 85% Atmospheric Pressure : 700 to 1060hPa |
| 19 | Environmental (Storage/Ship) | Ambient Temperature : -20 to 60℃ Relative Humidity : 10 to 95% Atmospheric Pressure : 500 to 1060hPa |
| 20 | Dimensions | Body - 90.75(W) x 103.5(D) x 24.93(H)mm - Approx. 110g |
| 21 | Standard Accessory | Patient Cable (1ea), Power (USB Data) Cable (1ea), Disposable electrodes (1set), ECG clips (1set), Hanger (1ea), Silicone Pad (1ea), USB Lock Key (1ea) |
* Specifications can be changed without prior notification.
Item Code
Item Description
wdt_ID Item Image Item Code Item Description Buy Now
61
ECG-CBL

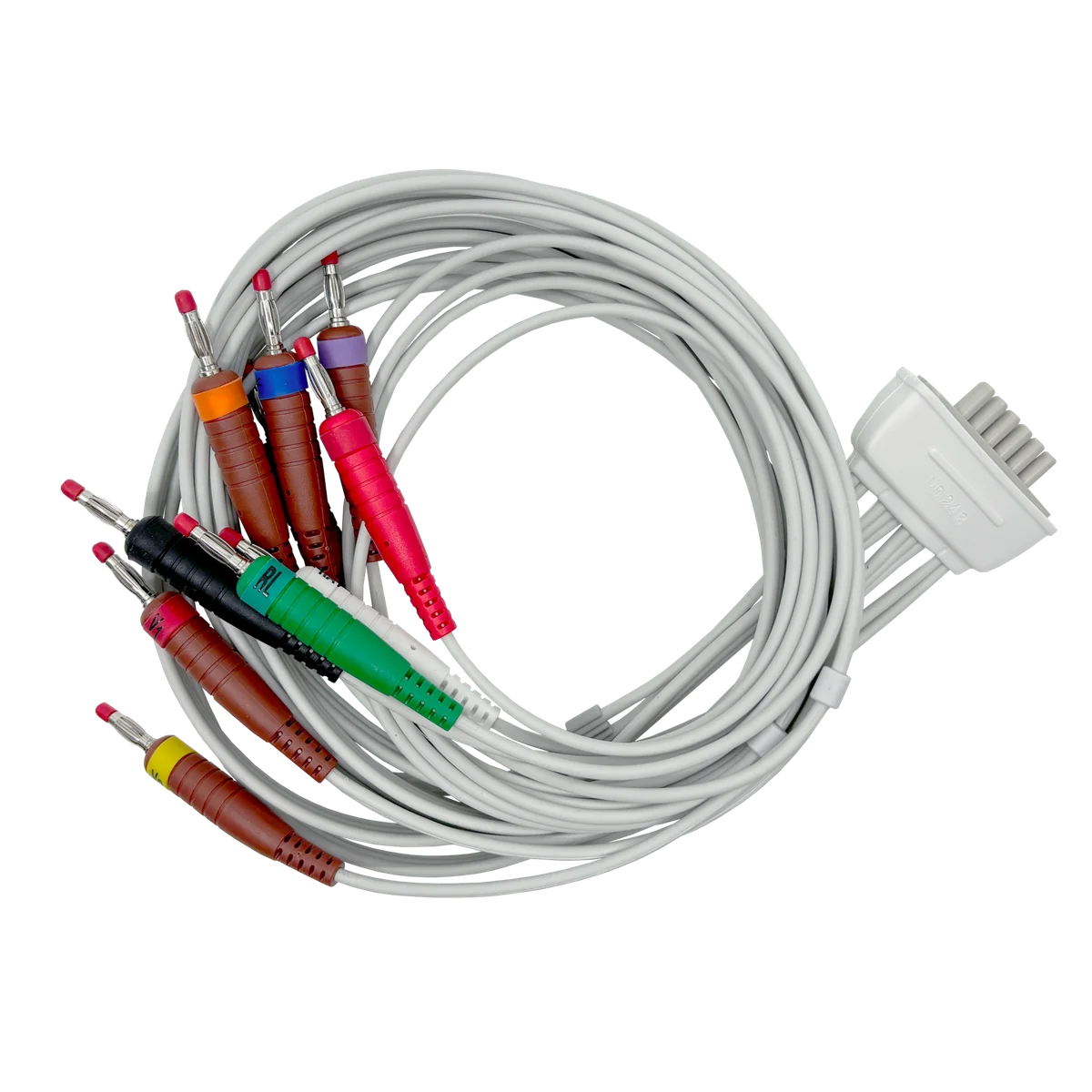

10 lead ECG patient cable
Buy Now
62
ECG/FC-BAT
Battery Console Li-ion 1 Line, 4 Cell, 10.8V, 3250mA/h
Buy Now
64
ECG-CLIP(N)
ECG alligator clip (10 pcs/set)
Buy Now
66
PC-A (H)
Hospital grade power cable
Buy Now
67
ECG-CART
ECG cart for CardioCare 2000 and Cardio7 (hanger not included, must be purchased separately)
Buy Now
68
ECG-HANGER
ECG cable hanger for ECG-CART
Buy Now
69
ECG-RE
ECG resting electrode (5 packs/bag)
Buy Now
70
ECG-PP
ECG medi-graph paper (10 rolls/box)
Buy Now
