Cardio Q50
Make it simplified with Q50
The Q50 is designed to make your ECG workflow intuitively simplified with capacitive touch screen for easy & prompt access of workflow.
With its fully loaded interpretive diagnostic modes, the Q50 features data export in XML, PDF, MFER, JPEG, BMP and DICOM for easy data management of patient information to any EMR/HIS system.
Its unique 30-minute full disclosure with ECG live mode, and real-time arrhythmia detection make ECG analysis faster and simpler, enhancing caregivers’ productivity and allowing for better patient care.
The Q50 is designed to make your ECG workflow intuitively simplified with capacitive touch screen for easy & prompt access of workflow.
With its fully loaded interpretive diagnostic modes, the Q50 features data export in XML, PDF, MFER, JPEG, BMP and DICOM for easy data management of patient information to any EMR/HIS system.
Its unique 30-minute full disclosure with ECG live mode, and real-time arrhythmia detection make ECG analysis faster and simpler, enhancing caregivers’ productivity and allowing for better patient care.
Product Highlights
8-inch Capacitive LCD
Glasgow Algorithm
Auto-key from acquisition to analysis, documentation and data export
30-minute full disclosure With real-time AUTO arrhythmia detection
Pre-acquisition mode for print-out and documentation in just 3 seconds
Enabling premium report formats TEXT/GUIDE/VECTOR
Product Highlights
8-inch Capacitive LCD
Glasgow Algorithm
Auto-key from acquisition to analysis, documentation and data export
30-minute full disclosure With real-time AUTO arrhythmia detection
Pre-acquisition mode for print-out and documentation in just 3 seconds
Enabling premium report formats TEXT/GUIDE/VECTOR
Q50 is designed to simplify ECG workflow intuitively with a capacitive LCD screen, providing easy & prompt access to the workflow
With its fully loaded interpretive diagnostic modes, the Q50 features data export in XML, PDF, MFER, JPEG, BMP, and DICOM for easy data management of patient information to any EMR/HIS system.
Its unique 30-minute full disclosure with ECG live mode and real-time arrhythmia detection, Q50 makes ECG workflow faster and simpler, enhancing caregivers’ productivity and allowing for better patient care.
Enhanced user interface with capacitive screen
Q50 features an 8-inch capacitive, shock-resistant LCD screen that works well with medical gloves.
Built-In Memory, USB Flash Drive & Barcode scanner Support
Stores up to 500 ECGs in internal flash memory. The saved ECGs can be converted to various standard file formats, such as JPG, PDF, XML, MFER, and DICOM, and exported to external USB flash drive & barcode scanner.
Enable Pre-acquisition for Prompt interpretation and Immediate print-out
Maintain continuous ECG acquisition : ECG leads are swiftly processed for interpretation, print-out and data storage in just 3 seconds,
facilitated by a running pre-acquisition mode. This allows for conveniently fast ECG review and interpretation.
Automatic ECG Acquisition with One Touch
Q50 streamlines the ECG workflow through its built-in ‘AUTO’ key, allowing for a single touch of a button to cover ECG acquisition, analysis, documentation, and export to EMR, HIS, and PACS.
Long-term acquisition (Recording) & Auto Real-time Arrhythmia Detection
The pre-configured ECG acquisition time ranges from 10 seconds up to 30 minutes, providing enhanced real-time auto arrhythmia detection. This offers an optimized diagnostic time range for further analysis of HRV.
Glasgow Algorithm
The Glasgow Interpretation Algorithm has been integrated into Q50 to provide the most accurate ECG interpretation for pediatric and adult STEMI based on extensive use of age- and sex-based criteria.
Full-Disclosure up to 30 minutes for Highly Accurate Arrhythmia Detection
Q50 features a 30-minute full-disclosure mode supporting automatic and real-time arrhythmia analysis up to 30 minutes, providing comprehensive full-waveform trend data. This functionality ensures accuracy in ECG interpretive diagnosis, leaving no beat unnoticed.
Cybersecurity / HIPAA compliant Architecture
All patient data is encrypted and protected by unique IDs, configurable password, as well as concealment of patient names and hospital information. This ensure the safety of all information under any circumstances.
Includes:
Q50 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Operation Manual, Diagnostics Guidebook, Quick Reference Guide, and 3-Year Warranty Card. Wifi USB Dongle
Option:
ECG cart with hanger arm
| wdt_ID | Feature | Specification |
|---|---|---|
| 1 | ECG Leads | Simultaneous 12 channel ECG and acquisition |
| 4 | Recording Channel | 3CH+3RHY, 3CH+1RHY, 6CH+1RHY, 12CH, 1CH+3, Cabrera Report 1CH Long Time (1min, 3min, 5min,10min, 20min, 30min) and Special Beat Report (Text, Guide, Vector) |
| 5 | Gain | 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV |
| 6 | Printing Speed | 5, 12.5, 25, 50, 100 mm/sec |
| 7 | Sampling Rate | Digital Sampling Rate: 8,000Hz |
| 8 | Filters | AC (50/60 Hz, -20dB or better), Muscle (25~35Hz, -3dB or better), Bionet Baseline Drift (0.05Hz, 0.1Hz, 0.2Hz, -3dB or better), Low Pass Filter(off, 40Hz, 100Hz, 150Hz) |
| 11 | Patient Data | ID, Name, Date of Birth, Age, Gender, Height, Weight, Race, Smoke, Department, Room No., Study Desc., Accession No., Referring Physician |
| 12 | Basic Measurement & Interpretation | Heart Rate (30~300bpm, ±3bpm), PR/RR Int, QRS Dur, QT/QTc Int, P-R-T axis, SV1/RV5/R+S Amp Bionet ECG analysis algorithm, the University of Glasgow ECG analysis algorithm |
| 13 | Electrical | Internal Noise: 20uV(p-p)max Input Impedance: ≥ 50MΩ Input Voltage Range: ±5mV CMRR: > 105dB DC Offset Voltage: ≥ ±400mV Patient Leakage Current: Frequency Response: 0.05~200 with in –3dB Isolated, Defibrillation and ESU Protected |
| 14 | Signal Quality Control | Pacemaker Pulse Detection Lead Fault Detection, Signal Saturation Detection |
| 15 | Data Storage | Internal Storage for 500 Data : Built- in Memory |
| 16 | Display | 8” Color TFT Wide Display (1024 x 600), 12 Channels Preview ECG Wave |
| 17 | User Interface | Capacitive Touch Screen (Alphanumeric and Symbol Available), Function Keys |
| 18 | Printer Resolution | Thermal Print Head, Z-fold Paper |
| 19 | Report Paper - A4: 210mm (8.3”) x 300mm (11.8”) - Letter: 215mm (8.5”) x 280mm (11”) |
|
| 20 | Paper Size - A4: 210mm x 150mm (half A4) - Letter: 215mm x 140mm (half Letter) |
|
| 21 | Resolution - Vertical: 8dot/mm - Horizontal: 16dot/mm (0.125mm pitch) |
|
| 22 | Line Power | Input : 100~240 VAC, 50/60Hz, 1.5~0.75A Output : 15 VDC, 4.2 A |
| 23 | Battery Type | Replaceable and Rechargeable Lithium Ion, 10.8V, 6500mA |
| 24 | Battery Capacity | 10 hours of normal use or print 350 ECG (12 channel format at 25mm/s and 10mm/mV) or Spiro pages. Battery recharge to full capacity in 3 hours. (The device is turned off) |
| 25 | Communication | LAN, WIFI (Option), USB flash driver, USB barcode scanner |
| 26 | Safety Conformity | Class I, Type CF Applied Parts: ECG Electrodes Type B Applied Parts : Spirometer Handle |
| 27 | Environmental (Operation) | Ambient Temperature : 10 to 40ºC Relative Humidity : 30 to 85% Atmospheric Pressure : 700 to 1060hPa |
| 28 | Environmental (Storage/Ship) | Ambient Temperature : -20 to 60℃ Relative Humidity : 10 to 95% Atmospheric Pressure : 500 to 1060hPa |
| 29 | Dimensions | Main Body - 286(W) x 350(D) x 140(H) mm (Cardio Q50) - Approx. 4.5kg (Max) |
| 30 | Standard Accessory | Power Cord - 1 ea Patient Cable - 1 ea ECG clips - 1 set Disposable Electrodes - 1 pouch Chart paper - 1 ea Operation manual - 1 ea Diagnose guide - 1 ea Rechargeable battery - 1 ea USB WiFi dongle - 1 ea |
* Specifications can be changed without prior notification.
| Item Code | Item Description | |||
|---|---|---|---|---|
| wdt_ID | Item Image | Item Code | Item Description | Buy Now |
| 61 |
|

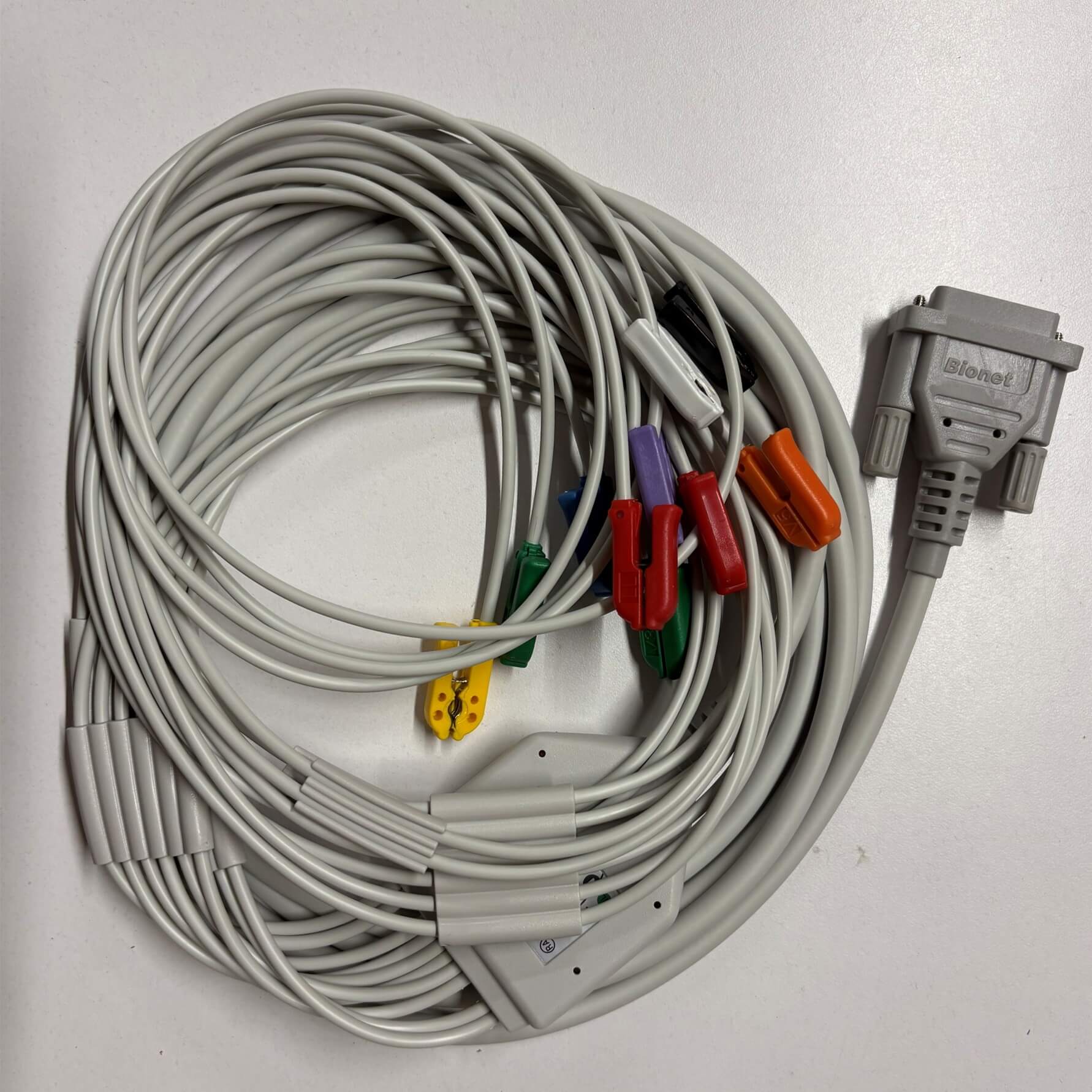

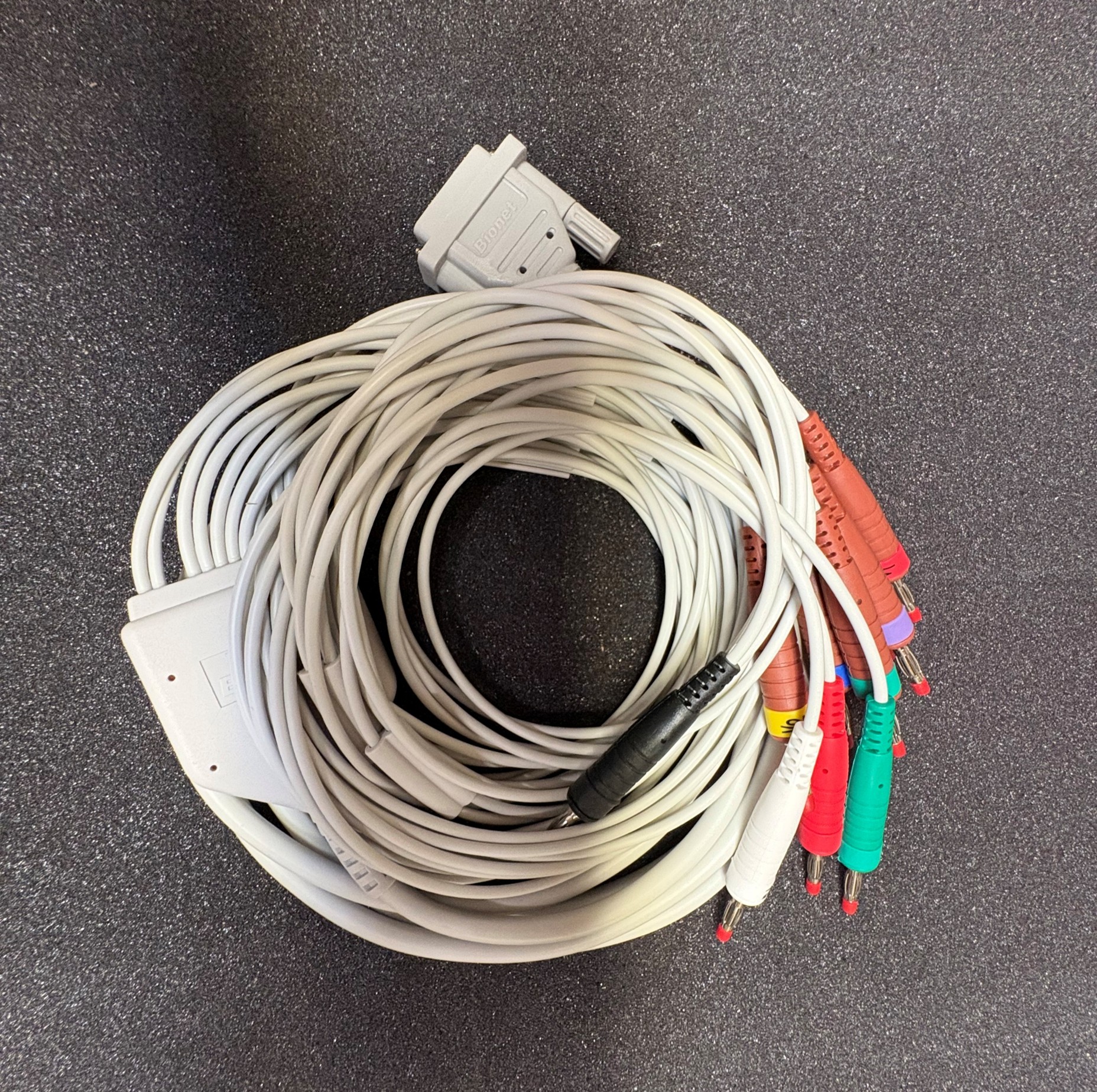

ECG-CBL-Q | 10 Lead ECG Patient Cable Compatible with Cardio Q70, Cardio Q50 |
Buy Now |
| 62 |
|
ECG-RE | ECG resting electrode (5 packs/bag) | Buy Now |
| 64 |
|
ECG-CLIP(N) | ECG alligator clip (10 pcs/set) | Buy Now |
| 66 |
|
ECG-STYLUS | ECG touch screen stylus pen | Buy Now |
| 67 |
|
ECG-BAT-Q | Rechargeable battery for Cardio Q50/70, Li-ion 10.8V, 6.5A, 6 Cell |
Buy Now |
| 68 |
|
PC-A (H) | Hospital grade power cable | Buy Now |
| 69 |
|
USB-WIFI25 | USB WiFi dongle (Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity) | Buy Now |
| 70 |
|
ECG-PP-A4 | Folded A4 Medi-graph paper ( 1pack/ 164pages / 82 data printable per 10 seconds ) |
Buy Now |
| 71 |
|
ECG GEL | ECG GEL (260ML) | Buy Now |
| 72 |
|
ECG-HANGER | ECG Cable Hanger for ECG-CART | Buy Now |
| 73 |
|
ECG-CART-Hanger | ECG Cart with Hanger | Buy Now |
| 82 |
|
ECG-CART | ECG cart for CardioCare 2000 and Cardio7 (hanger not included, must be purchased separately) | Buy Now |
| 83 |
|
SPM-300(U) | Spirometer – requires Cardio7 ECG unit. Includes: one sensor, one handle dock, one nose clip, one diagnosis guide, one operation manual, and 100 mouthpieces – Does Not include calibration syringe. |
Buy Now |
| 84 |
|
SPM-MP | SmarTube (disposable mouthpiece - 100/box) (no warranty) | Buy Now |
| 85 |
|
SPM-CS | 3L calibration syringe (90-day warranty) | Buy Now |
| 86 |
|
SPM-CSHandle | REF 201824 Handle for Rudolph Syringes | Buy Now |
- Overview
-
Q50 is designed to simplify ECG workflow intuitively with a capacitive LCD screen, providing easy & prompt access to the workflow
With its fully loaded interpretive diagnostic modes, the Q50 features data export in XML, PDF, MFER, JPEG, BMP, and DICOM for easy data management of patient information to any EMR/HIS system.Its unique 30-minute full disclosure with ECG live mode and real-time arrhythmia detection, Q50 makes ECG workflow faster and simpler, enhancing caregivers’ productivity and allowing for better patient care.
Enhanced user interface with capacitive screen
Q50 features an 8-inch capacitive, shock-resistant LCD screen that works well with medical gloves.Built-In Memory, USB Flash Drive & Barcode scanner Support
Stores up to 500 ECGs in internal flash memory. The saved ECGs can be converted to various standard file formats, such as JPG, PDF, XML, MFER, and DICOM, and exported to external USB flash drive & barcode scanner.Enable Pre-acquisition for Prompt interpretation and Immediate print-out
Maintain continuous ECG acquisition : ECG leads are swiftly processed for interpretation, print-out and data storage in just 3 seconds,
facilitated by a running pre-acquisition mode. This allows for conveniently fast ECG review and interpretation.Automatic ECG Acquisition with One Touch
Q50 streamlines the ECG workflow through its built-in ‘AUTO’ key, allowing for a single touch of a button to cover ECG acquisition, analysis, documentation, and export to EMR, HIS, and PACS.Long-term acquisition (Recording) & Auto Real-time Arrhythmia Detection
The pre-configured ECG acquisition time ranges from 10 seconds up to 30 minutes, providing enhanced real-time auto arrhythmia detection. This offers an optimized diagnostic time range for further analysis of HRV.Glasgow Algorithm
The Glasgow Interpretation Algorithm has been integrated into Q50 to provide the most accurate ECG interpretation for pediatric and adult STEMI based on extensive use of age- and sex-based criteria.Full-Disclosure up to 30 minutes for Highly Accurate Arrhythmia Detection
Q50 features a 30-minute full-disclosure mode supporting automatic and real-time arrhythmia analysis up to 30 minutes, providing comprehensive full-waveform trend data. This functionality ensures accuracy in ECG interpretive diagnosis, leaving no beat unnoticed.Cybersecurity / HIPAA compliant Architecture
All patient data is encrypted and protected by unique IDs, configurable password, as well as concealment of patient names and hospital information. This ensure the safety of all information under any circumstances.Includes:
Q50 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Operation Manual, Diagnostics Guidebook, Quick Reference Guide, and 3-Year Warranty Card. Wifi USB DongleOption:
ECG cart with hanger arm - Specifications
-
wdt_ID Feature Specification 1 ECG Leads Simultaneous 12 channel ECG and acquisition 4 Recording Channel 3CH+3RHY, 3CH+1RHY, 6CH+1RHY, 12CH, 1CH+3, Cabrera Report
1CH Long Time (1min, 3min, 5min,10min, 20min, 30min) and
Special Beat Report (Text, Guide, Vector)5 Gain 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV 6 Printing Speed 5, 12.5, 25, 50, 100 mm/sec 7 Sampling Rate Digital Sampling Rate: 8,000Hz 8 Filters AC (50/60 Hz, -20dB or better),
Muscle (25~35Hz, -3dB or better),
Bionet Baseline Drift (0.05Hz, 0.1Hz, 0.2Hz, -3dB or better),
Low Pass Filter(off, 40Hz, 100Hz, 150Hz)11 Patient Data ID, Name, Date of Birth, Age, Gender, Height, Weight, Race,
Smoke, Department, Room No., Study Desc., Accession No.,
Referring Physician12 Basic Measurement & Interpretation Heart Rate (30~300bpm, ±3bpm), PR/RR Int, QRS Dur, QT/QTc Int,
P-R-T axis, SV1/RV5/R+S Amp
Bionet ECG analysis algorithm, the University of Glasgow ECG analysis algorithm13 Electrical Internal Noise: 20uV(p-p)max
Input Impedance: ≥ 50MΩ
Input Voltage Range: ±5mV
CMRR: > 105dB
DC Offset Voltage: ≥ ±400mV
Patient Leakage Current: Frequency Response: 0.05~200 with in –3dB
Isolated, Defibrillation and ESU Protected14 Signal Quality Control Pacemaker Pulse Detection
Lead Fault Detection, Signal Saturation Detection15 Data Storage Internal Storage for 500 Data : Built- in Memory 16 Display 8” Color TFT Wide Display (1024 x 600),
12 Channels Preview ECG Wave17 User Interface Capacitive Touch Screen (Alphanumeric and Symbol Available),
Function Keys18 Printer Resolution Thermal Print Head, Z-fold Paper 19 Report Paper
- A4: 210mm (8.3”) x 300mm (11.8”)
- Letter: 215mm (8.5”) x 280mm (11”)20 Paper Size
- A4: 210mm x 150mm (half A4)
- Letter: 215mm x 140mm (half Letter)21 Resolution
- Vertical: 8dot/mm
- Horizontal: 16dot/mm (0.125mm pitch)22 Line Power Input : 100~240 VAC, 50/60Hz, 1.5~0.75A
Output : 15 VDC, 4.2 A23 Battery Type Replaceable and Rechargeable Lithium Ion, 10.8V, 6500mA 24 Battery Capacity 10 hours of normal use or print 350 ECG (12 channel format at 25mm/s and 10mm/mV) or Spiro pages.
Battery recharge to full capacity in 3 hours. (The device is turned off)25 Communication LAN, WIFI (Option), USB flash driver, USB barcode scanner 26 Safety Conformity Class I, Type CF Applied Parts: ECG Electrodes
Type B Applied Parts : Spirometer Handle27 Environmental (Operation) Ambient Temperature : 10 to 40ºC
Relative Humidity : 30 to 85%
Atmospheric Pressure : 700 to 1060hPa28 Environmental (Storage/Ship) Ambient Temperature : -20 to 60℃
Relative Humidity : 10 to 95%
Atmospheric Pressure : 500 to 1060hPa29 Dimensions Main Body
- 286(W) x 350(D) x 140(H) mm (Cardio Q50)
- Approx. 4.5kg (Max)30 Standard Accessory Power Cord - 1 ea
Patient Cable - 1 ea
ECG clips - 1 set
Disposable Electrodes - 1 pouch
Chart paper - 1 ea
Operation manual - 1 ea
Diagnose guide - 1 ea
Rechargeable battery - 1 ea
USB WiFi dongle - 1 ea* Specifications can be changed without prior notification.
