SpiroCare
Spirometer – Pulmonary Function Testing – Touch Screen

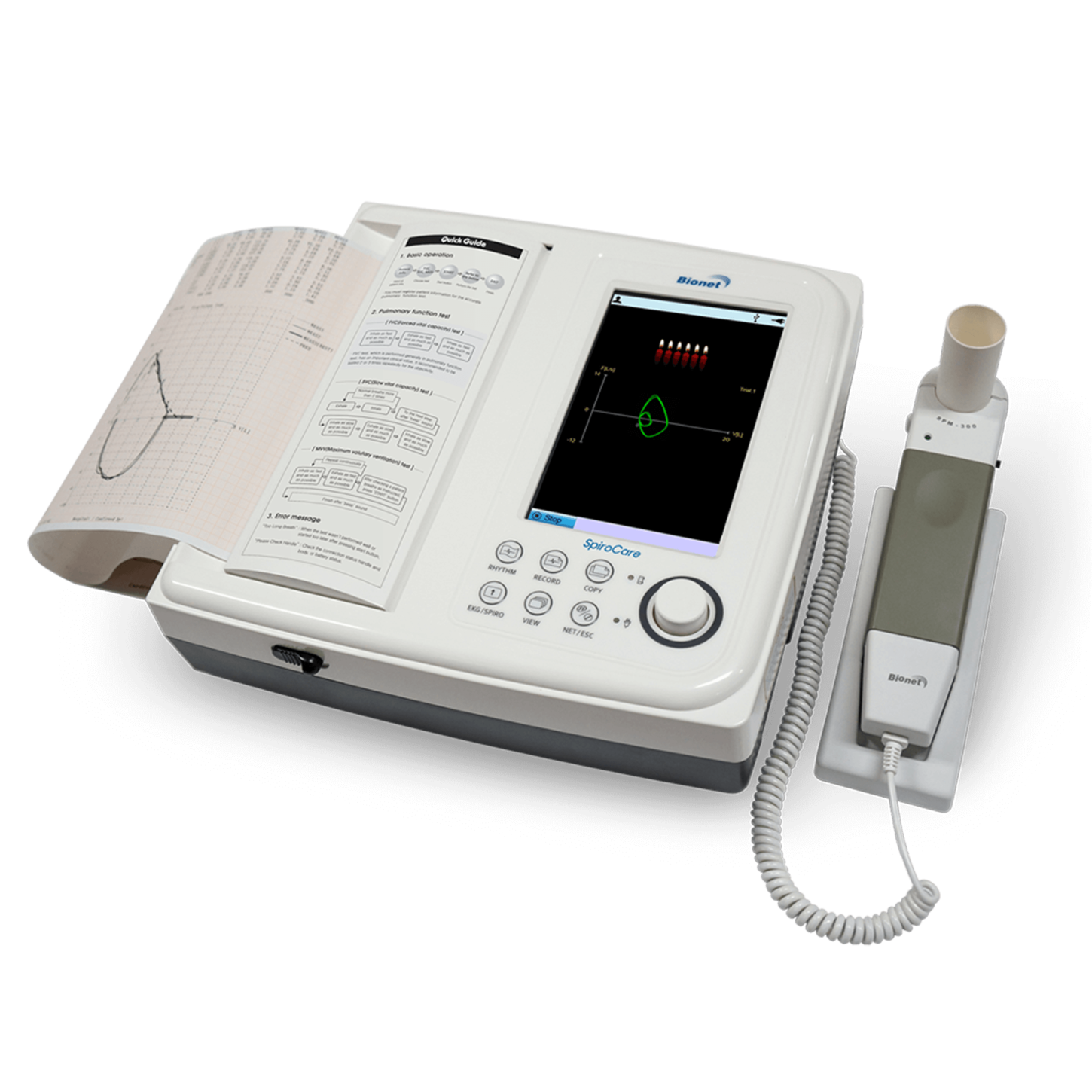

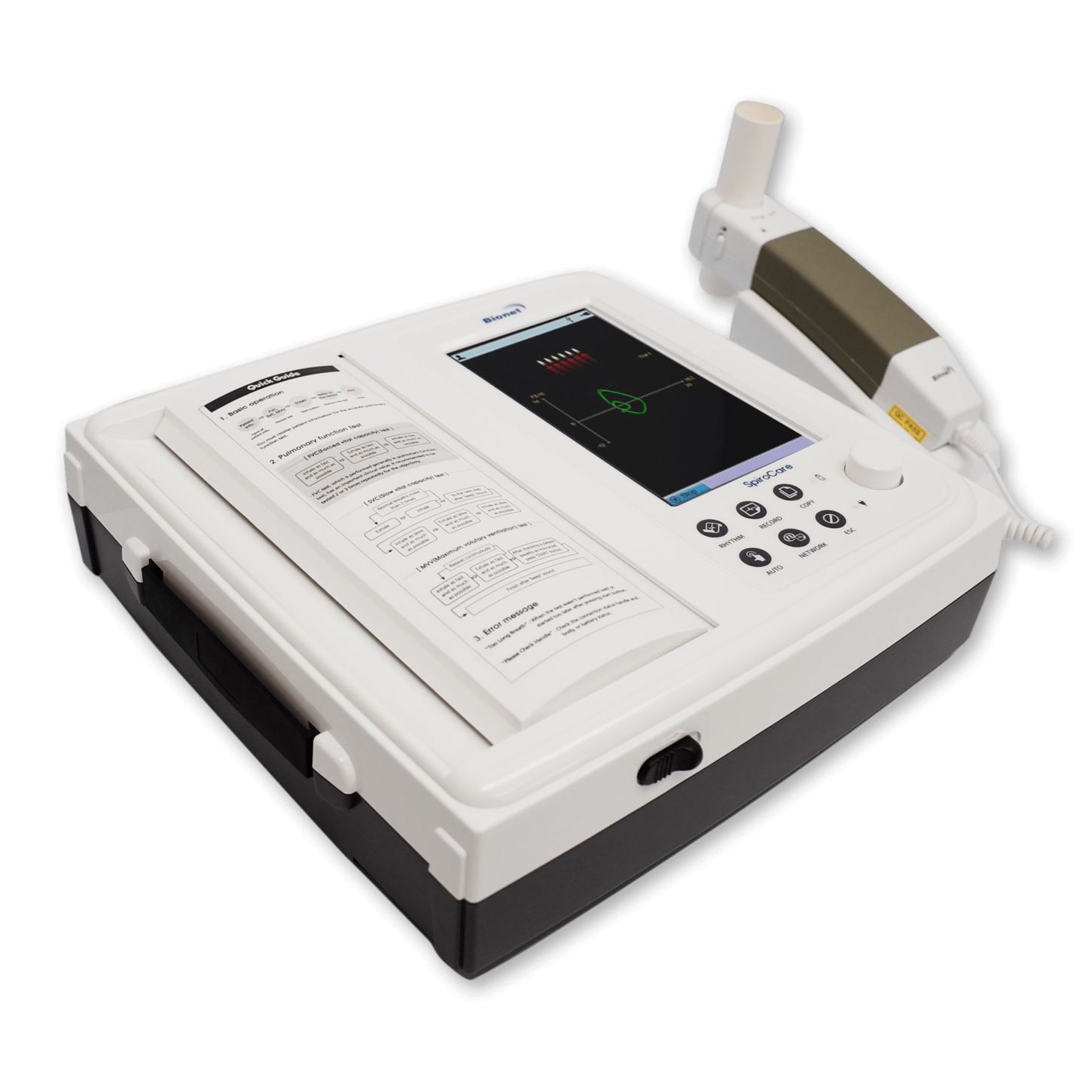

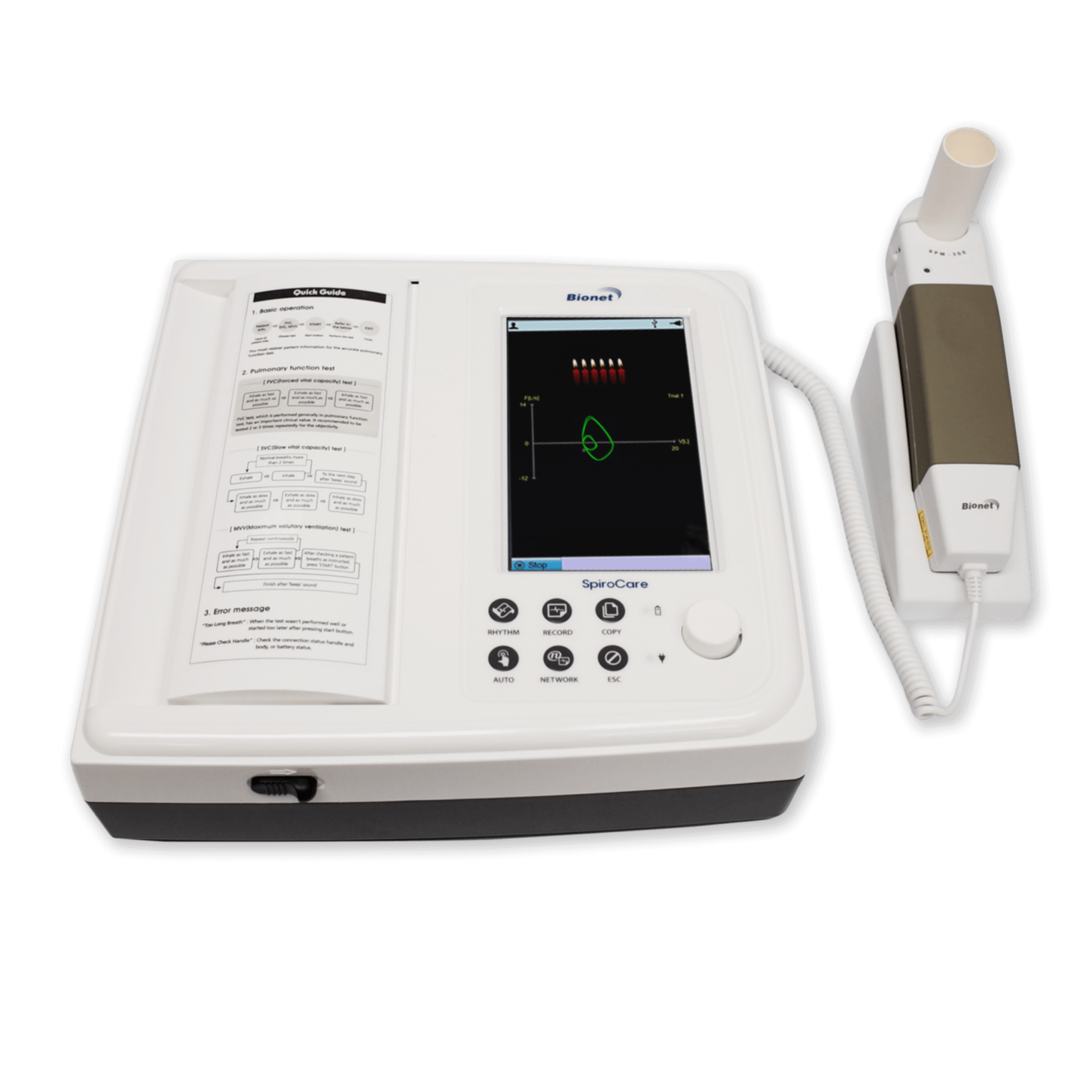

The SpiroCare unit is an accurate and hygienic spirometer. It features 7” color touch screen, provides FVC/SVC/MVV/post-bronchodilator tests, candle blowing-out animation to encourage patient success, accurate measurement from disposable mouthpiece with patented-sensor method, prints PFT test report with interpretation, and a 3-year warranty.
Saves up to 200 tests internally and exports saved data to USB flash drive, in JPEG/PDF/DCM file formats.
The SpiroCare unit is an accurate and hygienic spirometer. It features 7” color touch screen, provides FVC/SVC/MVV/post-bronchodilator tests, candle blowing-out animation to encourage patient success, accurate measurement from disposable mouthpiece with patented-sensor method, prints PFT test report with interpretation, and a 3-year warranty.
Saves up to 200 tests internally and exports saved data to USB flash drive, in JPEG/PDF/DCM file formats.
Product Highlights
7” color TFT LCD touch screen
FVC, SVC, and MVV test
PFT test report with interpretation
Pre- and post-bronchodilator comparison
Built-in printer and rechargeable battery
Internal storage up to 200 cases and USB storage
Product Highlights
7” color TFT LCD touch screen
FVC, SVC, and MVV test
PFT test report with interpretation
Pre- and post-bronchodilator comparison
Built-in printer and rechargeable battery
Internal storage up to 200 cases and USB storage
It is highly recommended to calibrate a spirometer with Bionet 3L calibration syringe periodically, in order to ensure accurate calibration of your spirometer.
Our calibration recommendations are based upon guidelines from the American Thoracic Society (ATS) and the European Respiratory Society (ERS)
- The volume accuracy of the spirometer must be checked at least daily with a single discharge of a 3-L calibrated syringe.
- At least quarterly, volume spirometers must have their calibration checked over their entire volume range using a calibrated syringe or an equivalent volume standard. The measured volume should be within 3.5% of the reading or 65 mL, whichever is greater. This limit includes the 0.5% accuracy limit for a 3-L syringe.
The SpiroCare unit is an accurate and hygienic spirometer. It features 7” color touch screen, provides FVC/SVC/MVV/post-bronchodilator tests, candle blowing-out animation to encourage patient success, accurate measurement from disposable mouthpiece with patented-sensor method, prints PFT test report with interpretation, and a 3-year warranty.
For data management, it saves up to 200 tests internally and exports saved data to USB flash drive, in JPEG/PDF/DCM file formats.
Performance
- FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Maximum) test.
- Pre- and post-bronchodilator comparison.
- Accurate measurement by using disposable mouthpiece with built-in sensor.
- PFT test report with interpretation.
User-Friendliness
- 7” color screen for displaying measurement in real time.
- Touch interface for easily entering patient information.
- Built-in printer and rechargeable battery.
- USB barcode reader and keyboard can be attached through USB ports.
- Disposable mouthpiece with patented sensing method is hygienic and eliminates the hassle of cleaning.
Data Management
- Saves up to 200 tests internally.
- Exports the saved data to USB flash drive as JPEG/PDF/DCM file format.
Special Advantage
- 3-year warranty
Includes:
SpiroCare Main Unit with Spirometer Handle, 1 Medi-Graph Paper Roll, 20 Disposable Mouthpieces, 1 Nose Clip, 1 Mouthpiece Adapter, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book and 3-Year Warranty Card
Option:
Cart
| wdt_ID | Feature | Specification |
|---|---|---|
| 47 | Dimension | 296 (W) x 305.5 (H) x 34 (D) mm, approx. 250 kg |
| 48 | Measuring Values | - FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2-1.2l, fef 25-75%, FEF 75-85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET100%, Extrapolated Volume - SVC: SVC, ERV, IRV, TV, EC - MVV: MVV, FB, TV |
| 56 | Presentation | Flow volume loop MVV: MVV, FB, TV Measurement values table |
| 59 | Measuring Range | Flow: 0 to ± 14 L/s Volume: 0 to ± 12 L |
| 62 | Measuring Method | Differential pressure method |
| 65 | Prediction Equation | Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK |
| 66 | Sample Rate | 200 samples/sec |
| 67 | Flow Impedance | < 0.2 mbar s/l at 12 l/s |
| 68 | Measuring Accuracy | Complies with ATS (American Thoracic Society) |
| 69 | Environment | Ambient temperature: 15 to 40°C (59 to 104°F) Relative humidity: 10 to 90% (non-condensing) Atmospheric pressure: 700 to 1060 hPa |
| 72 | Standard Accessories | Disposable mouthpiece - 20 ea Nose clip - 1 ea Adapter - 1 ea Handle dock - 1 ea Operation manual - 1 ea Diagnosis guide - 1 ea Power cord - 1 ea |
* Specifications can be changed without prior notification.
Item Code
Item Description
wdt_ID Item Image Item Code Item Description Buy Now
63
ECG/FC-BAT
Battery Console Li-ion 1 Line, 4 Cell, 10.8V, 3250mA/h
Buy Now
66
PC-A (H)
Hospital grade power cable
Buy Now
67
ECG-CART
ECG cart for CardioCare 2000 and Cardio7 (hanger not included, must be purchased separately)
Buy Now
71
ECG-STYLUS
ECG touch screen stylus pen (for Cardio7 only)
Buy Now
72
SPM-300(U)
Spirometer – requires Cardio7 ECG unit.
Includes: one sensor, one handle dock, one nose clip, one diagnosis guide, one operation manual, and 100 mouthpieces – Does Not include calibration syringe.Buy Now
73
SPM-MP
SmarTube (disposable mouthpiece - 100/box) (no warranty)
Buy Now
74
SPM-CS
3L calibration syringe (90-day warranty)
Buy Now
75
SPM-CSHandle
REF 201824 Handle for Rudolph Syringes
Buy Now
